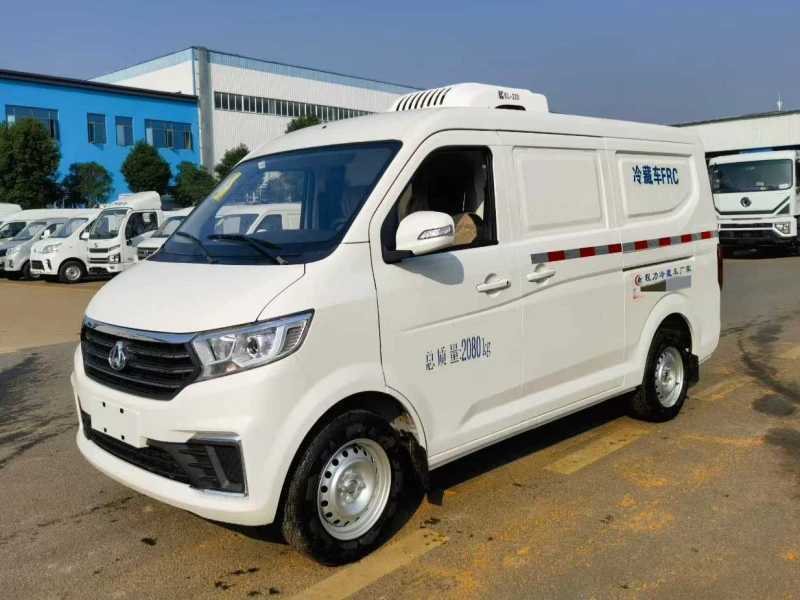

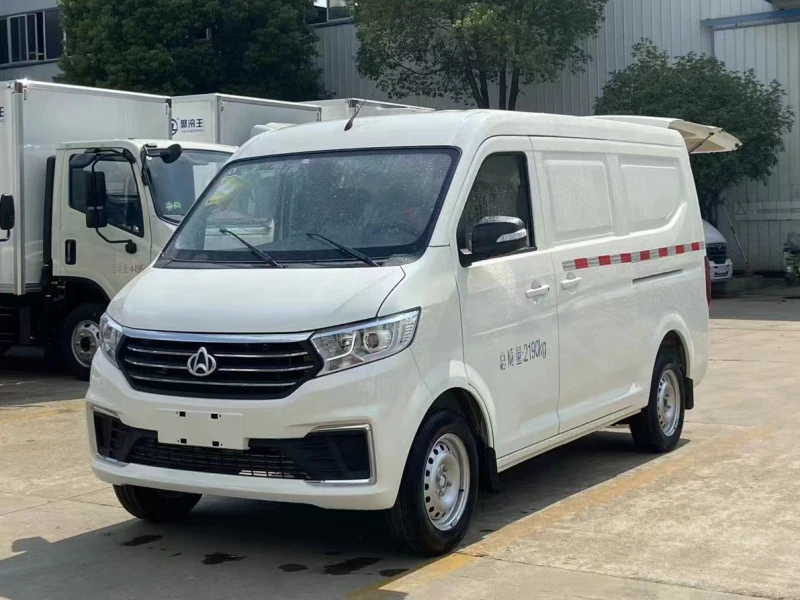

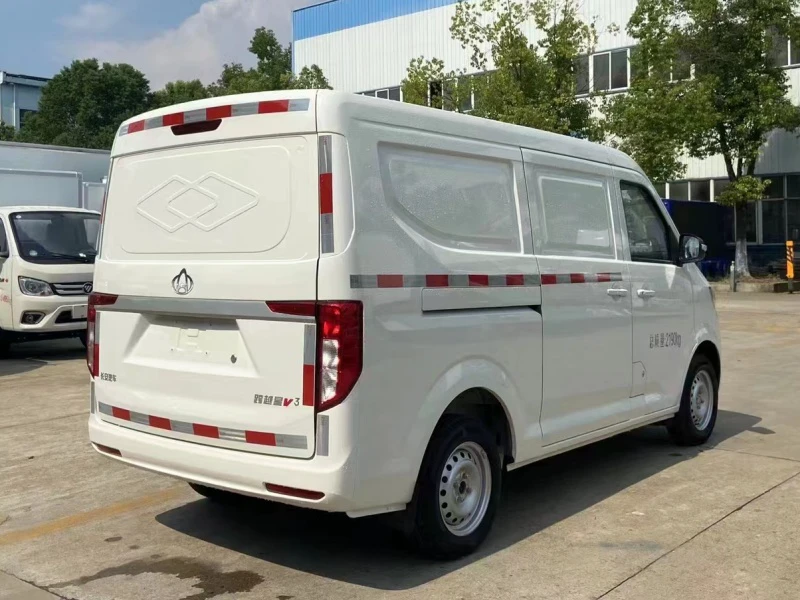

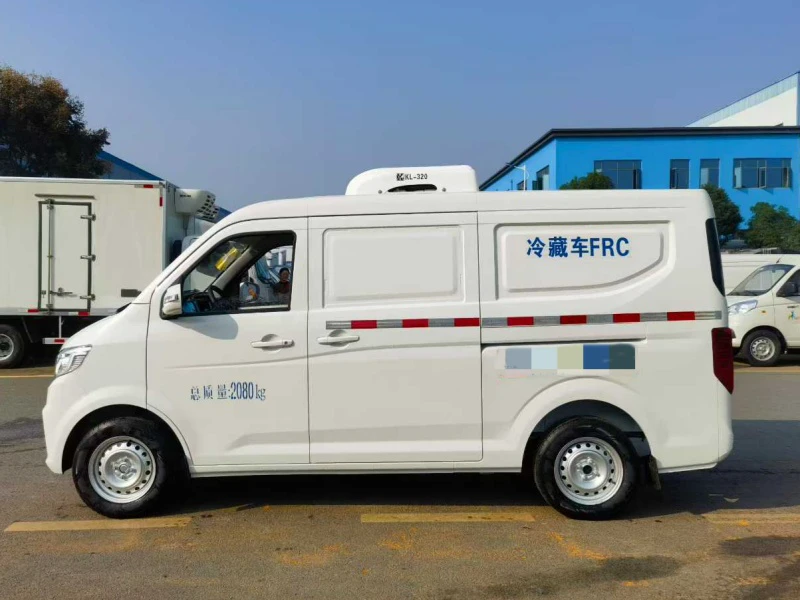

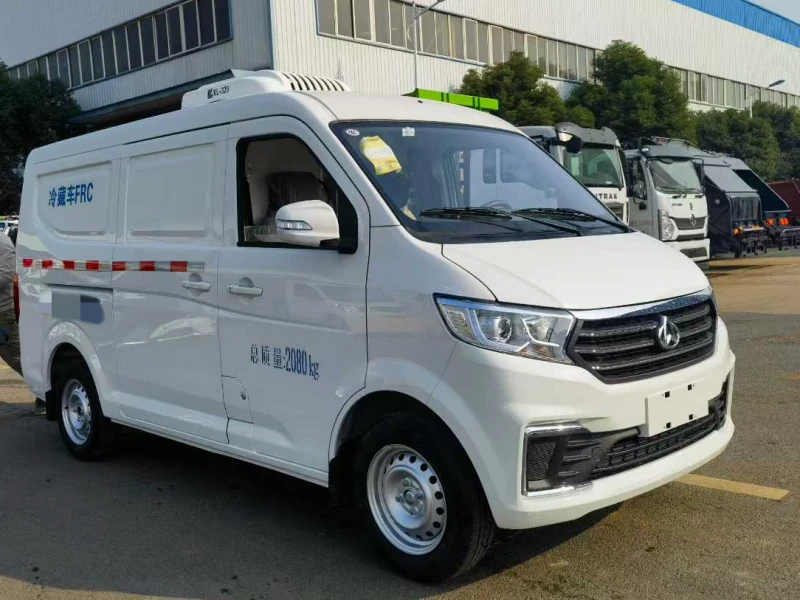

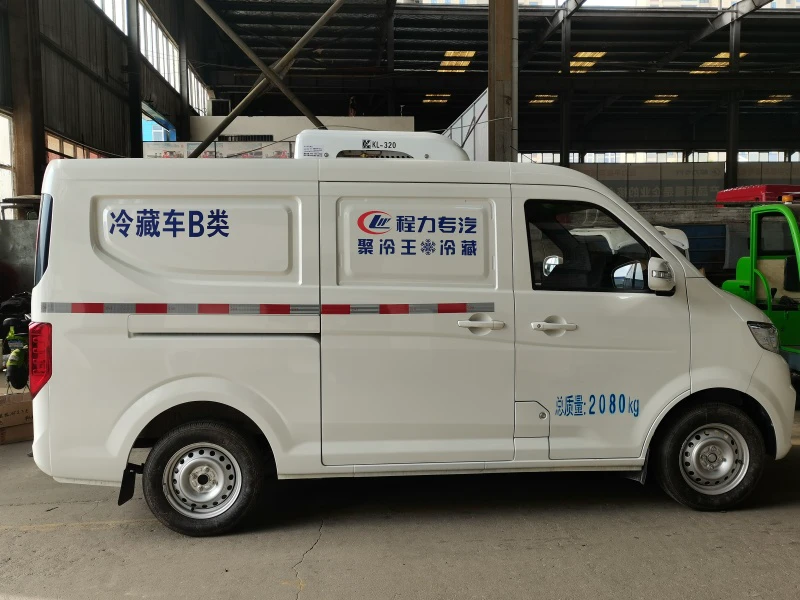

Chang'an V3 Bread Refrigerated Truck (Model: CLW5023XLCSDP) | Chang'an bread refrigerated truck 2m box length, 3m³ volume

I. Product Overview
The Chang'an V3 Bread Refrigerated Truck is a compact, high-performance refrigerated vehicle engineered for temperature-controlled logistics. Built on the reliable SC5021XXYWQ6B3 chassis, it combines a fuel-efficient 1.5L engine with advanced insulation technology to ensure consistent cold chain transport. This model is ideal for urban delivery of perishable foods, frozen products, and pharmaceuticals, offering dependable cooling performance and operational efficiency.

II. Core Specifications

• Overall Dimensions (L×W×H): 4200 mm × 1680 mm × 2150 mm

• Cargo Box Dimensions (L×W×H): 1940 mm × 1280 mm × 1150 mm (Approx. 2.85 m³ interior volume)

• Weight Ratings: Gross Vehicle Weight: 2080 kg | Payload Capacity: 630 kg | Curb Weight: 1320 kg

• Chassis Features: Wheelbase: 2700 mm | Tires: 175/70R14 Vacuum Tires | Factory-Installed Air Conditioning

• Cooling System: Hana -15°C Refrigeration Unit (Adjustable for deep-freeze applications)

III. Exterior Design & Build Quality

• Exterior Dimensions: Compact 4.2-meter length enables easy maneuvering in narrow urban streets and confined loading areas.

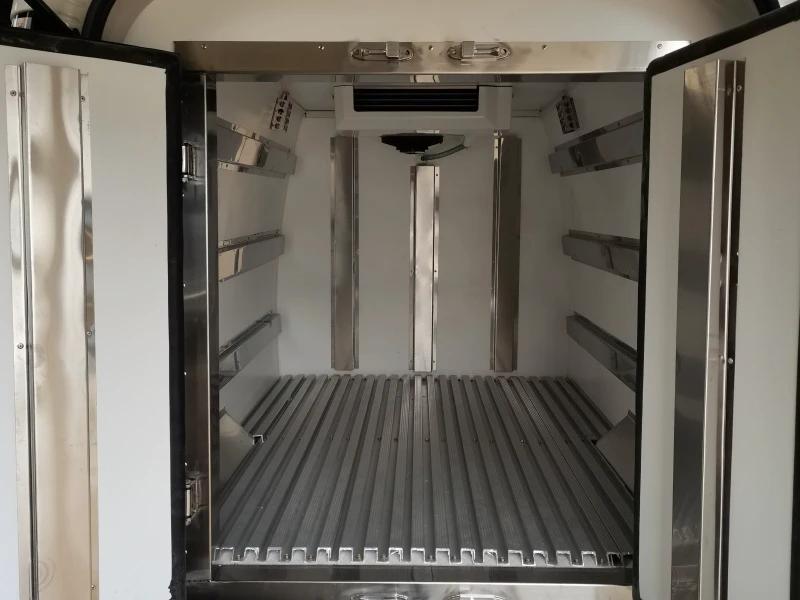

• Cargo Box Construction:

  • Inner/Outer Panels: High-strength fiberglass – UV-resistant, excellent thermal insulation, high hardness, and oxidation resistance.

  • Insulation Core: XPS Extruded Polystyrene Foam – Optimized thickness to meet national A-class insulation standards, minimizing temperature loss.

  • Flooring: Reinforced fiberglass floor for enhanced durability, moisture resistance, and easy cleaning.

• Design Philosophy: Combines aerodynamic styling with functional durability. Features stainless steel door frames, hinges, and locks, along with labyrinth rubber door seals to ensure an airtight barrier against temperature fluctuations.

IV. Structural Advantages

• Engine: Powered by a Chongqing Chang'an 1.5L engine delivering 107 horsepower – provides an optimal balance between strong performance and low fuel consumption for cold chain logistics.

• Transmission: Equipped with a 5-speed manual gearbox – ensures smooth gear shifting and reliable adaptability across various terrains, from highways to hilly routes.

• Front & Rear Axles: Precision-engineered heavy-duty axles enhance load distribution and minimize vibration during transit, protecting sensitive cargo.

• Chassis Integration: The 2700 mm wheelbase maximizes cargo space utilization while maintaining a tight turning radius for superior urban maneuverability.

V. Key Features & Manufacturer Advantages

• Advanced Manufacturing Process: The cargo box is manufactured using vacuum adsorption and hydraulic molding integrated molding technology, creating a seamless sandwich composite bond that guarantees leak-proof insulation and structural integrity.

• Customizable Options:

  • Optional 5-sided ventilation grooves for optimized cold air circulation

  • Optional temperature and humidity recorders for real-time cargo monitoring

  • Configurable multi-temperature zones for mixed cargo types

• Chengli Group Advantages:

  • Industry-leading quality control with ISO-certified production facilities

  • Extensive after-sales service network ensuring rapid maintenance and parts support

  • Cost-effective refrigerated truck solutions tailored to the specific needs of fleet operators and small businesses

  • Proven expertise in manufacturing specialized commercial vehicles with a strong reputation in domestic and international markets

This Chang'an V3 Bread Refrigerated Truck exemplifies Chengli Group's commitment to innovation, reliability, and energy efficiency in modern cold-chain transport solutions.
