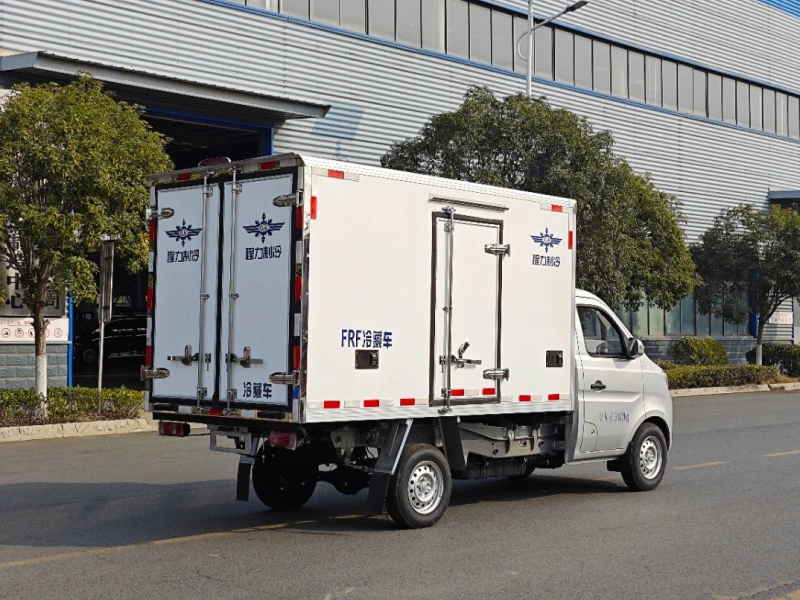

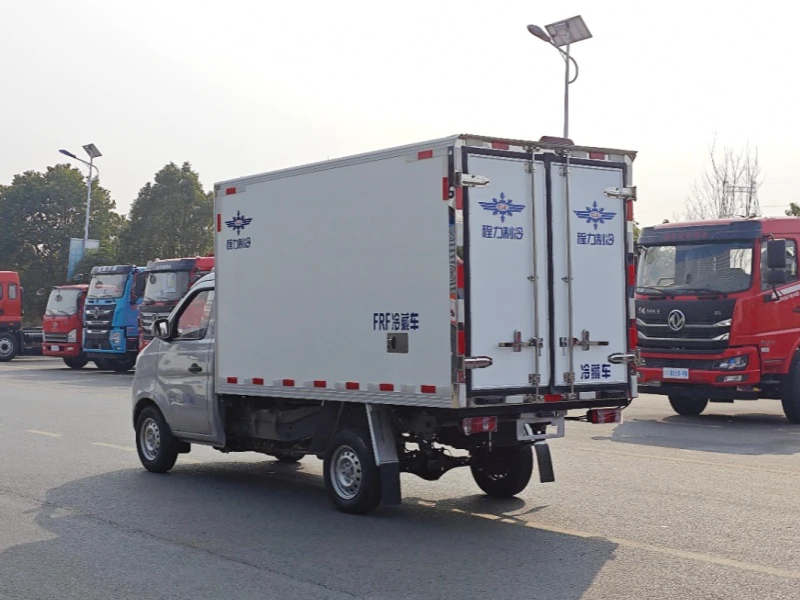

Chang'an Refrigerated Truck Jinbiao T3 (Single Rear Wheel) | Chang'an refrigerated van 3m cargo length 7.5m³ volume
Model: SC5031XLCTMD6B1

I. Product Overview
This Chang'an Jinbiao T3 refrigerated truck is a compact and efficient cold chain transport solution designed for light-duty urban delivery applications. Built with a single rear wheel configuration, this model offers excellent maneuverability in narrow city streets while providing reliable temperature-controlled transport for fresh food, pharmaceuticals, and other perishable goods. The combination of a fuel-efficient 1.6L engine and professional-grade insulated body makes it an ideal choice for small-scale logistics operations.

II. Core Specifications

• Complete Vehicle Model: SC5031XLCTMD6B1

• Overall Dimensions (L×W×H): 5135×1700×2610 mm

• Cargo Box Internal Dimensions (L×W×H): 2960×1560×1600 mm

• Cargo Volume: Approximately 7.4 cubic meters

• Wheelbase: 3080 mm

• Engine: 1.6L Petrol Engine, 122 HP

• Tire Configuration: 175R14 (Single Rear Wheel)

• Payload Capacity: 1395 kg

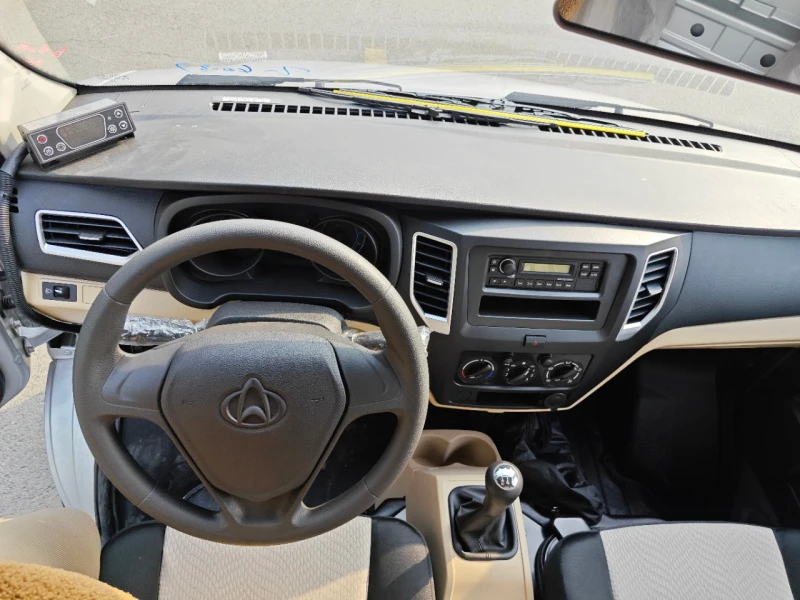

• Standard Features: Factory Air Conditioning, Power Steering

III. Dimensions, Materials & Design Concept

• Insulation Thickness: 80 mm

• Core Insulation Material: XPS Extruded Polystyrene Board

• Structural Frame: Galvanized Steel Tube Framework

• Interior/Exterior Panels: Premium Fiberglass Reinforced Plastic (FRP) - non-light absorbing, excellent thermal insulation, high hardness, oxidation-resistant

• Floor Material: Plastic-Steel Pattern Plate

• Side Protection: 15cm Interior Skirting Board

• Edge Protection: Thickened Aluminum Alloy Edging, Stainless Steel Corner Protectors

• Door Seals: Labyrinth-type Rubber Sealing Strips

• Door Frame: Bright Stainless Steel Door Frame

• Hardware: Stainless Steel Door Hinges, Locks, and Fittings

• Interior Lighting: Energy-Saving LED Ceiling Light

• Drainage: Front Drain Holes for Easy Cleaning

• Design Concept: Compact 5.1-meter overall length with 3080mm wheelbase provides excellent urban maneuverability. The broken bridge thermal insulation technology with galvanized steel frame and XPS core ensures superior temperature retention. Right-angle interior edging minimizes dirt accumulation and facilitates cleaning, while the labyrinth door seals provide an airtight barrier against temperature loss.

IV. Detailed Structure & Component Advantages

• Chassis & Frame: The steel-wood composite structure with broken bridge thermal insulation technology prevents thermal conductivity through the frame. The galvanized steel tube framework provides structural integrity while resisting corrosion, ensuring long-term durability for daily refrigerated operations.

• Panel Construction: Advanced manufacturing process utilizing automatic gluing and pressing machinery ensures uniform adhesive application and consistent panel density. This production method prevents delamination and bubbling common in inferior refrigerated bodies, delivering superior thermal performance and extended service life.

• Floor System: The plastic-steel pattern plate floor offers excellent durability, slip resistance, and easy cleaning properties. The 15cm interior skirting boards protect side walls from forklift and cargo damage while improving cold air circulation around floor level.

• Sealing System: Labyrinth-type rubber sealing strips create multiple air barriers when doors are closed, preventing cold air leakage and maintaining stable internal temperatures. The bright stainless steel door frame provides corrosion resistance and professional appearance.

• Hardware Durability: All exterior hardware including hinges, locks, and corner protectors feature stainless steel construction for maximum corrosion resistance in wet and salty environments common in refrigerated transport.

V. Key Features & Chengli Group Advantages

• Thermal Performance: The 80mm XPS insulation core combined with broken bridge technology delivers excellent temperature retention for frozen applications down to -15°C with the included domestic refrigeration unit.

• Urban-Friendly Design: Compact dimensions and single rear wheel configuration enable easy navigation through narrow urban streets and alleys, while the 1395kg payload capacity handles substantial cargo volumes for last-mile delivery.

• Easy Maintenance Features: Front drainage holes allow quick washing and sanitation of the interior. Right-angle interior edges prevent dirt accumulation in corners. The durable FRP panels resist impacts and are easily cleaned.

• Quality Construction: Factory-assembled using precision automatic gluing and pressing equipment ensures consistent quality across all refrigerated bodies, eliminating weak points and potential thermal leaks.

• Chengli Group Advantages:

  • Precision Manufacturing: Chengli utilizes advanced automatic gluing and pressing machinery that combines adhesive application and panel pressing in one continuous process, ensuring uniform glue distribution, preventing bubbling, and delivering rapid production with consistent quality.

  • Proven Thermal Technology: Our broken bridge thermal insulation technique with galvanized steel frames and XPS insulation has been refined through years of refrigerated vehicle production experience, delivering reliable temperature performance.

  • Customization Options: We offer various refrigeration unit options, interior configurations including floor ventilation channels, and temperature monitoring systems to meet specific customer requirements.

  • Quality Materials: Premium FRP panels resist UV damage, provide excellent insulation, and maintain structural integrity in varying temperatures. All hardware components feature stainless steel or aluminum alloy construction for corrosion resistance.

  • Competitive Light-Duty Solutions: As a leading special vehicle manufacturer, Chengli offers cost-effective refrigerated solutions for small businesses and last-mile delivery operators.

  • Comprehensive Support: Nationwide after-sales service network providing technical support, genuine spare parts availability, and maintenance services.
