SAIC Wuling Electric Refrigerated Van with Optional Underground Parking Height | Wuling electric refrigerated van 2.9m cargo length 8m³ volume

I. Product Overview
This SAIC Wuling electric refrigerated van is a professional zero-emission cold chain transport solution featuring optional low-profile design for underground parking access. Built on a dedicated electric platform with advanced battery technology, this model combines environmentally friendly operation with reliable temperature-controlled delivery capability. Ideal for urban fresh food distribution, pharmaceutical transport, and last-mile cold chain logistics in cities with strict emission regulations, it offers exceptional energy efficiency with class-leading motor power and battery capacity.

II. Core Specifications

• Complete Vehicle Dimensions (L×W×H): Multiple configurations available:

  • 5500×1970/1935×1620/2790 mm

  • 5500/5650/5750×1910/1940×2199/2620/2820 mm

• Cargo Box Internal Dimensions (L×W×H): Various options:

  • 2930×1780×1630/1800 mm

  • 2930/3100/3200×1750/1780×2930/3100/3200 mm

• Gross Vehicle Weight: 3300 kg

• Curb Weight: 1910 kg / 1930 kg / 1070 kg

• Payload Capacity: 1260 kg / 1240 kg / 1100 kg

• Battery Type: CATL Lithium Iron Phosphate (LFP) Battery

• Battery Capacity: 53.58 kWh (Largest in domestic class)

• Driving Range: 280 kilometers (Working condition range)

• Warranty: 8 years / 400,000 km for electric motor, battery, and controller

• Seating Capacity: 2 Persons

III. Dimensions, Materials & Design Concept

• Cargo Volume Range: Approximately 5.5 to 8.5 cubic meters depending on configuration

• Insulation Material Options: XPS Extruded Polystyrene Board or Polyurethane Foam

• Floor Material Options: Fiberglass Reinforced Plastic (FRP), Aluminum Checker Plate, or Stainless Steel

• Hardware: Stainless Steel Locks and Fittings

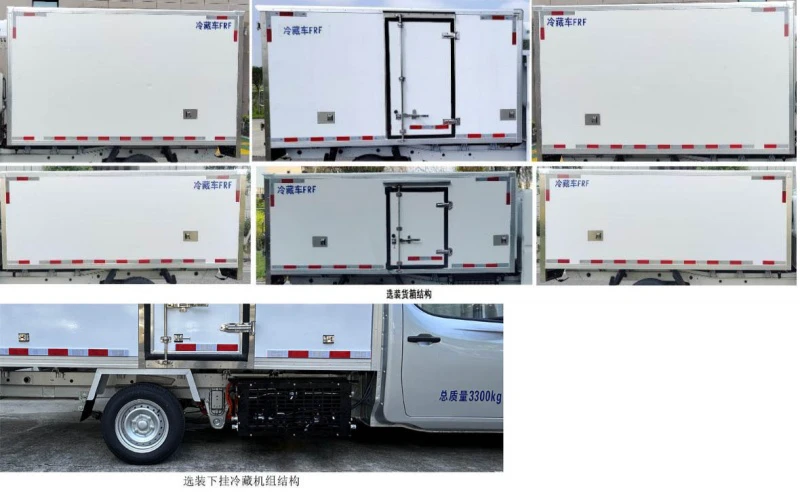

• Additional Features: Side Door Opening Option, Rear Step Bumper

• Design Concept: Available low-profile height options (as low as 1620mm) enable access to standard underground parking garages, solving urban delivery challenges. Multiple wheelbase and body length configurations allow customization for specific cargo volume requirements. The long-nose high-roof cab design prioritizes driver safety and comfort while maximizing refrigerated space utilization.

IV. Detailed Structure & Component Advantages

• Electric Drive System: The "Liuzhou Wuling" permanent magnet synchronous motor delivers an industry-leading 110KW peak power output, the highest in its domestic class. With maximum speed ≥90km/h and integrated energy recovery function, it optimizes energy efficiency while providing robust performance for loaded refrigerated operation. The motor is specifically calibrated for refrigerated transport applications with consistent power delivery.

• Battery Technology: CATL lithium iron phosphate batteries offer superior safety, long cycle life, and class-leading 53.58kWh capacity for extended refrigerated operation. Fast charging achieves 30%-80% in just 30 minutes, minimizing downtime for cold chain logistics fleets. The 6.6KW slow charging completes in 8 hours, while 3.3KW external discharge function supports auxiliary refrigeration equipment during loading/unloading operations.

• Rear Axle & Tires: Class-leading 2.6-ton capacity rear axle with anti-slip drive function ensures reliable traction in wet conditions for this medium-duty refrigerated truck. 195/70R15LT 12PR heavy-duty tires provide excellent load-bearing capability for constant refrigerated transport operations.

• Driving Assistance Features: Comprehensive electronic assistance includes EPS electric power steering with hill start assist for challenging delivery routes, ASR drive anti-slip control for slippery surfaces, DTC drag torque control for smooth operation, and enhanced ABS braking system. The front disc/rear drum hydraulic brake configuration ensures reliable stopping power.

• Transmission & Controls: Rotary knob automatic transmission with creep function enables effortless driving in congested urban traffic, reducing driver fatigue during multi-stop refrigerated delivery routes.

V. Key Features & Chengli Group Advantages

• Underground Parking Accessibility: Select models feature ultra-low overall height enabling access to standard underground parking garages, providing convenient indoor loading/unloading and secure overnight parking—a critical advantage for urban cold chain logistics operations.

• F-Class Freezer Performance: The insulated compartment meets F-class refrigerated standards, capable of maintaining temperatures down to -18°C with electric refrigeration unit. Suitable for frozen foods, ice cream, pharmaceuticals, and deep-frozen products requiring reliable refrigerated transport solutions.

• Flexible Configuration Options: Multiple wheelbase, body length, and height options allow customization for specific operational requirements. Side door option provides additional loading convenience for urban delivery routes.

• Driver-Focused Cab Design: Continuous flat bench seat allows comfortable rest during breaks. Top storage compartment and front storage box provide convenient storage for delivery documents and personal items. Heating and cooling air conditioning ensures cab comfort year-round.

• Comprehensive Safety Systems: Long-nose high-roof design provides enhanced front collision protection. Enhanced ABS with ASR, DTC, and hill assist ensures safe operation under various conditions.

• Chengli Group Advantages:

  • New Energy Expertise: As a pioneering special vehicle manufacturer, Chengli integrates advanced SAIC Wuling electric chassis with professional refrigerated body construction for optimal electric refrigerated vehicle performance.

  • Custom Refrigerated Solutions: We offer various compartment configurations including floor ventilation channels for improved cold air circulation, digital temperature monitoring systems with data logging, and multi-temperature zone options.

  • Premium Component Selection: Featuring CATL batteries, Wuling motors, and your choice of XPS or polyurethane insulation with multiple floor material options for durability and thermal efficiency.

  • Quality Manufacturing: Each refrigerated body features stainless steel hardware, professional insulation installation, and rigorous temperature retention testing.

  • Fleet Support: Competitive wholesale pricing available for logistics companies expanding their new energy cold chain fleets.

  • Comprehensive Warranty: 8-year/400,000km warranty on electric motor, battery, and controller provides long-term operational confidence.
