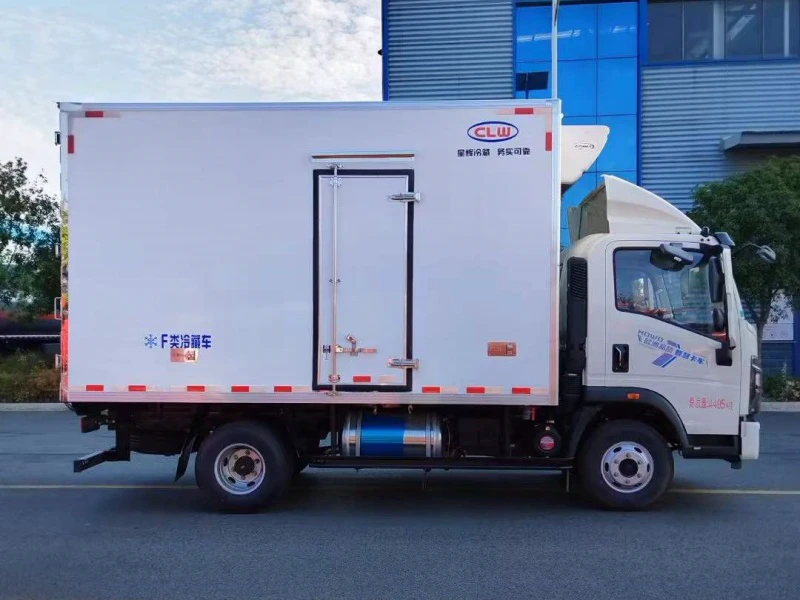

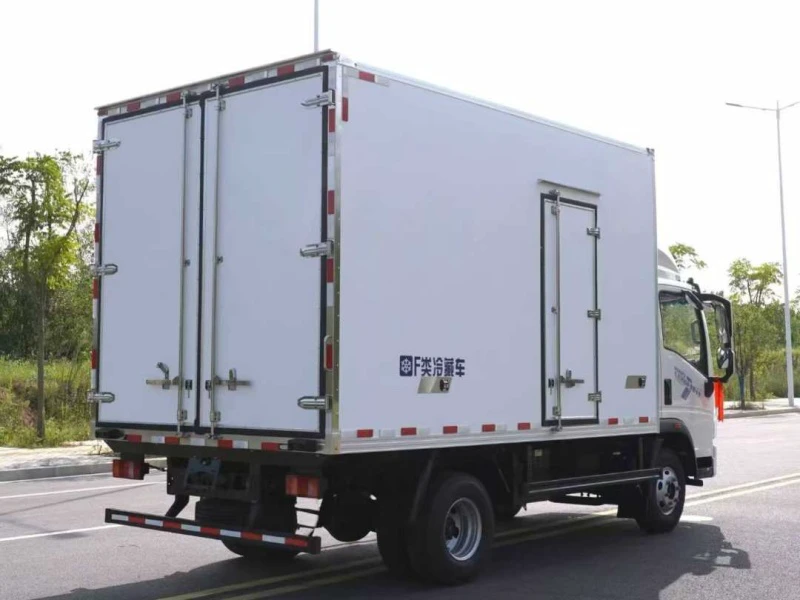

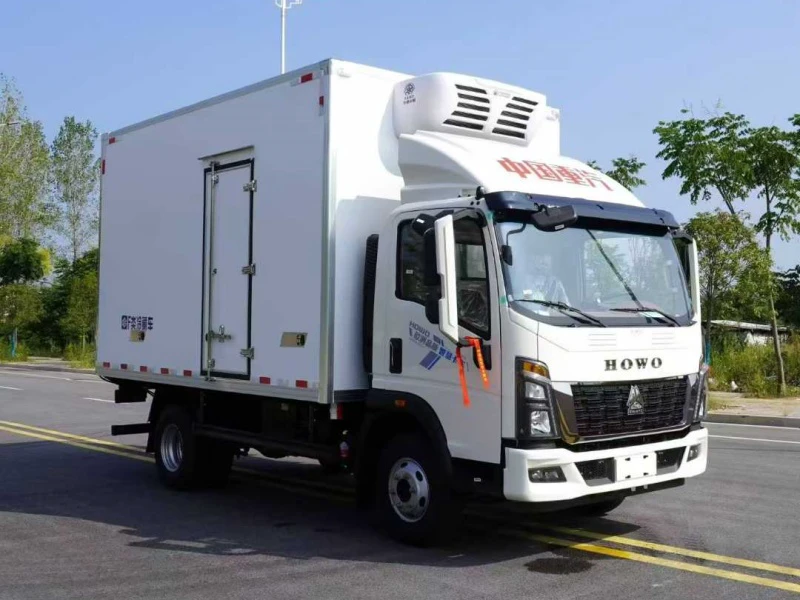

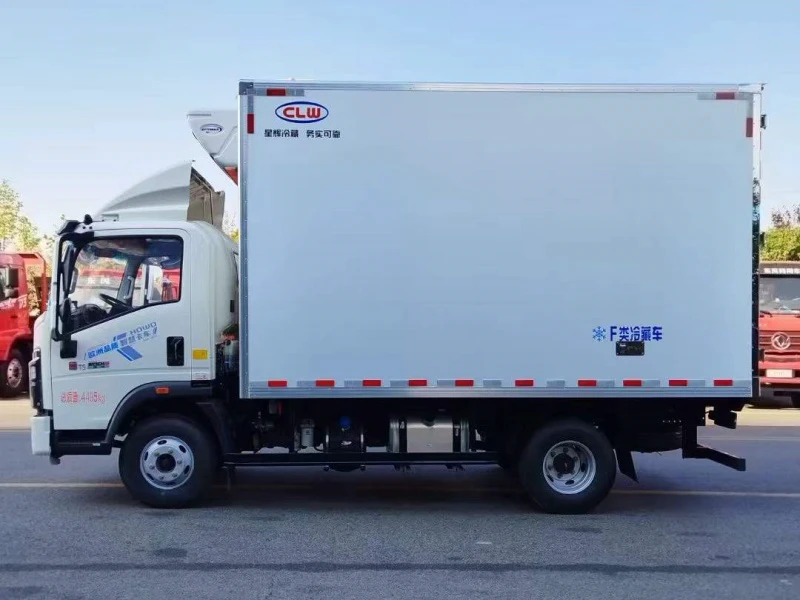

Howo T5 Wide Body Refrigerated Truck (Model: ZZ5047XLCH3315F1) | Sinotruk Box Refrigerated Truck 4m box length 21m³ volume
I. Product Overview
The Sinotruk Howo T5 Wide Body Refrigerated Truck is a heavy-duty cold chain solution engineered for long-haul and large-volume temperature-controlled transport. Built on a robust chassis with a spacious 2100mm wide cab, this model combines high-torque engine performance with advanced insulation technology to ensure cargo integrity over extended distances. Ideal for frozen foods, pharmaceuticals, and perishables requiring consistent temperature control.
II. Core Specifications
Overall Dimensions (L×W×H): 5995×2470×3450 mm
Cargo Box Dimensions (L×W×H): 4000×2300×2300 mm (Approx. 21.2 m³ interior volume)
Weight Ratings: Gross Vehicle Weight: 4495 kg (Class-compliant)
Chassis Features: Wheelbase: 3280 mm | Tires: 7.50R16 | Factory-Installed Air Conditioning | Central Locking | Power Windows | Remote Key | Heated/Auto-Folding Mirrors | Air Horn
Engine: Weichai 160 HP (WP3NQ160E61) | Displacement: 2970 ml | Power: 118 kW
Transmission: 8-Speed Gearbox with High/Low Range
Axles: Hande Maintenance-Free Rear Axle | 6-Ton Capacity | Ratio: 4.33
III. Exterior Design & Build Quality
Exterior Dimensions: 6-meter length with 3280 mm wheelbase provides stability for highway transport.
Cab Design: 2100 mm wide body with ergonomic interior featuring气囊 seats, multi-adjustable center armrest, ambient lighting, and electric heated mirrors for driver comfort.

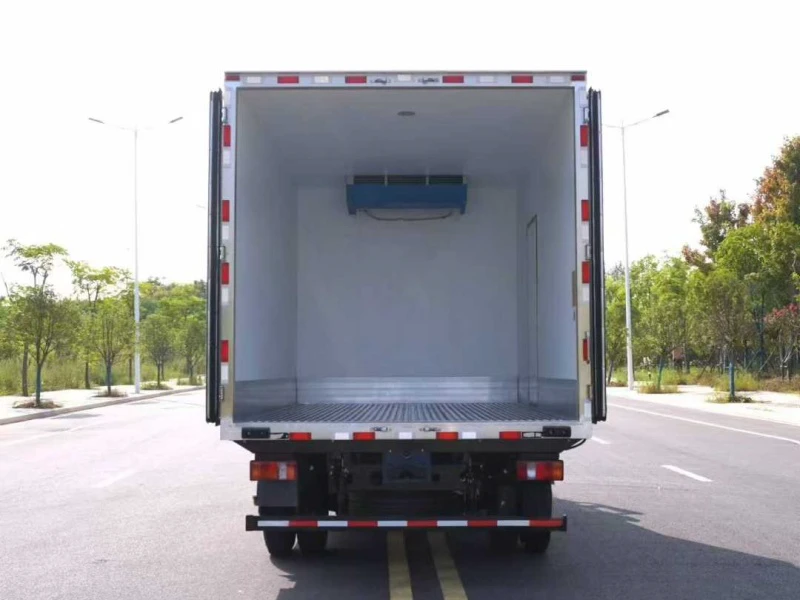

Cargo Box Construction:
Manufacturing Process: Vacuum adsorption + hydraulic molding integrated production line for seamless sandwich composite panels.
Panel Materials: High-strength fiberglass inner/outer panels – UV-resistant, thermal-insulating, oxidation-proof.
Insulation Core: XPS extruded polystyrene foam (optimized thickness meeting national A-class insulation standards).
Sealing: Labyrinth rubber door seals for airtight temperature retention.
Design Philosophy: Aerodynamic profile with reinforced structural integrity for heavy-duty commercial applications.
IV. Structural Advantages
Engine: Weichai 160 HP (WP3NQ160E61) – 3.0L displacement delivering 118 kW power output. Designed for high torque at low RPMs, ensuring fuel efficiency and reliable performance under full loads.
Transmission: 8-speed gearbox with high/low range – provides optimal gear ratios for varied terrains, from urban streets to highway gradients.
Front/Rear Axles: Hande maintenance-free rear axle with 6-ton capacity reduces downtime. 4.33 ratio optimizes fuel economy and load pulling power.
Chassis Integration: 3280 mm wheelbase enhances cargo capacity while maintaining maneuverability. 7.50R16 tires provide durability under heavy loads.
Driver-Focused Features: Air horn for safety, heated mirrors for all-weather visibility, and ergonomic cab design reducing driver fatigue.
V. Key Features & Manufacturer Advantages
Refrigeration Performance: Compatible with -15°C cooling units; optional dual-temperature zones and temperature monitoring systems available.
Advanced Manufacturing:
Vacuum adsorption + hydraulic molding creates seamless composite panels for superior insulation.
Fiberglass panels resist corrosion and UV damage; XPS foam core delivers A-class thermal efficiency.
Chengli Group Advantages:
Industry Leadership: ISO-certified production with rigorous quality control standards.
Customization Expertise: Extensive experience manufacturing specialized for pharmaceutical, food, and vaccine transport.
Comprehensive Support: Nationwide service network providing rapid maintenance and genuine parts availability.
Proven Durability: Trusted by logistics operators for robust construction and long service life in demanding applications.
Cost Efficiency: Maintenance-free axles reduce operating costs; fuel-efficient engine lowers total ownership expenses.
This Sinotruk Howo T5 Refrigerated Truck exemplifies Chengli Group's commitment to heavy-duty cold chain solutions, combining robust engineering with driver comfort and operational efficiency.
