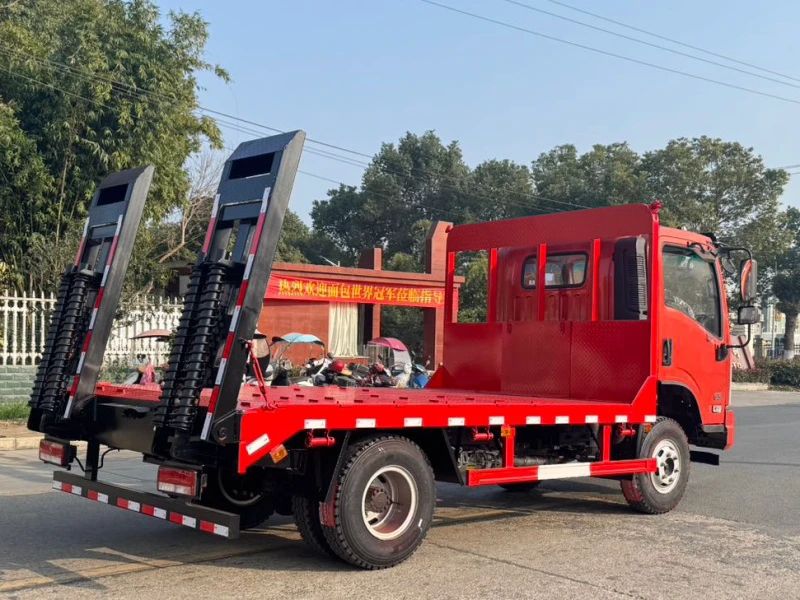

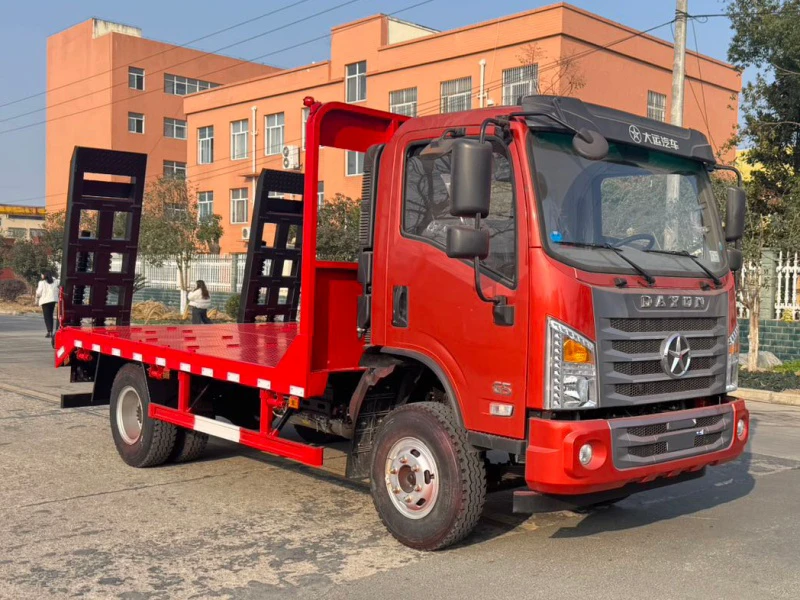

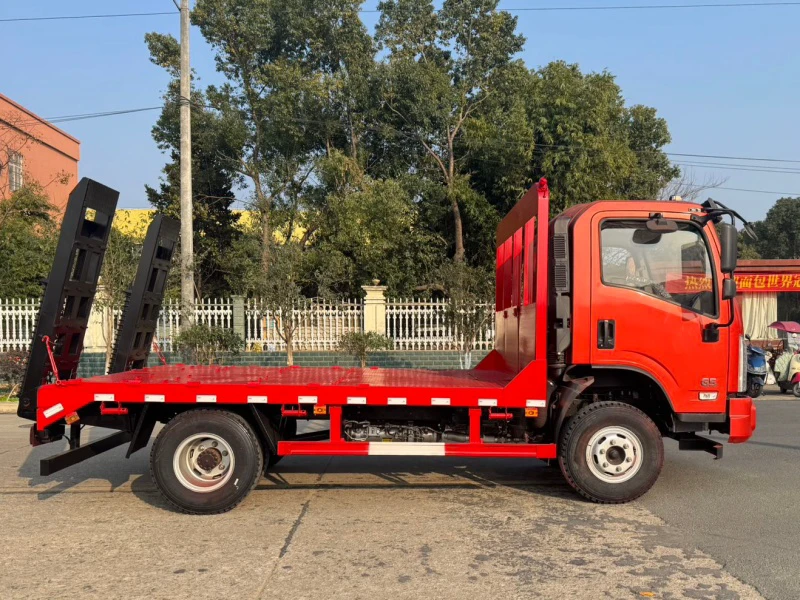

Dayun Flatbed Truck – Yuchai 180 HP | Heavy-Duty Equipment Hauler
I. Product Introduction
The Dayun Flatbed Truck powered by the Yuchai 180 HP engine is a rugged, medium-duty transport solution designed for heavy equipment hauling, construction material delivery, and agricultural logistics. Built on the reliable Dayun G5 single-cab chassis, this flatbed truck combines excellent load capacity with maneuverability, making it ideal for construction sites, farms, and logistics yards. With a reinforced frame, powerful drivetrain, and durable cargo floor, it delivers dependable performance in demanding environments.
II. Core Parameters
Parameter | Specification |
|---|---|
Wheelbase | 3600 mm |
Engine | Yuchai 180 HP (Euro III / optional higher standards) |
Transmission | Fast 10-speed gearbox (900 N·m torque rating) |
Rear Axle | 8-ton reinforced type |
Tires | 700R16 steel-belted (optional 8.25) |
Cargo Floor | 4 mm checkered plate |
Loading Capacity | 5–8 tons (depending on configuration) |
III. Exterior Dimensions, Body Size, Material & Design Philosophy
Overall Dimensions (L×W×H): Approximately 7.6 m × 2.4 m × 2.6 m (slight variations possible with body options)
Flatbed Size (L×W): 5.2 m × 2.3 m usable area
Material: 4 mm diamond-checkered steel plate for the cargo floor; subframe constructed from 100×100 mm square tubing spaced at 25 cm intervals
Design Philosophy: “Reinforced simplicity” – every component, from the 232 mm double-layer frame to the extra-thick leaf springs, is engineered for high resistance to torsion and impact. The aluminum alloy fuel tank and air reservoirs reduce weight while preventing corrosion, extending service life.
IV. Structural Advantages – Engine, Transmission, Axles & Chassis
Engine – Yuchai 180 HP: Delivers high low-end torque for steep ramps and muddy job sites. It is fuel-efficient, easy to service, and widely trusted in medium-duty applications.
Transmission – Fast 10-speed (900 N·m): The wide gear ratio range ensures smooth starts under full load and fuel-saving cruising on highways. It provides precise power delivery for varied terrain.
Front & Rear Axles: The 8T reinforced rear axle, combined with 9/10+8 extra-thick leaf springs, is built to handle repeated heavy shocks without sagging, ensuring long-term reliability.
Chassis Frame: The 232 mm double-layer “engineering-grade” side rails, plus the robust spring pack, provide exceptional torsional rigidity – a critical feature for flatbed stability when carrying uneven loads.
V. Product Features & CLW Group Manufacturer Advantages
Product Features
Dual-ladder access with spring-loaded ramps for easy loading/unloading of heavy equipment.
Cab comfort: Central locking, remote key, power windows, and factory air conditioning enhance operator convenience.
Corrosion-resistant components: Aluminum alloy fuel tank and air reservoirs reduce weight and resist rust.
Tire options: Optional 8.25 tires for increased payload margin and rough-terrain capability.
Reinforced flatbed: The 4 mm checkered steel plate and dense subframe spacing withstand heavy impacts and point loads.
CLW Group Manufacturer Advantages
CLW Group, one of China’s top specialized truck manufacturers with ISO and CCC certification, brings decades of expertise to every flatbed truck. Key advantages include:
Large-scale production with modern facilities ensures short delivery lead times.
Rigorous pre-delivery inspection on every frame weld, hydraulic system, and safety component.
Nationwide service network and 24/7 spare parts support for peace of mind.
Customization capability: Flatbed length, ramp type, and toolbox configurations are available upon request.
Proven quality: CLW Group’s vehicles are exported worldwide, trusted for durability and cost-effective value.
