Dongfeng Duolika D7 Two-Car Carrier – Reliable Vehicle Transport & Recovery Solution
I. Product Introduction

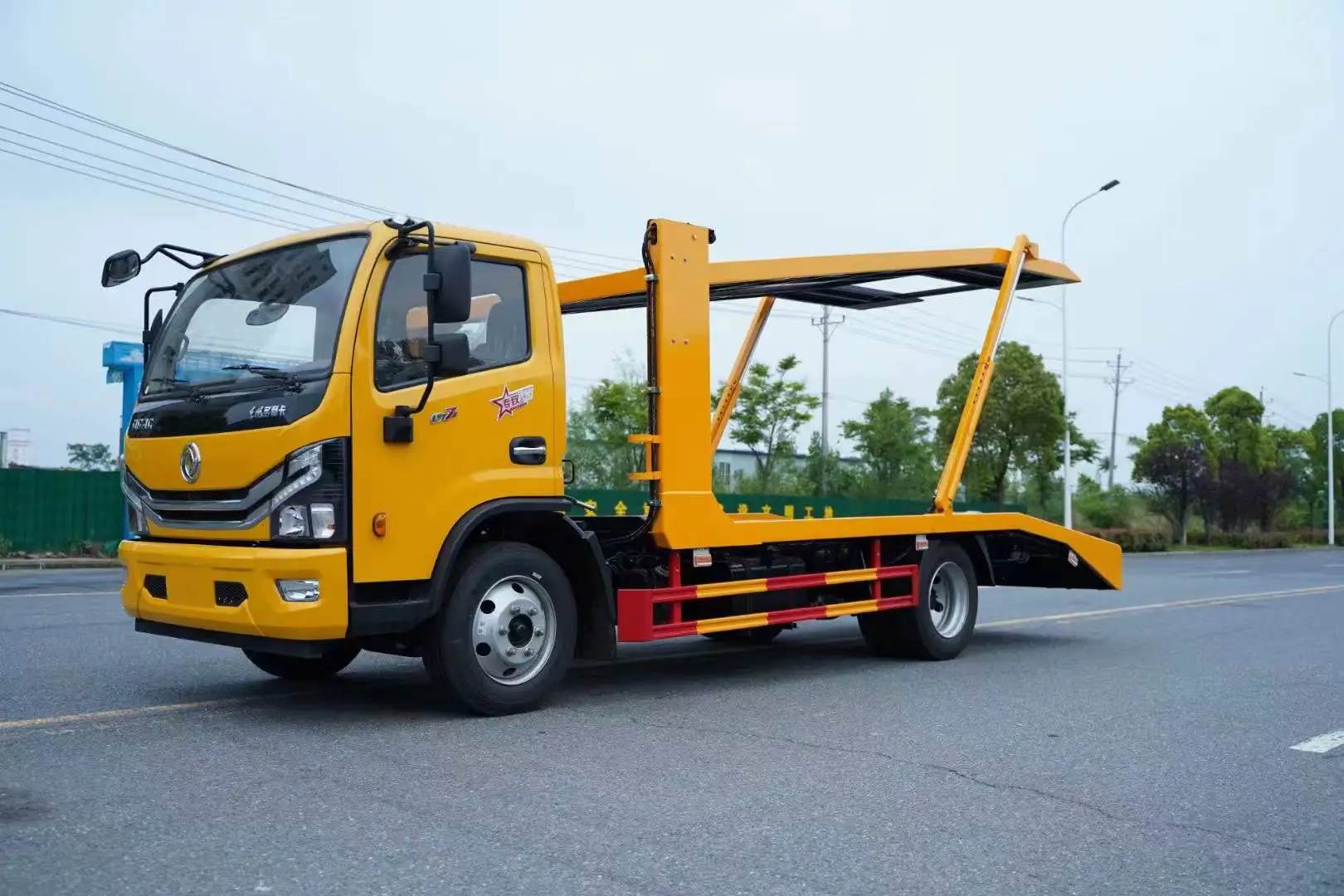

The Dongfeng Duolika D7 Two-Car Carrier is a specialized transport vehicle designed for efficient vehicle logistics and recovery operations. This model features the new B19 fully-tilt luxury cab, built on a reliable 3800mm wheelbase chassis, and is powered by a Q28 Quanchai 156HP engine meeting China VI emission standards. Engineered for urban and highway use, this two-car carrier is widely applied in zero-kilometer transfer of new passenger vehicles, accident vehicle recovery, and emergency road rescue missions. As a product of Chengli Group—a leading specialized vehicle manufacturer—this carrier combines operational efficiency with robust build quality.
II. Core Specifications
Parameter | Specification |
|---|---|
Chassis Model | Dongfeng Duolika D7 |
Wheelbase | 3800mm |
Engine | Q28 Quanchai, 156HP, 450Nm torque, China VI |
Transmission | WLY 6-speed manual |
Front Axle | 2.7-ton capacity |
Rear Axle | 5.5-ton capacity |
Tires | 245/70 vacuum tires |
Frame | Double-layer straight-through beam |
Braking System | Spring brake (air brake with parking function) |
Cab | New B19 fully-tilt luxury cab |
III. Dimensions, Materials & Design Philosophy
Dimensions
Component | Length | Width |
|---|---|---|
Upper Deck | 5.1m | 2.3m |
Lower Deck | 5.3m | 2.4m |
Loading Height (Lower Deck) | 0.8m (ground clearance) |
Material
Upper Structure: Full low-alloy high-strength steel
Deck Surface: High-strength steel, stamped and welded for durability
Frame: Double-layer straight-through beam for enhanced rigidity
Design Philosophy
Compact & Agile: Optimized length, width, and height ratios deliver a sleek, modern appearance while ensuring high maneuverability in congested urban environments.

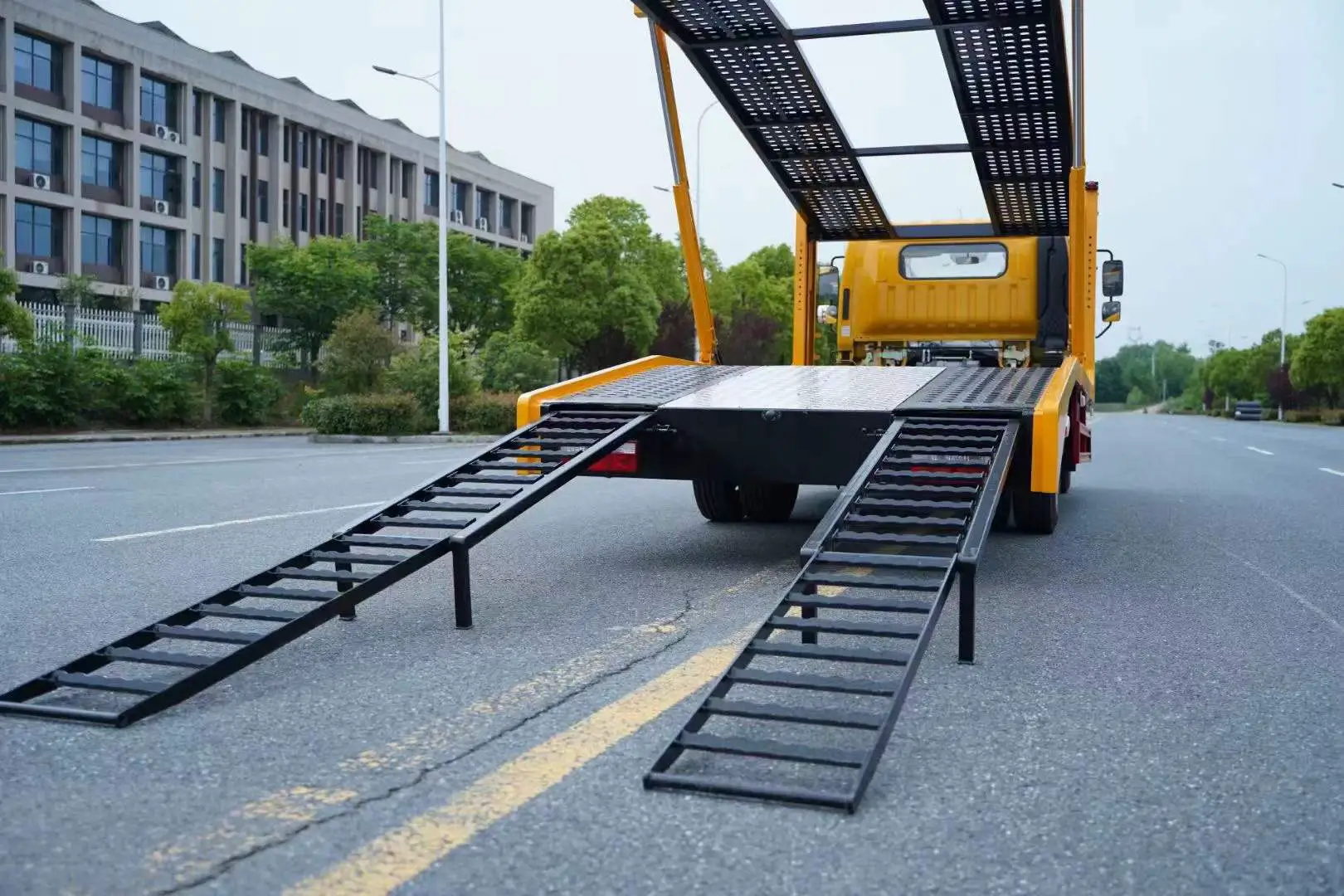

Practical Loading: The 80cm lower deck height facilitates easy loading/unloading of vehicles and non-movable equipment.
Extendable Design: 50cm tail extension capability to accommodate various vehicle lengths.
Safety-First: High safety performance with a structurally sound, compact design.
IV. Structural & Component Advantages
Engine – Q28 Quanchai 156HP
Delivers low-speed high torque (450Nm) for strong starting acceleration and climbing power. This "low-speed, high-torque" characteristic ensures responsive performance in stop-and-go urban conditions and on inclined ramps during vehicle loading. Meets stringent China VI emission standards for environmental compliance.
Transmission – WLY 6-Speed
Provides smooth, reliable gear shifting with optimized gear ratios that complement the engine's torque curve, enhancing fuel efficiency and drivability across diverse road conditions.
Front & Rear Axles
The 2.7-ton front axle combined with the 5.5-ton rear axle delivers superior load-carrying capacity and enhanced climbing capability. This robust axle configuration ensures stability and durability when transporting heavy passenger vehicles.
Frame – Double-Layer Straight-Through Beam
The heavy-duty double-layer frame structure significantly enhances torsional rigidity and bending resistance, providing a stable foundation for the vehicle carrier body and ensuring long-term durability under high-load operations.
Power Take-Off (PTO)
Factory-installed PTO enables one-touch control of the hydraulic system, simplifying operation and improving workflow efficiency.
V. Features & Manufacturer Advantages
Product Features
Hydraulic System: Equipped with 4 hydraulic cylinders, a hydraulic winch, and a comprehensive hydraulic control system for smooth, precise deck operation.
High-Strength Steel Construction: The upper structure is fabricated from full low-alloy high-strength materials, ensuring durability without excessive weight.
Versatile Application: Suitable for new vehicle zero-kilometer delivery, accident vehicle towing, and emergency roadside assistance—a truly multi-purpose two-car carrier solution.
User-Friendly Controls: One-button control of the PTO and hydraulic system simplifies operation, reducing driver workload.
Urban Mobility: The model is exempt from commercial transport permits in many urban areas, offering greater operational flexibility.
Manufacturer Advantages – Chengli Group
Chengli Group is a leading manufacturer of specialized vehicles in China, with a strong reputation in the car carrier truck and tow truck segments.
Industry Leader: Chengli Group is recognized as a Top 500 Chinese Private Enterprise and holds designations from the China Ministry of Industry and Information Technology for specialized vehicle manufacturing.
Global Presence: Since 2004, Chengli (CLW) vehicles have been exported worldwide, building a reputation for quality and reliable after-sales service.
Integrated Manufacturing: As a core enterprise of Chengli Group, the company operates a complete production chain from chassis integration to body fabrication, ensuring quality control and cost efficiency.
Continuous Innovation: Chengli consistently updates its product line with modern designs like the B19 fully-tilt luxury cab, reflecting commitment to driver comfort and operational efficiency.
This Dongfeng two-car carrier represents Chengli's commitment to delivering efficient, durable, and operator-friendly transport solutions for the modern logistics and recovery industries.
