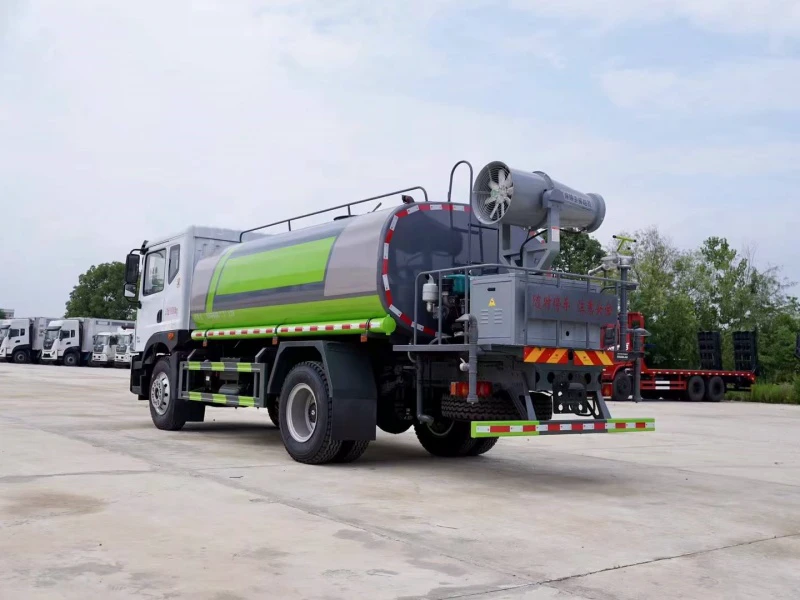

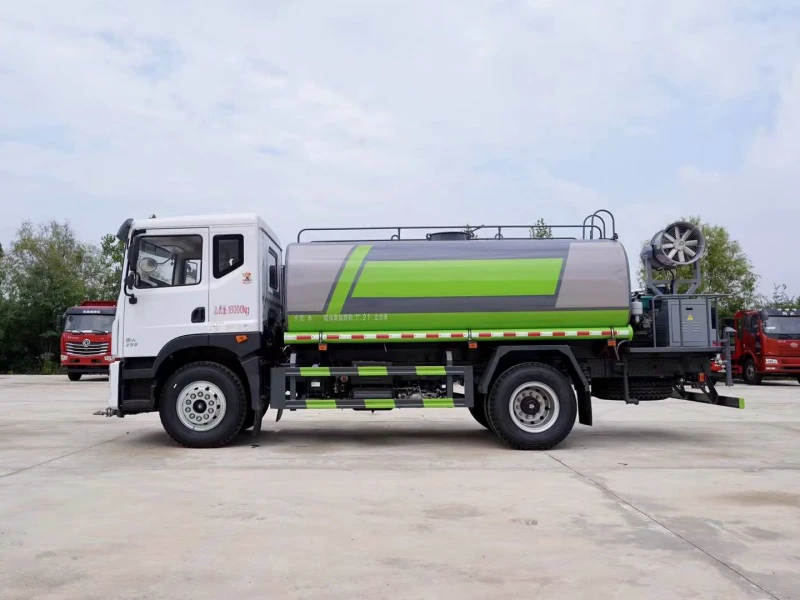

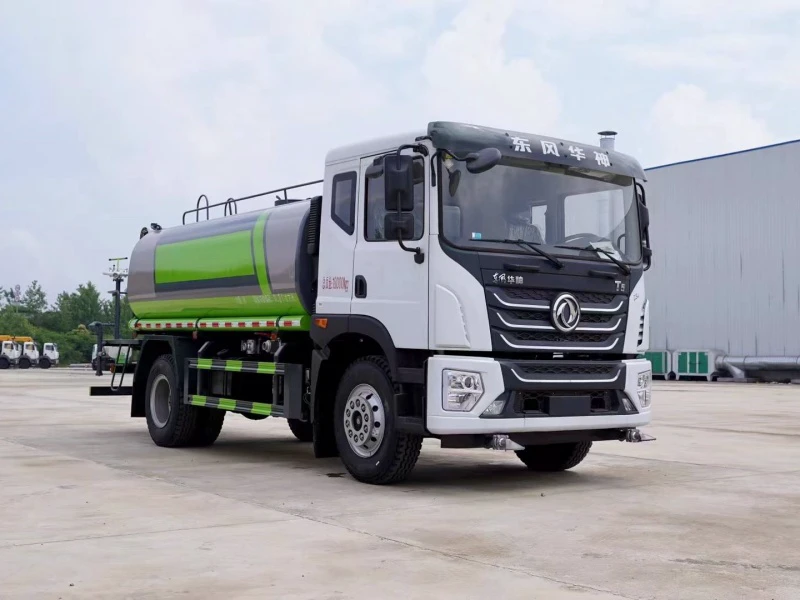

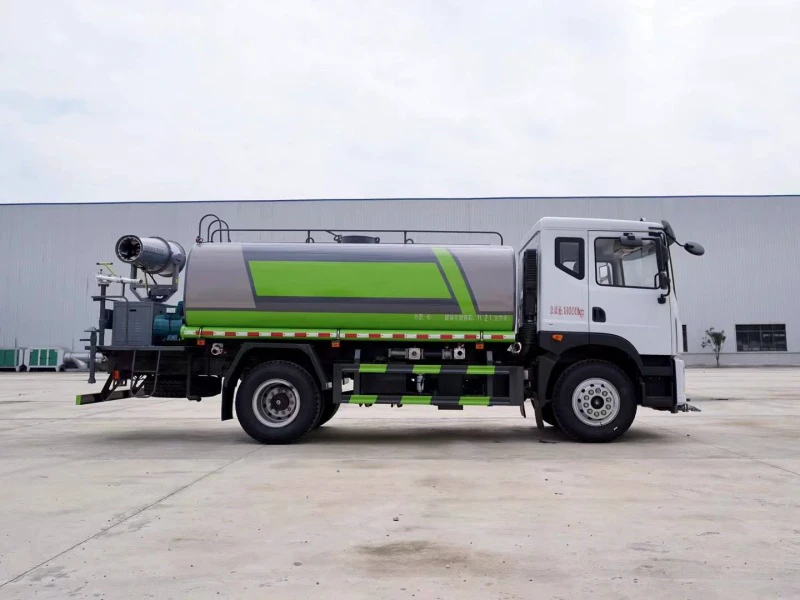

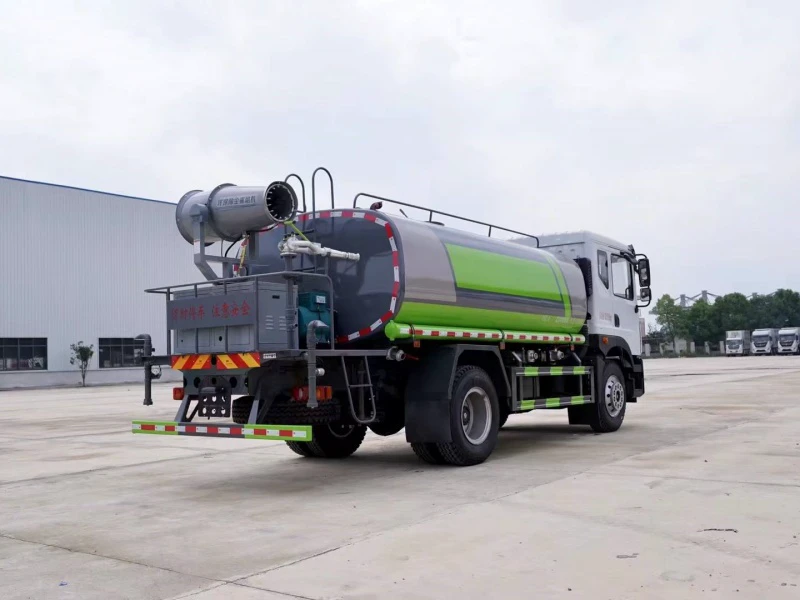

Product Title: Dongfeng Huashen New T5 Multifunctional Dust Suppression Truck / Road Sprinkler with 30m Mist Cannon | DFAC 4x2 Dust Control Truck with 12m³ Capacity for Dust Suppression
1. Product Introduction
The Dongfeng Huashen New T5 Multifunctional Dust Suppression Truck is a high-performance environmental sanitation vehicle manufactured by Chengli Group, designed specifically for urban road dust reduction, construction site spray control, and garden irrigation. Combining a powerful spraying system with a mobile water tank, this unit is commonly known as the mist cannon truck or spraying truck. It features a 30-meter remote-controlled mist cannon for efficient dust suppression, making it an ideal solution for modern city governance and air purification. Built on the popular New T5 platform, this model ensures reliability and compliance with the latest China VI emission standards.
2. Core Technical Parameters
Chassis Model: Dongfeng Huashen New T5
Tank Volume: 12 cubic meters (3,170 Gallons)
Engine: Yuchai 200HP with powerful performance
Transmission: Fast Gear (Faster) Small 8-speed gearbox with PTO
Tires: 10.00R20 steel cord tires
Drive/Axle Configuration: 3.6-ton front axle / 9-ton rear axle
Mist Cannon Range: 30 meters
Maximum Discharge Height: ≥ 28 meters
3. Dimensions, Material & Design Concept
External Dimensions (L×W×H): Approximately 8670×2550×3250 mm
Tank Dimensions: The water tank features an elliptical shape to lower the vehicle's center of gravity for safer cornering.
Material: The tank body is made of high-strength Q235 carbon steel with a thickness of 4mm, ensuring durability and impact resistance. The end caps are reinforced for added pressure resistance.
Design Concept: The New T5 cab adopts a streamlined design to reduce wind resistance. The interior focuses on driver comfort with features like air suspension seats and a multifunctional steering wheel, reflecting a human-centric design philosophy that enhances long-hour operability.
4. Detailed Structure & Component Advantages
Engine & Drivetrain: Powered by the Yuchai 200HP diesel engine, this truck provides ample torque for heavy loads while maintaining fuel efficiency. Matched with the Fast Gear small 8-speed transmission, the gear shifting is smooth, ensuring excellent power output even on rugged terrains or slopes.
Chassis & Axles: The vehicle utilizes a reinforced frame. The combination of a 3.6T front axle and a 9T rear axle guarantees superior load-bearing capacity, ensuring the fully loaded 12-cubic-meter tank does not compromise the structural integrity of the truck.
Enhanced Pipeline System: The main water pipe is intentionally thickened to increase water flow and pressure, ensuring the front flushing, rear sprinkling, and side spraying functions operate simultaneously without pressure loss.
Electrical & Safety: Features include side marker lamps for night operation safety and a musical horn to alert pedestrians.
5. Product Features & Chengli Group Advantages
Superior Spraying Functionality: Equipped with the Longwang 60/90 special water pump, it supports self-priming and self-discharge functions. The full set of large-diameter ball valves enhances the reliability of the irrigation system. The rear work platform is spacious, housing the 30-meter mist cannon and a green water cannon that can be adjusted from a jet stream to a fine mist.
Convenience & Comfort: The cab is outfitted with factory air conditioning, air suspension seats, a driving recorder, and remote central control. The "multi-lock integration" and electric windows provide a passenger-car-like experience.
Manufacturer Advantage (Chengli Group): As a leading special purpose vehicle manufacturer in China, Chengli ensures that each vehicle undergoes strict quality testing. With a large production line, we offer timely delivery and comprehensive after-sales service. Our vehicles are designed with standardization in mind, making spare parts easily accessible and maintenance convenient.
Customization: While this model features a 12CBM tank with a 30m cannon, the platform supports various customizations, including different mist cannon ranges or additional anti-corrosion tank treatments for chemical use.
