Sinotruk Sitrak Dust Suppression Truck | Sinotruk Sitrak 4x2 Dust Suppression Truck Featuring a 12 m³ Water Tank

1. Product Introduction

The Sinotruk Sitrak Dust Suppression Truck is a heavy-duty vehicle engineered for comprehensive dust control in urban roads, construction zones, industrial facilities, and mining operations. Built on the renowned Sinotruk Sitrak 4x2 chassis, this model integrates advanced spray technology with robust construction to deliver reliable, long-term performance. The vehicle has received full national certification, guaranteeing smooth registration procedures across all regions in China. Designed for operators who demand efficiency and durability, this dust suppression truck represents the perfect balance of power and precision.

2. Core Parameters

The complete vehicle model is CL5187TDY6YC, manufactured on the Sinotruk Sitrak chassis model ZZ5186XXYK501GF1. Power is provided by a Weichai 220 horsepower diesel engine, delivering exceptional torque for demanding applications. The wheelbase measures 4500 mm, ensuring optimal stability during operation. The tank holds 12 cubic meters of water, equivalent to 12,000 liters, providing ample capacity for extended work shifts. The G5-M cab features a multi-function steering wheel, power-adjustable and heated side mirrors, and an air suspension seat for superior operator comfort during long working hours. The chassis configuration follows a 4x2 drive layout, ideal for urban maneuverability.

3. Dimensions, Materials & Design Concept

External dimensions are carefully optimized around the 4x2 chassis platform to enhance maneuverability in tight urban environments while maintaining stability during highway transit. The 12 m³ tank is fabricated from national standard Q235 carbon steel plates with a uniform thickness of 4 mm, providing exceptional structural integrity. The interior surface receives specialized epoxy glass flake anti-corrosion treatment, creating a durable barrier against water and chemical corrosion that significantly extends tank service life. The design philosophy prioritizes structural strength, corrosion resistance, and operational efficiency, ensuring the vehicle performs reliably in demanding dust suppression tasks across diverse environments and weather conditions.

4. Structural Advantages

The Weichai 220 HP engine delivers robust power output with excellent fuel efficiency, featuring a high-pressure common rail fuel system for optimal combustion and reduced emissions. The transmission ensures smooth gear shifts and responsive performance, allowing operators to maintain precise control during spray operations. The reinforced front and rear axles are engineered for heavy-duty applications, providing superior load-bearing capacity and stability when the tank is fully loaded. The 4500 mm wheelbase offers optimal weight distribution, enhancing vehicle balance during both transit and stationary spraying. The chassis frame features high-strength steel construction with crossmember reinforcements, delivering exceptional torsional rigidity when operating on uneven terrain.

5. Features & Manufacturer Advantages

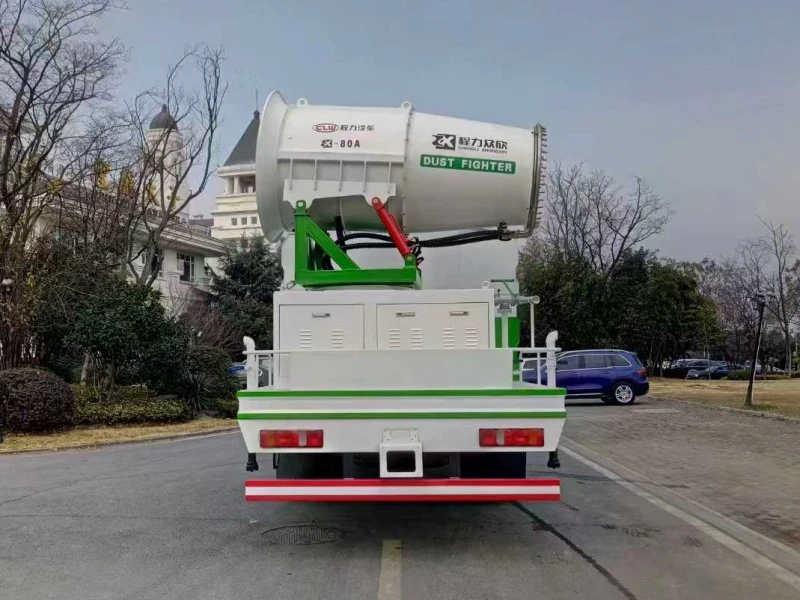

The spray system includes a 50/110 high-power water pump capable of delivering strong water pressure for various applications. Front wash and rear spray functions are controlled by in-cab pneumatic ball valves with one-button operation, allowing the driver to activate spray functions without leaving the seat. Side spray and a watering cannon provide comprehensive coverage for different dust suppression scenarios. The large rear platform can accommodate optional mist cannon units with ranges of 50 meters, 60 meters, 80 meters, or 100 meters, offering flexibility for projects with varying dust control requirements.

Standard convenience features include a multi-function steering wheel for easy control of audio and cruise functions, power-adjustable and heated side mirrors for improved visibility in all weather conditions, and an air suspension seat that reduces driver fatigue during extended operation.

Chengli Group ensures certified manufacturing quality with ISO standards, using national standard Q235 carbon steel plates and epoxy glass flake anti-corrosion treatment inside the tank. Customization options include various mist cannon ranges to meet specific project requirements. With a nationwide service network, Chengli provides comprehensive after-sales support including genuine spare parts and technical training.
