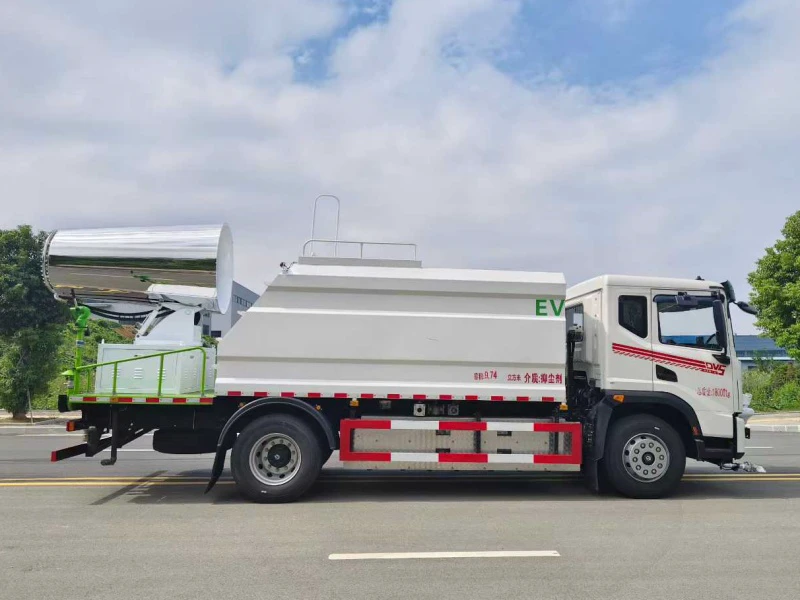

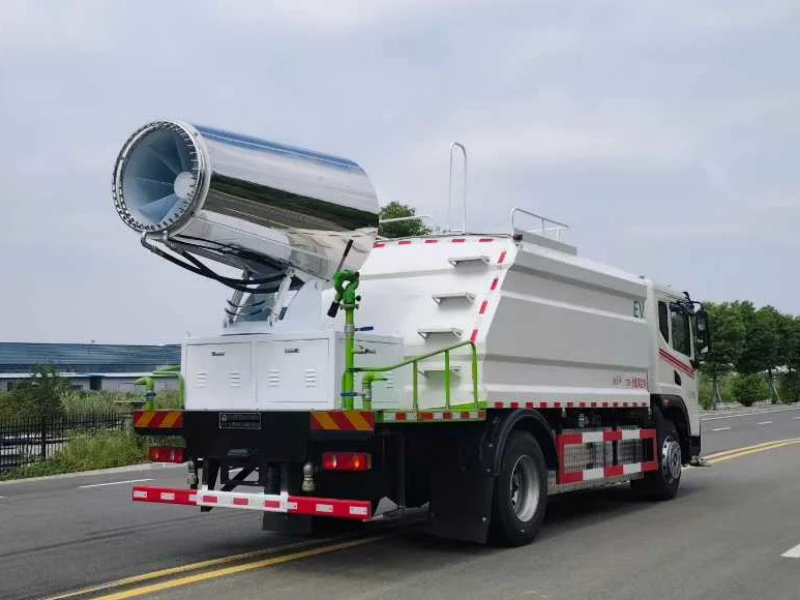

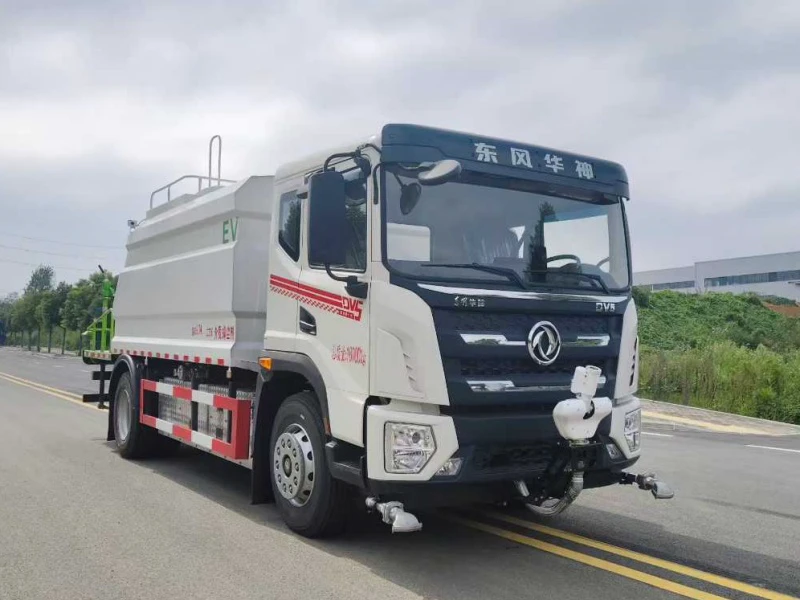

Dongfeng Huashen DV5 Pure Electric 15m³ Multi-functional Dust Suppression Truck | DFAC 4x2 Electric Dust Control Truck with a 196 kWh battery and a 280 km range
1. Product Introduction
The Dongfeng Huashen DV5 Pure Electric 15m³ Multi-functional Dust Suppression Truck is an eco-friendly solution designed for urban and industrial dust control. With its pure electric drive, it delivers efficient dust suppression while meeting stringent emission standards. The vehicle has already obtained official announcement approval, ensuring nationwide registration compliance in China. Ideal for roads, construction sites, and mining areas, this truck combines advanced technology with operational reliability.
2. Core Parameters
The chassis model is EQ1180GLEVJ1. It is equipped with a CATL 196 kWh battery, supporting a full-load range of 280 km. The tire specification is 295/80R22.5 18PR vacuum steel tires. The tank capacity is 15 m³, converted to 15,000 liters. The front axle load is 5 tons and the rear axle load is 10 tons. The wheelbase is 4500 mm for enhanced stability.
3. Dimensions, Materials & Design Concept
External dimensions can be customized based on chassis configuration. The tank features a latest trapezoidal design with a 6 mm bottom plate and 5 mm side plates for durability. It is made of high-strength steel with anti-corrosion coating. The design concept focuses on aerodynamics and weight reduction to maximize energy efficiency and payload capacity, while the modern DV5 cab offers ergonomic comfort and visibility.
4. Structural Advantages
The pure electric system provides instant torque, quiet operation, and zero emissions. The transmission ensures smooth acceleration and energy recovery during braking. The reinforced 5-ton front axle and 10-ton rear axle are designed for heavy-duty performance, paired with a robust suspension system for uneven terrains. The 4500 mm wheelbase provides excellent balance, while the ladder-type frame with crossmembers ensures torsional rigidity under load.
5. Features & Manufacturer Advantages
The tank structure is fully welded with 2 internal baffles to prevent liquid surge, and includes a strainer three-way valve for sand and gravel drainage. The spray system includes standard front duckbill, rear flush, side spray, and rear water cannon. Optional features include a 60 to 120 meter pure electric remote-controlled mist cannon or electronic cannon for precision dust control. Convenience upgrades include LCD instrument cluster, central locking, multi-function steering wheel, electric windows, and factory A/C for a comfortable driving experience.
Chengli Group ensures certified quality with ISO-standard manufacturing, fully welded tanks, and anti-corrosion treatments. Customization options include stainless steel mist cannons and advanced filtration systems tailored to client needs. After-sales support includes a nationwide service network with genuine spare parts and technical training.
