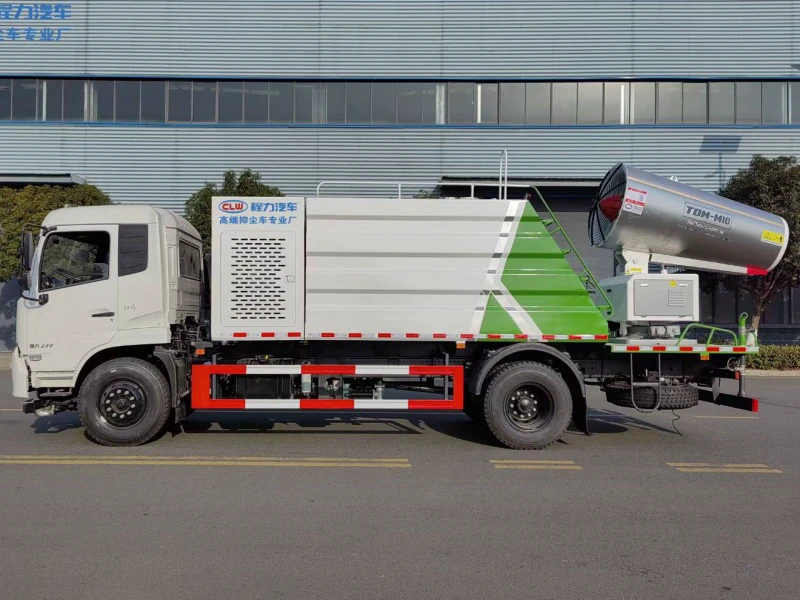

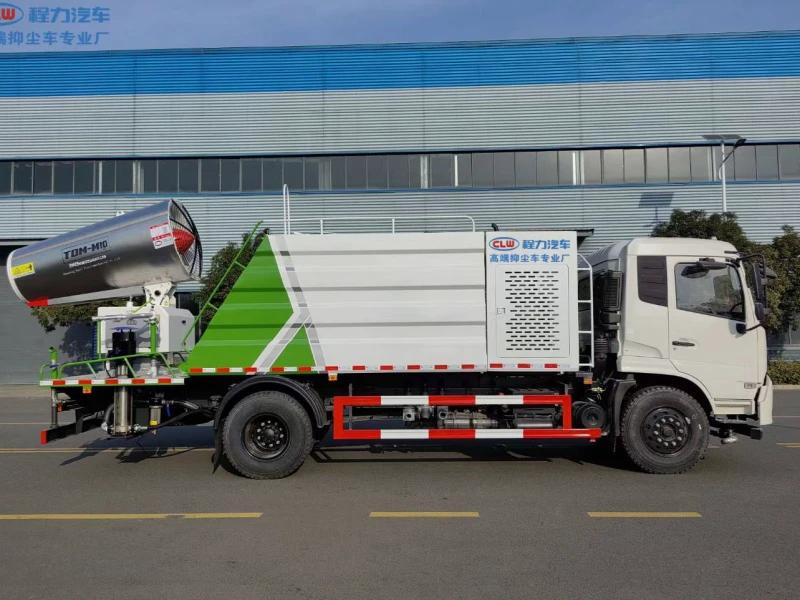

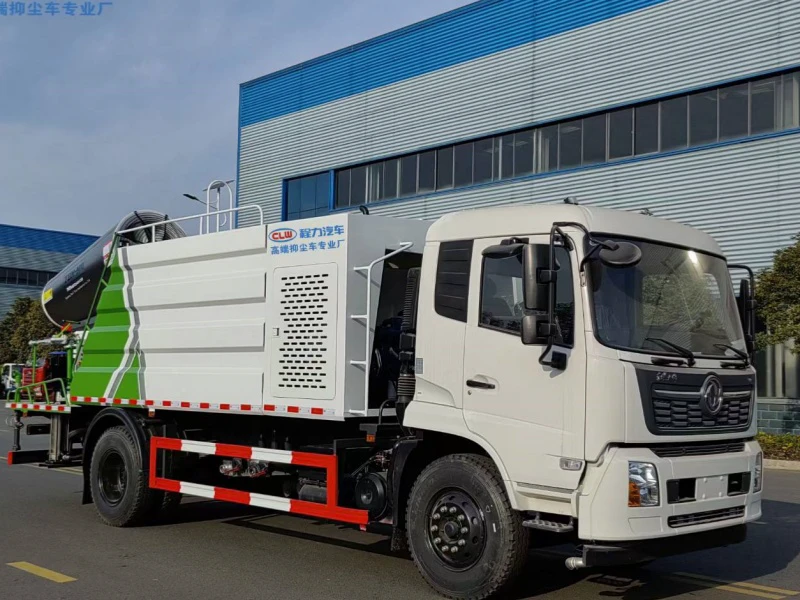

Product Title: Dongfeng Tianjin Multifunctional Dust Suppression Truck with 12CBM Tank & 100m Mist Cannon | DFAC 4x2 Dust Suppression Truck with 12 Cubic Meter Tank

1. Product Introduction

The Dongfeng Tianjin Multifunctional Dust Suppression Truck is a versatile environmental sanitation vehicle manufactured by Chengli Group, designed for urban road maintenance, construction site dust control, and garden irrigation applications. This model features a 12 cubic meter square tank combined with a spacious rear platform capable of accommodating up to a 100-meter mist cannon for long-range dust suppression. Built on the reliable Tianjin VR chassis with a 4700mm wheelbase, this vehicle offers excellent stability and maneuverability for both city streets and highway operations. The integration of advanced spraying systems makes it an ideal solution for municipal sanitation departments, mining operations, and large industrial complexes requiring efficient dust management.

2. Core Technical Parameters

• Chassis Model: Dongfeng Tianjin VR

• Cab Type: Tianjin VR cab with modern ergonomic design

• Wheelbase: 4700mm for optimal stability

• Tank Volume: 12 cubic meters (12,000 Liters / 3,170 Gallons)

• Tank Shape: Square tank design maximizing water capacity within compact dimensions

• Engine: Cummins 230HP diesel engine with powerful performance

• Transmission: WLY (Wanliyang) 8-speed gearbox for versatile operation

• Tires: 10.00R20 steel cord tires with excellent durability

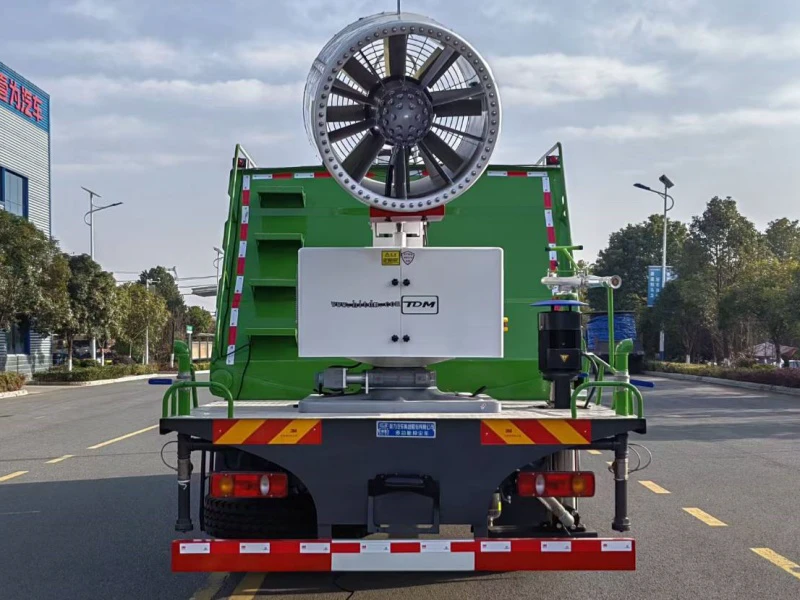

• Mist Cannon Compatibility: Rear platform designed for up to 100-meter range mist cannon installation

• Emission Standard: Compliant with current environmental regulations

3. Dimensions, Material & Design Concept

• Overall Dimensions (L×W×H): Approximately 8,500mm × 2,500mm × 3,200mm (configurable based on final specifications)

• Tank Specifications: Square profile tank manufactured from high-quality carbon steel with automated welding technology for leak-proof performance

• Material Quality: Heavy-duty steel construction ensuring long-term durability against corrosion and impact damage

• Design Philosophy: The Tianjin VR cab combines functionality with operator comfort, featuring a spacious interior layout. The 4700mm wheelbase optimizes weight distribution, ensuring the fully loaded 12-ton water tank maintains vehicle stability during cornering and highway travel. The square tank design maximizes volumetric efficiency while maintaining structural integrity through reinforced corner joints.

4. Detailed Structure & Component Advantages

• Engine Performance: Powered by the Cummins 230HP engine, this vehicle delivers exceptional torque output for both road transport and stationary pumping operations. The advanced fuel injection system ensures optimal combustion efficiency, reducing fuel consumption while maintaining power delivery for demanding applications.

• Transmission System: The WLY 8-speed manual transmission provides precise gear selection for various operating conditions. Lower gears deliver maximum torque for off-road and inclined terrain operations, while higher gears ensure fuel-efficient highway travel. The integrated PTO system enables the engine to power the water pump without vehicle movement.

• Chassis Configuration: The 4700mm wheelbase chassis features reinforced frame construction to support the heavy water tank. The front axle incorporates heavy-duty suspension components, while the rear axle is specifically rated for the 12-ton load capacity, ensuring even weight distribution across all wheels.

• Braking System: Equipped with air-assisted brakes and a spring brake parking system, providing reliable stopping power even under maximum load conditions. The dual-circuit brake design ensures safety through system redundancy.

5. Product Features & Chengli Group Advantages

• Comprehensive Spraying System: The vehicle features a heavy-duty sprinkler pump with self-priming and self-discharging capabilities. The fully integrated system includes front flushing nozzles, rear sprinkling bars, side spray outlets, and a high-position water cannon with 360-degree rotation.

• Adjustable Water Cannon: The rear high-pressure water cannon offers multiple spray pattern adjustments - converting from heavy rain, medium rain, light rain, mist, and direct stream modes. This versatility allows operators to select the appropriate spray pattern for different applications from dust suppression to firefighting support or garden irrigation.

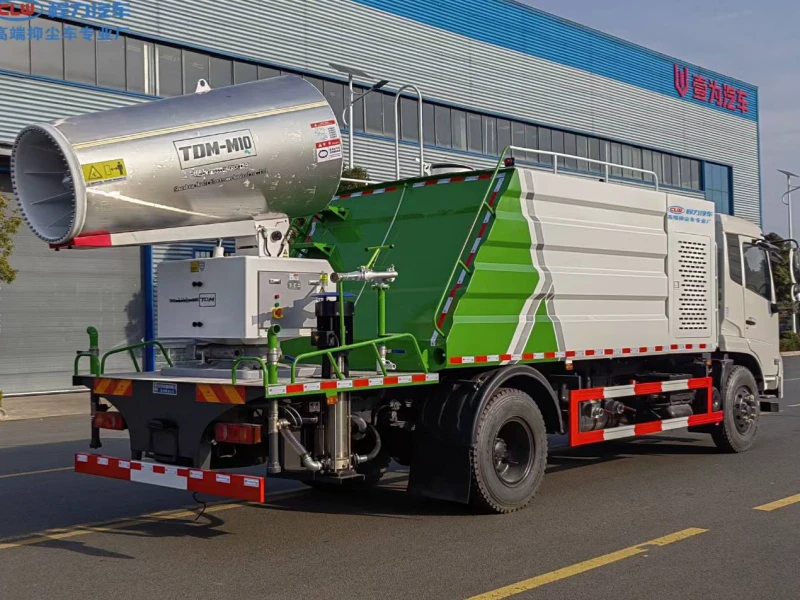

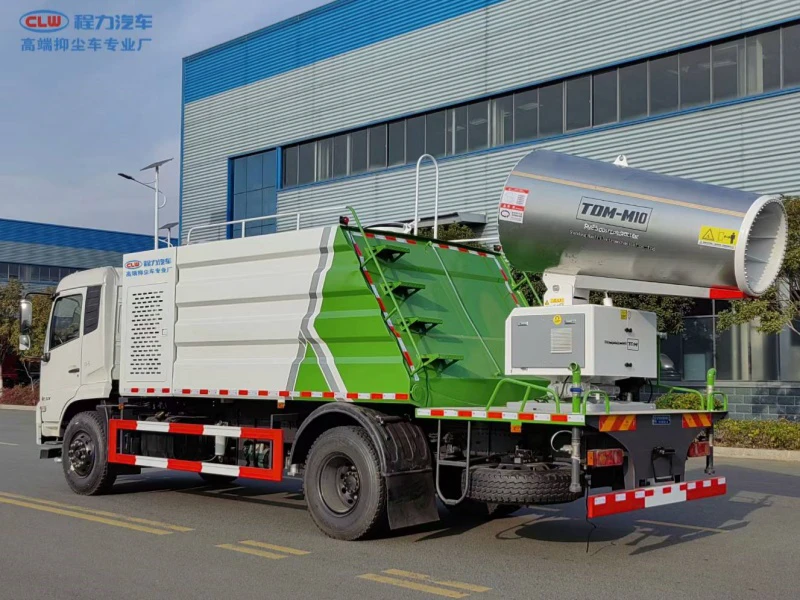

• Mist Cannon Compatibility: The extra-large rear working platform is structurally reinforced to accommodate mist cannons up to 100 meters in range. This future-proof design allows customers to upgrade their dust suppression capabilities without vehicle modification.

• Operator Convenience Features: The cab comes standard with central locking, electric windows, factory air conditioning, and an air horn for enhanced operator comfort. Three charging ports are strategically placed throughout the cab for electronic device power needs. Power steering ensures effortless maneuverability in tight urban environments.

• Manufacturer Advantage (Chengli Group): As a premier special purpose vehicle manufacturer in China, Chengli Group maintains rigorous quality control throughout the production process. Each vehicle undergoes comprehensive functionality testing before delivery, ensuring all spraying systems operate at specified pressures. Our nationwide service network provides prompt after-sales support with readily available genuine parts.

• Electrical System: The vehicle includes a comprehensive lighting package and control panel for all spraying functions. The dashboard provides clear status indicators for all vehicle systems, enabling operators to monitor performance during extended work shifts.

• Customization Options: While this model comes with a 12CBM tank and 100m mist cannon platform, various customizations are available including different tank capacities, extended mist cannon ranges, anti-corrosion tank lining for chemical applications, and remote control systems for precise spraying operations.
