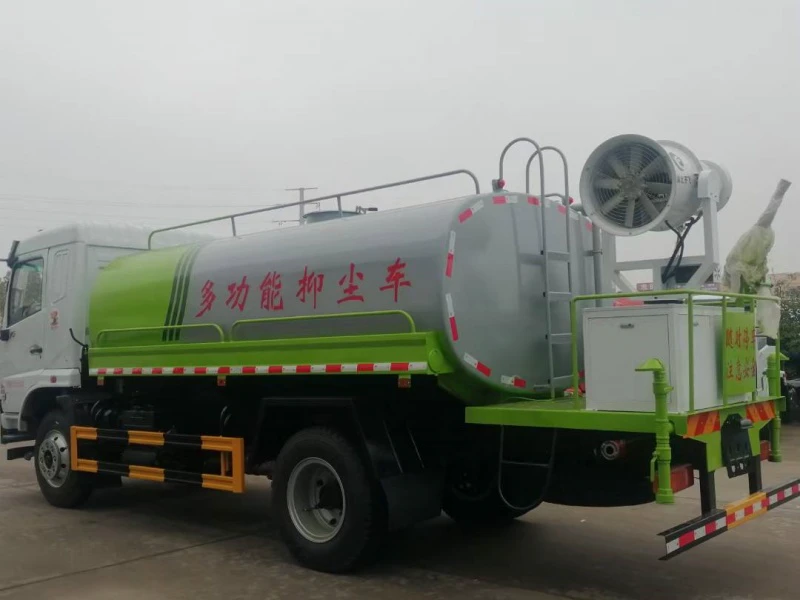

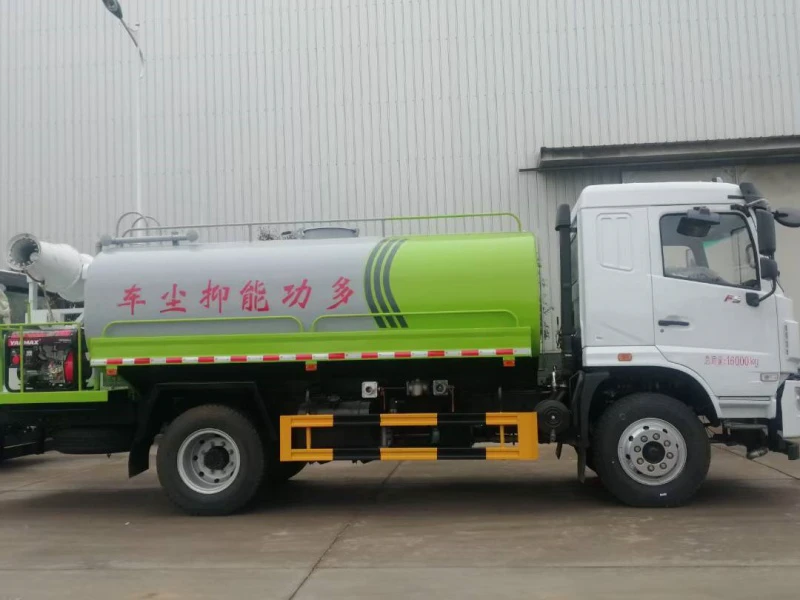

Product Title: Dongfeng Huashen F5 Multifunctional Dust Suppression Truck with 12CBM Tank & 30m Mist Cannon (Yuchai 165HP)

1. Product Introduction

The Dongfeng Huashen F5 Multifunctional Dust Suppression Truck is a high-performance environmental sanitation vehicle manufactured by Chengli Group, combining efficient road sprinkling with powerful dust control capabilities. Built on the popular F5 new model cab with a 4x2 drive configuration, this vehicle features a 12 cubic meter effective tank capacity and is designed for urban road maintenance, construction site dust reduction, and garden irrigation applications. Powered by the reliable Yuchai 165HP China VI engine, this model delivers exceptional fuel efficiency while meeting strict emission standards. The rear platform is engineered to accommodate a 30-meter mist cannon for atomized dust suppression, making it an ideal solution for municipal sanitation departments, industrial complexes, and construction sites requiring versatile spraying equipment.

2. Core Technical Parameters

• Chassis Model: Dongfeng Huashen F5

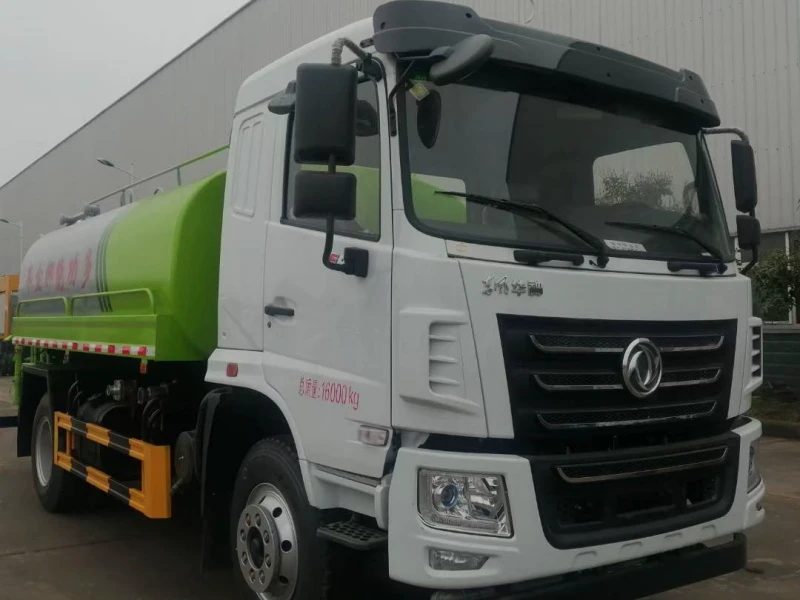

• Cab Configuration: F5 new model jade white cab with modern ergonomic design

• Drive Type: 4x2 configuration

• Wheelbase: 3950mm for optimal stability

• Tank Volume: 12 cubic meters (12,000 Liters / 3,170 Gallons) - effective capacity

• Tank Shape: Square-round tank design with round side barrels

• Engine: Yuchai YCY30165-60 165HP diesel engine, China VI emission compliant

• Transmission: Shaanxi Gear small 8-speed gearbox with PTO

• Frame Rail: 232mm reinforced frame

• Front Axle: 2.7 ton capacity

• Rear Axle: 8 ton capacity

• Tires: 9.00R20 steel cord tires with excellent durability

• Water Pump: Yifeng brand 60-90 model (inlet/outlet located on passenger side)

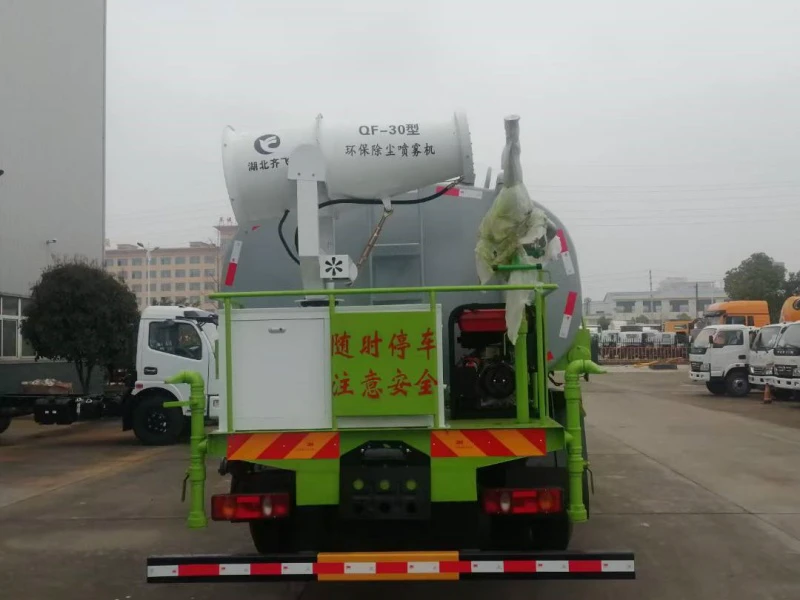

• Mist Cannon Compatibility: Rear platform designed for 30-meter mist cannon installation

• Safety Features: ABS, new regulation compliance

3. Dimensions, Material & Design Concept

• Overall Dimensions (L×W×H): Approximately 7,800mm × 2,500mm × 3,200mm (configurable based on final specifications)

• Tank Specifications: 12 cubic meter square-round tank with 4mm wall thickness, featuring round side barrels for enhanced structural rigidity

• Material Quality: High-strength steel construction with automated welding technology ensuring leak-proof performance and extended service life

• Pump Configuration: Yifeng 60-90 model water pump positioned with inlet and outlet connections on passenger side for convenient operation

• Design Philosophy: The F5 new model cab combines contemporary styling with functional design, featuring the distinctive jade white finish that enhances fleet visibility. The 3950mm wheelbase optimizes weight distribution between the water tank and chassis components, ensuring stable handling characteristics even when fully loaded. The square-round tank design maximizes volumetric efficiency while maintaining structural integrity through reinforced corner joints. The round side barrels not only contribute to the vehicle's aesthetic appeal but also provide additional water capacity without compromising frame clearance.

4. Detailed Structure & Component Advantages

• Engine Performance: Powered by the Yuchai YCY30165-60 165HP diesel engine, this vehicle delivers exceptional torque output across the operating range. The advanced high-pressure common rail fuel system ensures optimal combustion efficiency, reducing fuel consumption while maintaining power delivery for demanding applications. The China VI emission compliance incorporates DOC+DPF+SCR technology, meeting the most stringent environmental standards.

• Transmission System: The Shaanxi Gear small 8-speed manual transmission provides precise gear selection for various operating conditions. Lower gears deliver maximum torque for off-road and inclined terrain operations, while higher gears ensure fuel-efficient highway travel. The integrated PTO system enables the engine to power the water pump without vehicle movement, with smooth engagement through the transmission-mounted PTO.

• Chassis & Frame: The 232mm reinforced frame provides exceptional structural rigidity for the 12-ton water tank and heavy-duty spraying equipment. The frame features optimized cross-member placement to distribute loads evenly, preventing stress concentrations during off-road operation. The combination of a 2.7-ton front axle and 8-ton rear axle ensures proper weight distribution and superior load capacity.

• Braking System: Equipped with ABS and full air brakes meeting new regulation requirements, providing reliable stopping power even under maximum load conditions. The dual-circuit brake design ensures safety through system redundancy, while the spring brake parking system provides secure parking on inclines.

• Steering & Handling: Power-assisted steering enables effortless maneuverability in tight urban environments, while the 3950mm wheelbase provides excellent straight-line stability at highway speeds.

5. Product Features & Chengli Group Advantages

• Comprehensive Spraying System: The vehicle features a Yifeng 60-90 heavy-duty sprinkler pump with self-priming and self-discharging capabilities. The fully integrated system includes front flushing nozzles positioned beneath the cab, rear sprinkling bars for wide coverage, side spray outlets for targeted application, and a high-pressure water cannon on the rear platform.

• Flexible Platform Configuration: The rear platform is designed with dual functionality - supporting both standard high-pressure water cannon operation and future 30-meter mist cannon installation. The platform features reinforced mounting points and pre-routed piping connections for mist cannon integration, allowing customers to upgrade their dust suppression capabilities without vehicle modification.

• Operator Convenience Features: The F5 cab comes standard with factory-installed air conditioning for year-round comfort, (air suspension seat) reducing operator fatigue during extended shifts, electric windows for convenience, and remote central locking for enhanced security. The modern dashboard layout provides clear visibility of all vehicle systems and spraying controls.

• New Regulation Compliance: This model meets all latest vehicle regulations including ABS requirements, safety standards, and emission compliance. The vehicle is fully documented with all necessary certifications for immediate registration and operation.

• Manufacturer Advantage (Chengli Group): As a premier special purpose vehicle manufacturer in China, Chengli Group maintains rigorous quality control throughout the production process. Each vehicle undergoes comprehensive functionality testing before delivery, ensuring all spraying systems operate at specified pressures. Our nationwide service network provides prompt after-sales support with readily available genuine parts, while our engineering team offers technical support for specialized applications.

• Dura Features: The 4mm tank wall thickness provides exceptional durability while maintaining reasonable weight. The Yifeng pump is selected for its reliability and serviceability in municipal applications. The 9.00R20 steel cord tires offer excellent load capacity and puncture resistance for demanding job site conditions.

• Customization Options: While this model features a 12CBM tank with standard spraying equipment, various customizations are available including alternative pump configurations, extended mist cannon ranges, specialized spray patterns for specific applications, and anti-corrosion tank lining for chemical or seawater use. The (fire monitor style cannon) is available as an optional upgrade for customers requiring higher flow rates and longer reach.
