Product Title: Dongfeng Tianjin Pure Electric Multifunctional Dust Suppression Truck with 10CBM Tank & 80-100m Mist Cannon | DFAC 4x2 Electric Dust Suppression Truck with 10CBM Tank & 210KWH Battery Capacity

1. Product Introduction

The Dongfeng Tianjin Pure Electric Multifunctional Dust Suppression Truck represents the next generation of environmentally sustainable sanitation vehicles manufactured by Chengli Group. This zero-emission vehicle combines a 10 cubic meter water tank with an advanced electric drive system, specifically designed for urban dust control, road maintenance, and construction site spray applications where noise and emission restrictions apply. Powered by a CATL lithium iron phosphate battery with 210KWH capacity, this electric dust suppressor delivers a 300km fully loaded range while operating silently with zero tailpipe emissions. The rear platform accommodates an 80-100 meter mist cannon for long-range dust suppression, making it ideal for environmentally sensitive urban areas, green building sites, and municipal operations requiring sustainable solutions.

2. Core Technical Parameters

• Chassis Model: Dongfeng Tianjin Electric Chassis

• Tank Volume: 10 cubic meters (10,000 Liters / 2,641 Gallons)

• Wheelbase: 4500mm for enhanced stability

• Battery Brand: CATL (Contemporary Amperex Technology Co., Limited)

• Battery Capacity: 210 KWH

• Battery Type: Lithium Iron Phosphate (LiFePO4) battery

• Battery Pack Rated Voltage: 608.58V

• Chassis Range: 300 km under fully loaded conditions

• Chassis Drive Motor Power: 160 KW (maximum)

• Upper Motor Rated Power: 60-100 KW (configurable based on application)

• Energy Consumption: 40-60 KWH per operating hour

• Mist Cannon Range: 80-100 meters (atomized spraying)

3. Dimensions, Material & Design Concept

• Overall Dimensions (L×W×H): Approximately 8,600mm × 2,500mm × 3,300mm (final dimensions subject to configuration)

• Tank Specifications: 10 cubic meter tank with anti-corrosion treatment and low-water alarm system for pump protection

• Material Quality: Enhanced carbon steel construction with anti-rust coating for extended service life in humid operating conditions

• Rear Platform Material: Lightweight aluminum alloy platform reducing overall vehicle weight while maintaining structural integrity

• Side Protection: Aluminum alloy side guards combining weight reduction with safety compliance

• Design Philosophy: The Tianjin electric platform embraces a clean energy future with a focus on urban compatibility. The 4500mm wheelbase optimizes weight distribution between the heavy battery pack and water tank, ensuring stable handling characteristics. The cab design integrates seamlessly with the electric drivetrain, providing a quiet, vibration-free operating environment. The aluminum alloy rear platform and side protection components demonstrate Chengli's commitment to weight reduction, maximizing range while maintaining structural strength. The tank incorporates a corrosion-resistant lining specifically designed for water storage applications, preventing internal rust formation that can clog spray nozzles.

4. Detailed Structure & Component Advantages

• Electric Drive System: The vehicle utilizes a permanent magnet synchronous motor (PMSM) drive system, delivering instant torque with exceptional efficiency. Unlike traditional diesel engines, the electric motor provides maximum torque from zero RPM, enabling powerful pump operation even at standstill. The motor features real-time speed adjustment based on demand, optimizing energy consumption during varying load conditions.

• Battery Technology: The CATL lithium iron phosphate battery pack offers superior safety characteristics with excellent thermal stability. The 608.58V high-voltage system reduces current draw, minimizing energy losses during operation. The 210KWH capacity provides extended shift operation without intermediate charging, while the battery management system continuously monitors cell temperatures and voltages for optimal performance and longevity.

• Independent PTO Operation: A key advantage of this electric platform is the complete independence between the drive system and the spray pump operation. The upper attachment motor operates independently from the chassis drive motor, allowing full spraying functionality regardless of vehicle speed or movement. This eliminates the traditional PTO engagement requirements found in diesel vehicles, providing instantaneous response and precise flow control.

• Chassis Integration: The 4500mm wheelbase chassis features reinforced frame rails specifically designed to accommodate the 210KWH battery pack weight distribution. The low-mounted battery configuration lowers the vehicle's center of gravity, improving handling characteristics compared to conventional fuel tank placement. Regenerative braking systems recover energy during deceleration, extending effective range in stop-and-go urban operations.

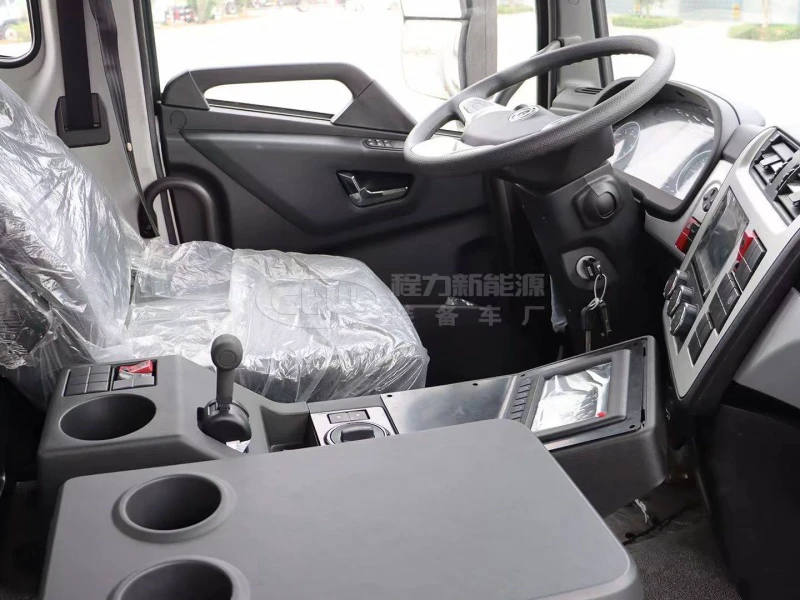

• Driving Experience: The electric drivetrain delivers an exceptional driving experience with instant acceleration, silent operation, and zero gear shifting. Operators report significantly reduced fatigue compared to manual transmission diesel vehicles, while the absence of engine vibration improves comfort during extended shifts. The system provides three charging ports for auxiliary device power needs.

5. Product Features & Chengli Group Advantages

• Advanced Spray Control System: The vehicle features an electronically controlled spraying system with automated operation for front flushing, rear sprinkling, and high-pressure cannon functions. The stainless steel electronic water cannon provides precise 360-degree rotation with joystick or remote control operation, enabling single-operator management of all spraying functions.

• Intelligent Monitoring Systems: A comprehensive monitoring package includes a low-water level alarm system that automatically protects the pump from dry running damage. The reversing camera system extends to monitor the high-pressure cannon operation from within the cab, displaying real-time video on the dashboard screen for precise targeting without leaving the vehicle.

• Weilong Centrifugal Pump: The system utilizes a Weilong brand low-pressure centrifugal pump specifically selected for electric vehicle applications. The pump features optimized impeller design for energy efficiency, reducing power consumption while maintaining required flow rates for all spraying functions.

• Environmental Performance: Zero tailpipe emissions make this vehicle suitable for indoor operations, underground parking garages, and air quality sensitive zones where diesel emissions are prohibited. The silent electric operation enables nighttime work in residential areas without disturbing residents, expanding operational windows for municipal contractors.

• Energy Efficiency: With energy consumption of 40-60 KWH per operating hour, this electric dust suppressor offers significant operating cost advantages over diesel alternatives. The 300km range covers full shift operations without mid-day charging for most municipal applications, while opportunity charging during breaks can extend operational periods.

• Manufacturer Advantage (Chengli Group): As a pioneering manufacturer in electric special purpose vehicles, Chengli Group has invested extensively in electric vehicle integration technology. Each electric dust suppression truck undergoes comprehensive testing including full-cycle battery performance validation, motor controller calibration, and integrated system functionality verification. Our partnership with CATL ensures access to the latest battery technology with complete warranty coverage. The nationwide service network includes technicians specifically trained in high-voltage electric vehicle systems, ensuring prompt support when required.

• Operational Safety: The high-voltage system incorporates multiple safety interlocks including automatic disconnect during maintenance access, insulation monitoring, and emergency shutdown protocols. All high-voltage components are clearly marked and physically isolated from operator areas, meeting or exceeding international electric vehicle safety standards.

• Customization Options: While this model features a 10CBM tank with 80-100 meter mist cannon capability, Chengli offers extensive customization including extended battery capacity for longer range applications, fast-charging system integration, remote monitoring and fleet management telematics, specialized spray patterns for specific industrial applications, and enhanced thermal management for extreme climate operations.
