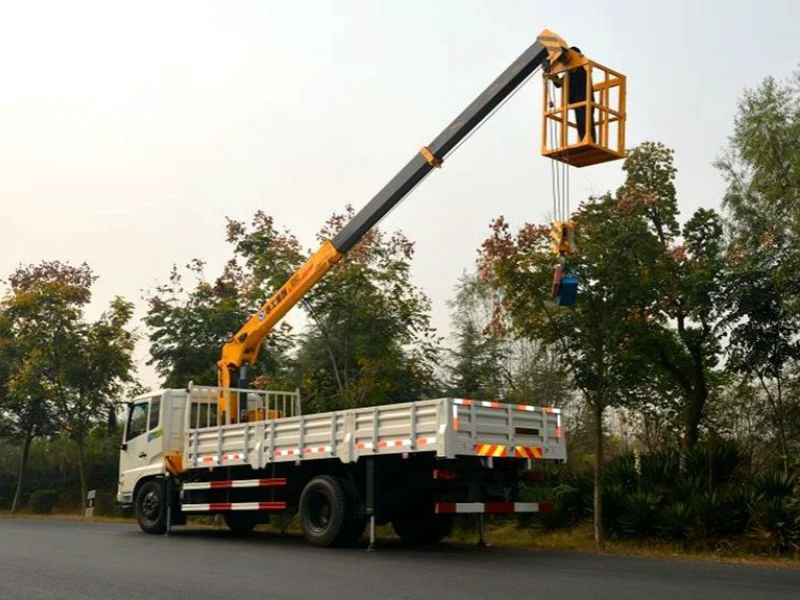

DFAC 8-Ton Truck-Mounted Crane with XCMG 8-Ton Crane | DFAC Tianjin XCMG 8T Truck-Mounted Crane

Premium Single-Bridge Crane Truck for Long-Distance Transport

I. Product Overview

The DFAC Tianjin XCMG 8T Truck-Mounted Crane represents the premium segment of Dongfeng's single-bridge crane truck lineup, positioned alongside the renowned Tianlong and Liuzhou Chenglong series. Built on the Tianjin D310 cab platform with Japanese-Chinese joint venture design, this vehicle prioritizes operator comfort and long-haul transport capability without compromising lifting performance. Powered by a Cummins 210 HP engine and paired with a Shaanxi Fast 8-speed transmission, this medium-duty crane truck features a 250mm reinforced frame and 9-ton rear axle, offering lifting capacity up to 8 tons with working radius reaching 11.5 meters. Ideal for operators requiring superior ride comfort, low noise levels, and reliable long-distance performance, this vehicle excels in cross-regional transport, construction logistics, and heavy material handling applications.

II. Core Specifications

III. Dimensions, Material & Design Concept

• Design Concept: "Premium Comfort Meets Heavy-Duty Performance." This vehicle is engineered to deliver exceptional operator comfort and long-distance reliability while maintaining the structural integrity required for 8-ton lifting operations. The design philosophy prioritizes the driver experience without compromising load-handling capability.

• Cargo Box Volume: 5.75 × 2.3 × 0.6 m = approx. 7.94 m³ = 2,098 US Gallons.

• Cargo Box Options: Available in standard lengths of 5.75 m (18.9 ft) or 6.1 m (20.0 ft). Can be configured as manual telescoping or hydraulic telescoping with selectable extension lengths. Floor thickness: 5 mm (0.2 in) standard.

• Frame Construction: The 250 mm (9.84 in) reinforced frame is engineered to provide optimal strength-to-weight ratio for this vehicle class.

• Cab Design: The Tianjin D310 cab represents the pinnacle of Dongfeng's single-bridge cab design, developed through Japanese-Chinese joint venture engineering. Key features include:

  • Superior noise insulation – reduced cabin noise for enhanced comfort

  • Hydraulic cab tilting – lightweight and effortless maintenance access

  • Semi-floating suspension with shock-absorbing seats

  • Adjustable steering wheel – height and angle customizable

  • Ample storage space – spacious storage compartments

  • Spacious sleeper berth – wide sleeper for rest during long hauls

  • Optional automatic climate control – temperature regulation

• Aesthetic Appeal: The vehicle presents a premium appearance consistent with Dongfeng's high-end product lineup, projecting professionalism at job sites and during transport.

IV. Crane Specifications

This model can be equipped with various XCMG crane configurations from 5 to 8 tons. Below are detailed specifications for common configurations:

Crane Configuration Options:

Comparative Crane Performance Table:

XCMG 6.3T 4-Section Straight Boom Detailed Lifting Capacity:

• Retracted boom length: 4.14 m (13.6 ft)

• Fully extended boom length: 11.0 m (36.1 ft)

• Lifting height: 12.8 m (42.0 ft)

• Lifting capacity at 11.0 m radius: 600 kg (1,323 lbs)

• Lifting capacity at 7.19 m radius: 1,600 kg (3,527 lbs)

• Lifting capacity at 2.5 m radius: 6,300 kg (13,889 lbs)

XCMG 8T 4-Section Straight Boom Detailed Lifting Capacity:

• Retracted boom length: 4.48 m (14.7 ft)

• Fully extended boom length: 11.5 m (37.7 ft)

• Lifting height: 13.5 m (44.3 ft)

• Lifting capacity at 11.5 m radius: 1,100 kg (2,425 lbs)

• Lifting capacity at 7.0 m radius: 2,500 kg (5,512 lbs)

• Lifting capacity at 2.5 m radius: 8,000 kg (17,637 lbs)

Important Note: When equipped with different cranes, the working radius, lifting height, and capacity at various boom lengths will vary. Actual lifting capacity is also affected by boom angle – a larger angle results in greater capacity.

V. Structural Details & Advantages

1. Powertrain System

• Cummins Engine Excellence: The Cummins 210 HP engine delivers:

  • Low noise operation – reduced cabin and external noise

  • Exceptional reliability – lower failure rates and downtime

  • Superior fuel efficiency – optimized for long-distance transport

  • Proven durability – trusted globally for demanding applications

• Shaanxi Fast 8-Speed Transmission: The transmission provides:

  • Smooth gear changes for varied terrain

  • Optimal power delivery across speed ranges

  • Enhanced fuel efficiency during highway transit

  • Proven durability in heavy-duty applications

• Long-Haul Optimization: The combination of Cummins engine and Fast transmission is specifically calibrated for long-distance transport, making this vehicle ideal for operators covering extended routes.

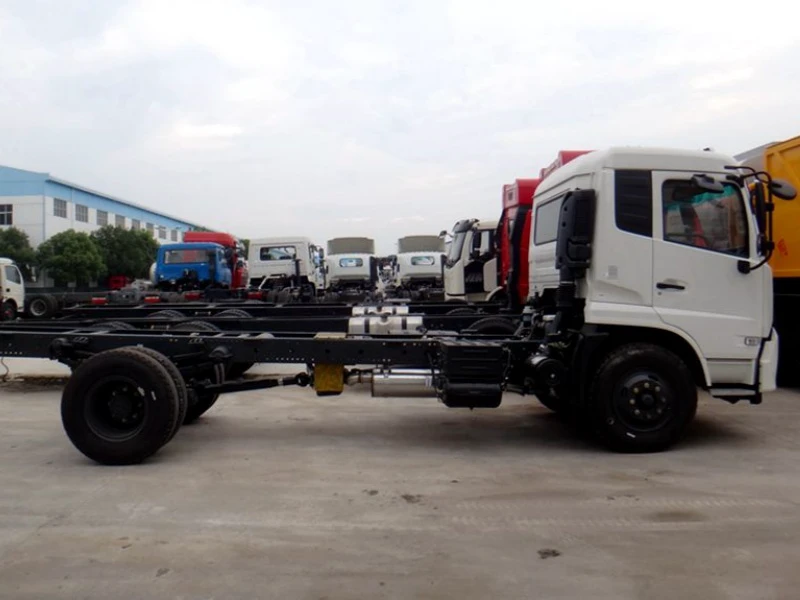

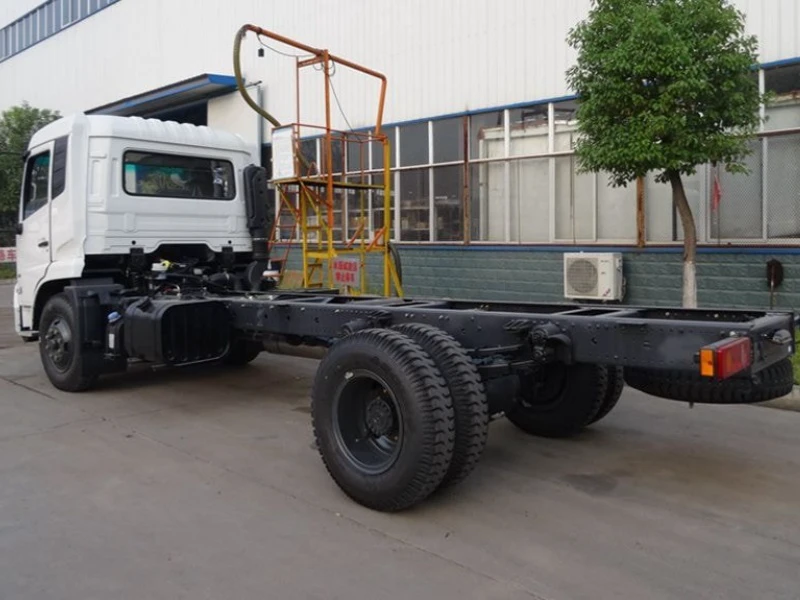

2. Chassis System

• 250mm Reinforced Frame: The 9.84-inch frame provides:

  • Optimal strength-to-weight ratio

  • Sufficient rigidity for 8-ton crane operations

  • Balanced design for ride comfort and load capacity

• Axle Configuration:

  • Front Axle: 4.5-ton capacity

  • Rear Axle: 9-ton capacity – engineered to handle:

    • Dead weight of 8-ton crane

    • Dynamic loads during lifting operations

    • Combined stress of crane operation and cargo transport

• Braking System: The dual-circuit air brake with spring parking brake is complemented by ABS anti-lock system for maximum safety.

• Tires: 9.00R20 steel cord tires provide:

  • Reliable load-carrying capacity

  • Durability for mixed road conditions

  • Stable performance at highway speeds

• Power Steering: Reduces operator fatigue during maneuvering and long-distance driving.

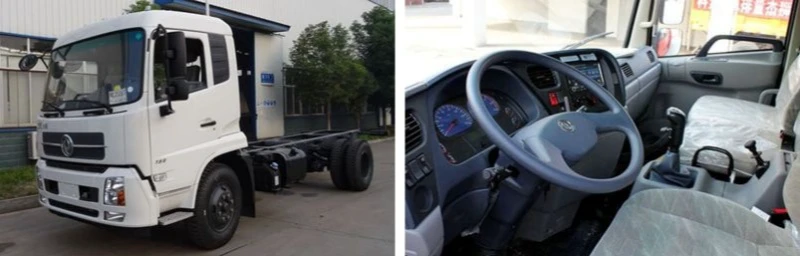

3. Premium Cab Features

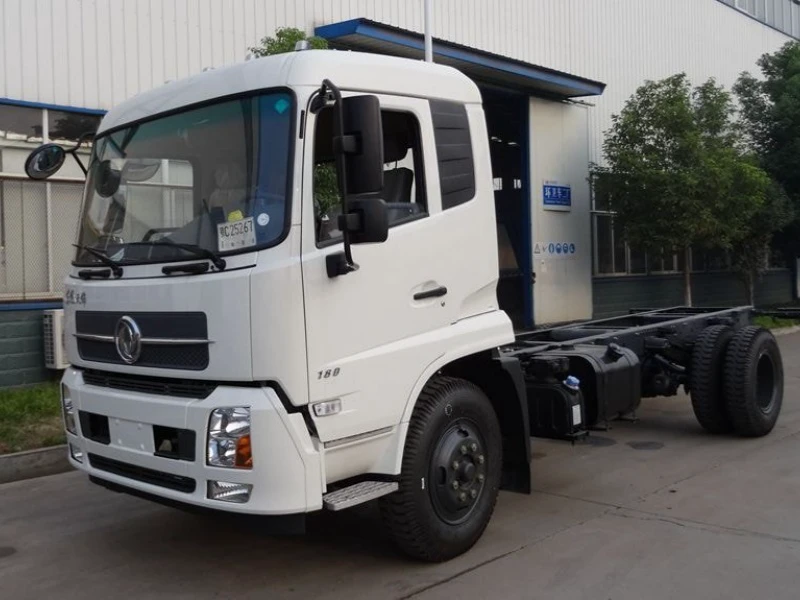

• D310 Cab Design: The cab represents the high-end product in Dongfeng's single-bridge lineup:

  • Japanese-Chinese joint venture engineering

  • Superior noise insulation for reduced fatigue

  • Hydraulic tilting for easy maintenance access

  • Shock-absorbing seats with semi-floating suspension

  • Adjustable steering column – height and angle customization

  • Wide storage space for tools and personal items

  • Spacious sleeper berth for rest during long hauls

  • Optional automatic air conditioning for climate control

• Factory Air Conditioning: Standard equipment enhances operator comfort in all weather conditions.

4. Crane System Features

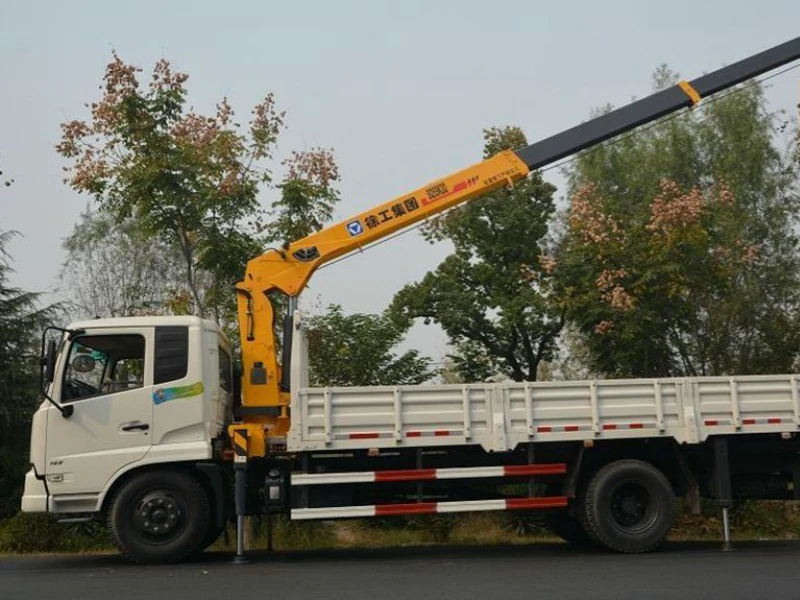

• Hexagonal Boom Technology: The four-section hexagonal boom features:

  • Construction from high-strength manganese steel

  • Superior load-bearing capacity

  • Excellent bending resistance

  • Optimized cross-section performance

• Multi-Strand Steel Wire Rope: High-toughness construction offers:

  • Enhanced lifting torque capacity

  • Prevention of rotation during hoisting

  • Improved operational safety

• Integrated Hoisting Mechanism: The integrated winch hoisting mechanism delivers:

  • Superior work efficiency

  • Extended hydraulic system service life

  • Reliable performance under load

• Floating Three-Point Bridge Structure: The unique floating three-point bridge structure effectively reduces:

  • Additional stress on the frame during vehicle operation

  • Frame fatigue over extended service life

  • Maintenance requirements

• Hydraulic Self-Locking System: The hydraulic self-locking system provides:

  • 360-degree operational control without slippage

  • No drifting or creeping during positioning

  • Enhanced safety and precision

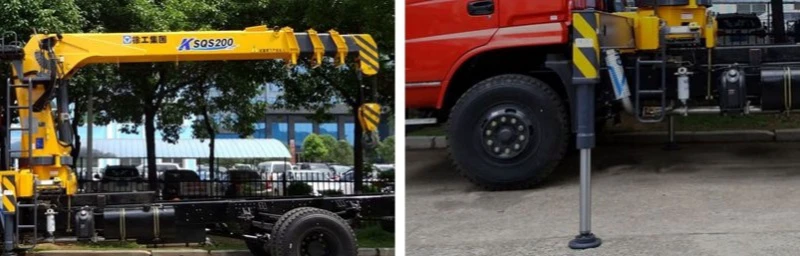

• Outrigger Flexibility: The outrigger span adjusts from 2,280-5,580 mm (89.8-219.7 in) based on road width requirements, with the 8-ton crane offering extended span for maximum stability.

5. Advanced Manufacturing Quality

• Global Quality Standards: The crane is manufactured under globally leading quality inspection systems with:

  • Strict control over every process on the visual assembly line

  • Intelligent production lines for turntable manufacturing

  • 0.01-degree between automated guided vehicles and welding stations

• Smart Welding Technology: The manufacturing process features:

  • Networked welding parameters

  • Real-time monitoring via EMS system

  • Data collection through intelligent IoT platform

  • Precise control of welding processes

VI. Product Features & Manufacturer Advantages

• Premium Single-Bridge Platform: The Tianjin series is positioned as Dongfeng's high-end product alongside Tianlong and Liuzhou Chenglong, offering:

  • Superior build quality

  • Enhanced component specifications

  • Better resale value

• Exceptional Ride Comfort: The D310 cab with Japanese-Chinese joint venture design delivers:

  • Class-leading noise insulation

  • Comfortable seating with suspension

  • Adjustable controls for driver preference

  • Rest amenities for long hauls

• Cummins Reliability: The Cummins engine is renowned for:

  • Low failure rates

  • Extended service intervals

  • Fuel efficiency

  • Quiet operation

• Flexible Crane Configuration: Available with multiple XCMG crane options:

  • 5-ton, 6.3-ton, or 8-ton capacities

  • 3-section or 4-section boom configurations

  • Straight boom or knuckle boom choices

  • Multiple brand alternatives: Sany, Shimei, Zoomlion

• Extended Working Range: With maximum working radius up to 11.5 meters and lifting height up to 13.5 meters, the 8-ton configuration handles demanding job site requirements.

• Comprehensive Optional Equipment: Beyond standard configuration, available options include:

  • Moment limiter system – electronic capacity monitoring

  • Remote control – wireless operation

  • Anti-two block solenoid valve – over-hoist protection

  • Auxiliary boom – extended reach

  • Auxiliary hook – multiple lifting points

  • Auxiliary winch – additional hoisting capacity

  • Elevated operator seat – improved visibility

  • Single or double cylinder hydraulic rear outriggers

• Safety-First Design: Multiple safety systems protect operators and equipment:

  • Hydraulic self-locking on rotation

  • Multi-strand wire rope prevents spinning

  • Floating bridge structure reduces frame stress

  • ABS anti-lock brakes for road safety

• Long-Distance Optimization: This vehicle is specifically calibrated for long-distance transport, with:

  • Fuel-efficient powertrain

  • Comfortable cab for driver endurance

  • Reliable components for extended routes

• Manufacturer Advantage (Chengli Group): As a specialized manufacturer, Chengli Group offers integrated vehicle design and manufacturing, ensuring perfect coordination between the DFAC Tianjin chassis and XCMG crane. Customers benefit from:

  • Single-source quality control

  • Comprehensive after-sales support

  • Access to genuine parts for both truck body and hydraulic crane system

  • Expertise in matching crane specifications to chassis capabilities
