Product Introduction: FAW Jiefang SANY 8-Ton Truck-Mounted Crane | FAW 4x2 8-Ton Truck-Mounted Crane with SANY 8-Ton Crane

I. Product Overview
The FAW Jiefang SANY 8-ton truck-mounted crane is a rugged material handling solution developed through a joint venture synergy, combining FAW's legendary chassis reliability with SANY's advanced crane technology. This unit is specifically engineered for heavy lifting tasks in construction, logistics, and infrastructure development. Featuring the spacious J6 cab and a powerful diesel engine, it delivers exceptional performance, operational safety, and long-term durability, making it a top-tier choice in the medium-duty truck and heavy equipment market for demanding lifting operations. As a versatile construction vehicle, it excels at material handling on job sites requiring reliable crane truck capabilities.

II. Core Specifications

• Engine: Dachai 180 HP Diesel (Euro V Emission Standard) - A reliable diesel engine providing strong power output with excellent fuel efficiency.

• Transmission: FAW 6-speed Manual Transmission - Part of a durable drivetrain engineered for heavy loads.

• Rear Axle: 378 Cast Rear Axle (with automatic brake adjuster) - A heavy-duty rear axle built for durability.

• Wheelbase: 5000 mm (196.9 inches) - Providing excellent stability for heavy lifting tasks.

• Tires: 9.00R20 Steel Cord (All around) - Heavy-duty steel cord tires for maximum load capacity.

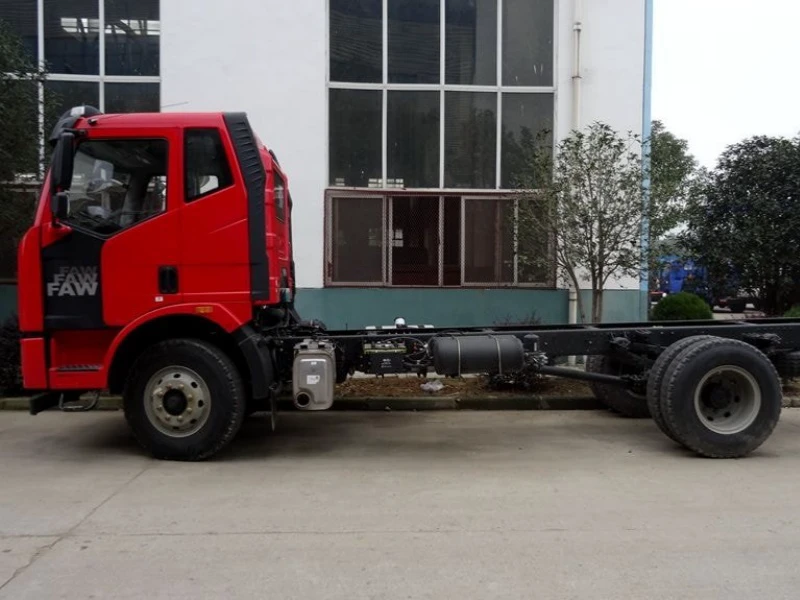

• Chassis Frame: 300 mm (11.8 inches) High-Strength Steel Channel - A robust truck frame designed for demanding applications.

• Max Crane Lifting Capacity: 8 metric tons (17,637 lbs). This lifting capacity defines its capability as a formidable 8-ton crane in the medium-duty crane segment.

• Crane Model: SANY (Optional: XCMG, Shimei). This crane brand is known for its advanced hydraulic systems and global reputation.

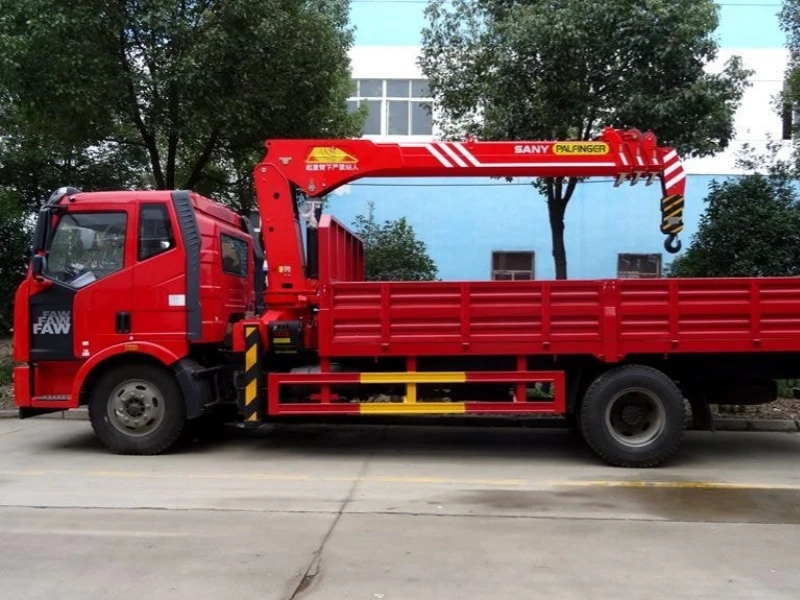

• Boom Configuration: 4-section (Optional 5-section) Straight Boom - Advanced boom design for maximum reach.

• Max Working Radius: 14 m (45.9 feet) - with 4-section boom; 17.8 m (58.4 feet) with optional 5-section boom - Impressive horizontal reach for versatile applications.

• Max Lifting Height: 16.1 m (52.8 feet) - with 4-section boom; 19.8 m (65.0 feet) with optional 5-section boom.

• Crane Rotation: 360-degree continuous operation, enabled by a powerful slewing mechanism for precise positioning.

III. Dimensions, Material & Design Concept

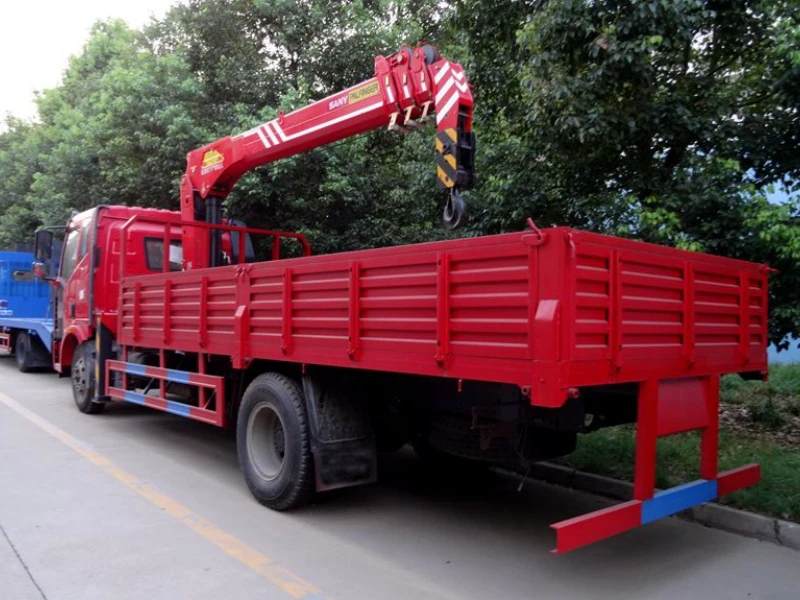

• Cargo Box Dimensions (L×W×H): 5465 × 2300 × 600 mm (17.9 × 7.5 × 2.0 feet). This durable flatbed or cargo bed can be configured as a manual telescopic cargo box or hydraulic telescopic cargo box for flexible cargo handling.

• Chassis Frame: 300 mm (11.8 inches) High-Strength Steel Channel - Providing exceptional load capacity and structural integrity.

• Design Philosophy: "Strength Through Precision." The vehicle is built around a philosophy of precision engineering and safety. Components are manufactured using advanced CNC plasma cutting technology for refined processing. The design prioritizes operator comfort with the European-style J6 cab, while the structure utilizes high-strength materials like manganese steel for the crane boom to ensure maximum load-bearing capacity and safety. The cab features mechanical suspension for reduced vibration.

• Primary Material: High-strength alloy steel and manganese steel for critical load-bearing components. The truck frame features a 300 mm high-strength steel channel with corrosion-resistant coating for longevity.



IV. Detailed Component Advantages

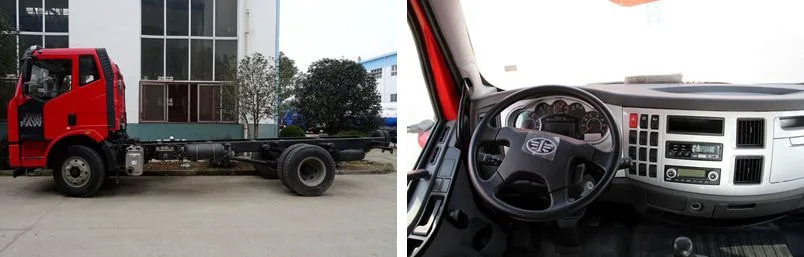

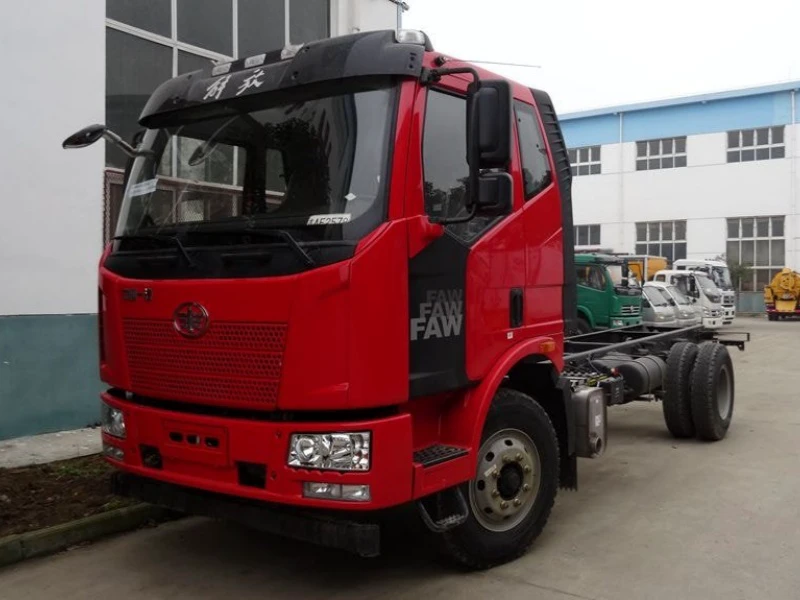

• Superior Chassis & Cab: The FAW J6 cab features a European-inspired design focused on the driver experience. It offers a spacious interior with a sleeper berth, compact dashboard layout with easily accessible controls, and storage compartments for both driver and passenger. The cab includes a mechanical suspension seat for reduced fatigue during long operations. The 11.8-inch high-strength truck frame provides an excellent foundation for the heavy-duty crane, with anti-twist engineering for stability.

• Powerful & Efficient Drivetrain: The Dachai 180 HP engine delivers strong, reliable power for both road travel and crane operations. Paired with the FAW 6-speed transmission and a flange-output power take-off (PTO) , the system ensures efficient power delivery to the crane hydraulics. The drivetrain is designed for longevity and performance under load, with torque management optimized for heavy hauling.

• Durable Running Gear: The 378 cast rear axle, equipped with an automatic brake adjuster, provides exceptional durability for heavy lifting and transport. Safety is ensured by a dual-circuit air brake system with an energy-saving spring brake for fail-safe parking, supplemented by an Anti-lock Braking System (ABS) for enhanced braking performance. The vehicle also features a Beidou-compatible onboard telematics system for fleet management and navigation, supporting logistics operations.

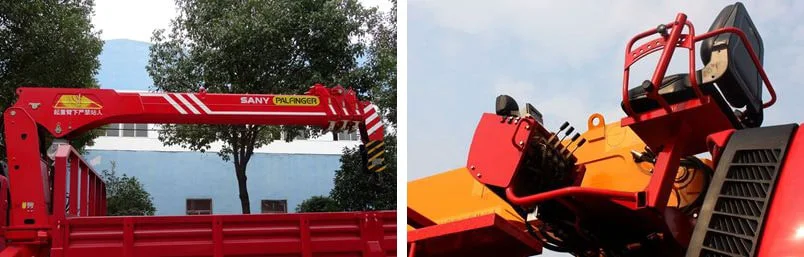

• Advanced Crane Technology: The SANY crane utilizes a hexagonal boom design made from high-strength manganese steel, offering superior resistance to bending and torsion. The crane incorporates globally leading quality control systems and imported American hydraulic fittings with high-precision cold-drawn tubes, completely eliminating oil leakage issues. The self-developed slewing mechanism provides strong driving force for various working conditions, including precision lifting tasks. The hydraulic system is engineered for extended service life, utilizing high-quality components with leak-proof connections.

V. Key Features & Chengli Group Advantages

• Precision Manufacturing: Every component undergoes refined machining using advanced CNC plasma cutting technology. The assembly process follows globally leading quality inspection standards, with strict control over every procedure on the visual assembly line, ensuring consistent quality and reliability. Each unit undergoes load testing before delivery.

• Versatile Lifting Performance: The crane delivers predictable, powerful lifting across its operating range. With the 4-section boom fully extended to 45.9 feet, it handles 2,425 lbs, while at a close 8.2-foot radius, it leverages its full 17,637 lb capacity. The optional 5-section boom extends reach to 58.4 feet, providing exceptional versatility for various construction site requirements, including high-reach applications.

• Superior Stability: The hydraulic outrigger system provides a secure working base. The standard front hydraulic outriggers (with optional hydraulic rear outriggers available) feature an adjustable span from 2280 mm (7.48 feet) to 5600 mm (18.37 feet), allowing operators to stabilize the vehicle on uneven terrain. This wide stance ensures maximum safety during heavy lifts with excellent overturning resistance and ground grip.

• Operator-Friendly Design: The crane offers multiple operation modes including upper, middle, and lower controls. The upper operation option includes an elevated seat with excellent visibility and an electronic display for precise monitoring with load moment indication. The remote throttle feature enhances operational convenience and accuracy, supporting single-operator functionality.

• Chengli Group Manufacturing Excellence: As a premier special vehicle manufacturer, Chengli Group offers comprehensive customization and integration expertise. We provide extensive options including telescopic cargo boxes and choices between top crane brands like SANY, XCMG, and Shimei. Our commitment to quality, genuine parts availability, and comprehensive after-sales support including warranty coverage and maintenance services ensures your truck equipment delivers long-term value and reliable service in the special purpose vehicle market. We serve fleet operators and construction companies worldwide with custom engineered solutions.
