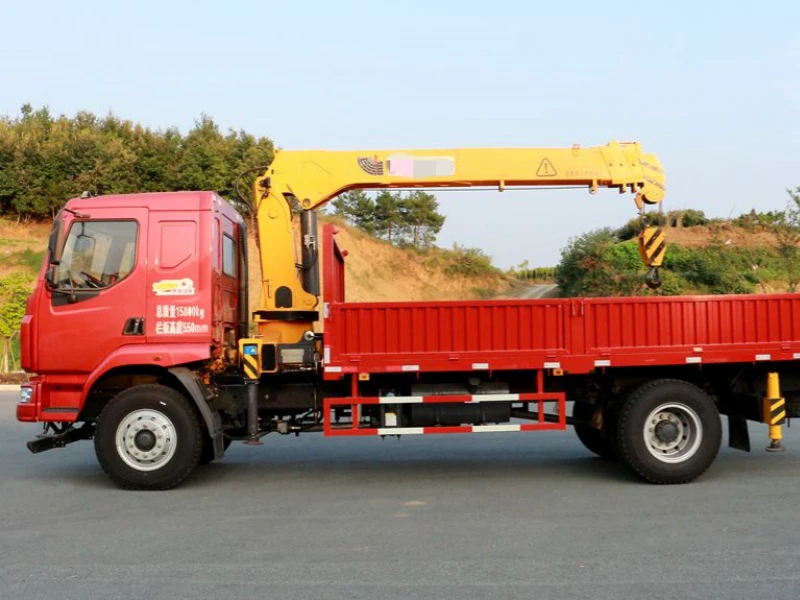

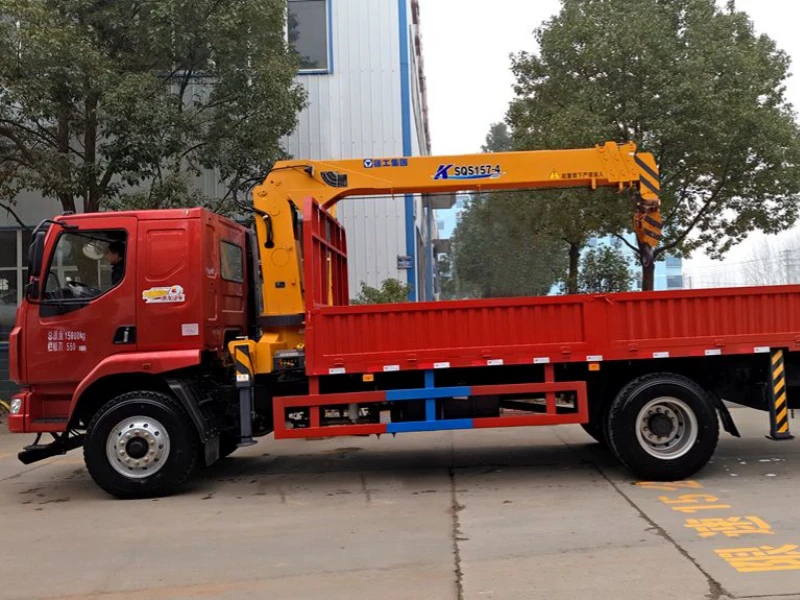

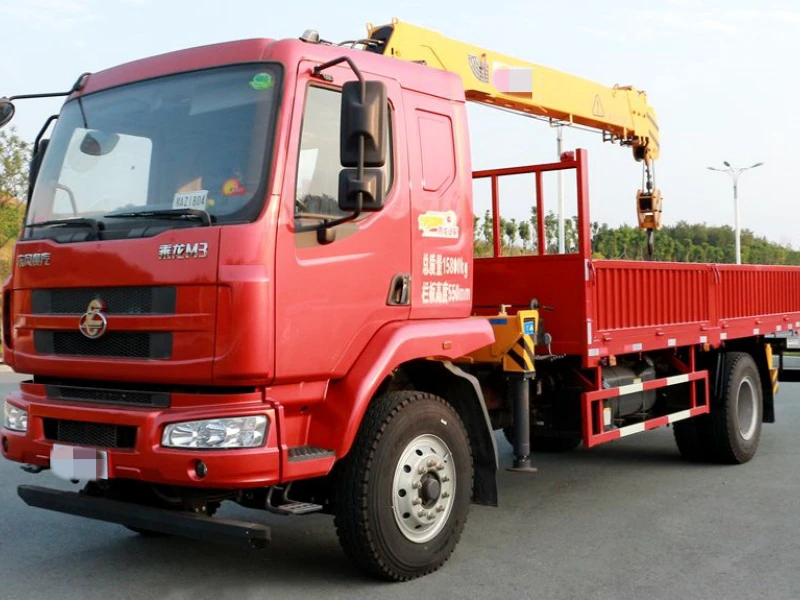

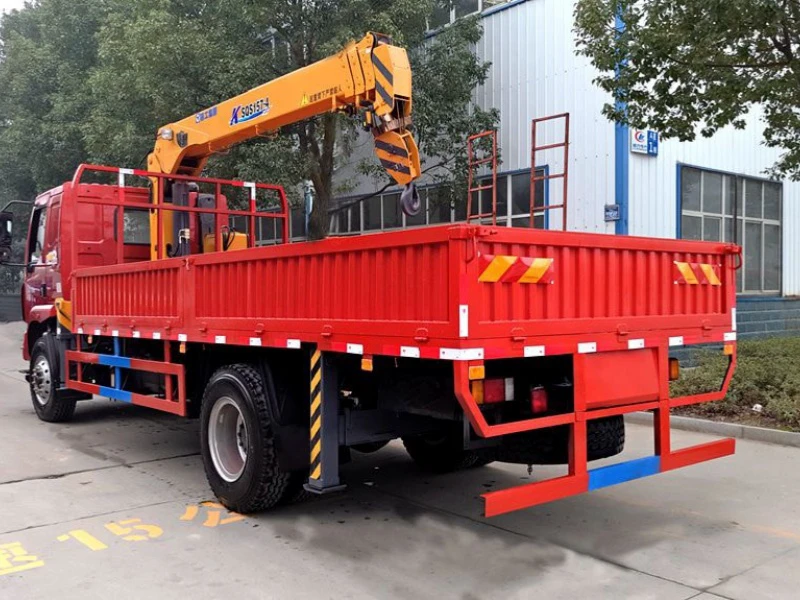

Product Introduction: Dongfeng 6.3-Ton Truck-Mounted Crane | Dongfeng 6.3-ton truck-mounted crane equipped with XCMG 6.3-ton crane
I. Product Overview
The Dongfeng Liuzhou Mulang XCMG 6.3-ton truck-mounted crane is a high-performance material handling vehicle engineered for demanding construction, logistics, and infrastructure projects. It integrates a purpose-built Dongfeng Liuzhou chassis with a powerful and reliable XCMG crane. This combination delivers exceptional lifting capacity, operational stability, and on-road mobility, making it a versatile and indispensable asset for any job site requiring efficient loading and unloading. As a specialized commercial vehicle and heavy equipment solution, it excels in freight handling and construction lifting.
II. Core Specifications
Engine: Yuchai 180 HP / 200 HP Diesel (Euro V Emission Standard) - A powerful and reliable diesel engine option.
Transmission: Fast (Shaanxi Gear) 8-speed Manual with High/Low Range, ensuring excellent drivetrain performance.
Rear Axle: 153 Heavy-Duty Reinforced Type.
Wheelbase: 5100 mm (200.8 inches).
Tires: 10.00R20 Steel Cord (All around).
Max Crane Lifting Capacity: 6.3 metric tons (13,889 lbs). This lifting capacity defines its class as a formidable medium-duty truck.
Crane Model: XCMG (Optional: Sany, Shimei). Choosing a reputable crane brand like XCMG guarantees performance.
Boom Configuration: 4-section (Optional 3-section); Straight or Folding boom available. The boom design allows for significant horizontal reach.
Max Working Radius: 11 m (36.1 feet) - with 4-section boom.
Max Lifting Height: 12.8 m (42.0 feet).
Crane Rotation: 360-degree continuous, enabled by a robust slewing mechanism.
III. Dimensions, Material & Design Concept
Cargo Box Dimensions (L×W×H): 6100 × 2420 × 550 mm (20.0 × 7.94 × 1.8 feet). This spacious cargo bed or flatbed can be configured as a hydraulic telescopic cargo box.

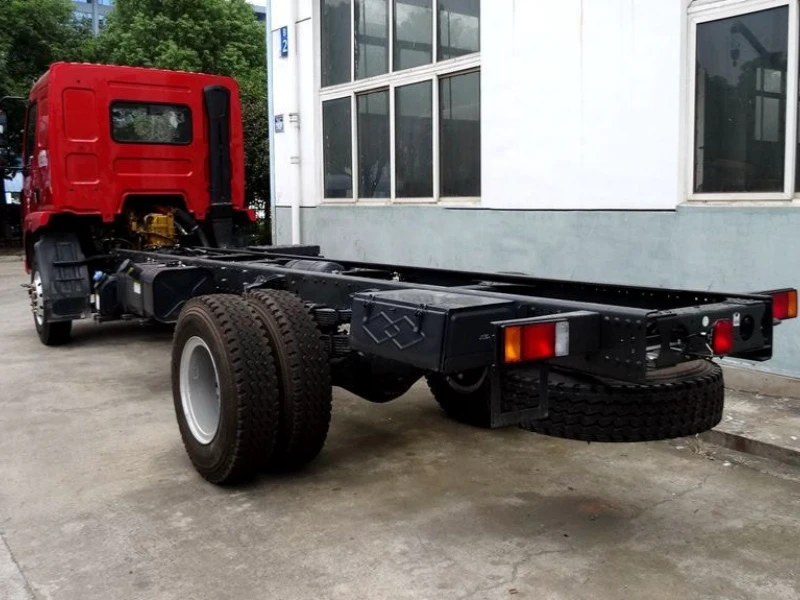

Chassis Frame: 273 mm (10.75 inches) High-Strength Steel (Double layer with partial three-layer reinforcement). This heavy-duty truck frame is built for extreme loads.
Design Philosophy: "Foundation for Performance." The vehicle's core strength lies in its chassis frame, formed by a single 6300-ton press stamping. This process creates a warp-resistant, high-load-bearing foundation. The design incorporates intelligent features like the EBP power switch and a unique floating three-point bridge structure to actively reduce stress and optimize efficiency during both travel and lifting operations. The Mulang M3 cab features a "Dragon Bone Frame" and four-point spring suspension for comfort and safety.
Primary Material: High-strength alloy steel is used throughout the chassis frame and the crane's hexagonal boom sections to maximize the strength-to-weight ratio and ensure long-term durability.
IV. Detailed Component Advantages

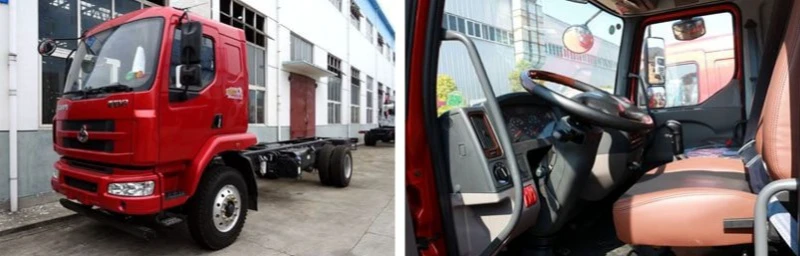

Robust Chassis & Cab: The Mulang M3 chassis features a "Dragon Bone Frame" cab structure for superior impact protection. The 10.75-inch reinforced frame provides an exceptionally stable platform for the heavy-duty crane. The cab itself is a "full-floating" design with four-point spring suspension, dramatically reducing vibration and driver fatigue. Its spacious flat-floor design and optimized seat enhance long-hour comfort.
Efficient Powertrain: The Yuchai engine is equipped with an EBP switch (Economy, Balance, Power). This intelligent system allows the driver to actively select between light, medium, and heavy load modes, optimizing engine output for fuel savings of up to 6%. The Fast 8-speed transmission provides the precise torque control and gear range needed for both highway travel and demanding crane operations. The power take-off (PTO) is factory-installed for seamless integration.
Durable Running Gear: The 153 reinforced rear axle is engineered to handle the dynamic stresses of lifting and heavy transport. Safety is ensured by a dual-circuit air brake system with an energy-saving spring brake for fail-safe parking, supplemented by an Anti-lock Braking System (ABS).

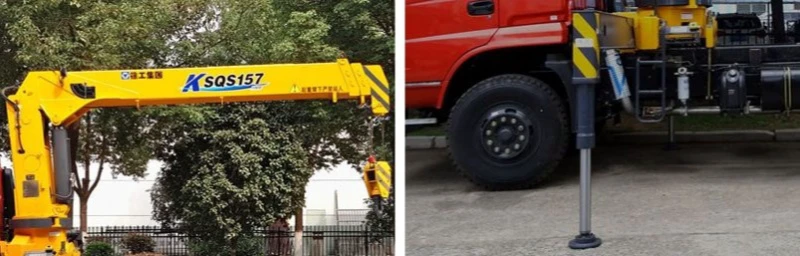

Advanced Crane Structure: The XCMG crane utilizes a high-strength hexagonal boom section, which offers superior resistance to bending and torsion compared to traditional shapes. Its single-cylinder telescoping mechanism with cable synchronization ensures smooth, efficient, and reliable boom extension. An integral anti-sway control and rotation buffer device protects the swing gear from impact during travel, enhancing overall vehicle safety and making lifting operations more secure.
V. Key Features & Chengli Group Advantages
Versatile & Predictable Lifting: The crane delivers precise, powerful lifting across its operating range. At its maximum 36-foot extension, it handles 1,323 lbs, while at a close 8.2-foot radius, it leverages its full 13,889 lb capacity. This predictable performance, detailed in the provided load charts, allows for safe and efficient operation in tight spaces or at height, meeting diverse material handling needs.
Unmatched Stability: The hydraulic outrigger system provides a secure working base. The front circular hydraulic outriggers feature an adjustable span from 7.48 to 16.73 feet, allowing operators to stabilize the vehicle on uneven terrain. This wide stance, combined with the rigid chassis, ensures maximum safety during heavy lifts. Options like a hydraulic rear outrigger can be added.
Chengli Group Manufacturing Excellence: As a premier special vehicle manufacturer, Chengli Group offers a distinct advantage. We provide extensive customization options, including telescopic cargo boxes and choices between top crane brands like XCMG, Sany, and Shimei. Our expertise in integrating chassis and crane components ensures a perfectly matched, reliable final product. We offer comprehensive after-sales support, genuine parts availability, and a commitment to meeting international quality standards, ensuring your truck equipment provides long-term value and reliable service in the special purpose vehicle market.
