Product Introduction: DFAC Kaipute Pure Electric Washing-Sweeper Truck | DFAC Electric Sweeper Truck with 3726km Range 5m³ Water Tank and 5m³ Debris Bin
I. Product Overview

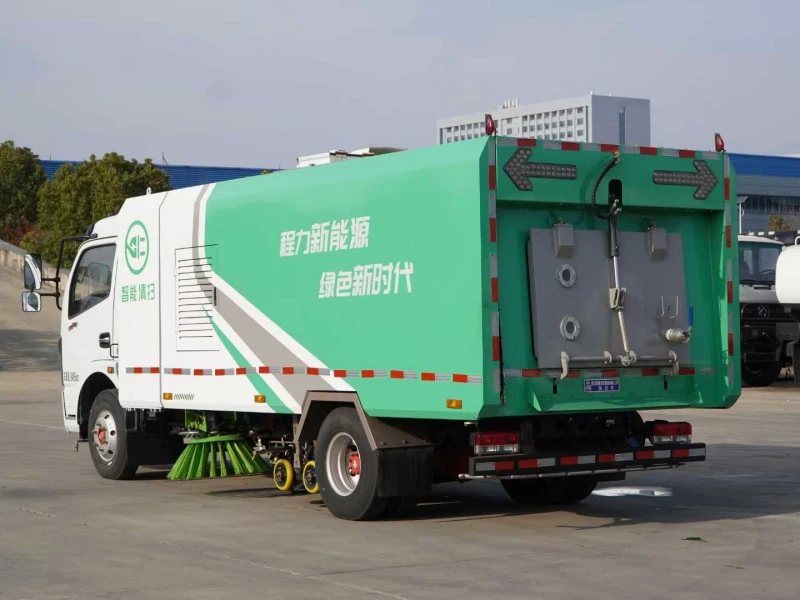

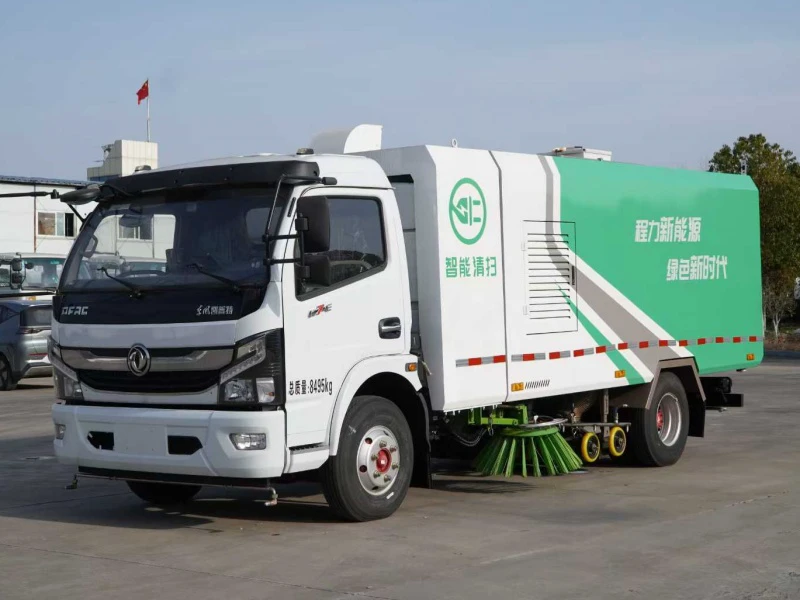

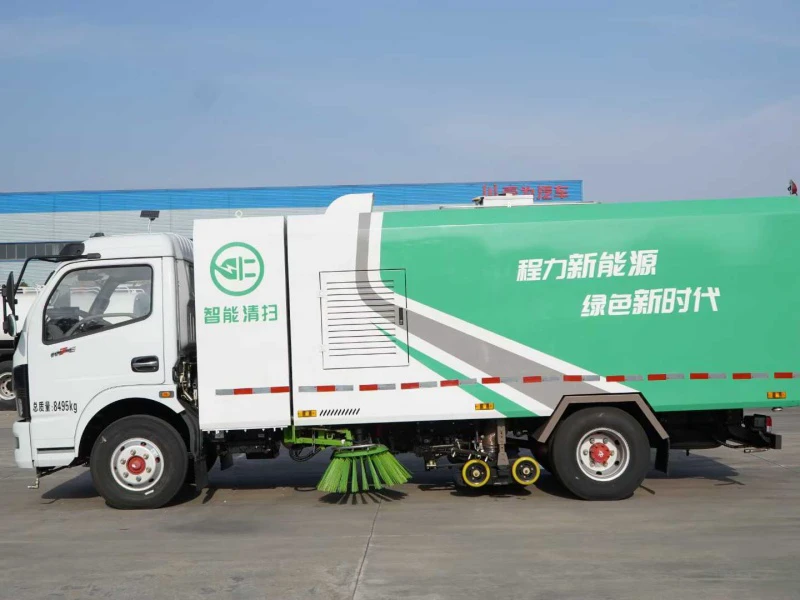

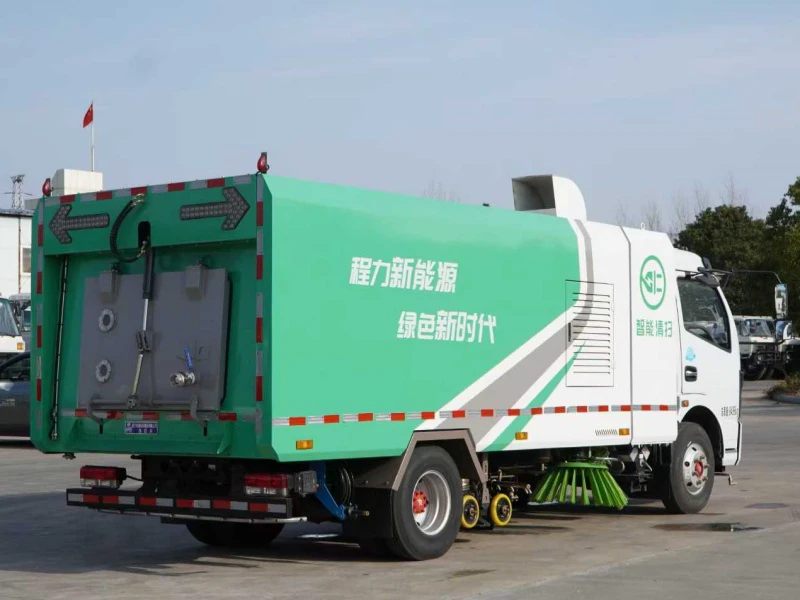

The DFAC Kaipute Pure Electric Washing-Sweeper Truck (Model: CL5081TXSBEV) represents an innovative advancement in urban sanitation technology, combining efficient cleaning performance with exceptional operator comfort. This zero-emission electric sweeper features a distinctive square tank design that maximizes capacity while enhancing vehicle aesthetics. Built on the reliable DFAC electric chassis with 3,850 mm wheelbase and powered by a 162.28 kWh CATL lithium iron phosphate battery, this new energy sweeper delivers an impressive 372.6 km fully loaded cruising range. As part of the Chengli sanitation truck series, this electric washing-sweeper truck offers dual computer and manual control systems, wrap-around aviation air suspension seat, and advanced cleaning capabilities including sweeping, high-pressure washing, curb cleaning, and dust suppression, making it ideal for green road maintenance, smart city cleaning, and low-emission zones in sustainable urban development projects.
II. Core Parameters
Chassis Model: EQ1081KACEVJ1 (DFAC Kaipute Electric Chassis)
Overall Dimensions: Please refer to technical drawings
Gross Vehicle Weight: 8,495 kg
Curb Weight: 7,800 kg
Wheelbase: 3,850 mm (Approx. 151.6 inches)
Tire Specification: 7.50R16 16PR
Battery & Powertrain:
Battery Brand: CATL (Contemporary Amperex Technology Co., Limited)
Battery Type: Lithium Iron Phosphate (LiFePO₄)
Battery Capacity: 162.28 kWh
Battery Rated Voltage: 540V
Charging Time: Approximately 2 hours
Recommended Charging Pile Power: 120 kW
Fully Loaded Cruising Range: 372.6 km
Chassis Motor Max Power: 120 kW (Permanent Magnet Synchronous Motor)
Upper Body Motor Rated Power: 50 kW
Upper Body Power Consumption: 30-40 kWh per operating hour
Cleaning Specifications:
Water Tank Capacity: 5 m³ (Approx. 1,321 US gallons) - Stainless steel, square design
Debris Bin Capacity: 5 m³ (Approx. 1,321 US gallons) - Stainless steel, square design
Total Capacity: 10 m³ (Approx. 2,642 US gallons)
Maximum Cleaning Width: 2.5-3.5 meters (Approx. 98.4-137.8 inches) adjustable
High-Pressure Wash Reel: 15 meters (Approx. 49.2 feet)
III. Dimensions, Materials & Design Concept
Distinctive Square Tank Design: Unlike traditional cylindrical tanks, this model features innovative square box body construction that significantly increases internal volume while enhancing overall vehicle aesthetics. The square design optimizes space utilization and provides a modern, professional appearance for municipal street sweeping fleets seeking vehicle aesthetics and brand image improvement.
Tank Configuration: Dual 5 m³ stainless steel water tank and debris bin with square configuration provide balanced capacity for extended operation without frequent refilling. The equal 5+5 configuration optimizes weight distribution and maximizes usable space for urban road cleaning applications.
Material Quality: Both water tank and debris bin are constructed from high-grade stainless steel with corrosion-resistant properties, ensuring longevity under continuous operation. The stainless steel high-pressure spray rods deliver reliable water distribution. The maintenance-free centrifugal fan reduces downtime and operating costs. All components meet strict national vehicle standards for quality and safety.
Noise Reduction Design: Advanced insulation and vibration damping technology ensures minimal noise and vibration during operation, creating a quiet environment both inside and outside the cabin. This quiet operation makes the vehicle ideal for residential neighborhoods, night-time cleaning, and noise-sensitive areas where dust control must be achieved without disturbance.
Operator-Centric Cab: The cab features a wrap-around aviation air suspension seat for exceptional comfort during long shifts, reducing driver fatigue. Standard equipment includes central locking and MP5 multimedia system. This focus on operator comfort improves productivity and reduces turnover in fleet management operations.
Design Philosophy: The vehicle embodies a "Aesthetic Efficiency, Operator Comfort, Zero Emissions" design concept. The square tank design maximizes capacity while improving appearance. The 3,850 mm wheelbase provides excellent maneuverability for narrow street sweeping, while the 162.28 kWh CATL battery delivers an impressive 372.6 km range, eliminating range anxiety for green public works and environmental compliance initiatives.
IV. Detailed Structure & Component Advantages
Electric Drive System: Powered by a permanent magnet synchronous motor delivering 120 kW maximum power, providing instant torque and smooth acceleration. The chassis battery powers both driving and cleaning operations through an independent electric power take-off system, allowing real-time speed adjustment based on operational needs without affecting driving performance. This delivers an exceptional user experience with responsive control and represents the latest electric sweeper technology for heavy-duty street sweeping applications with effective secondary pollution prevention.
Dual Control System: The vehicle features both computer control and manual operation capabilities, ensuring reliable operation even if one system requires maintenance. This redundancy greatly guarantees and improves vehicle utilization rate, minimizing downtime and maximizing productivity for fleet management operations. The sweeper control technology ensures optimal performance in all conditions.
Battery System: The 162.28 kWh CATL lithium iron phosphate battery provides exceptional energy density with an impressive 372.6 km fully loaded cruising range. Fast charging capability (approximately 2 hours) minimizes downtime. The 540V system voltage enables efficient power delivery to both drive and cleaning systems. This lithium iron phosphate battery technology ensures long cycle life, thermal stability, and safety for carbon reduction and sustainable urban development goals.
Chassis & Suspension: The DFAC electric chassis features a robust frame optimized for square tank configuration. The 3,850 mm wheelbase provides excellent maneuverability in tight urban spaces for narrow street sweeping. The wrap-around aviation air suspension seat significantly reduces operator fatigue, while advanced insulation minimizes vibration and noise transmission for quiet operation.
Cleaning Configuration: The advanced cleaning system features:
Mid-Mounted Two Sweeping Brushes: Centrally positioned with Lidon motors for optimal debris collection and dust control
Universal High-Pressure Curb Cleaning: Specialized nozzles for thorough edge cleaning along curbs and gutters
GTM High-Pressure Water Pump: Reliable pressure for comprehensive cleaning from a trusted global brand
Wanli Gear Pump: Durable hydraulic power unit for consistent performance
Hydreforce Hydraulic Cylinders: Responsive control for sweeping functions with precision operation
Maintenance-Free Centrifugal Fan: Reliable suction with minimal maintenance, preventing secondary pollution
Stainless Steel High-Pressure Spray Rods: Corrosion-resistant water distribution for long service life
15m High-Pressure Wash Reel: Extended reach for cleaning hard-to-access areas including barriers and signs
Adjustable Cleaning Width: 2.5-3.5 meters for adaptable lane coverage in different road conditions
Control & Monitoring Systems: The vehicle features advanced control and safety systems:
Schneider Control Switches: Precise electrical management from a trusted global brand ensuring reliability
American Sensors: High-accuracy monitoring and control for reliable operation and smart city cleaning integration
Rear Electric Control Operation: Convenient rear-mounted controls for operator efficiency during curbside operation
Indoor Monitoring System: Rearview camera and washing-sweeping status display for enhanced visibility
Water Tank Alarms: Anti-overflow and low water level alarm system protects equipment from damage
Debris Bin Alarm: Anti-overflow alarm protection prevents spillage and environmental contamination
LED Arrow Light: Rear-mounted for enhanced safety during operation in traffic conditions
Electrical System: Dedicated control circuit for working device operation ensures reliability and simplified troubleshooting
V. Product Features & Chengli Group Advantages
Product Features:
Innovative Square Tank Design: Maximizes internal volume and enhances vehicle aesthetics; provides professional appearance for municipal street sweeping fleets seeking modern image
Exceptional Range: 372.6 km fully loaded cruising range eliminates range anxiety; supports all-day operation without recharging for extended operation productivity
Dual Control System: Computer and manual operation redundancy ensures maximum reliability and utilization rate; minimizes downtime for fleet management efficiency
Superior Operator Comfort: Wrap-around aviation air suspension seat with MP5 and central locking; reduces fatigue during long shifts for improved operator comfort and safety
Quiet Operation: Advanced noise and vibration damping creates quiet cabin and reduces neighborhood disturbance; enables early morning and night-time cleaning in residential areas
Zero-Emission Operation: Fully electric with no tailpipe emissions, ideal for low-emission zones and environmentally sensitive areas; contributes to carbon reduction goals
Balanced Capacity: 5 m³ water tank and 5 m³ debris bin provide extended operation without frequent refilling; maximizes productivity and minimizes downtime
Adjustable Cleaning Width: 2.5-3.5 meters adaptable to different road conditions from narrow streets to wide arterials
Comprehensive Cleaning: Mid-mounted sweeping brushes, high-pressure curb cleaning, and 15m wash reel for complete urban road cleaning solutions
Advanced Components: GTM pump, Schneider switches, American sensors, and stainless steel construction ensure long-term reliability
Fast Charging: Approximately 2-hour charging time supports continuous shift operations; enables overnight charging for next-day readiness
Proven Battery Technology: CATL lithium iron phosphate battery ensures safety, reliability, and long service life with industry-leading energy density
Durable Construction: Stainless steel tanks and high-pressure components resist corrosion for reduced maintenance costs
Safety Features: Multiple alarms, indoor monitor, and LED arrow light ensure safe operation in traffic and work zones
Chengli Group Advantages:
Industry Leader: As a premier Chinese special vehicle manufacturer, Chengli combines decades of experience with advanced electric vehicle technology, ranking among China's top sanitation equipment producers with over 50,000 vehicles operating worldwide and documented customer satisfaction
Innovation in Design: Chengli's square tank design represents continuous innovation in sanitation vehicle manufacturing, improving both function and form for vehicle aesthetics and improved capacity
Strategic Partnership: Collaboration with DFAC ensures quality electric chassis; partnership with CATL provides world-class battery systems; cooperation with global suppliers ensures top-quality components including GTM, Schneider, Hydreforce, and American sensors
New Energy Expertise: Chengli is at the forefront of new energy sweeper development, offering a complete range of electric sanitation vehicles from compact to heavy-duty models for every application
Quality Manufacturing: ISO9001 certified production facilities with advanced robotic welding, laser cutting, and 100-point quality control; ISO14001 environmental management certification ensuring environmental compliance
Comprehensive Support: Extensive service network with 300+ stations provides 24-hour parts supply, prompt after-sales support, technical hotline, and operator training for genuine parts availability
Customization Capability: Offers tailored solutions for specific municipal and industrial requirements, including custom sweeper configurations for unique urban cleaning challenges such as historic districts, tunnels, and specialized facilities
Export Experience: Successfully exported to Southeast Asia, Middle East, Africa, South America, and Eastern Europe; full compliance with international standards including EEC and GCC for global markets
Certified Manufacturer: Holds ISO14001 environmental management certification and meets all national vehicle standards; all vehicles are fully compliant for export and domestic use with necessary certifications
Proven Track Record: Thousands of Chengli sanitation vehicles operating successfully in cities worldwide; documented performance, reliability, and proven track record with repeat customers
Complete Product Line: From 2.5m³ compact sweepers to 22m³ tandem axle models, Chengli offers over 50 sanitation vehicle models for every application and budget as a complete product line provider
Value Proposition: Competitive pricing (15-20% below comparable international brands), superior quality, comprehensive warranty, and long-term partnership potential delivering exceptional value proposition
Operator Focus: The wrap-around aviation air suspension seat and quiet cabin design demonstrate Chengli's commitment to operator comfort and satisfaction, recognizing that comfortable operators deliver better results
Environmental Commitment: All Chengli vehicles meet strict emission standards, with growing electric and new energy vehicle lineup for green public works and sustainable urban development worldwide
Financial Strength: As a publicly traded company with strong financial backing, Chengli offers stability, warranty fulfillment, and long-term partnership potential for municipal customers
