Product Introduction: Howo Electric Washing-Sweeper Truck | Howo 4x2 Electric Sweeper Truck with 242kWh Battery 7m³ Water Tank and 7m³ Debris Bin
I. Product Overview

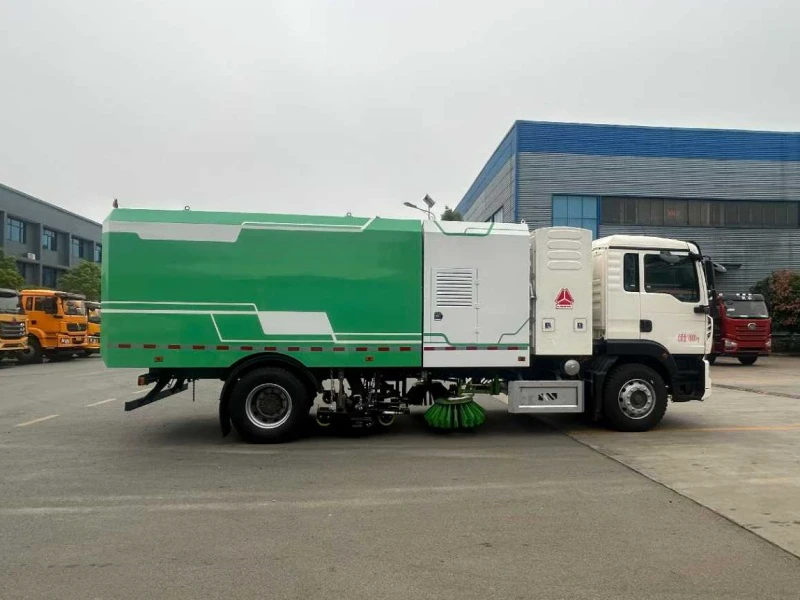

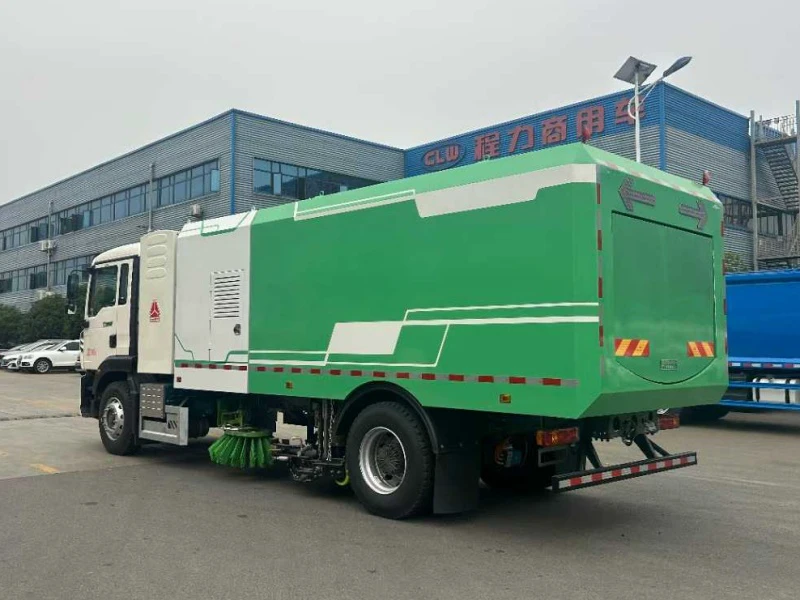

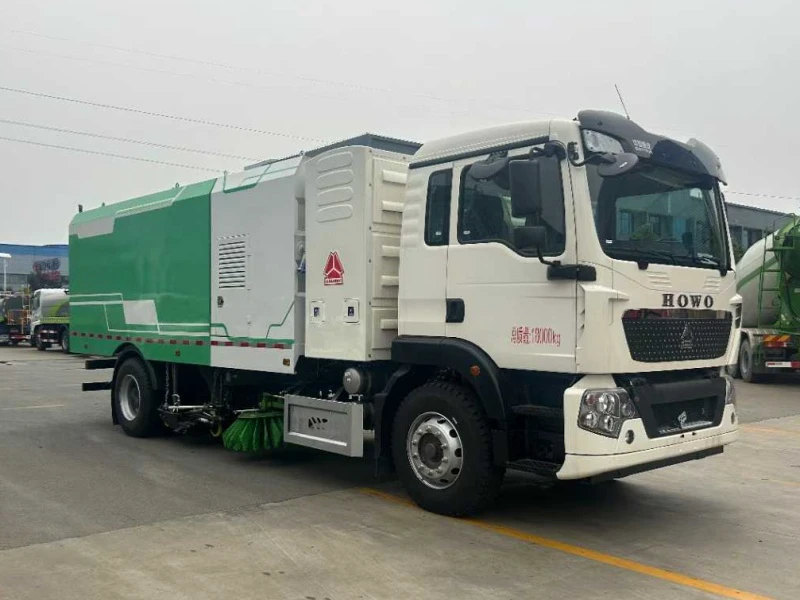

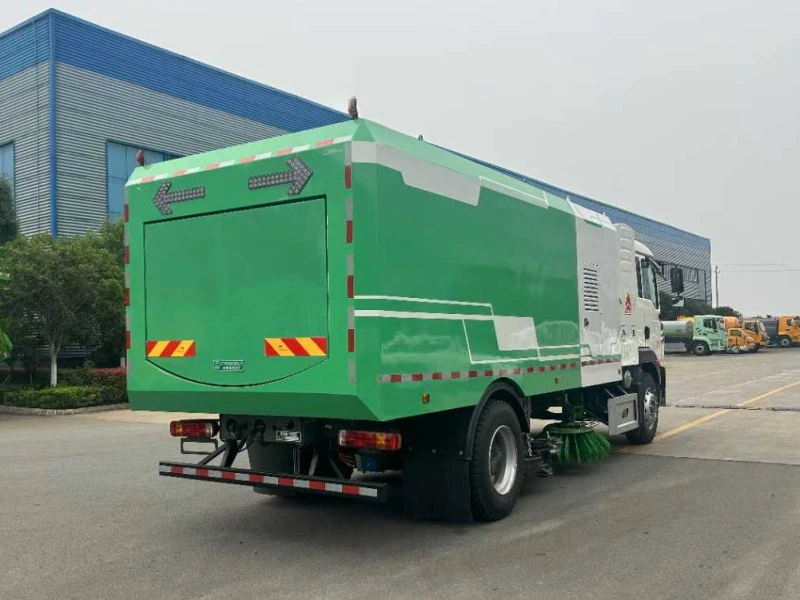

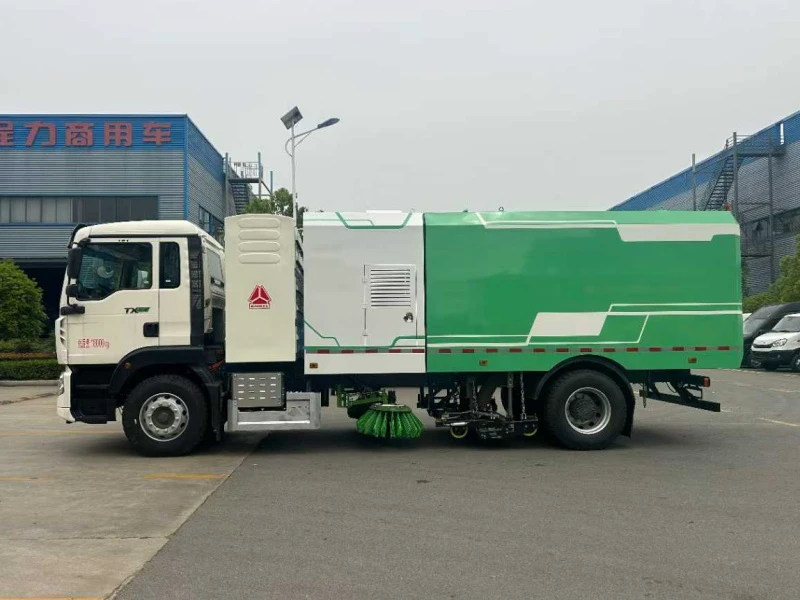

The Howo Electric Washing-Sweeper Truck (Model: CL5183TXSBEVAQZ) represents a powerful and environmentally advanced solution for large-scale municipal cleaning operations. This zero-emission electric sweeper combines robust construction with efficient cleaning performance, built on the reliable Howo TX-M chassis with 5,300 mm wheelbase. Powered by a high-capacity 242.27 kWh CATL lithium iron phosphate battery, this new energy sweeper delivers exceptional range and reliability for demanding applications. As part of the Chengli sanitation truck series, this electric washing-sweeper truck features dual-motor control system, stainless steel tanks, and comprehensive cleaning capabilities including sweeping, high-pressure washing, and dust suppression, making it ideal for heavy-duty street sweeping, highway maintenance, and low-emission zones in sustainable urban development projects worldwide.
II. Core Parameters
Chassis Model: ZZ1187N531GZ1EV24 (Howo Electric Chassis)
Cab Type: TX-M cab with optional 10-inch display and multi-function steering wheel
Wheelbase: 5,300 mm (Approx. 208.7 inches)
Battery & Powertrain:
Battery Brand: CATL (Contemporary Amperex Technology Co., Limited)
Battery Capacity: 242.27 kWh
Battery Type: Lithium Iron Phosphate (LiFePO₄)
Front Axle: VGD75 self-adjusting arm front axle (drum type)
Rear Axle: MCE12ZG electric drive single rear axle (drum type) with 48.1/19.9 ratio
Frame: Double-layer frame (7+4/250 mm) - Approx. 0.28/0.16 inches thickness
Suspension: Reinforced multi-leaf springs (11/9+8)
Steering: Domestic steering gear
Power Take-off: Multi-controller unit electric power take-off
Brake System: ABS (4S/4M)
Bumper: Mid-position bumper (non-metal)
Tires: 295/80R22.5 (mixed pattern/18PR)
Video Recorder: New national standard video recorder
Optional Features: 10-inch display screen + multi-function steering wheel for enhanced operator comfort
Cleaning Specifications:
Water Tank Capacity: 7.5 m³ (Approx. 1,981 US gallons) - Stainless steel
Debris Bin Capacity: 7 m³ (Approx. 1,849 US gallons) - Stainless steel
Total Capacity: 14.5 m³ (Approx. 3,830 US gallons)
Maximum Sweeping Width: 3.5 meters (Approx. 137.8 inches)
Maximum Sweeping Area: 50,000-100,000 m² per hour
High-Pressure Wash Reel: 20 meters (Approx. 65.6 feet)
III. Dimensions, Materials & Design Concept
Tank Configuration: 7.5 m³ stainless steel water tank and 7 m³ stainless steel debris bin provide substantial capacity for extended operation without frequent refilling. The balanced configuration optimizes weight distribution for stable operation during urban road cleaning and highway maintenance.
Material Quality: Both water tank and debris bin are constructed from high-grade stainless steel with corrosion-resistant properties, ensuring longevity under continuous heavy-duty operation. The double-layer frame with 7+4/250 mm construction (approx. 0.28/0.16 inches thickness) provides exceptional structural integrity for demanding applications, meeting strict national vehicle standards.
Dual-Motor Control System: The vehicle features an innovative dual-motor control system with one motor dedicated to the high-pressure pump and another dedicated to the fan hydraulic pump. This separation ensures optimal power distribution and reliable performance for all cleaning functions, representing advanced sweeper technology.
Design Philosophy: The vehicle embodies a "Heavy-Duty Performance, Zero Emissions" design concept. The 5,300 mm wheelbase and reinforced suspension provide excellent stability for high-speed sweeping operations, while the 242.27 kWh CATL battery ensures all-day operation capability. The TX-M cab with optional 10-inch display and multi-function steering wheel enhances operator comfort and control for fleet management efficiency.
IV. Detailed Structure & Component Advantages
Electric Drive System: The MCE12ZG electric drive single rear axle delivers efficient power transmission with 48.1/19.9 ratio optimized for sweeping operations. The VGD75 self-adjusting arm front axle ensures precise steering control. The electric power take-off system through multi-controller unit enables seamless power delivery to cleaning systems, providing responsive user experience and representing the latest electric sweeper technology.
Battery System: The 242.27 kWh CATL lithium iron phosphate battery provides exceptional energy density and safety for heavy-duty applications. The high-capacity battery supports extended operation without recharging, ideal for large municipal routes and carbon reduction initiatives. This lithium iron phosphate battery technology ensures long cycle life and thermal stability for environmental compliance.
Chassis & Suspension: The double-layer frame (7+4/250 mm) provides exceptional structural rigidity for heavy-duty applications. Reinforced multi-leaf springs (11/9+8) ensure stable load distribution even when fully loaded with 14.5 m³ total capacity. The 295/80R22.5 18PR tires with mixed pattern provide excellent traction and durability for heavy-duty street sweeping in various conditions.
Cleaning Configuration: The advanced cleaning system features:
Mid-Mounted Two Sweeping Brushes: Centrally positioned for optimal debris collection and dust control
Mid-Mounted Suction Disc: Efficient debris pickup preventing secondary pollution
Changsha Zhongliang Maintenance-Free Fan: Reliable suction with minimal maintenance from a trusted supplier
HaiDeruiwo Solenoid Valve Groups: Responsive hydraulic control for precision operation
Rear Spray Dust Suppression System: Controls airborne particles during operation for air quality management
Maximum Sweeping Width: 3.5 meters for efficient lane coverage in municipal street sweeping
Maximum Sweeping Area: 50,000-100,000 m² per hour for high productivity in highway maintenance
20m High-Pressure Wash Reel: Extended reach for cleaning barriers, signs, and hard-to-access areas
Debris Bin Self-Cleaning System: Automatic cleaning reduces maintenance frequency
Debris Bin Anti-Overflow Device: Prevents spillage and environmental contamination
Control & Safety Systems: The vehicle features advanced control and safety systems:
Dual-Motor Control System: Independent control for high-pressure pump and fan hydraulic pump ensures optimal performance
ABS (4S/4M): Anti-lock braking system for enhanced safety in emergency maneuvers
Reverse Camera: Rearview camera for enhanced visibility during reversing operations
New National Standard Video Recorder: For fleet management, route optimization, and safety documentation
Optional 10-Inch Display: Enhanced operator interface for smart city cleaning integration
Optional Multi-Function Steering Wheel: Improved operator convenience and operator comfort
V. Product Features & Chengli Group Advantages
Product Features:
Heavy-Duty Capacity: 7.5 m³ water tank and 7 m³ debris bin with 14.5 m³ total capacity for extended operation without frequent refilling
Powerful Performance: 242.27 kWh CATL battery with 5,300 mm wheelbase and reinforced suspension for stable operation
Dual-Motor Control System: Independent motors for high-pressure pump and fan hydraulic pump ensure optimal power distribution and reliability
High Productivity: Maximum sweeping area of 50,000-100,000 m² per hour with 3.5 m sweeping width for rapid lane coverage
Comprehensive Cleaning: Mid-mounted brushes, suction disc, rear spray dust suppression, and 20m wash reel for complete urban road cleaning
Durable Construction: Stainless steel tanks and double-layer frame (7+4/250 mm) for long-term reliability in demanding applications
Advanced Safety: ABS (4S/4M), reverse camera, video recorder, and anti-overflow devices for comprehensive protection
Operator Comfort: TX-M cab with optional 10-inch display and multi-function steering wheel reduces fatigue during long shifts
Zero-Emission Operation: Fully electric with no tailpipe emissions, ideal for low-emission zones and green public works
Maintenance-Free Fan: Changsha Zhongliang fan reduces operating costs and downtime for fleet management efficiency
Self-Cleaning Function: Debris bin self-cleaning system reduces maintenance frequency and manual intervention
Proven Components: CATL battery, HaiDeruiwo valves, and high-quality components ensure long-term reliability and performance
Quiet Operation: Electric drive enables early morning and night-time cleaning in residential areas without disturbance
Fast Charging: Supports efficient charging infrastructure integration for municipal fleets
Chengli Group Advantages:
Industry Leader: As a premier Chinese special vehicle manufacturer, Chengli combines decades of experience with advanced electric vehicle technology, ranking among China's top sanitation equipment producers with over 50,000 vehicles operating worldwide and documented customer satisfaction
Strategic Partnership: Collaboration with Howo ensures quality electric chassis with TX-M cab; partnership with CATL provides world-class battery systems; cooperation with Changsha Zhongliang, HaiDeruiwo, and other global suppliers ensures top-quality components
New Energy Expertise: Chengli is at the forefront of new energy sweeper development, offering a complete range of electric sanitation vehicles from compact to heavy-duty models for every application
Quality Manufacturing: ISO9001 certified production facilities with advanced robotic welding, laser cutting, and 100-point quality control; ISO14001 environmental management certification ensuring environmental compliance
Comprehensive Support: Extensive service network with 300+ stations provides 24-hour parts supply, prompt after-sales support, technical hotline, and operator training for genuine parts availability
Customization Capability: Offers tailored solutions for specific municipal and industrial requirements, including custom sweeper configurations for unique applications such as airports, ports, and tunnels
Export Experience: Successfully exported to Southeast Asia, Middle East, Africa, South America, and Eastern Europe; full compliance with international standards including EEC and GCC for global markets
Certified Manufacturer: Holds ISO14001 environmental management certification and meets all national vehicle standards; all vehicles are fully compliant for export and domestic use with necessary certifications
Proven Track Record: Thousands of Chengli sanitation vehicles operating successfully in cities worldwide; documented performance, reliability, and proven track record with repeat customers
Complete Product Line: From compact sweepers to heavy-duty tandem axle models, Chengli offers over 50 sanitation vehicle models for every application and budget as a complete product line provider
Value Proposition: Competitive pricing (15-20% below comparable international brands), superior quality, comprehensive warranty, and long-term partnership potential delivering exceptional value proposition
Operator Focus: The TX-M cab with optional 10-inch display and multi-function steering wheel demonstrates Chengli's commitment to operator comfort and satisfaction
Environmental Commitment: All Chengli vehicles meet strict emission standards, with growing electric and new energy vehicle lineup for sustainable urban development and green road maintenance worldwide
Financial Strength: As a publicly traded company with strong financial backing, Chengli offers stability, warranty fulfillment, and long-term partnership potential for municipal customers
