Product Introduction: DFAC Huashen Pure Electric Washing-Sweeper Truck | DFAC Electric Washing Sweeper Truck with 5m³ Water Tank 5m³ Debris Bin and 157kWh Battery
I. Product Overview

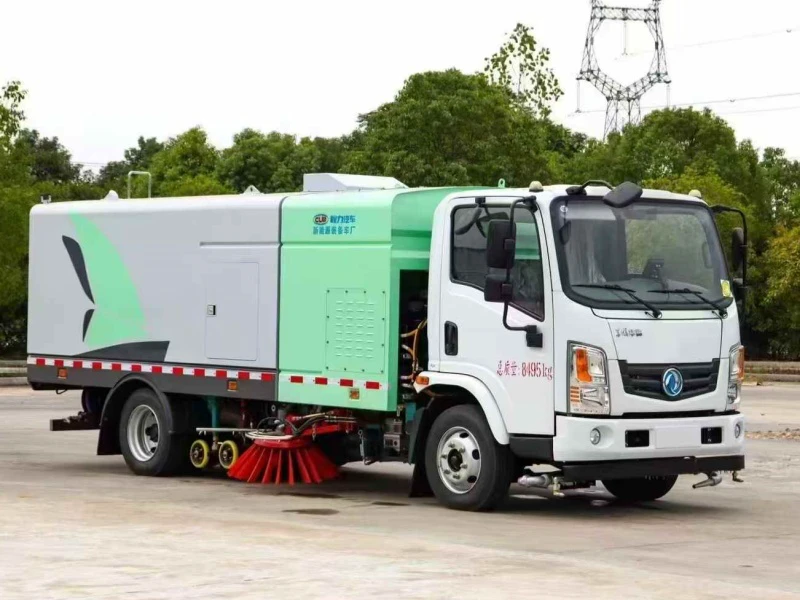

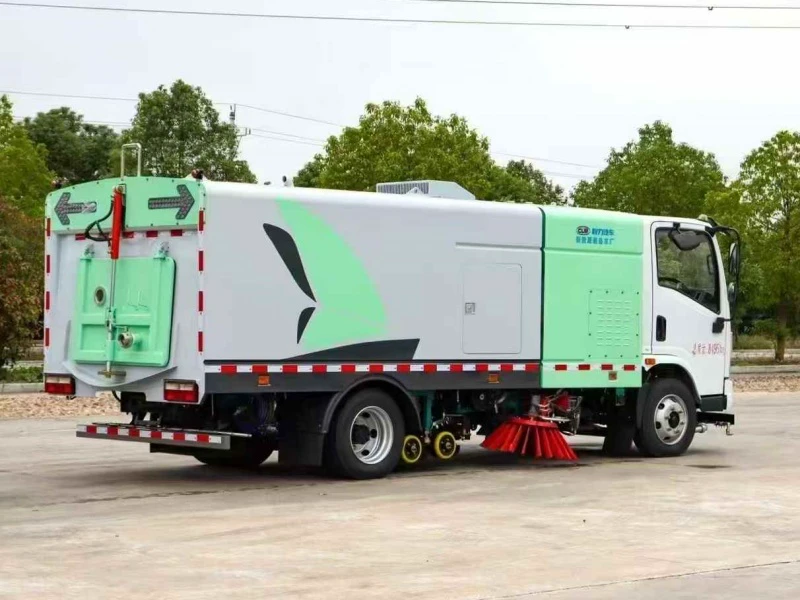

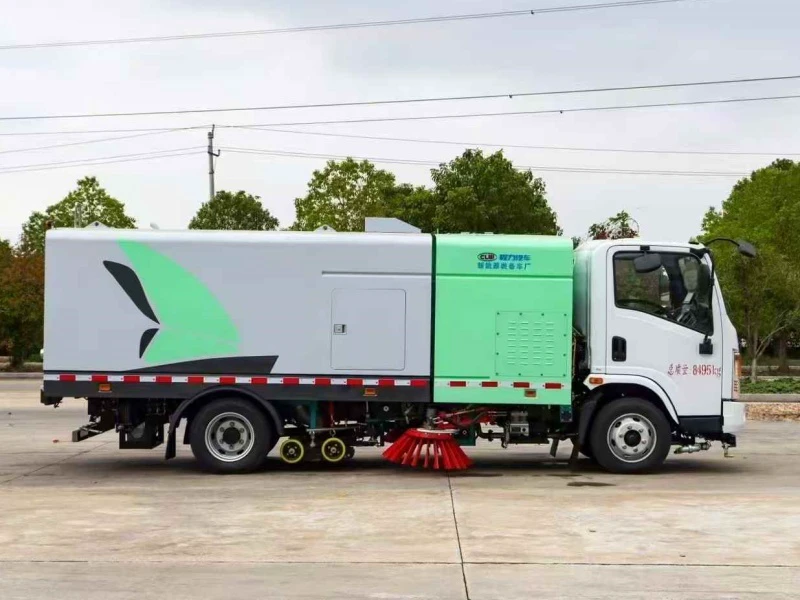

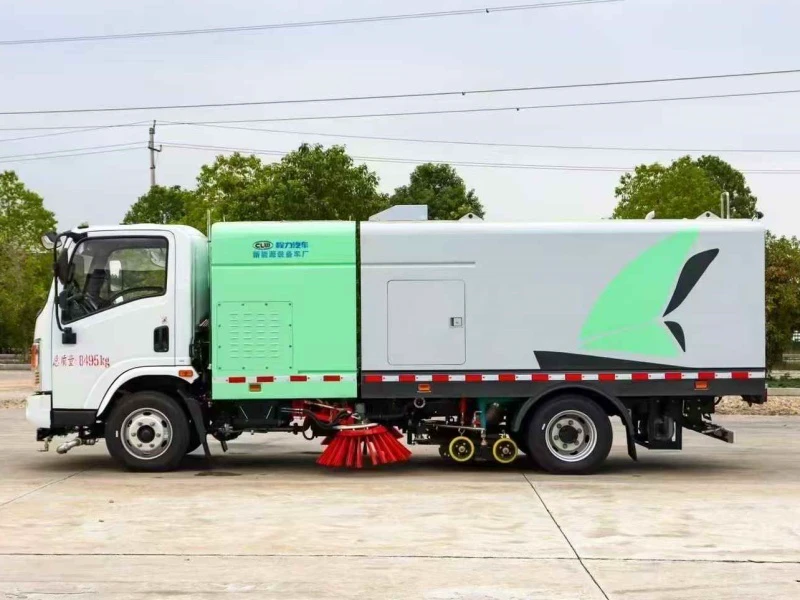

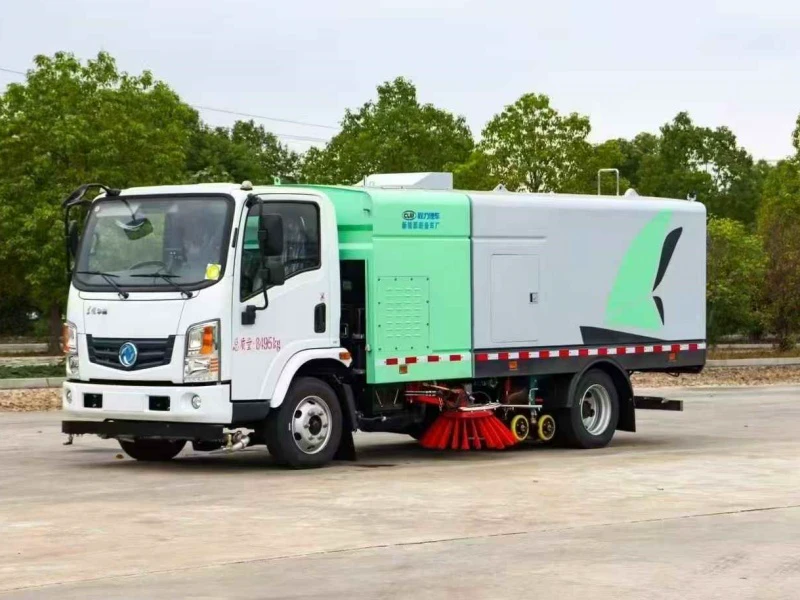

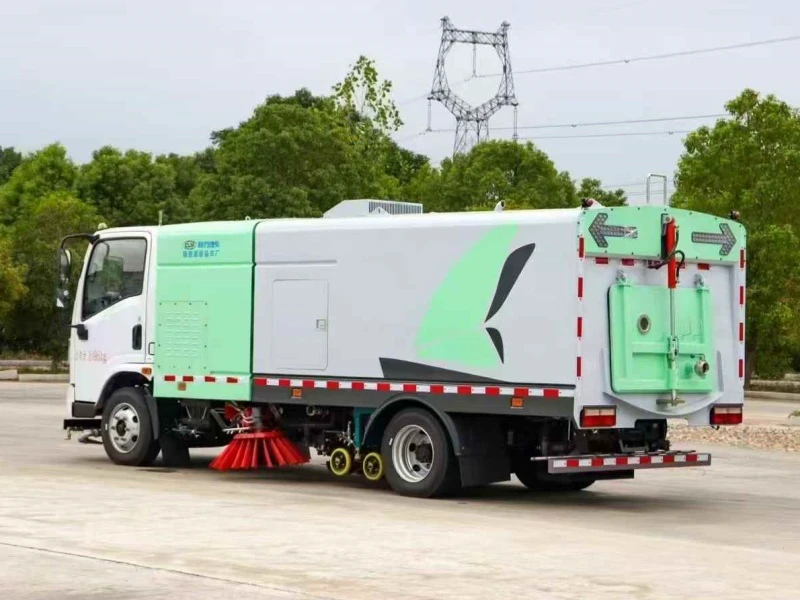

The DFAC Huashen Pure Electric Washing-Sweeper Truck (Model: CL5080TXSBEV) is a compact yet powerful solution for urban road cleaning and environmental sanitation. This zero-emission electric sweeper combines efficient sweeping and high-pressure washing capabilities in a maneuverable 3,850 mm wheelbase platform. Designed for city streets, residential areas, and industrial parks, this new energy sweeper features a high-capacity CATL lithium iron phosphate battery delivering reliable all-day performance. As part of the Chengli sanitation truck series, this electric washing-sweeper truck offers exceptional cleaning efficiency with zero emissions, quiet operation, and advanced multi-function capabilities including sweeping, washing, curb cleaning, and dust suppression, making it ideal for green road maintenance, smart city cleaning, and low-emission zones.
II. Core Parameters
Chassis Model: EQ1080TTZEVJ (DFAC Huashen Electric Chassis)
Overall Dimensions: Please refer to technical drawings
Wheelbase: 3,850 mm (Approx. 151.6 inches)
Battery & Powertrain:
Battery Brand: CATL (Contemporary Amperex Technology Co., Limited)
Battery Type: Lithium Iron Phosphate (LiFePO₄)
Battery Capacity: 157 kWh
Battery Rated Voltage: 521.64V
Charging Time: Approximately 2 hours
Recommended Charging Pile Power: 120 kW
Chassis Motor Max Power: 165 kW (Permanent Magnet Synchronous Motor)
Upper Body Power Consumption: 30-40 kWh per operating hour
Cleaning Specifications:
Water Tank Capacity: 5 m³ (Approx. 1,321 US gallons) - Stainless steel
Debris Bin Capacity: 5 m³ (Approx. 1,321 US gallons) - Stainless steel
Total Capacity: 10 m³ (Approx. 2,642 US gallons)
Maximum Cleaning Width: 3.2 meters (Approx. 126.0 inches)
High-Pressure Wash Reel: 15 meters (Approx. 49.2 feet)
III. Dimensions, Materials & Design Concept
Tank Configuration: Dual 5 m³ stainless steel water tank and debris bin provide balanced capacity for extended operation without frequent refilling. The equal 5+5 configuration optimizes weight distribution and space utilization for urban road cleaning applications.
Material Quality: Both water tank and debris bin are constructed from high-grade stainless steel with corrosion-resistant properties, ensuring longevity under continuous operation. The stainless steel high-pressure spray rods deliver reliable water distribution for cleaning operations. The maintenance-free centrifugal fan reduces downtime and operating costs. All components meet strict national vehicle standards for quality and safety.
Design Philosophy: The vehicle embodies a "Compact Efficiency, Zero Emissions" design concept. The 3,850 mm wheelbase provides excellent maneuverability in narrow urban streets while maintaining stability during cleaning operations. The 165 kW permanent magnet synchronous motor delivers responsive performance, while the 157 kWh CATL battery ensures sufficient range for full-day municipal operations, supporting fleet management and carbon reduction goals.
IV. Detailed Structure & Component Advantages
Electric Drive System: Powered by a permanent magnet synchronous motor delivering 165 kW maximum power, providing instant torque and smooth acceleration. The chassis battery powers both driving and cleaning operations through an independent electric power take-off system, allowing real-time speed adjustment based on operational needs without affecting driving performance. This delivers an exceptional user experience with responsive control and represents the latest electric sweeper technology for heavy-duty street sweeping applications.
Battery System: The 157 kWh CATL lithium iron phosphate battery provides reliable energy storage with excellent safety characteristics. Fast charging capability (approximately 2 hours) minimizes downtime, making it ideal for municipal fleet management operations. The 521.64V system voltage enables efficient power delivery to both drive and cleaning systems. This lithium iron phosphate battery technology ensures long cycle life and thermal stability.
Chassis & Suspension: The DFAC electric chassis features a robust frame optimized for 5+5 m³ tank configuration. The 3,850 mm wheelbase provides excellent maneuverability in tight urban spaces while maintaining stability during sweeping operations, enabling narrow street sweeping in historic districts and pedestrian zones.
Cleaning Configuration: The advanced cleaning system features:
Mid-Mounted Two Sweeping Brushes: Centrally positioned for optimal debris collection with effective dust control
Universal High-Pressure Curb Cleaning: Specialized nozzles for thorough edge cleaning along curbs and gutters
High-Pressure Water Pump: Reliable pressure for comprehensive cleaning
Wanli Gear Pump: Durable hydraulic power unit
Hydreforce Hydraulic Cylinders: Responsive control for sweeping functions
Maintenance-Free Centrifugal Fan: Reliable suction with minimal maintenance, preventing secondary pollution
Stainless Steel High-Pressure Spray Rods: Corrosion-resistant water distribution
15m High-Pressure Wash Reel: Extended reach for cleaning hard-to-access areas including barriers and signs
Maximum Cleaning Width: 3.2 meters for efficient lane coverage in municipal street sweeping applications
Control & Monitoring Systems: The vehicle features advanced control and safety systems:
Schneider Control Switches: Precise electrical management from a trusted global brand
American Sensors: High-accuracy monitoring and control for reliable operation
Rear Electric Control Operation: Convenient rear-mounted controls for operator efficiency
Indoor Monitoring System: Rearview camera and washing-sweeping status display for enhanced visibility
Water Tank Alarms: Anti-overflow and low water level alarm system protects equipment
Debris Bin Alarm: Anti-overflow (alarm) protection prevents spillage
LED Arrow Light: Rear-mounted for enhanced safety during operation in traffic
Electrical System: Dedicated control circuit for working device operation ensures reliability
V. Product Features & Chengli Group Advantages
Product Features:
Zero-Emission Operation: Fully electric with no tailpipe emissions, ideal for environmentally sensitive urban areas and low-emission zones; contributes to sustainable urban development
Compact Maneuverability: 3,850 mm wheelbase enables navigation in narrow streets, residential areas, and confined urban spaces for narrow street sweeping
Balanced Capacity: 5 m³ water tank and 5 m³ debris bin provide extended operation without frequent refilling
Comprehensive Cleaning: Mid-mounted sweeping brushes, high-pressure curb cleaning, and 15m wash reel for complete road maintenance including dust control
Advanced Control: Schneider switches, American sensors, and CAN-based control for precise operation
Safety Features: Multiple alarms, indoor monitor, and LED arrow light ensure safe operation in traffic
Durable Construction: Stainless steel tanks and high-pressure components resist corrosion for long service life
Maintenance-Free Fan: Reduces operating costs and downtime for fleet management efficiency
Fast Charging: Approximately 2-hour charging time supports continuous shift operations
Quiet Operation: Enables early morning and night-time cleaning in residential areas without disturbing residents
Operator Comfort: Responsive controls and monitoring systems reduce fatigue during long shifts
Chengli Group Advantages:
Industry Leader: As a premier Chinese special vehicle manufacturer, Chengli combines decades of experience with advanced electric vehicle technology, ranking among China's top sanitation equipment producers with over 50,000 vehicles operating worldwide
Strategic Partnership: Collaboration with DFAC ensures quality electric chassis; partnership with CATL provides world-class battery systems; cooperation with global suppliers ensures top-quality components including Schneider and Hydreforce
New Energy Expertise: Chengli is at the forefront of new energy sweeper development, offering a complete range of electric sanitation vehicles from compact to heavy-duty models
Quality Manufacturing: ISO9001 certified production facilities with advanced robotic welding, laser cutting, and 100-point quality control; ISO14001 environmental management certification
Comprehensive Support: Extensive service network with 300+ stations provides 24-hour parts supply, prompt after-sales support, technical hotline, and operator training
Customization Capability: Offers tailored solutions for specific municipal and industrial requirements, including custom sweeper configurations for unique urban cleaning challenges
Export Experience: Successfully exported to Southeast Asia, Middle East, Africa, South America, and Eastern Europe; full compliance with international standards including EEC and GCC
Certified Manufacturer: Holds ISO14001 environmental management certification and meets all national vehicle standards; all vehicles are fully compliant for export and domestic use
Proven Track Record: Thousands of Chengli sanitation vehicles operating successfully in cities worldwide; documented performance, reliability, and customer satisfaction
Complete Product Line: From 2.5m³ compact sweepers to 22m³ tandem axle models, Chengli offers over 50 sanitation vehicle models for every application and budget
Value Proposition: Competitive pricing (15-20% below comparable international brands), superior quality, comprehensive warranty, and long-term partnership potential
Environmental Commitment: All Chengli vehicles meet strict emission standards, with growing electric and new energy vehicle lineup for green public works and environmental compliance
