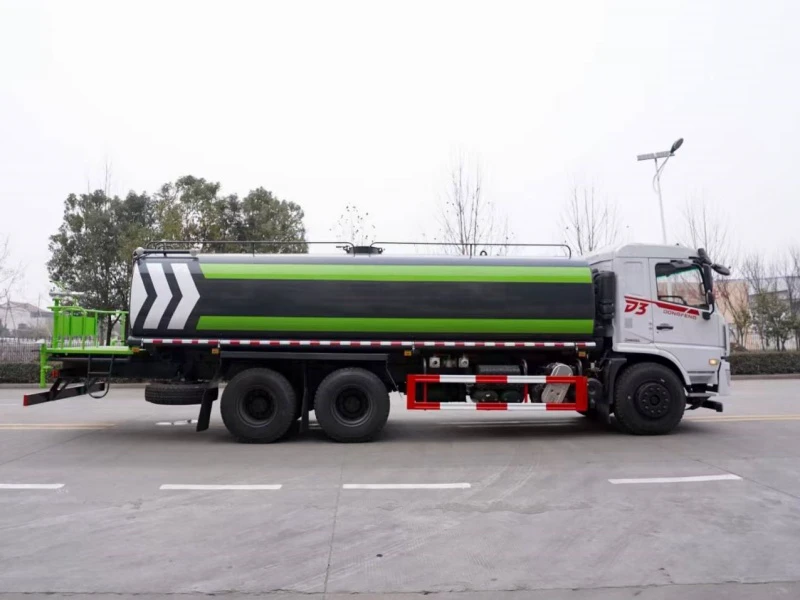

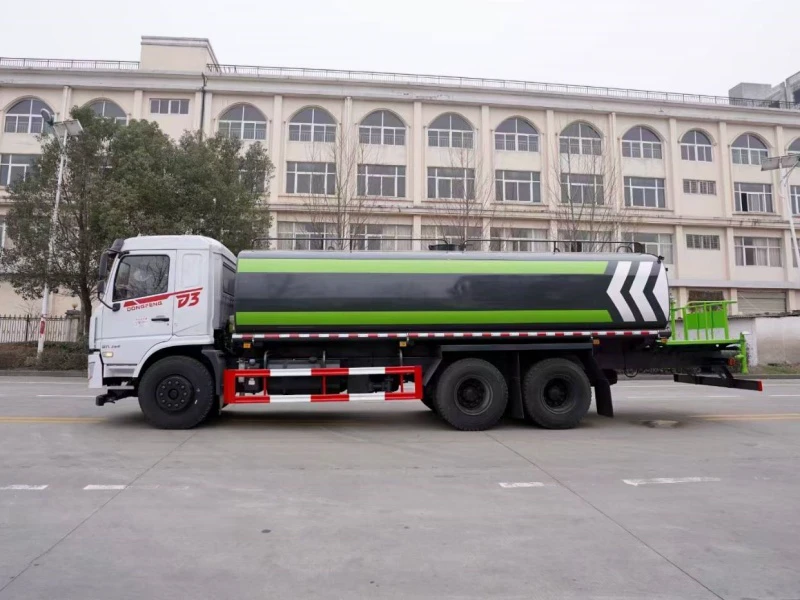

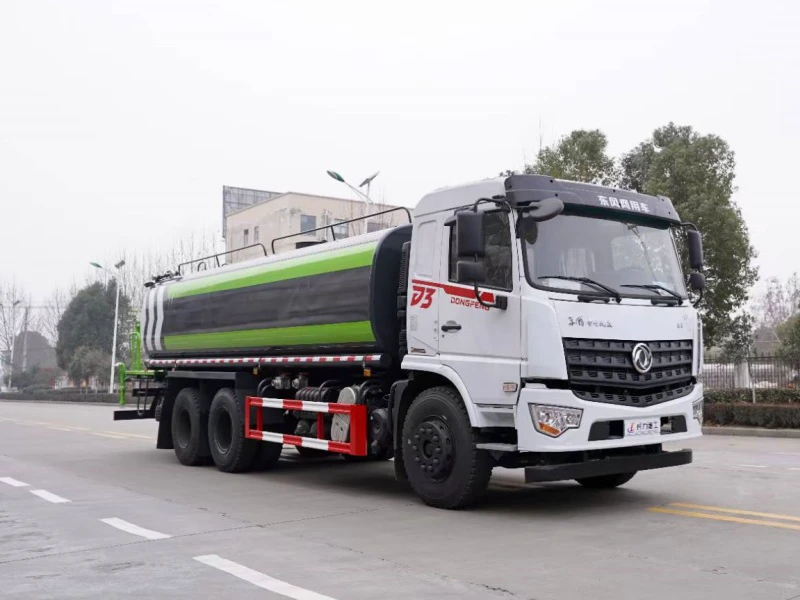

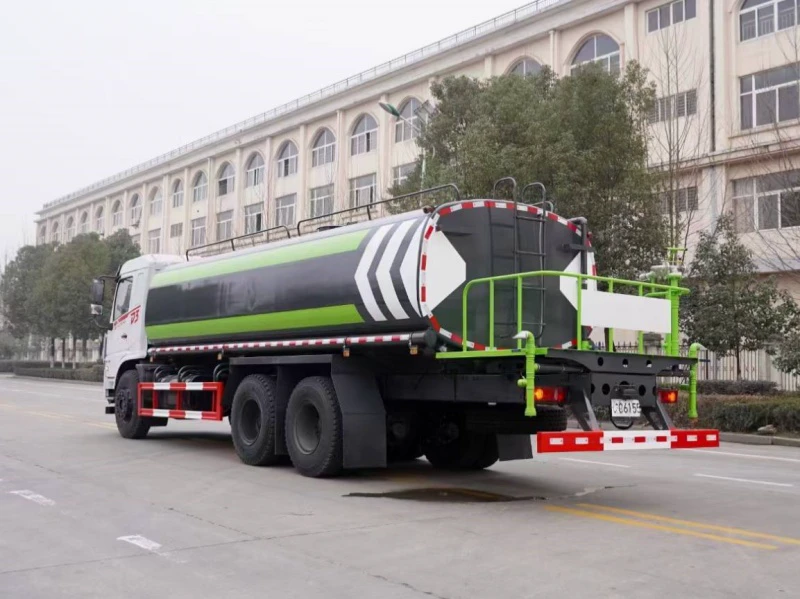

DFAC Special Chassis D3 6×4 23 m³ Water Sprinkler Truck | Heavy-Duty Tri-Axle Water Distribution Vehicle
1. Commercial Water Truck Overview | Industrial Water Distribution Equipment
The DFAC Special Chassis D3 6×4 23 m³ water sprinkler truck is a heavy-duty commercial vehicle engineered for large-scale municipal water distribution, industrial dust suppression, and environmental cleaning operations. This tri-axle water tanker combines advanced truck chassis technology with high-capacity water storage systems to deliver professional-grade cleaning solutions for city sanitation departments, construction project management, and industrial facility maintenance.
2. Technical Specifications | Water Truck Performance Parameters
Vehicle model designation: CLA5253TDYDFV commercial sprinkler truck
Chassis platform: DFV1253GP6DJ heavy-duty truck
Water tank capacity: 6,075 US gallons (23 m³) liquid storage system
Engine options: Cummins D6.2NS6B230/260 diesel powerplant
Power ratings: 230-260 HP engine performance specifications
Alternative engine: Yuchai 245-270 HP power unit option
Emission standard: China VI-B environmental compliance
Transmission system: Fast 8-speed manual gearbox technology
Tire specifications: 1100R20 18PR steel radial tires
Drive configuration: 6×4 all-wheel-drive system
3. Design Engineering & Construction Details
Tank material: Q235 Wuhan Steel plate construction
Welding technology: Automated flat welding process implementation
Manufacturing technique: Single-side welding with double-side forming
Head welding: Automated tank end fabrication
Internal structure: 4 internal baffles surge prevention system
Outlet design: 159 mm large-diameter pipe configuration
Surface treatment: Double-layer baking paint coating technology
Finishing process: Hydrogen varnish protective coating
Additional features: Dual tank openings access system
4. Powertrain & Mechanical System Advantages
Engine performance: High-torque diesel engine technology
Power delivery: Efficient combustion system design
Transmission reliability: 8-speed manual gear transmission
Axle technology: Dual rear axle load distribution system
Suspension system: Heavy-duty vehicle suspension design
Braking technology: Air brake safety system
Steering system: Power steering control technology
Safety features: ABS braking system integration
5. Operational Features & Manufacturing Excellence
Water Distribution System Capabilities:
Pump specifications: 60-90 self-priming water pump system
Spray functions: Front flushing, rear sprinkling, side spraying
Special features: Right-side high-position sprinkler system
Water cannon: 360° adjustable spraying equipment
Optional equipment: 30/40-type mist cannon unit
Utility & Safety Systems:
Firefighting capability: 65-type fire hydrant interface connection
Water management: Self-flow valve control system
Filtration: Integrated filter technology
Suction system: Dual suction pipe water intake
Driver Comfort & Technology:
Cab features: Sleeper cab with resting accommodation
Seating system: Air suspension driver seat
Climate control: Factory-installed air conditioning
Technology integration: LCD display information system
Navigation: GPS tracking technology
Connectivity: Telematics service interface
Manufacturing & Service Advantages:
Quality standards: Professional manufacturing processes
Customization: Flexible vehicle configuration options
Support network: Nationwide after-sales service
Technical expertise: Specialized vehicle engineering
Regulatory compliance: Full certification approval
