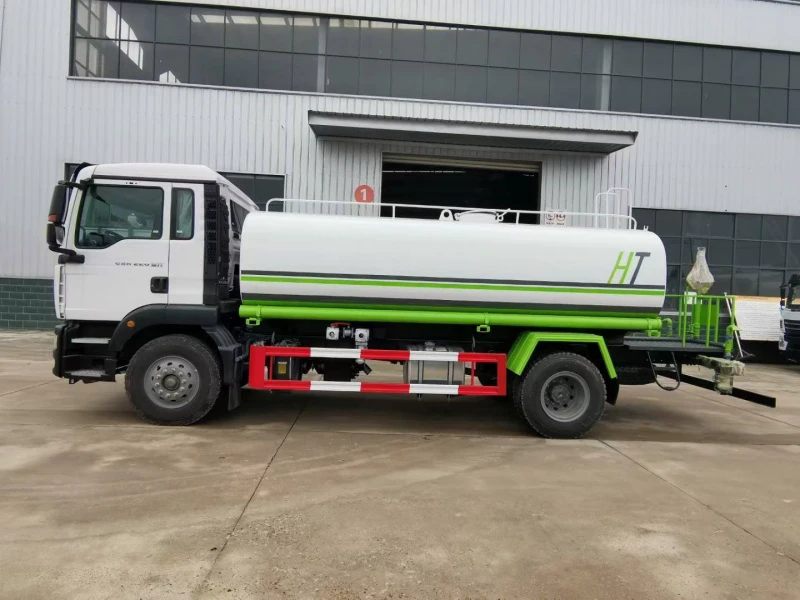

Sinotruk 15-Ton Water Sprinkler Truck | Heavy-Duty 15 m³ Municipal & Industrial Cleaning Vehicle
1. Commercial Water Truck Overview | Professional Cleaning Equipment
The Sinotruk 15-ton water sprinkler truck is a heavy-duty commercial vehicle engineered for large-scale municipal cleaning, industrial dust suppression, and road maintenance operations. This 15 m³ water distribution truck combines advanced Sinotruk chassis technology with professional-grade water spraying systems to deliver reliable cleaning solutions for public works departments, construction site management, and environmental service providers.
2. Technical Specifications | Water Truck Performance Parameters
Chassis platform: Sinotruk G5W commercial truck

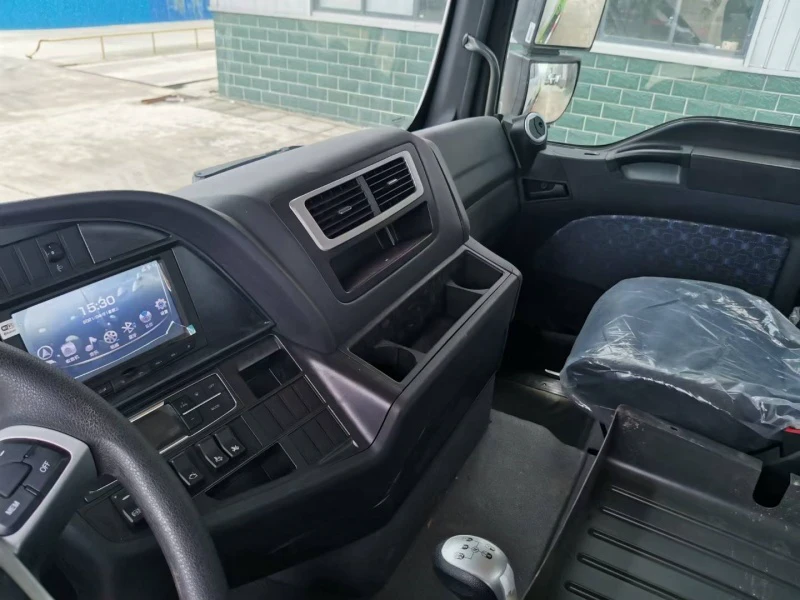

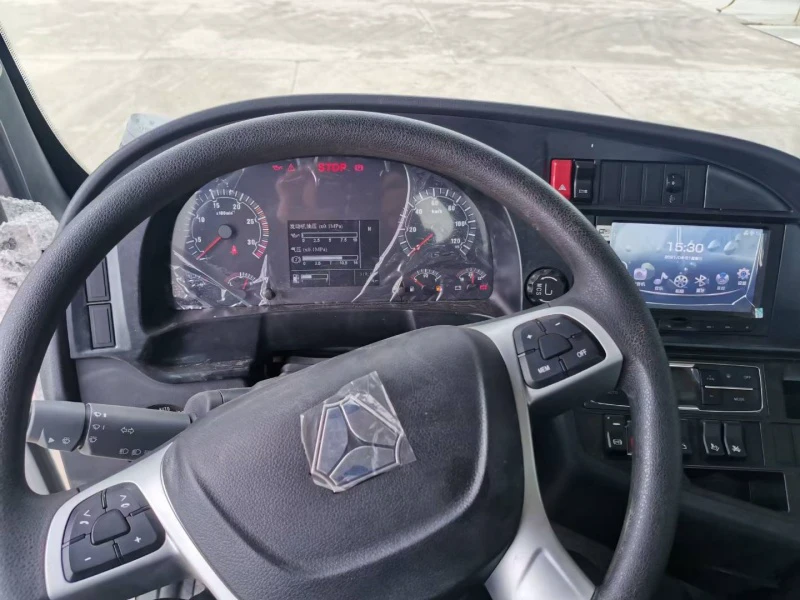

Cab configuration: G5-M driver cabin design
Engine system: WP4.6NQ220E61 diesel powerplant
Power rating: 220 HP engine performance specification
Transmission technology: HW95508STC 8-speed gearbox system
PTO system: HW45ZC flange-type power take-off unit
Front axle: 1094 self-adjusting drum brake system
Rear axle: MCJ09BG single axle configuration
Gear ratio: 5.29 final drive specification
Frame construction: Double-layer 7+4/250 chassis structure
Suspension system: Multi-leaf spring 11/9+8 vehicle suspension
Steering technology: Bosch steering system
Braking system: ABS 4S/4M safety technology
Tire specifications: 10.00R20 commercial tires
Fuel capacity: 200L storage system
Battery system: 165AH electrical power
Emission control: Terminal monitoring environmental compliance
3. Design Engineering & Construction Features
Tank material: Q235 carbon steel construction standard
Welding process: Automated tank fabrication technology
Water capacity: 3,963 US gallons (15 m³) liquid storage
Spray system: Front flushing, rear sprinkling, side spraying
Special features: High-position sprinkler irrigation capability
Piping system: Thickened main pipeline design
Valve technology: Large-diameter ball valve system
Firefighting interface: Straight-through ball valve connection
Platform design: Perforated work surface construction
4. Powertrain & Mechanical System Advantages
Engine performance: WP4.6NQ220E61 diesel technology
Power delivery: High-torque engine characteristics
Transmission reliability: 8-speed manual gear technology
Axle technology: Self-adjusting brake system design
Load capacity: Heavy-duty axle performance
Frame durability: Reinforced chassis engineering
Suspension design: Multi-leaf spring comfort system
5. Operational Features & Manufacturing Excellence
Water Distribution System Capabilities:
Pump performance: High-power water pumping technology
Self-priming capability: Automatic suction system
Spray functions: Multiple pattern water distribution
Optional equipment: 30-meter mist cannon dust suppression
Safety & Control Systems:
Braking technology: Advanced ABS safety features
Steering precision: Professional control system
Monitoring equipment: Emission control compliance system
Electrical system: High-capacity battery technology
Environmental & Regulatory Compliance:
Emission standards: China VI environmental certification
Tax benefits: Exemption qualification financial advantage
Registration support: Nationwide licensing administrative service
Manufacturing & Service Advantages:
Factory expertise: Chengli Group specialized production
Quality assurance: Professional manufacturing standards
Custom solutions: Flexible configuration options
Service network: Nationwide after-sales support
Technical support: Comprehensive maintenance services
