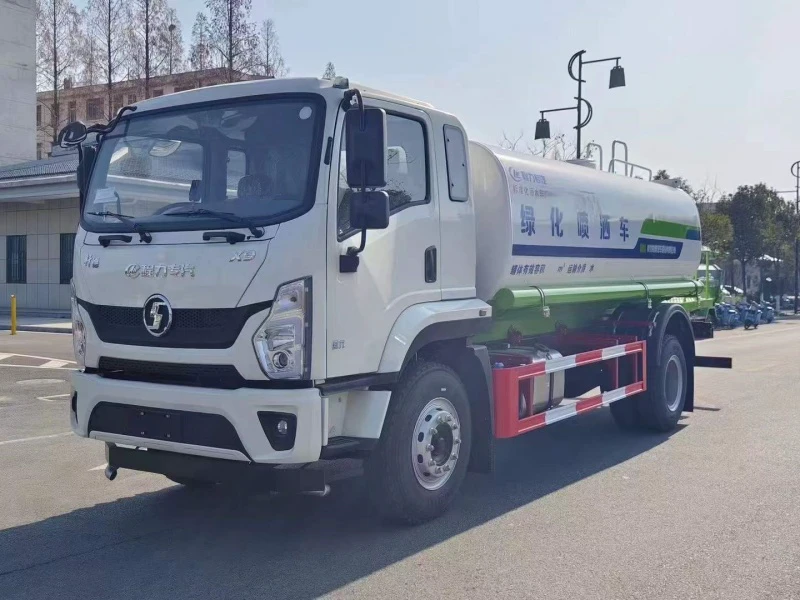

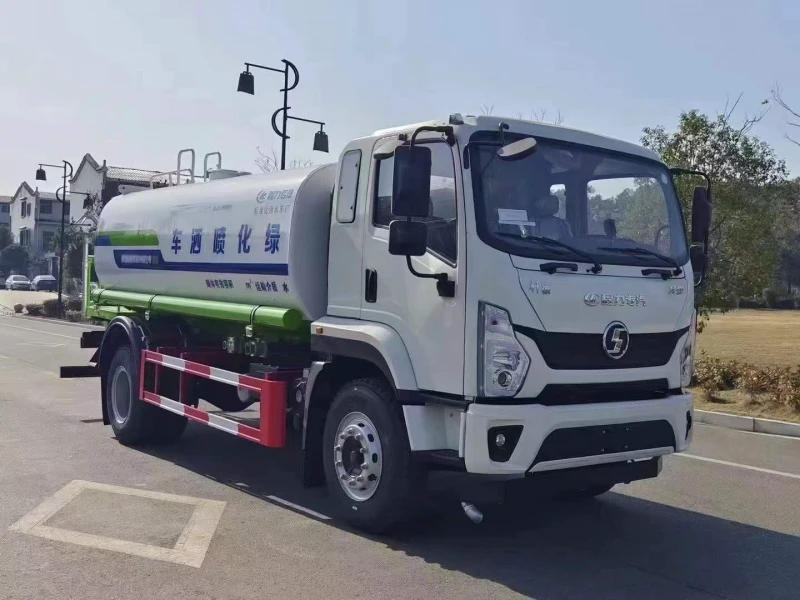

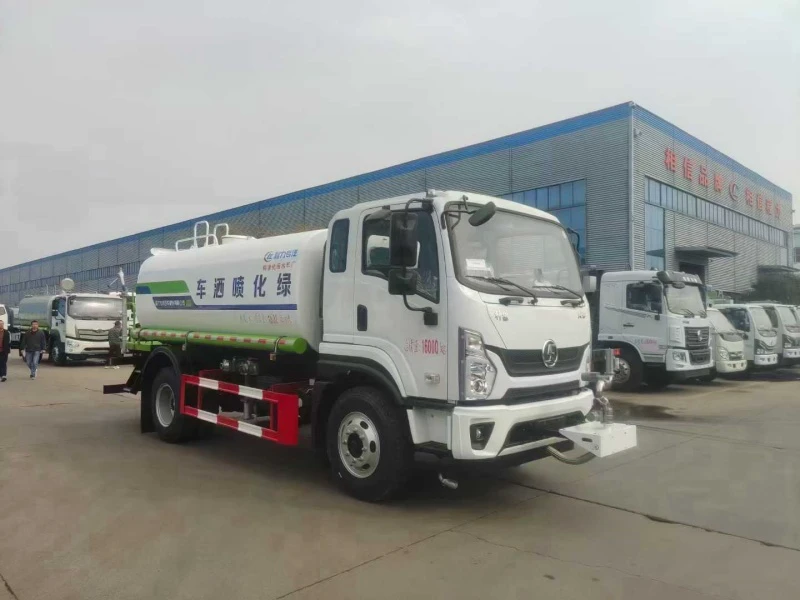

SHAANXI AUTO XuanDe X9 15 m³ Water Sprinkler Truck | Heavy-Duty Municipal & Industrial Cleaning Vehicle
1. Professional Water Truck Overview | Commercial Cleaning Equipment
The SHAANXI AUTO XuanDe X9 15 m³ water sprinkler truck is a heavy-duty commercial vehicle engineered for municipal street cleaning, industrial dust suppression, and environmental sanitation operations. This 15-ton water distribution truck combines advanced SHAANXI AUTO chassis technology with professional-grade water spraying systems to deliver reliable cleaning solutions for public works departments, construction site management, and urban maintenance services.
2. Technical Specifications | Water Truck Performance Parameters
Chassis platform: SHAANXI AUTO XuanDe X9 commercial truck chassis
Emission standard: China VI environmental compliance
Wheelbase specification: 177.2 inches (4,500 mm) vehicle configuration
Engine system: YCS04240-66 diesel powerplant
Power rating: 240 HP engine performance specification
Transmission technology: 8JS85TE-C 8-speed gearbox system
Gearbox features: Synchronized transmission with PTO capability
Frame construction: 250/6+4 double-layer chassis structure
Front axle capacity: 3.6T load-bearing specification
Rear axle rating: 10T axle performance parameter
Fuel system: 200L aluminum tank capacity
Tire specifications: 10.00R20/18PR commercial tires
Cab configuration: X9 sleeper driver cabin design
Electrical system: 100Ah maintenance-free battery technology
Telematics system: TianXingJian Zhiya BD vehicle terminal
3. Design Engineering & Construction Details
Water tank capacity: 3,963 US gallons (15 m³) liquid storage system
Pump specifications: 60/90 water pumping technology
Spray system: Universal front flushing cleaning capability
Distribution functions: Rear sprinkling, side spraying operation modes
Water cannon: Standard high-pressure spraying equipment
Valve technology: Large-diameter ball flow control system
Design philosophy: Standardized modern vehicle styling concept
Operational layout: Functional maintenance accessibility
4. Powertrain & Mechanical System Advantages
Engine performance: Yuchai 240 HP diesel engine technology
Power delivery: High-torque engine characteristics
Transmission reliability: 8-speed synchronized gear technology
PTO operation: Integrated power take-off system
Axle technology: Heavy-duty front and rear axle design
Load distribution: Balanced weight management system
Frame durability: Double-layer reinforced chassis engineering
Suspension system: Robust vehicle suspension design
5. Operational Features & Manufacturing Excellence
Water Distribution System Capabilities:
Spray functions: Multiple pattern water application technology
Pump performance: High-flow water delivery capability
Control systems: Manual operation flexibility
Coverage area: Comprehensive cleaning range capacity
Vehicle Comfort & Safety Features:
Cab environment: Sleeper configuration driver accommodation
Seating system: Mechanical driver seat design
Climate control: Factory-installed air conditioning system
Window operation: Power access control technology
Security features: Central locking vehicle protection
Monitoring system: Telematics tracking technology
Safety equipment: Front guard protection system
Manufacturing & Service Advantages:
Factory expertise: Chengli Group specialized production
Quality assurance: Professional manufacturing standards
Custom solutions: Flexible configuration options
Technical support: Comprehensive after-sales service
Regulatory compliance: Full certification approval
