Foton Electric Refrigerated Truck | 3.8m Refrigerated Box | 255KM Range

1. Product Introduction

The Foton 3.8m electric refrigerated truck (Model BJ5044XLCEV3) is a professional electric refrigerated truck built for urban cold chain distribution, produced by Chengli Group as a high-quality Chengli refrigerated truck. As a practical and reliable small refrigerated truck, it is equipped with a high-capacity CATL battery and high-efficiency permanent magnet synchronous motor, with a 255km driving range, stable cooling performance and zero-emission operation. This refrigerated truck is widely used in fresh produce, frozen food and pharmaceutical cold chain logistics, with reliable quality suitable for dealers and end-users worldwide.

2. Core Parameters

• Model: BJ5044XLCEV3

• Battery: CATL 63.75kWh battery

• Range: 255 kilometers

• Motor: FTTBP110B permanent magnet synchronous motor

• Transmission: Automatic transmission

• Wheelbase: 2900mm

• Axle load capacity: Front axle 2 tons / Rear axle 3.5 tons

• Braking system: Hydraulic braking + ABS (4S4M)

• Tire specification: 7.00R16LT

3. Dimensions, Box Size, Material & Design Concept

Dimension Parameters

• Overall dimensions: 5990×2120×2920mm

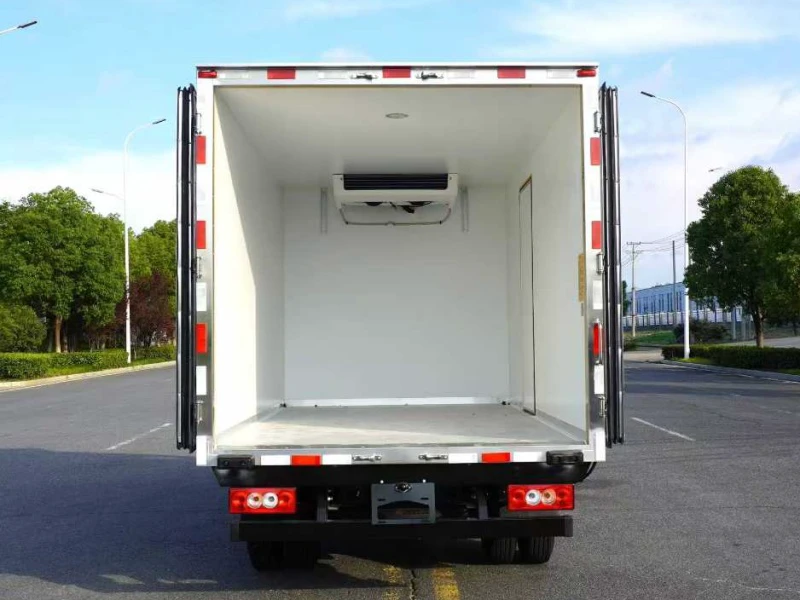

• Internal box dimensions: 3800×1960×1960mm

Box Material

The insulated box of this electric refrigerated truck uses lightweight high-strength thermal insulation panels with excellent sealing structure, effectively reducing cold loss and ensuring stable temperature inside the box. As a compact small refrigerated truck, its box body is sturdy and durable, adapting to high-frequency loading and unloading in long-term urban delivery.

Design Concept

This Chengli refrigerated truck takes practicality, efficiency and energy saving as the core, balancing flexibility on urban roads and loading space utilization. The ergonomic cab design ensures driver comfort and economic operation, making this refrigerated truck an ideal choice for urban cold chain distribution.

4. Product Structure & Core Component Advantages

Motor system: The FTTBP110B permanent magnet synchronous motor features smooth power output, low energy consumption, low noise and high reliability, ideal for frequent start-stop urban conditions of this electric refrigerated truck.

Transmission: Matched with automatic transmission for easy operation, reduced driving intensity and smooth shifting.

Front and rear axles: 2-ton front axle and 3.5-ton rear axle design with strong bearing capacity, stable chassis to ensure safe driving under full load for this small refrigerated truck.

Chassis & wheelbase: The 2900mm wheelbase ensures good stability and flexible steering for the Chengli refrigerated truck.

Braking & safety: Hydraulic braking with ABS (4S4M) provides stable and reliable braking performance for this refrigerated truck.

5. Product Features & Chengli Group Advantages

Product Highlights

As a standard electric refrigerated truck, it comes with a 3.8m practical box and high loading efficiency;

Zero-emission pure electric power complies with environmental policies and enjoys better road rights;

255km range fully meets daily urban cold chain delivery needs of this small refrigerated truck;

Standard equipped with 7-inch color screen instrument, multi-function steering wheel, electric windows, central lock, cruise control, reverse radar, heating and cooling electric air conditioner, fog lamps and other complete configurations.

Manufacturer Advantages

As the manufacturer of this reliable Chengli refrigerated truck, Chengli Group adheres to the philosophy of being professional, attentive and focused, with a complete production system and strict quality control standards. We guarantee stable quality and reliable after-sales service for every refrigerated truck. Professionalism makes a better life. Welcome dealers and customers to inquire and place orders!
