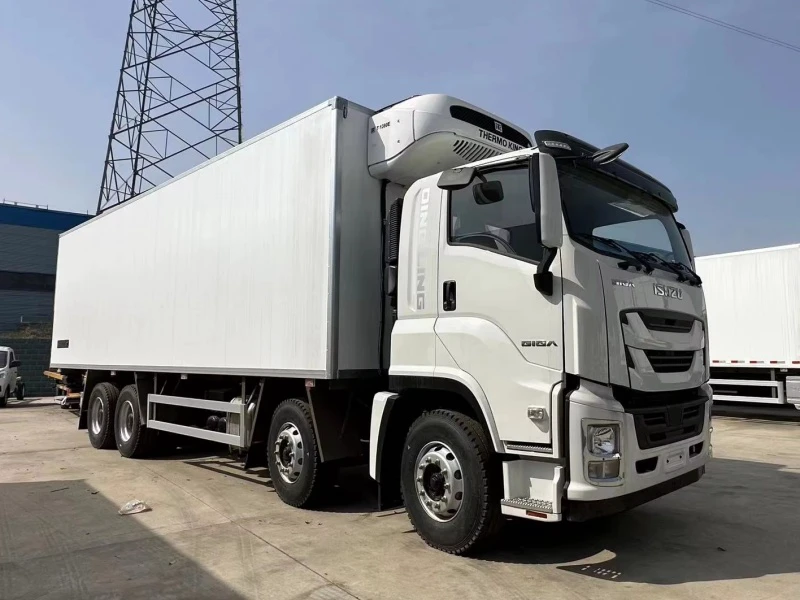

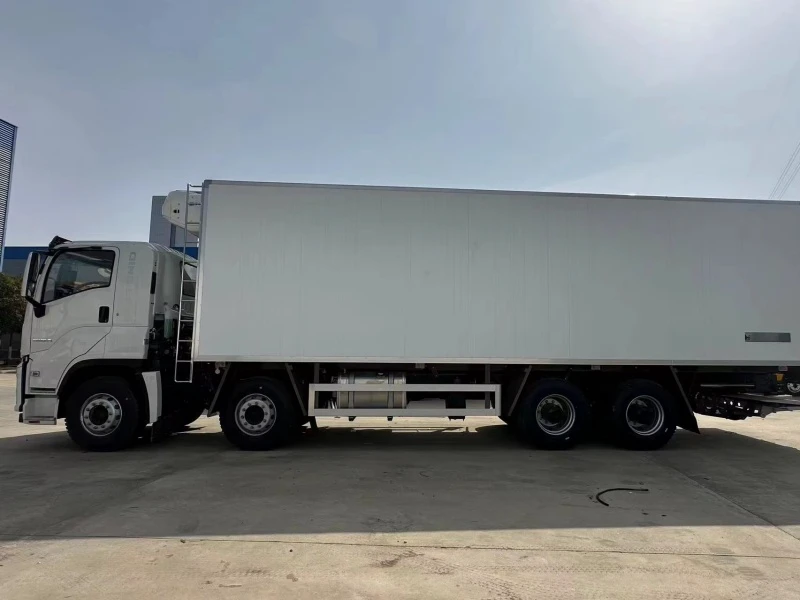

ISUZU GIGA 8×4 25 Ton Heavy Duty Refrigerated Truck – Euro 5 Cold Chain Solution

I. Product Introduction

The ISUZU GIGA 8×4 25 Ton Heavy Duty Refrigerated Truck is a premium cold chain vehicle designed for large-scale frozen and chilled cargo transport. Built on the renowned ISUZU GIGA 8×4 chassis, this vehicle is powered by a 351–450 HP Euro 5 diesel engine, delivering exceptional performance for long-haul logistics. Equipped with a premium refrigeration unit, hydraulic tail lift, and spacious insulated cargo box, this refrigerated truck is ideal for frozen food distribution, pharmaceutical cold chain, seafood logistics, and dairy transport.

II. Core Parameters

III. Exterior Dimensions, Box Specifications & Design Philosophy

• Overall Dimensions: 12,000 × 2,600 × 3,990 mm – maximizes cargo capacity while complying with road transport regulations for heavy duty refrigerated trucks.

• Box Dimensions: 9,550 × 2,420 × 2,370 mm – spacious insulated cargo area providing approximately 55 cubic meters of cold chain storage capacity, ideal for refrigerated van body configuration.

• Box Construction: High-quality insulated panels with reinforced flooring to withstand heavy palletized loads and frequent forklift loading.

• Side Doors: Customizable as per customer requirement – options include single side door, double side doors, or specific positioning to enhance loading flexibility for refrigerated box truck operations.

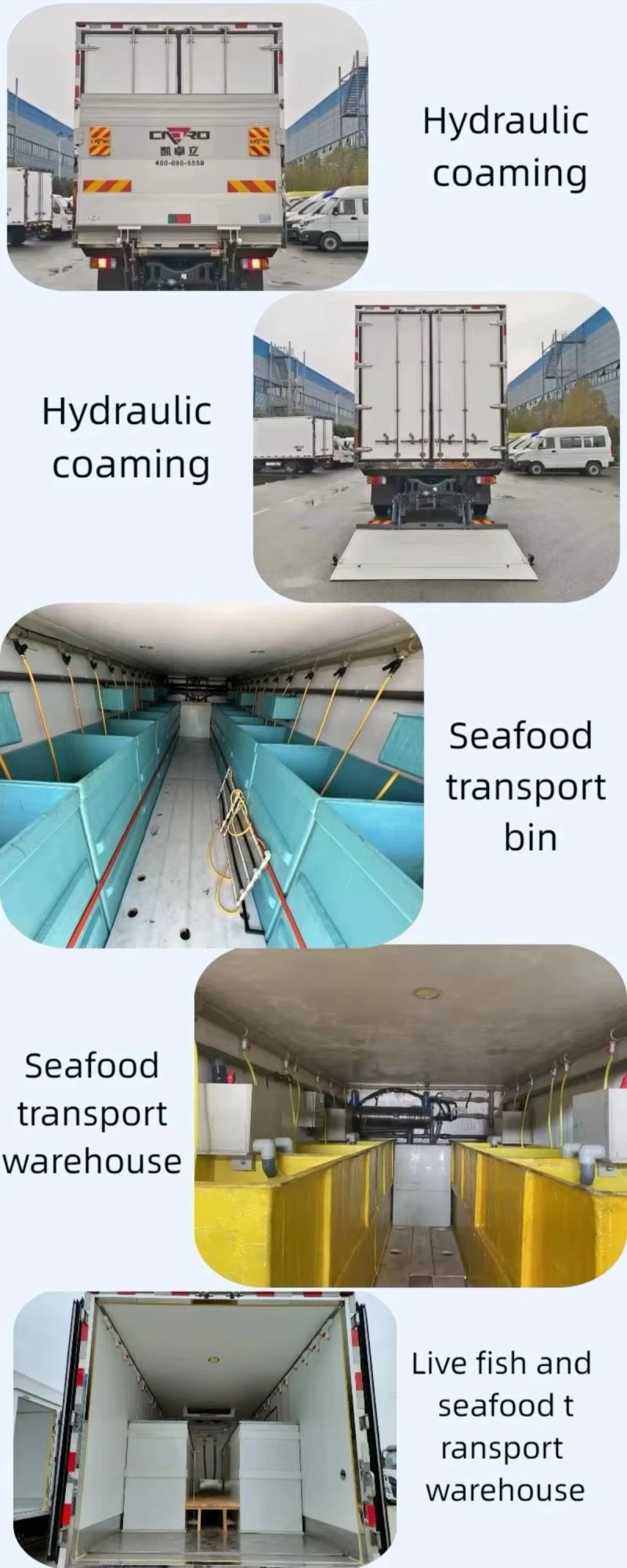

• Rear Hydraulic Tail Lift: 2,000 kg capacity – eliminates need for external forklifts, a practical feature for heavy duty refrigerated truck applications.

• Design Philosophy: "Maximum cold chain efficiency + ISUZU reliability" – This ISUZU GIGA refrigerated truck combines a world-class chassis with a high-performance refrigeration unit, customizable side doors, and hydraulic tail lift to minimize handling time.

IV. Structural Advantages – Engine, Chassis, Refrigeration & Cargo Box

ISUZU GIGA Chassis & Powertrain

• ISUZU 8×4 Chassis: Globally renowned for durability, reliability, and low total cost of ownership. The 8×4 configuration provides exceptional stability for heavy refrigerated loads, with dual rear axles distributing weight evenly across eight wheels.

• Engine (351–450 HP): Delivers strong low-end torque for heavy loads with excellent fuel efficiency. Euro 5 refrigerated truck compliance ensures strict environmental standards. For regions with less stringent requirements, Euro 2 is also available.

• Engine Capacity (> 8 liters): Large displacement provides ample power reserve for climbing grades with full loads while powering the refrigeration unit – an ideal powertrain for a 25 ton refrigerated truck.

• Torque (2,000–2,500 Nm): Exceptional low-end torque enables smooth starts under full load and reduced gear changes on undulating terrain, improving fuel economy.

• Transmission (Manual): Rugged manual gearbox with proven durability for heavy-duty cold chain applications. Wide gear ratio range for optimal performance across highway and urban delivery routes.

• Gross Vehicle Weight (25–30 tons): Heavy-duty chassis and suspension engineered to support the full freezer truck body and cargo weight.

Refrigeration System

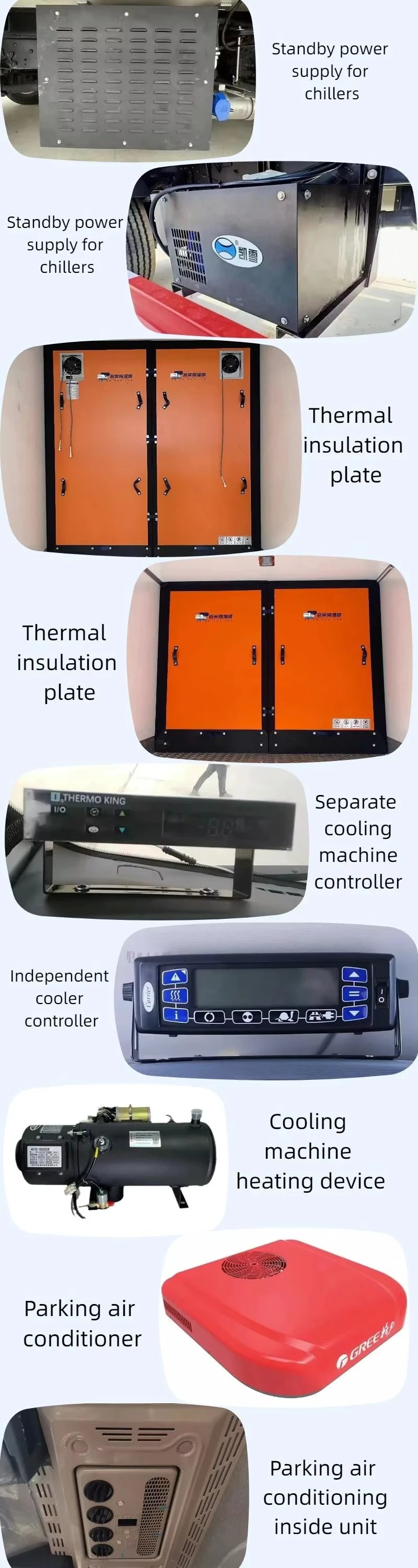

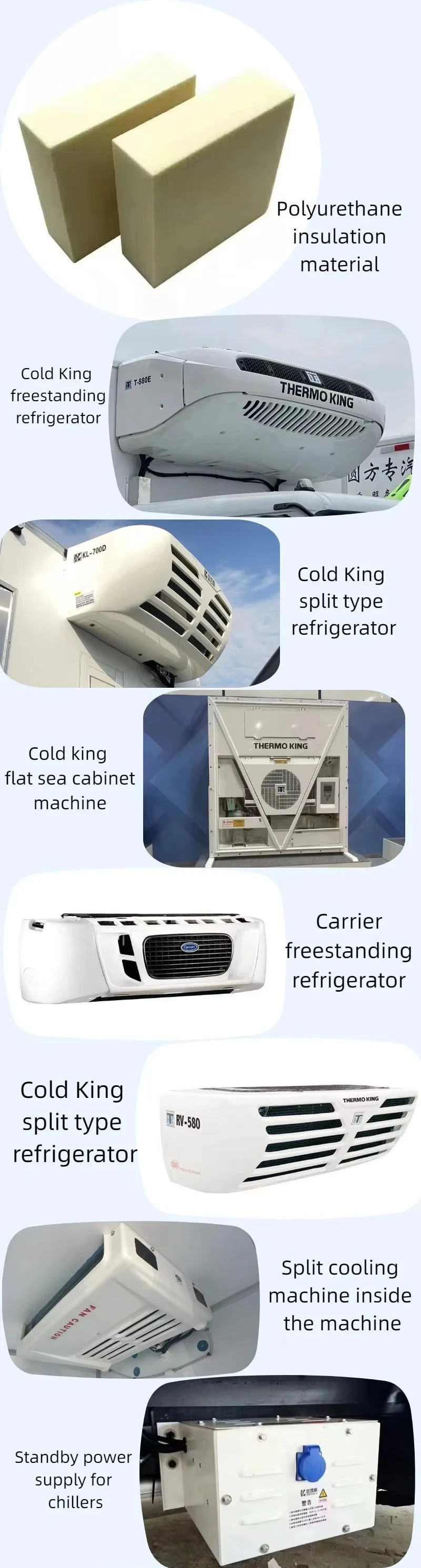

• Refrigeration Unit: Premium Carrier refrigeration unit or Thermo King – globally recognized brands for reliability, temperature accuracy, and fuel efficiency, serving as the core component of any quality refrigerated box truck.

• Temperature Range: -15°C to ambient – suitable for frozen food transport, ice cream, seafood, and pharmaceutical products.

• Lowest Temperature: -18°C – capable of maintaining deep-frozen temperatures for long-haul transport, meeting the demanding requirements of freezer truck operations.

• Insulation Material: High-density polyurethane foam insulation with minimum 80mm thickness ensures temperature stability and reduces refrigeration unit runtime.

Cargo Box & Accessories

• Box Dimensions (9,550 × 2,420 × 2,370 mm): Spacious interior efficiently accommodates standard Euro pallets – typically 20–22 pallets per load.

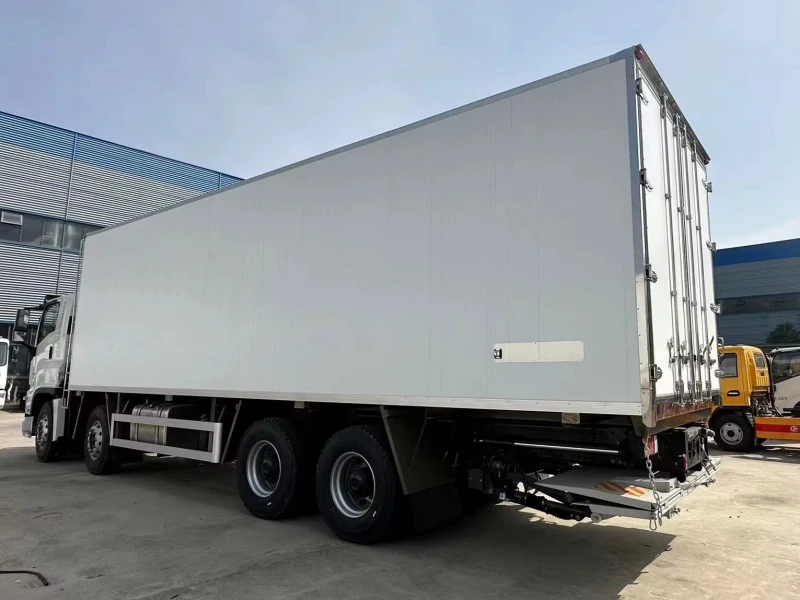

• Rear Hydraulic Tail Lift (2,000 kg): Heavy-duty lift platform simplifies loading/unloading at facilities without loading docks. Hydraulic controls for smooth, safe operation.

• Customizable Side Doors: Provides side access for multi-stop delivery routes where rear loading is impractical, enhancing the versatility of this refrigerated van body.

V. Product Features & Manufacturer Advantages

Product Features

• ISUZU GIGA 8×4 Reliability: World-class chassis known for durability, low maintenance costs, and high resale value – a trusted platform for heavy duty refrigerated trucks.

• 21–30 Ton Load Capacity: High payload reduces trip frequency for large-volume cold chain logistics, improving operational efficiency.

• Euro 5 Emission Standard (Euro 2 Available): Meets strict environmental regulations. The ISUZU GIGA refrigerated truck offers dual emission options to suit different market requirements.

• Premium Refrigeration Units: Carrier refrigeration unit or Thermo King provide reliable temperature control from -15°C to -18°C, ensuring cargo integrity for frozen and chilled products.

• 2,000 kg Hydraulic Tail Lift: Eliminates need for external forklifts at delivery points, reducing equipment costs – a practical upgrade for any freezer truck.

• Customizable Side Doors: Tailored access for multi-stop delivery routes, reducing temperature loss during loading/unloading.

• Large Cargo Box (9,550 × 2,420 × 2,370 mm): Approximately 55 m³ capacity – ideal for palletized frozen foods, fresh produce, dairy, pharmaceutical cold chain, and seafood logistics.

• Heavy-Duty Construction: Reinforced flooring and insulated panels designed for frequent forklift loading and long-term durability.

• One-Year Warranty: Comprehensive coverage for peace of mind.

• Versatile Applications: Suitable for frozen food distribution, pharmaceutical cold chain, seafood transport, dairy logistics, and fresh produce delivery – meeting both refrigerated and frozen transport needs.

Manufacturer Advantages

Heyuexin (manufactured in Suizhou, Hubei, China) leverages Chengli Group's extensive manufacturing expertise in the special-purpose vehicle industry, establishing itself as a professional refrigerated truck manufacturer. Key advantages include:

• ISUZU Authorized Integration: Factory-certified integration of refrigeration systems with the ISUZU GIGA chassis, ensuring seamless compatibility and optimal performance.

• Large-Scale Production: Modern facilities with high annual capacity ensure short delivery lead times and consistent quality for every refrigerated box truck.

• Comprehensive After-Sales Service: Video technical support, online assistance, and return/replacement service provide peace of mind for international buyers.

• Quality Assurance: All refrigerated trucks and freezer trucks undergo rigorous pre-delivery inspection, including refrigeration system testing, insulation integrity checks, and hydraulic tail lift operation.

• Global Export Experience: Vehicles are exported worldwide with full documentation for smooth customs clearance and registration.

• Dual Emission Options: Available in Euro 5 or Euro 2 to suit different market regulations.

• Customization Capability: Options for side door configuration, refrigeration unit brand (Carrier or Thermo King), tail lift capacity, and interior fittings.

• Single Item Packaging: Secure packaging for individual unit shipments via Ro-Ro or container.

• Proven Cold Chain Technology: Years of manufacturing experience ensure optimal insulation design and refrigeration integration for every refrigerated van body.
