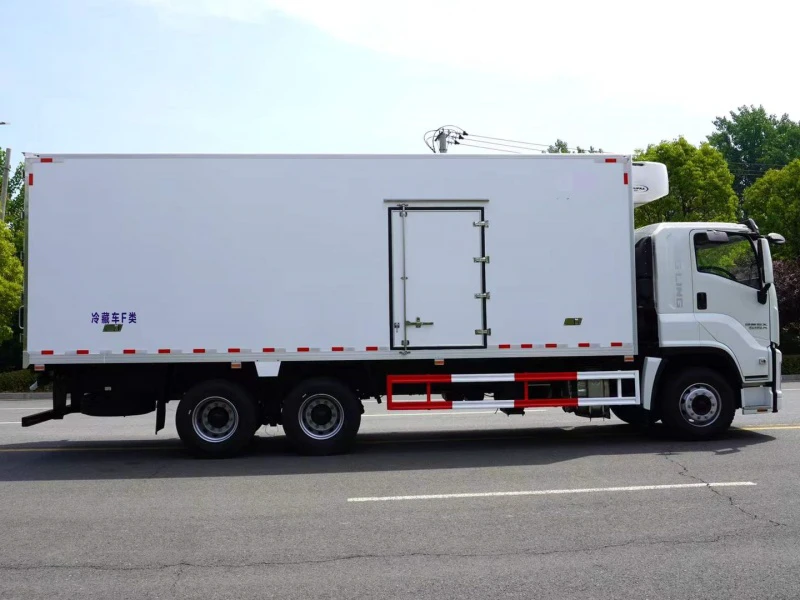

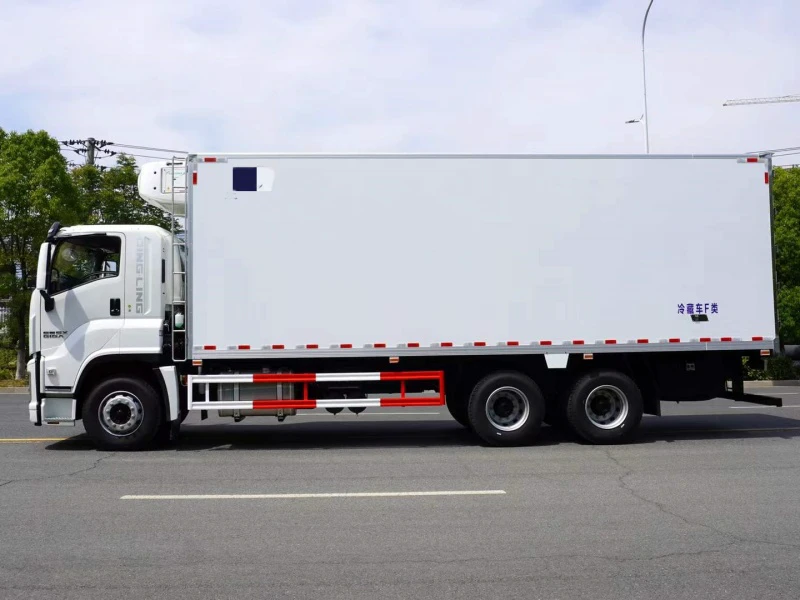

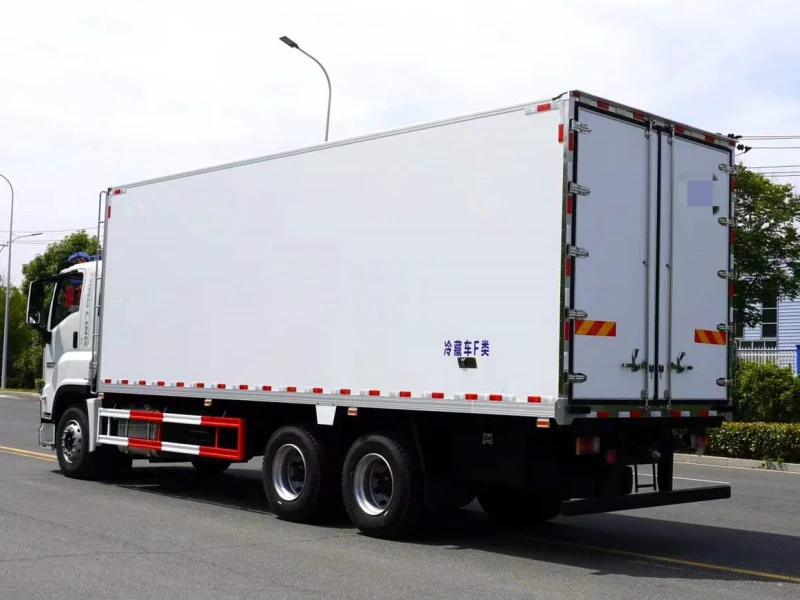

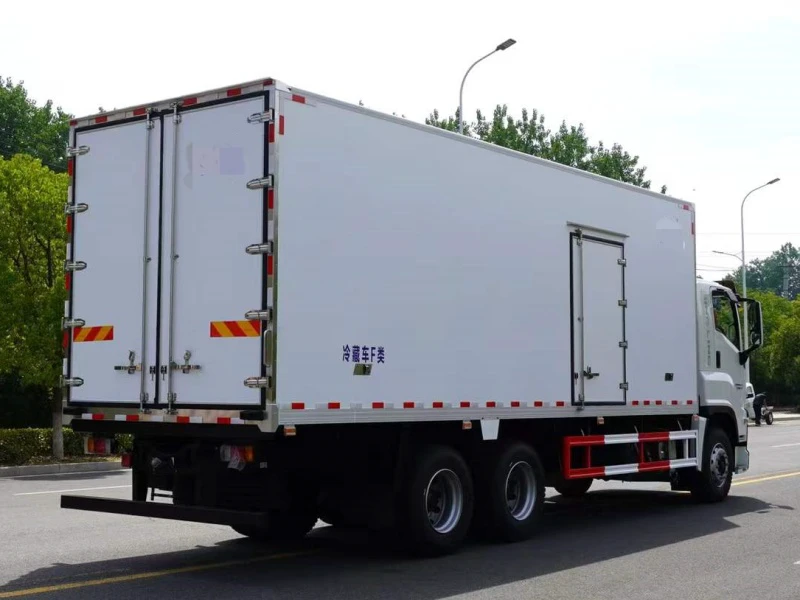

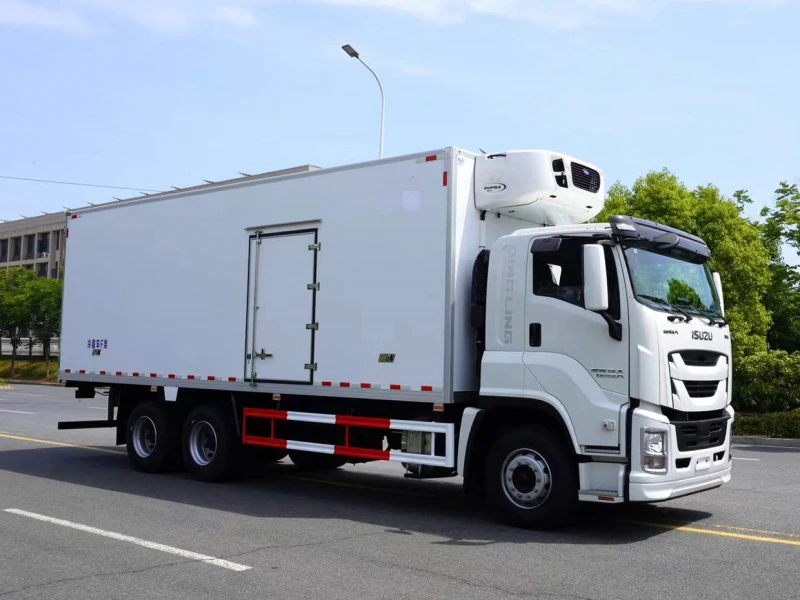

ISUZU GIGA 6×4 Refrigerated Truck – Cold Chain Solution

I. Product Introduction

The ISUZU GIGA 6×4 Refrigerated Truck is a premium cold chain vehicle designed for large-scale frozen and chilled cargo transport. Built on the renowned ISUZU GIGA 6×4 rear-dual-axle chassis, this vehicle is powered by a 300 HP ISUZU 6HK1-TCG60 engine meeting China VI B (Euro 6 equivalent) emission standards, delivering exceptional performance for long-haul logistics. Equipped with a spacious insulated cargo box, this refrigerated truck is ideal for frozen food distribution, pharmaceutical cold chain, seafood logistics, and dairy transport.

II. Core Parameters

III. Exterior Dimensions, Box Specifications & Design Philosophy

• Overall Dimensions: 10,350 × 2,600 × 3,890 mm – optimized for maximum cargo capacity while maintaining urban maneuverability.

• Cargo Box Dimensions: 7,850 × 2,420 × 2,400 mm – spacious insulated cargo area providing approximately 45.6 cubic meters of cold chain storage capacity, ideal for refrigerated van body configuration.

• Box Construction: High-quality insulated panels with reinforced flooring to withstand heavy palletized loads and frequent forklift loading.

• Wheelbase: 5,100 + 1,370 mm – provides excellent stability for the ISUZU 6×4 refrigerated truck configuration, with rear dual axles distributing weight evenly.

• Design Philosophy: "Maximum cold chain efficiency + ISUZU reliability" – This ISUZU GIGA refrigerated truck combines a world-class chassis with a spacious insulated cargo box, air suspension cab, and driver-focused features to minimize fatigue and maximize productivity.

IV. Structural Advantages – Engine, Chassis, Transmission & Cargo Box

ISUZU Powertrain & Chassis

• ISUZU 6HK1-TCG60 Engine (300 HP): Delivers 300 HP with 1,000 Nm of torque, providing strong low-end power for heavy loads. Meeting China VI B (Euro 6) emission standards, this Euro 6 refrigerated truck ensures compliance with the strictest environmental regulations.

• Engine Displacement (7.79 L): Large displacement provides ample power reserve for climbing grades with full loads while powering the refrigeration unit.

• Drive Type (6×4 with Central Differential Lock): The rear-dual-axle refrigerated truck configuration with central differential lock provides exceptional traction on slippery or uneven surfaces, ensuring reliable performance in all weather conditions.

• Transmission (Fast 9JS119TA): The 9-speed manual gearbox features a synchronizer, direct gear, and crawler gear – offering precise control for both highway cruising and low-speed maneuvering.

• Axle Ratio (4.555): Optimized for heavy load starting and climbing, while maintaining reasonable highway fuel efficiency.

• Brake System (Front Disc / Rear Drum + ABS): Front disc brakes provide superior heat dissipation and stopping power. ABS ensures stable braking under emergency conditions.

• Fuel Tank (400 L Aluminum): Lightweight, corrosion-resistant aluminum construction provides extended range for long-haul refrigerated logistics.

Cab Comfort & Driver Features

• New ISUZU GIGA 5X Cab: Semi-sleeper flat top design with 2-person capacity. Air suspension cab and air suspension seat dramatically reduce driver fatigue on long journeys.

• Climate Control: Air conditioning, hydraulic power steering, and clutch/brake boosters provide effortless operation.

• Electronics: Cruise control, multi-function LCD instrument panel, and electrically heated mirrors enhance safety and convenience in all driving conditions.

Cargo Box & Refrigeration Preparation

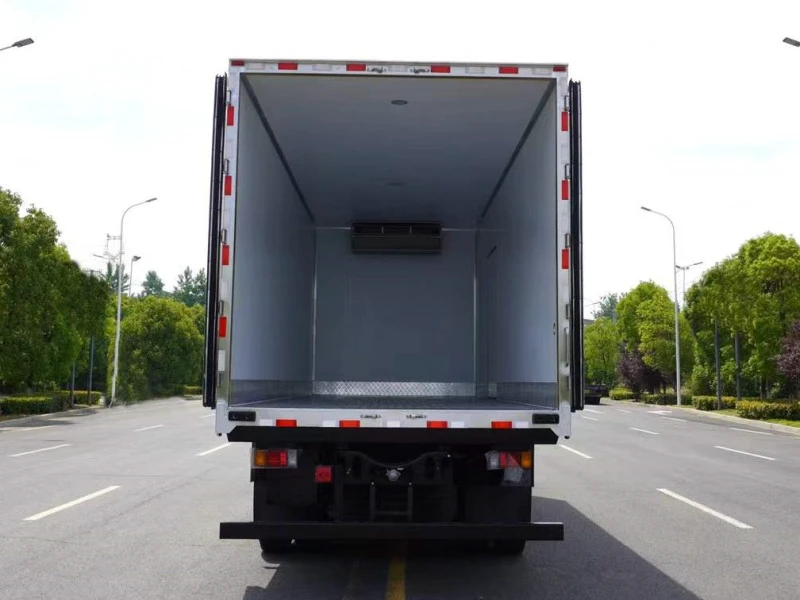

• Box Dimensions (7,850 × 2,420 × 2,400 mm): Spacious interior efficiently accommodates standard pallets – ideal for frozen food transport and pharmaceutical cold chain logistics.

• Insulation: High-density polyurethane foam insulation ensures temperature stability, making this vehicle a true freezer truck capable of maintaining deep-frozen temperatures.

• Refrigeration Ready: The cargo box is prepped for installation of a premium refrigeration unit (Carrier or Thermo King recommended).

V. Product Features & Manufacturer Advantages

Product Features

• ISUZU 6×4 Reliability: The ISUZU GIGA refrigerated truck platform is globally trusted for durability, low maintenance costs, and high resale value.

• China VI B (Euro 6) Compliance: Meets the most stringent emission standards, making this Euro 6 refrigerated truck suitable for markets with strict environmental regulations, including European and Chinese cities with low-emission zones.

• 300 HP with 1,000 Nm Torque: Ample power for fully loaded refrigerated transport, even on mountainous terrain.

• Air Suspension Cab & Seat: Significantly reduces driver fatigue – a critical feature for long-haul refrigerated box truck operators.

• Rear-Dual-Axle with Differential Lock: Provides exceptional traction on snow, ice, mud, and wet loading docks – essential for year-round seafood logistics and dairy transport.

• 7.85-Meter Cargo Box: Approximately 45.6 m³ capacity – ideal for palletized frozen foods, fresh produce, dairy, pharmaceutical cold chain, and seafood logistics.

• 400 L Aluminum Fuel Tank: Extended range for long-distance refrigerated transport, reducing refueling stops.

• Versatile Applications: Suitable for frozen food distribution, pharmaceutical cold chain, seafood transport, dairy logistics, and fresh produce delivery – meeting both refrigerated and freezer truck needs.

Manufacturer Advantages

Qingling ISUZU (manufactured in China) combines ISUZU's global engineering excellence with local manufacturing expertise, establishing itself as a professional refrigerated truck manufacturer. Key advantages include:

• ISUZU Original Technology: Factory-integrated chassis and cab design based on authentic ISUZU engineering, ensuring seamless compatibility and optimal performance for every refrigerated van body.

• China VI B (Euro 6) Ready: Fully compliant with the latest emission standards, future-proofing your fleet against regulatory changes.

• Driver-Centric Design: Air suspension cab and seat, cruise control, and heated mirrors are standard – not optional – on this heavy duty refrigerated truck.

• Proven Cold Chain Platform: The ISUZU GIGA chassis is a globally recognized platform for refrigerated box truck conversions, with years of proven reliability in cold chain logistics.

• Global Service Network: Supported by ISUZU's worldwide after-sales network for parts and service availability.
