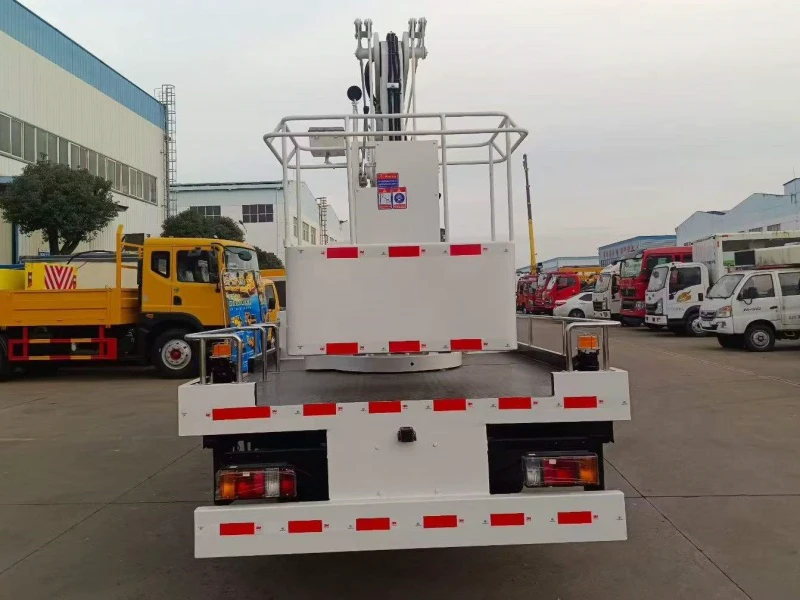

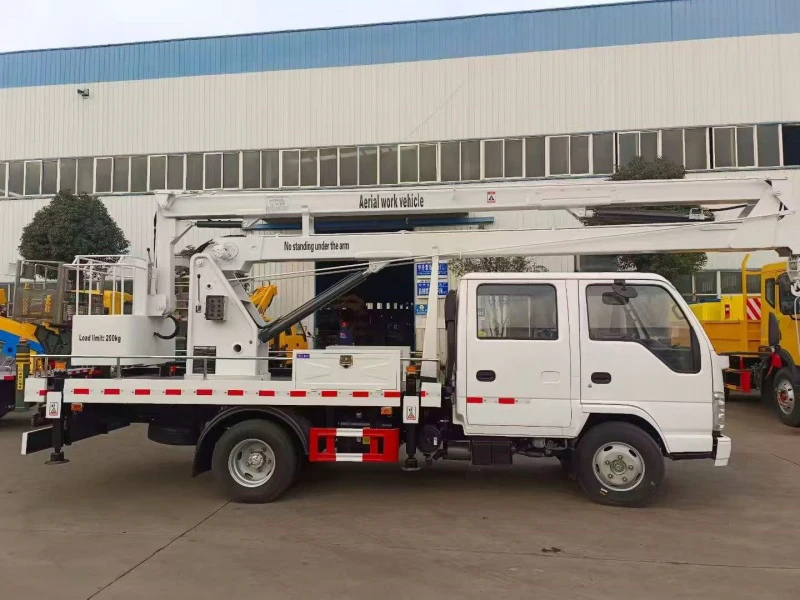

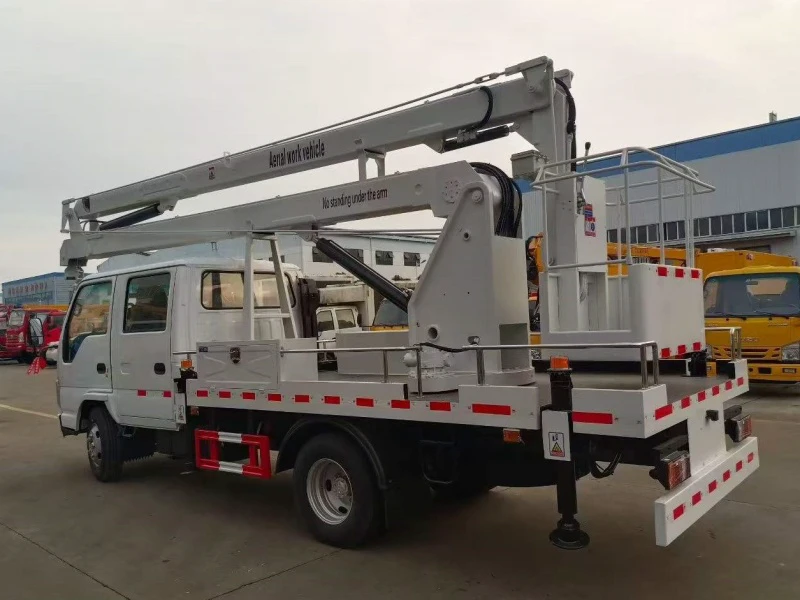

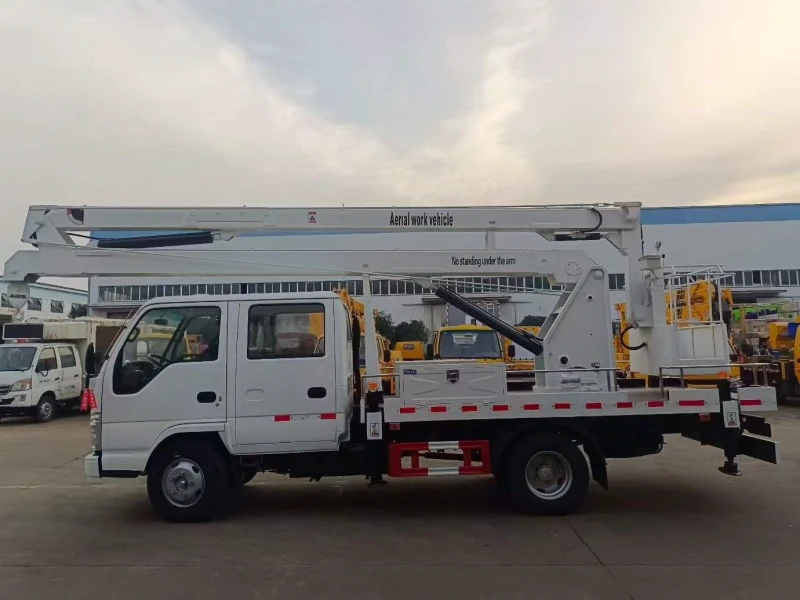

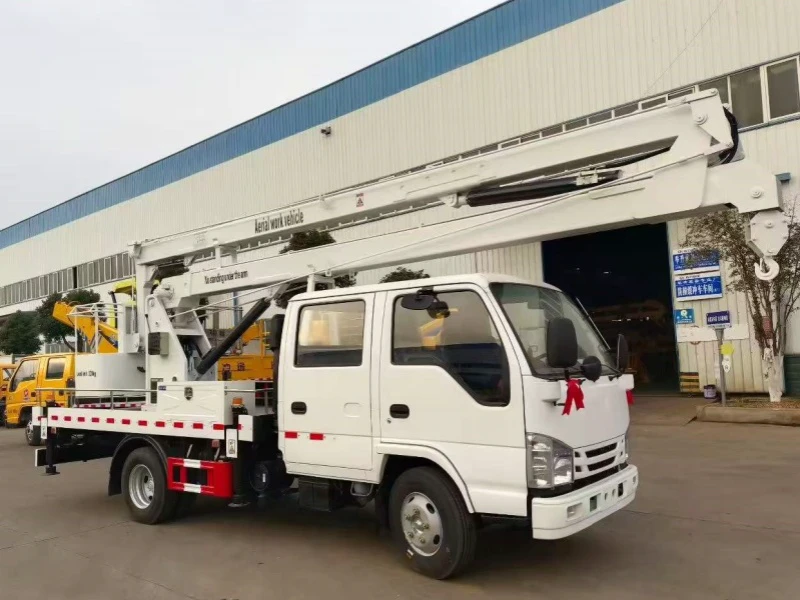

Isuzu 4×2 Aerial Platform Truck – 16m Folding Boom Lift for Municipal & Utility Applications
I. Product Introduction
The Isuzu 4×2 Aerial Platform Truck is a professional 16-meter folding boom aerial work vehicle designed for municipal maintenance, utility repair, street lighting, landscaping, and telecommunications applications. Built on the reliable Isuzu 100P double-row cab chassis with a 3360mm wheelbase, this aerial platform truck is powered by a China VI Isuzu 120 HP engine meeting stringent emission standards. Featuring a three-section folding boom with 360-degree hydraulic rotation, a 200kg working platform load capacity, and dual control stations (turntable and platform), this 16m bucket truck offers exceptional versatility and safety for elevated work at heights up to 16 meters.
II. Key Specifications
Parameter | Specification |
|---|---|
Product Name | Isuzu 100P 16m Folding Boom Aerial Platform Truck |
Chassis Model | QL1070A6KAY / QL1040A6HWY |
Cab Type | Double-row (2+3 seating, up to 6 persons) |
Drive Type | 4×2 (Left Hand Drive) |
Wheelbase | 3360 mm |
Engine Model | 4KH1CN6LB (China VI) |
Engine Power | 88 kW / 120 HP |
Tires | 7.00R16 (6+1 pcs) |
Overall Dimensions | Approx. 7400–7930 × 2000 × 2960–3100 mm |
Maximum Working Height | 16 meters |
Maximum Working Radius | 10.5 meters |
Working Platform Load | 200 kg |
Boom Type | 3-section folding boom |
Rotation Angle | 360° hydraulic full rotation |
Outriggers | 4 hydraulic outriggers with bidirectional hydraulic locks |
Control System | Dual station (turntable + platform) with electric-hydraulic proportional control |
III. Chassis & Cab Features
Isuzu 100P Double-Row Cab
The Isuzu 100P cab features a double-row design with 2+3 seating (up to 6 persons), making it ideal for crew transport to job sites. The cab includes:
Factory Air Conditioning: Standard equipment for operator comfort
Power Steering: Reduces driver fatigue
ABS: Ensures stable braking performance
7.00R16 Tires: Heavy-duty tires for reliable road performance
Isuzu 120 HP Engine
The Isuzu 4KH1CN6LB engine delivers 120 HP with proven reliability and fuel efficiency, meeting China VI emission standards for environmental compliance in urban areas.
IV. Aerial Work System Specifications
Boom System
The 16m aerial platform truck features a 3-section folding boom with:
Maximum Working Height: 16 meters
Maximum Working Radius: 10.5 meters
360° Hydraulic Rotation: Full rotation for positioning flexibility
Boom Type: Folding arm design for compact storage and extended reach
Working Platform
Load Capacity: 200 kg (accommodates 2–3 workers with tools)
Automatic Leveling: Built-in hydraulic leveling mechanism keeps platform level at all angles
Dual Control Stations: Operate from both turntable and platform positions
Emergency Lowering: Manual emergency descent function for safety
Outrigger System
4 Hydraulic Outriggers: Front V-type / rear H-type configuration
Bidirectional Hydraulic Locks: Prevents accidental retraction
Separate Control: Each outrigger can be adjusted independently
Interlock System: Outriggers must be deployed before boom operation
V. Key Advantages
1. Dual Operation Controls
The aerial work vehicle features both turntable and platform controls with electric-hydraulic proportional control for smooth, precise movements. This allows operators to work from the most convenient position.
2. Advanced Safety Systems
Platform Interlocks: Prevents inadvertent operation
Overload Protection: Alerts when platform load exceeds safe limits
Emergency Lowering: Manual descent system for power failure situations
Outrigger Interlock: Prevents boom movement when outriggers are not properly deployed
Anti-Tipping System: Enhances stability during elevated work
3. Imported Hydraulic Components
The hydraulic system features imported proportional control valves for superior operation performance. Components include German-made valves and electric-hydraulic proportional controls for smooth, stepless speed regulation.
4. Versatile Applications
The Isuzu bucket truck is widely used in:
Municipal street lighting maintenance
Power line inspection and repair
Telecommunications tower maintenance
Tree trimming and landscaping
Building facade maintenance
Sign installation and repair
VI. Manufacturer Advantages
Isuzu is a globally recognized manufacturer of commercial vehicles and diesel engines, known for durability and reliability. CLW Group (CLW Special Purpose Vehicle Co., Ltd.) integrates specialized aerial work configurations with Isuzu's proven platform.
Proven Platform: The Isuzu 100P chassis is a well-established light-duty truck platform with strong reliability in real-world operations.
Professional Integration: CLW Group has extensive experience in aerial platform truck modifications for municipal and utility applications.
Quality Assurance: Strict quality control throughout the manufacturing and assembly process, including hydraulic system testing and platform load testing.
After-Sales Support: Comprehensive service network for fleet maintenance and parts availability.
