JMC 2-Ton Truck-Mounted Crane with XCMG 2-Ton Boom | Blue Label C-License

The Ultimate Urban Maintenance Solution – Compact, Powerful, and Blue Label Compliant

I. Product Overview

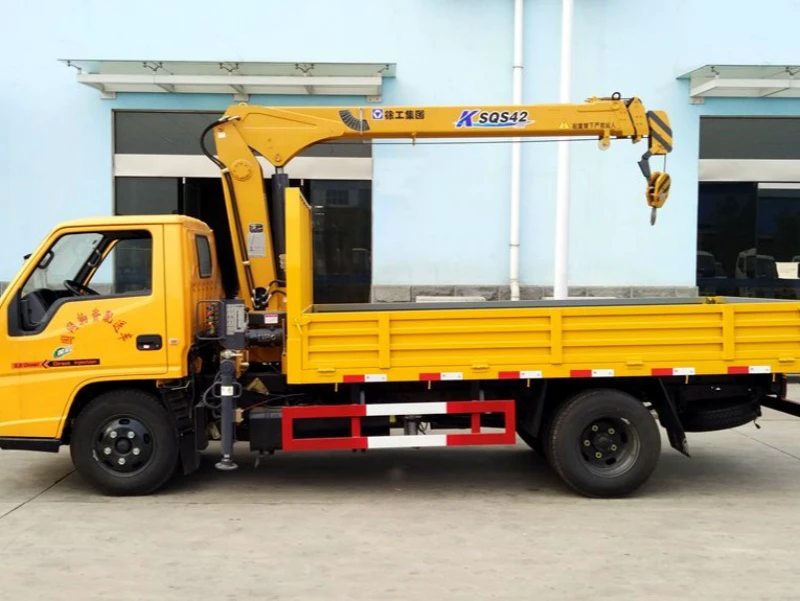

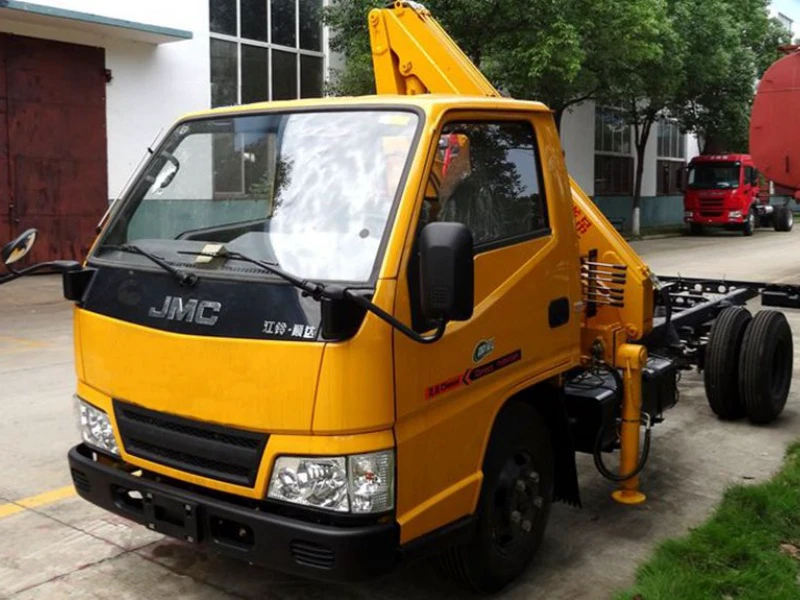

The JMC XCMG 2T Small Truck-Mounted Crane is a purpose-built urban maintenance vehicle designed for street lighting installation, municipal engineering, and city logistics. Powered by a reliable Isuzu engine and mounted on a JMC single-bridge chassis, this compact crane truck operates under Blue Label regulations with a standard C-class driver's license. Featuring the renowned XCMG 2-ton crane with straight or folding boom options, it delivers exceptional performance in space-constrained urban environments while maintaining excellent fuel efficiency and low maintenance costs.

II. Core Specifications

III. Dimensions, Material & Design Concept

• Design Concept: "Urban Agility with Industrial Strength." This vehicle is engineered specifically for tight city streets and narrow work sites, offering exceptional maneuverability without compromising lifting capability.

• Cargo Box Volume: 3.59 × 1.85 × 0.38 m = approx. 2.52 m³ = 666 US Gallons. The cargo box features the longest standard length in its class (11.78 ft) among Blue Label truck cranes, maximizing transport capacity for maintenance equipment and materials.

• Cargo Box Material: Available with 4 mm (0.16 in) or 5 mm (0.20 in) carbon steel floor options for enhanced durability based on application requirements.

• Cab Design: The single-row cab features factory-installed air conditioning and power steering for operator comfort during long urban work shifts.

IV. Crane Specifications

This model is equipped with the XCMG 2-ton crane, available in multiple configurations to suit different operational needs.

Crane Configuration Options:

2T 3-Section Boom Detailed Lifting Capacity (Horizontal Plane):

• Retracted boom length: 3.36 m (11.0 ft)

• Fully extended boom length: 7.73 m (25.4 ft)

• Lifting capacity at 7.73 m radius: 255 kg (562 lbs)

• Lifting capacity at 5.4 m radius: 400 kg (882 lbs)

• Lifting capacity at 3.07 m radius: 1,000 kg (2,205 lbs)

• Lifting capacity at 2.0 m radius: 2,100 kg (4,630 lbs)

Important Note: Actual lifting capacity varies depending on lifting, boom angle, and crane configuration. A larger boom angle results in greater lifting capacity. Different crane brands and boom lengths will affect working radius, lifting height, and capacity.

V. Structural Details & Advantages

1. Powertrain System

• Isuzu Engine Technology: The 116 HP Isuzu diesel engine (Japanese-Chinese joint venture) delivers low noise operation, exceptional reliability, and reduced maintenance costs – ideal for daily urban operations.

• Transmission: The 5-speed manual transmission provides smooth power delivery and optimal fuel efficiency for stop-and-go city driving.

2. Chassis System

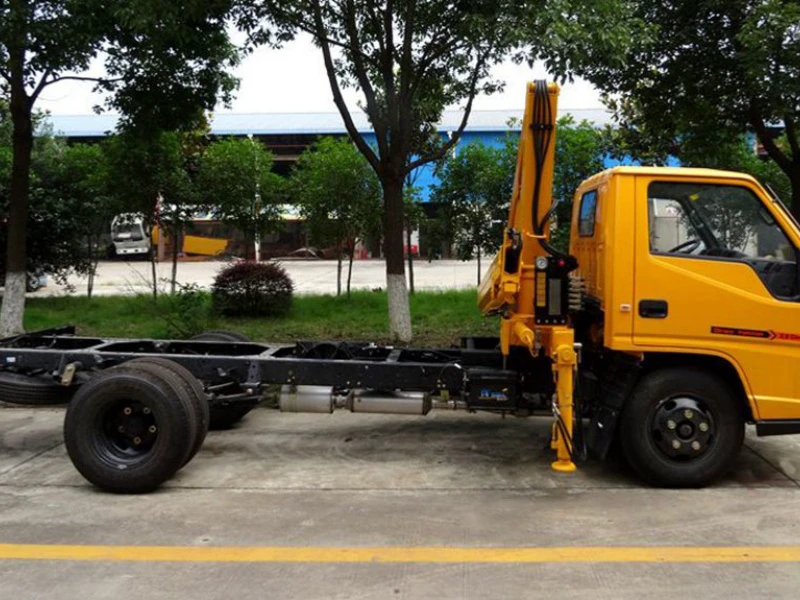

• Custom-Engineered Chassis: The chassis is specifically tailored for the XCMG 2-ton crane, ensuring optimal weight distribution and structural integrity.

• Rear Axle: The 3-ton rear axle is perfectly matched to the vehicle's GVWR and crane capacity.

• Braking System: The hydraulic brake system with ABS provides reliable stopping power and safety in urban traffic conditions.

• Superior Maneuverability: The compact chassis design and optimized wheelbase (132.3 inches) make this vehicle exceptionally easy to navigate through narrow city streets and congested work sites.

3. Crane System

• Hexagonal Boom Technology: The crane features XCMG's patented hexagonal cross-section boom constructed from high-strength manganese steel, offering:

  • Superior bending and compression resistance

  • Better self-centering capability

  • Enhanced lifting stability

• Leak-Proof Hydraulic System: Equipped with American-standard hydraulic hose fittings and imported seals, providing:

  • Excellent sealing performance

  • Oxidation and corrosion resistance

  • Complete elimination of oil leakage problems

• Proprietary Rotary Mechanism: The in-house developed rotation system delivers powerful driving force capable of meeting diverse operating conditions and load requirements.

• Multi-Strand Wire Rope: High-toughness multi-strand steel wire rope prevents rotation during hoisting for enhanced safety.

VI. Product Features & Manufacturer Advantages

• Blue Label Urban Access: With C-class license eligibility and compact dimensions, this vehicle can operate freely in city centers where larger trucks are restricted – perfect for municipal maintenance and street light repair.

• Longest Cargo Box in Class: At 11.78 ft (3.59 m), this model offers the longest standard cargo box among Blue Label truck cranes, maximizing transport efficiency for tools, materials, and equipment.

• Isuzu Reliability: The Isuzu engine is renowned for low failure rates and extended service intervals, significantly reducing total cost of ownership.

• Superior Crane Technology: The manganese steel hexagonal boom combined with American-standard hydraulics ensures years of reliable, leak-free operation.

• Flexible Boom Configurations: Choose between straight boom (360° rotation) for traditional lifting or folding boom (370° rack-and-pinion) for applications requiring precise positioning in confined spaces.

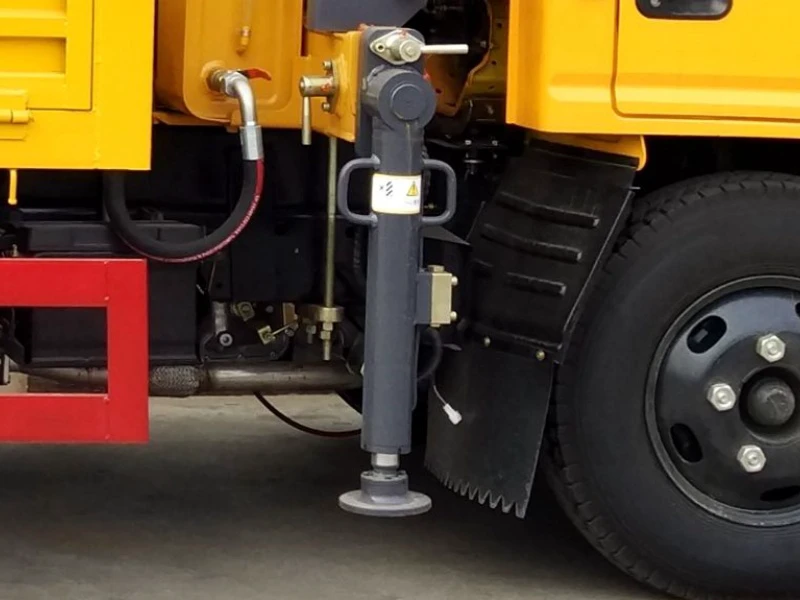

• Comprehensive Safety Systems: Includes ABS, hydraulic self-locking, and over-winding prevention for maximum operational safety.

• Manufacturer Advantage (Chengli Group): As a specialized manufacturer, Chengli Group offers integrated vehicle design and manufacturing, ensuring perfect coordination between the JMC chassis and XCMG crane. Customers benefit from single-source quality control, comprehensive after-sales support, and access to genuine parts for both the truck body and the hydraulic crane system.
