Tangjun XCMG 2T and 3T Small Truck-Mounted Crane

Economical and Reliable – The Cost-Effective Choice for Blue Label Operations

I. Product Overview

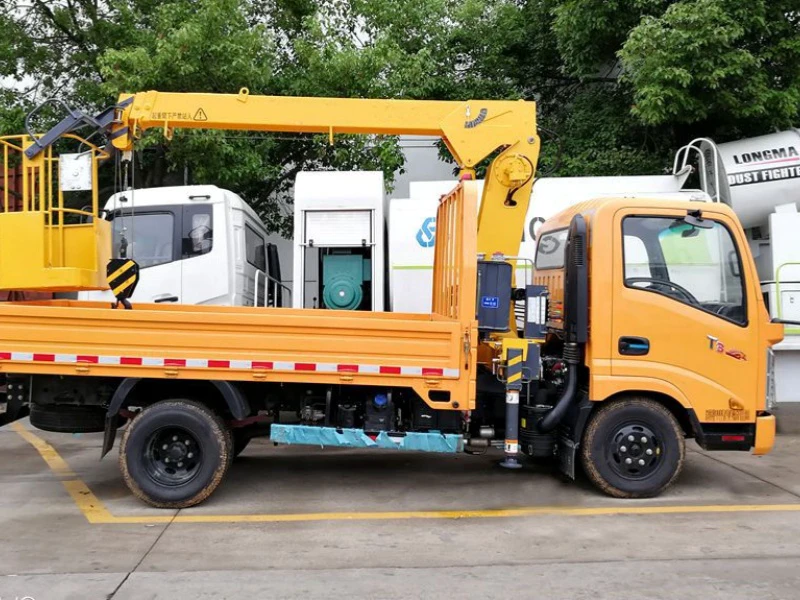

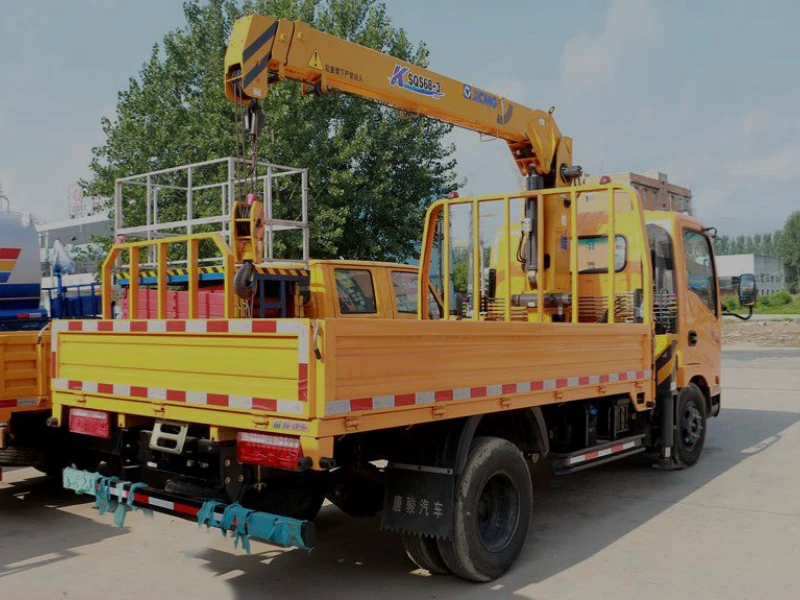

The Tangjun XCMG 2T and 3T Small Truck-Mounted Crane is an economical and practical "Blue Label" vehicle designed for budget-conscious operators who require reliable lifting performance. Built on the Tangjun dedicated crane chassis, this model combines a spacious T3 new-generation cab with a high-performance XCMG crane. Available with 2-ton or 3-ton crane configurations and 2-section or 3-section boom options, it offers an excellent balance of affordability and functionality for urban logistics and small-scale construction projects.

II. Core Specifications

III. Dimensions, Material & Design Concept

• Design Concept: "Affordable Reliability Without Compromise." This vehicle is engineered to provide cost-effective lifting solutions while maintaining the essential durability required for professional crane operations.

• Cargo Box Volume: 3.45 × 2.05 × 0.4 m = approx. 2.83 m³ = 748 US Gallons. The factory-original cargo box is constructed from carbon steel with precision manufacturing techniques for enhanced durability.

• Frame Material: The 200 mm (7.87 in) Tangjun dedicated crane chassis frame is specifically designed to withstand the stresses of crane operations while maintaining structural integrity.

• Cab Design: The T3 new-generation cab features a modern exterior design with improved ergonomics and visibility, providing operators with a comfortable working environment.

IV. Crane Specifications

This model can be equipped with 2-ton or 3-ton XCMG cranes, available with 2-section or 3-section boom configurations.

Crane Performance Parameters:

2T 3-Section Boom Detailed Lifting Capacity (Horizontal Plane):

• Retracted boom length: 3.36 m (11.0 ft)

• Fully extended boom length: 7.73 m (25.4 ft)

• Lifting capacity at 7.73 m radius: 255 kg (562 lbs)

• Lifting capacity at 5.4 m radius: 400 kg (882 lbs)

• Lifting capacity at 3.07 m radius: 1,000 kg (2,205 lbs)

• Lifting capacity at 2.0 m radius: 2,100 kg (4,630 lbs)

3T 3-Section Boom Detailed Lifting Capacity (Horizontal Plane):

• Retracted boom length: 3.35 m (11.0 ft)

• Fully extended boom length: 7.56 m (24.8 ft)

• Lifting capacity at 7.56 m radius: 500 kg (1,102 lbs)

• Lifting capacity at 5.46 m radius: 900 kg (1,984 lbs)

• Lifting capacity at 3.36 m radius: 1,800 kg (3,968 lbs)

• Lifting capacity at 2.1 m radius: 3,200 kg (7,055 lbs)

Important Note: The actual lifting capacity varies depending on the lifting方位 and boom angle. A larger boom angle results in greater lifting capacity. Different crane brands and boom lengths will also affect working radius, lifting height, and capacity.

• Rotation Angle: 360-degree continuous rotation

• Crane Brands: Standard XCMG; Shimei optional

• Standard Features: Front outriggers standard; hydraulic rear outriggers optional

V. Structural Details & Advantages

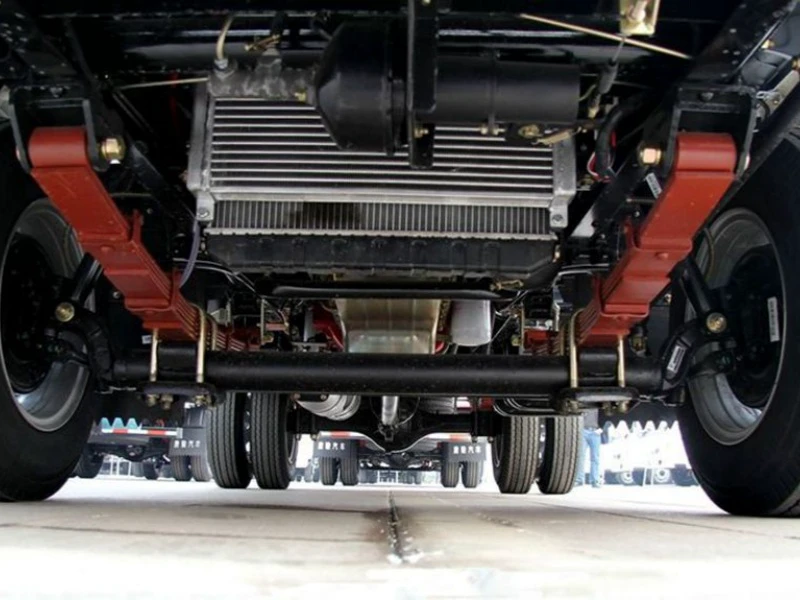

1. Chassis System

• Dedicated Crane Chassis: The Tangjun crane-specific chassis is engineered with a 200 mm (7.87 in) frame optimized for crane mounting and operation.

• Rear Axle: The 5-ton rear axle provides reliable load-bearing capacity for both crane operations and cargo transport.

• Braking System: Equipped with dual-circuit air brake with spring parking brake and ABS anti-lock braking system for enhanced safety during transit and operation.

• Power Steering: Standard power steering reduces operator fatigue during urban driving and maneuvering.

2. Crane System

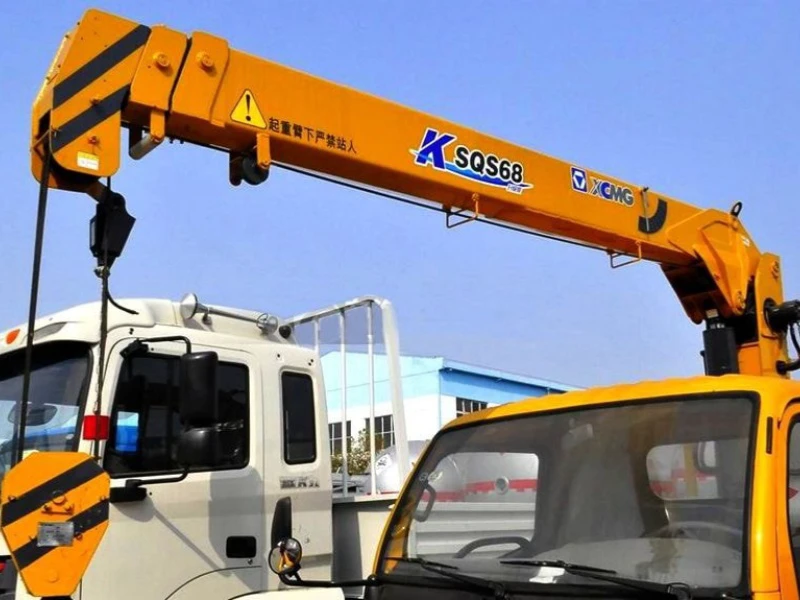

• High-Strength Boom Material: The crane boom is constructed from manganese steel high-strength plate, offering superior durability and load-bearing capacity.

• Global Quality Control: Manufactured under global-leading quality inspection systems, with strict control over every process on the visual assembly line.

• Hydraulic Self-Locking Rotary System: The hydraulic self-locking system allows for precise 360-degree positioning at any angle without slippage or drifting, ensuring accurate load placement.

• Multi-Strand Steel Wire Rope: The crane utilizes multi-strand steel wire rope with excellent toughness, increasing lifting torque and preventing rotation during hoisting operations for enhanced safety.

• Boom Angle Performance: The crane delivers higher lifting capacities at steeper boom angles, providing operational flexibility across different job site conditions.

VI. Product Features & Manufacturer Advantages

• Blue Label Compliance: With GVWR of 4.495 tons, this vehicle operates under Blue Label regulations, offering excellent urban access with a standard C-class license.

• Economical Choice: The Tangjun XCMG combination represents one of the most cost-effective Blue Label truck crane options available, making it ideal for startups and budget-conscious operators.

• Factory-Original Cargo Box: The carbon steel cargo box features precision manufacturing for improved fit, finish, and durability compared to aftermarket alternatives.

• Flexible Crane Configurations: Available with 2-ton or 3-ton cranes, 2-section or 3-section booms, and optional Shimei crane branding to suit different operational requirements and budgets.

• Comprehensive Safety Features: Includes ABS, hydraulic self-locking rotary system, multi-strand wire rope, and over-winding prevention for maximum operational safety.

• Manufacturer Advantage (Chengli Group): As a specialized manufacturer, Chengli Group offers integrated vehicle design and manufacturing, ensuring perfect coordination between the Tangjun chassis and XCMG crane. Customers benefit from single-source quality control and comprehensive after-sales support.
