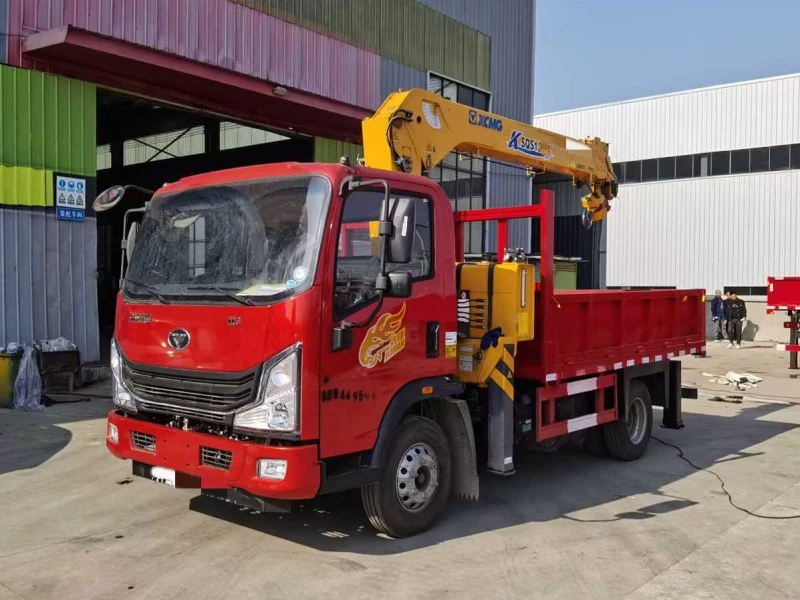

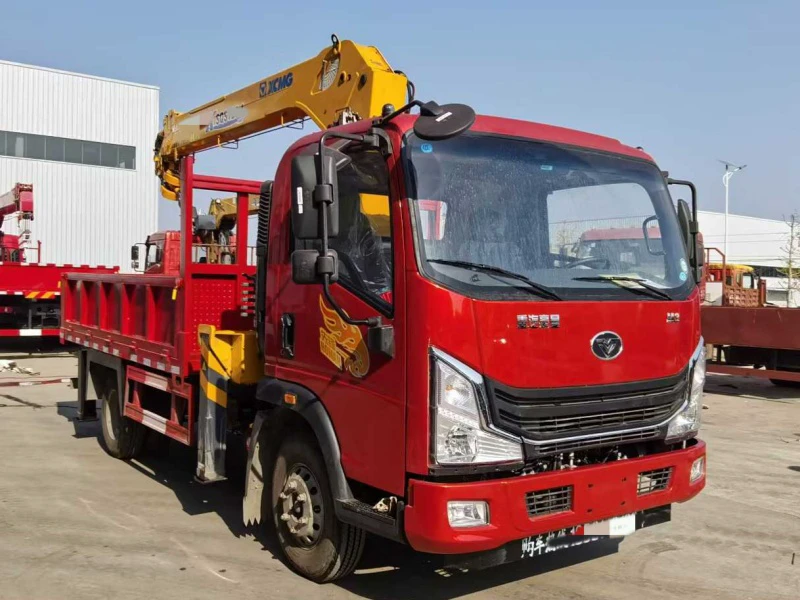

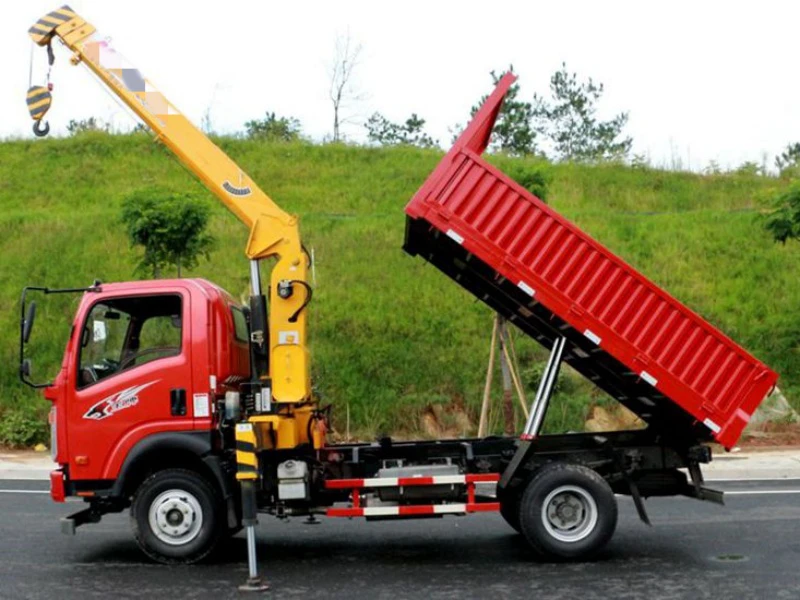

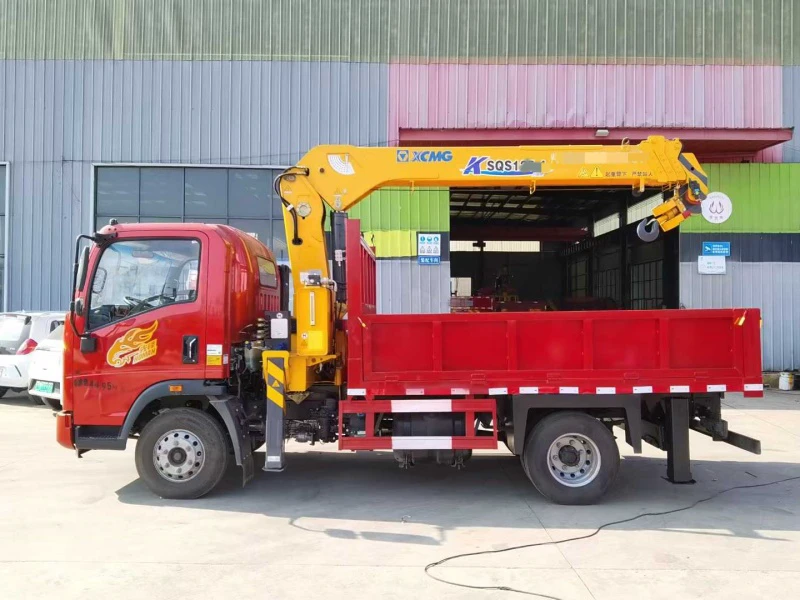

Sinotruk XCMG 3T Dump Truck-Mounted Crane
The Heavy-Duty Champion of Blue Label Truck Cranes
I. Product Overview
The Sinotruk XCMG 3T Dump Truck-Mounted Crane is widely recognized as the most powerful "Blue Label" (GVW under 4.5T) truck crane in its class. Operable with a standard C-class driver's license, it offers excellent urban mobility. This vehicle perfectly integrates the robust Sinotruk dedicated chassis with a high-performance XCMG crane, featuring a 230 mm (9.06 in) heavy-duty frame and a 7-ton rear axle, delivering industry-leading load-bearing capacity. It supports 2-ton or 3.2-ton crane configurations, with straight or folding boom options to meet diverse operational requirements.
II. Core Specifications
Item | Specification |
|---|---|
Vehicle Brand | Sinotruk |
License Type | Blue Label (C-License Eligible) |
Engine | Yuchai 115 HP / Xichai 130 HP Diesel |
Transmission | 5-speed with auxiliary gearbox |
Dimensions (L×W×H) | 5.995 × 2.35 × 3.2 m (19.67 × 7.71 × 10.5 ft) |
Cargo Box (L×W×H) | 3.45 × 2.15 × 0.6 m (11.32 × 7.05 × 1.97 ft) |
GVWR | 4,495 kg (9,910 lbs) |
Curb Weight | 4,000 kg (8,818 lbs) |
Frame | 230 mm (9.06 in) dedicated heavy-duty frame |
Rear Axle | 7-ton capacity |
Braking System | Dual-circuit air brake with spring parking brake |
Wheelbase | 3,360 mm (132.3 inches) |
Tires | 7.50R16 Nylon |
Crew Cab | 3 persons |
Max Speed | 100 km/h (62 mph) |
III. Dimensions, Material & Design Concept
Design Concept: "Maximum Payload in a Compact Blue Label Chassis." The vehicle is built around the Sinotruk exclusive heavy-duty frame (230 mm / 9.06 in) , prioritizing load-bearing rigidity to support both heavy cargo and the dynamic stresses of crane operation.
Cargo Box Volume: 3.45 × 2.15 × 0.6 m = approx. 4.45 m³ = 1,175 US Gallons. The block-style cargo box design maximizes loading capacity for bulk materials such as sand and gravel.
Cab Design: The spacious 1,880 mm (74.0 inches) single-row cab features an ergonomic Western-style interior (silver-gray). It includes a large passenger-side storage locker and driver-centric controls with thoughtfully positioned buttons, comfortably seating 3 personnel.
IV. Crane Specifications
This model can be equipped with 2-ton or 3.2-ton cranes, available in straight or folding boom configurations. Detailed performance parameters are as follows:
Crane Configuration | Max Capacity (kg/lbs) | Max Outreach Capacity (kg/lbs) | Working Radius (m/ft) | Lifting Height (m/ft) | Crane Weight (kg/lbs) | Outrigger Span (mm/in) |
|---|---|---|---|---|---|---|
2T 2-Section | 2,000 / 4,409 | 400 / 882 | 5.8 / 19.0 | 6.8 / 22.3 | 875 / 1,929 | 1,874-3,024 / 73.8-119.1 |
2T 3-Section | 2,000 / 4,409 | 255 / 562 | 7.7 / 25.3 | 9.0 / 29.5 | 950 / 2,094 | 1,874-3,024 / 73.8-119.1 |
3.2T 2-Section | 3,200 / 7,055 | 950 / 2,094 | 5.5 / 18.0 | 6.8 / 22.3 | 1,105 / 2,436 | 1,989-3,329 / 78.3-131.1 |
3.2T 3-Section | 3,200 / 7,055 | 500 / 1,102 | 7.5 / 24.6 | 9.5 / 31.2 | 1,229 / 2,709 | 1,989-3,329 / 78.3-131.1 |
Rotation Angle: 360-degree continuous rotation
Crane Brands: Standard XCMG; Dongfeng optional
V. Structural Details & Advantages
1. Chassis System
Heavy-Duty Frame: The 230 mm (9.06 in) Sinotruk dedicated frame is integrally formed, providing exceptional torsional strength for heavy lifting and dumping operations.
Rear Axle: The 7-ton rear axle is specifically engineered to handle the reactive forces generated by 3.2-ton crane operations and heavy cargo loads.
Braking System: The dual-circuit air brake with spring parking brake ensures maximum safety, especially when parking on slopes.
2. Powertrain System
Engine: Powered by a high-torque Yuchai 115 HP or Xichai 130 HP diesel engine, meeting China National V emission standards.
Transmission: The 5-speed gearbox with auxiliary gearing provides both highway cruising capability and precise low-speed control for delicate lifting operations.
3. Crane System
Hexagonal Boom Technology: Features XCMG's patented hexagonal cross-section boom, offering better self-centering and higher bending resistance for stable lifting.
Hydraulic System: The crane cylinder features a galvanized body for superior hardness and pressure resistance. It utilizes imported hydraulic seals and high-precision cold-drawn tubes, fundamentally solving oil leakage problems and ensuring powerful telescoping action and a long service life.
Safety Features: Equipped with an over-winding prevention alarm and a boom elevation indicator plate, clearly showing safe lifting capacities when the boom angle exceeds 30 degrees.
VI. Product Features & Manufacturer Advantages
Blue Label with C-License: With a curb weight under 4 tons and GVWR of 4.495 tons, this vehicle fully complies with Blue Label regulations, offering excellent urban access.
Heavy-Duty Design: The 230 mm (9.06 in) heavy-duty frame + 7-ton rear axle combination makes it the undisputed "heavy-duty champion" among Blue Label truck cranes.
Large Cargo Capacity: The 3.45×2.15×0.6 m (11.32×7.05×1.97 ft) block-style cargo box maximizes loading volume, ideal for sand, gravel, and bulk materials.
Flexible Crane Options: Standard with premium XCMG crane, with Dongfeng and other brands available to suit different budget and performance requirements.
Ergonomic Cab: The spacious 1,880 mm cab features silver-gray interior, passenger-side storage locker, and ergonomically placed controls for enhanced comfort.
Manufacturer Advantage (Chengli Group): As a specialized manufacturer, Chengli Group offers integrated vehicle design and manufacturing, ensuring perfect coordination between chassis and crane. Customers benefit from single-source quality control and comprehensive after-sales support.
