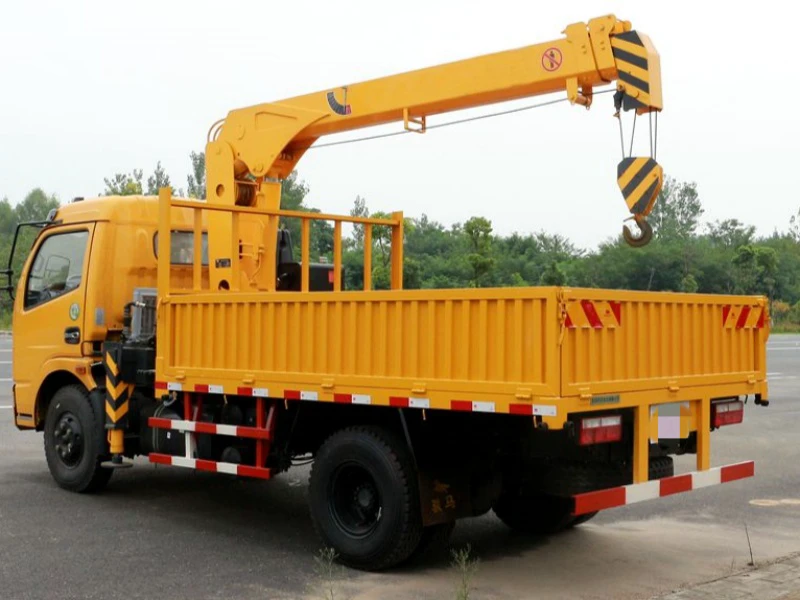

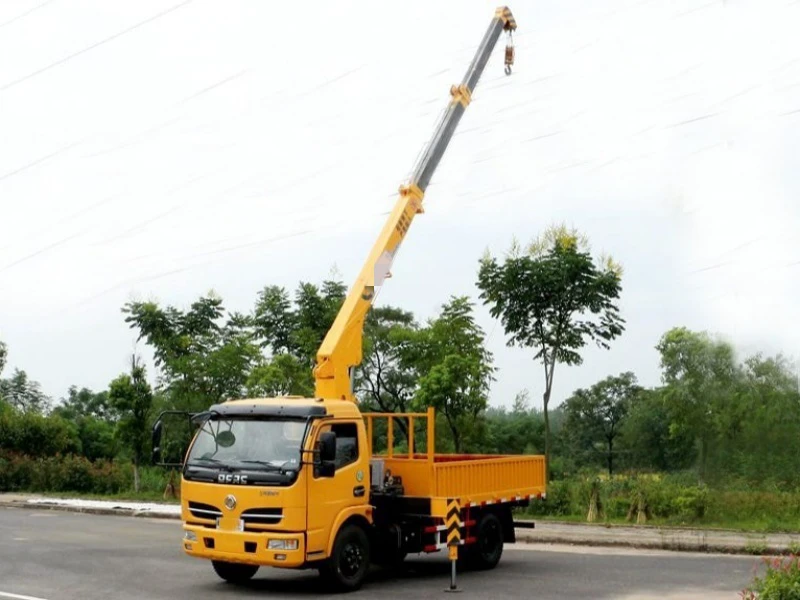

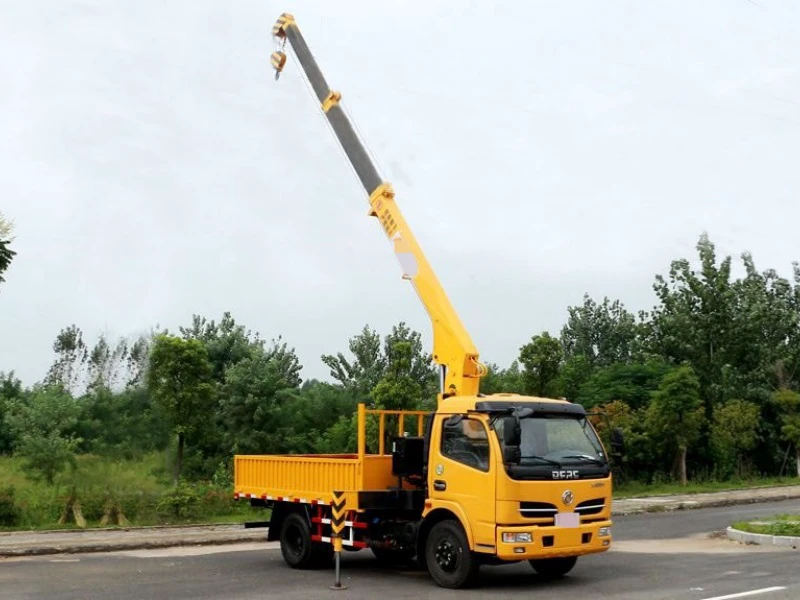

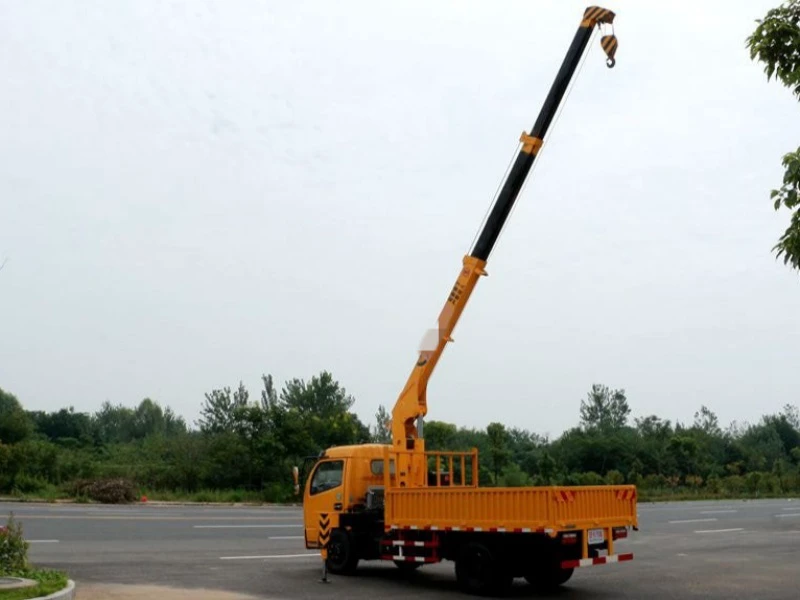

DFAC XCMG 2T and 3.2T Small Truck-Mounted Crane
Compact Size, Powerful Performance – Ideal for Urban Operations
I. Product Overview
The DFAC XCMG 2T and 3.2T Small Truck-Mounted Crane is a versatile "Blue Label" vehicle designed for urban logistics and small-scale construction projects. Operable with a standard C-class driver's license, it combines the reliable DFAC Dolica chassis with a high-performance XCMG crane. Available with 2-ton or 3.2-ton crane configurations and straight or folding boom options, this model offers exceptional flexibility for self-loading and material handling tasks in space-constrained environments.
II. Core Specifications
Item | Specification |
|---|---|
Vehicle Brand | DFAC Dolica |
License Type | Blue Label (C-License Eligible) |
Engine | Yuchai 115 HP or Yunnei 130 HP Diesel (China V) |
Transmission | 5-speed or 8-speed with auxiliary gearbox |
Dimensions (L×W×H) | 5.995 × 2.2 × 2.945 m (19.67 × 7.22 × 9.66 ft) |
Cargo Box (L×W×H) | 3.26 × 2.01 × 0.4 m (10.7 × 6.59 × 1.31 ft) |
GVWR | 4,495 kg (9,910 lbs) |
Curb Weight | 3,610 kg (7,959 lbs) |
Frame | 180-230 mm (7.09-9.06 in) dedicated heavy-duty frame |
Rear Axle | 4-7 ton capacity |
Braking System | Dual-circuit air brake with spring parking brake |
Wheelbase | 3,308 mm (130.2 inches) |
Tires | 7.00R16 or 8.25R16 Steel Cord |
Crew Cab | 2 persons |
Max Speed | 95 km/h (59 mph) |
III. Dimensions, Material & Design Concept
Design Concept: "Urban-Friendly Compactness with Heavy-Duty Capability." The vehicle is engineered to navigate narrow city streets while maintaining the structural integrity required for professional lifting operations.
Cargo Box Volume: 3.26 × 2.01 × 0.4 m = approx. 2.62 m³ = 692 US Gallons. The optimized cargo box design provides ample space for construction materials and equipment.
Frame Material: Available with 180 mm (7.09 in) to 230 mm (9.06 in) DFAC dedicated heavy-duty frame. The 230 mm option features increased thickness for superior load-bearing capacity, making it ideal for heavier crane configurations.
Cab Design: The single-row cab features modern amenities including central locking and power windows, providing enhanced comfort and convenience for operators.
IV. Crane Specifications
This model can be equipped with 2-ton or 3.2-ton XCMG cranes, available in straight or folding boom configurations with 2-section or 3-section boom options.
Crane Performance Parameters:
Crane Configuration | Max Capacity (kg/lbs) | Max Outreach Capacity (kg/lbs) | Working Radius (m/ft) | Lifting Height (m/ft) | Crane Weight (kg/lbs) | Outrigger Span (mm/in) |
|---|---|---|---|---|---|---|
2T 2-Section | 2,000 / 4,409 | 400 / 882 | 5.8 / 19.0 | 6.8 / 22.3 | 875 / 1,929 | 1,874-3,024 / 73.8-119.1 |
2T 3-Section | 2,000 / 4,409 | 255 / 562 | 7.7 / 25.3 | 9.0 / 29.5 | 950 / 2,094 | 1,874-3,024 / 73.8-119.1 |
3.2T 2-Section | 3,200 / 7,055 | 950 / 2,094 | 5.5 / 18.0 | 6.8 / 22.3 | 1,105 / 2,436 | 1,989-3,329 / 78.3-131.1 |
3.2T 3-Section | 3,200 / 7,055 | 500 / 1,102 | 7.5 / 24.6 | 9.5 / 31.2 | 1,229 / 2,709 | 1,989-3,329 / 78.3-131.1 |
2T 3-Section Boom Detailed Lifting Capacity:
Retracted boom length: 3.36 m (11.0 ft)
Fully extended boom length: 7.73 m (25.4 ft)
Lifting capacity at 7.73 m radius: 255 kg (562 lbs)
Lifting capacity at 5.4 m radius: 400 kg (882 lbs)
Lifting capacity at 3.07 m radius: 1,000 kg (2,205 lbs)
Lifting capacity at 2.0 m radius: 2,100 kg (4,630 lbs)
3.2T 3-Section Boom Detailed Lifting Capacity:
Retracted boom length: 3.35 m (11.0 ft)
Fully extended boom length: 7.56 m (24.8 ft)
Lifting capacity at 7.56 m radius: 500 kg (1,102 lbs)
Lifting capacity at 5.46 m radius: 900 kg (1,984 lbs)
Lifting capacity at 3.36 m radius: 1,800 kg (3,968 lbs)
Lifting capacity at 2.1 m radius: 3,200 kg (7,055 lbs)
Rotation Angle: 360-degree continuous rotation
Crane Brands: Standard XCMG; DFAC optional
Standard Features: Front outriggers standard; hydraulic rear outriggers optional
V. Structural Details & Advantages
1. Chassis System
Heavy-Duty Frame: The DFAC 230 mm (9.06 in) dedicated frame features increased thickness compared to standard frames, providing superior load-bearing capacity for heavy lifting operations.
Rear Axle: Available with 4-ton to 7-ton rear axle configurations. The 7-ton option is specifically designed to handle the reactive forces generated by 3.2-ton crane operations.
Enhanced Safety Features: Equipped with automatic brake adjusters, anti-spray device, and dual-circuit air brake with spring parking brake for maximum safety and regulatory compliance.
Transmission Options: The 8-speed gearbox with auxiliary gearing (low/high range) provides excellent hill-climbing capability and prevents stalling on steep slopes, making it ideal for mountainous terrain.
2. Crane System
Floating Three-Point Bridge Structure: The crane features a unique floating three-point bridge design that effectively reduces additional stress on the chassis frame during vehicle operation, extending frame life.
Single-Cylinder Rope Synchronized Telescoping: Advanced single-cylinder rope synchronization technology ensures reliable design and higher work efficiency.
Planetary Rotation with Hydraulic Self-Locking: The hydraulic self-locking system allows for 360-degree operation at any angle without slippage or drifting, significantly enhancing operational safety.
Hexagonal Boom Technology: Features XCMG's hexagonal cross-section boom, offering better self-centering and higher bending resistance for stable lifting.
VI. Product Features & Manufacturer Advantages
Blue Label with C-License: With GVWR of 4.495 tons, this vehicle fully complies with Blue Label regulations, offering excellent urban access and maneuverability in narrow streets.
Enhanced Comfort and Convenience: Modern cab features include central locking, power windows, and power steering for reduced operator fatigue.
Superior Hill-Climbing Performance: The 8-speed transmission with low and high range provides ample torque for mountainous terrain, eliminating stalling concerns on steep grades.
Flexible Crane Options: Standard with premium XCMG crane, with multiple capacity and boom configuration options to suit different operational requirements.
Advanced Safety Systems: Equipped with ABS, automatic brake adjusters, and anti-spray devices for comprehensive safety compliance.
Manufacturer Advantage (Chengli Group): As a specialized manufacturer, Chengli Group offers integrated vehicle design and manufacturing, ensuring perfect coordination between DFAC chassis and XCMG crane. Customers benefit from single-source quality control and comprehensive after-sales support.
