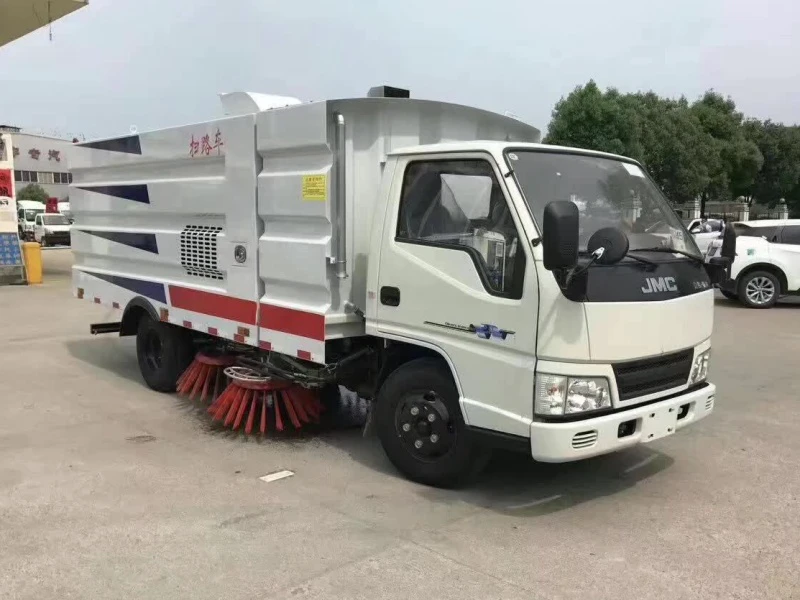

JMC 4x2 Light-Duty Sweeper | Sweeper with 4m³ Debris Hopper and 1.5m³ Water Tank | High-Efficiency Urban Cleaning Solution
I. Product Overview
The Jiangling Small Road Sweeper is a compact and highly maneuverable cleaning vehicle designed for efficient operation in urban environments, residential areas, and narrow streets. It integrates advanced sweeping, suction, and dust suppression technologies, making it an ideal choice for municipal sanitation and property maintenance tasks.
II. Core Parameters
Total Mass: 5,790 kg (Max. 7,300 kg)
Rated Load Capacity: 685 / 620 kg
Curb Weight: 4,975 kg
Max Speed: ≥ 95 km/h
Engine: JX493, 2.77L, 85 kW (Jiangling Motors)
Auxiliary Engine: JX493G, 64 kW (Jiangxi Isuzu)
ABS System: Model 355080020 (Zhejiang Asia-Pacific Mechanical & Electronic Co., Ltd.)
III. Design & Structure
Dimensions: 6,190 × 1,990 × 2,590 mm
Garbage Tank: 4 m³, stainless steel construction
Water Tank: 1.5 m³, durable stainless steel design
Safety Features: Side protective devices, rear skirt guard (300 mm ground clearance)
Design Philosophy: Compact, lightweight, and highly adaptable to confined urban spaces, with optional front grille styling for aesthetic customization.
IV. Technical Advantages
Chassis: Jiangling light-duty chassis with reliable structural integrity and ease of maintenance.
Engine & Transmission: JX493 main engine delivers strong torque and fuel efficiency; matched transmission ensures smooth power transfer and operational flexibility.
Axles & Suspension: Optimized for urban road conditions with stable load distribution and responsive handling.
Braking System: ABS from a reputable supplier ensures safety under various operating conditions.
Hydraulic System: High-quality components including Sanyo orbital motors and Hai Puruis solenoid valve groups for reliable performance.
V. Key Features & Manufacturing Strengths
High-Efficiency Cleaning: Sweeping width up to 3 m, capable of processing up to 45,000 m²/h with ≥ 95% cleaning efficiency.
Dust Suppression System: 1.5 m³ water tank supports effective spray dust control, minimizing airborne particles.
Premium Components: Schneider control switches (France), Beibao maintenance-free fan, Guangzhou Tianhe hydraulic pipes, Shanghai RUNDO hydraulic cylinders.
Versatile Operation: Suitable for speeds of 3–15 km/h during cleaning tasks, with a maximum intake particle size of 120 mm.
Chengli Group Advantages:
Extensive experience in compact sweeper design and customization.
Integration of high-quality domestic and international components.
Comprehensive pre-sales consultation and after-sales service support.
Adherence to strict quality control standards throughout production.
Applications:
Municipal street and alley cleaning
Residential community and park maintenance
Industrial park and campus sanitation
Commercial district and pedestrian area upkeep
Note: Specifications and configurations are based on standard models and can be tailored to meet specific operational requirements.
