Isuzu Mini Street Sweeping Vehicle | Sweeper with 4m³ Dust Hopper and 1.5m³ Water Tank | National VI Standard | Chengli Manufacturing

I. Product Overview

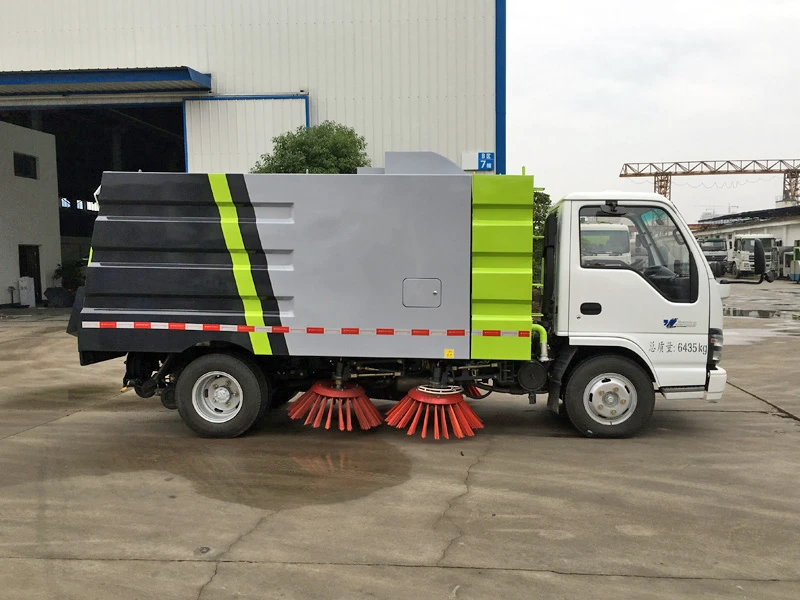

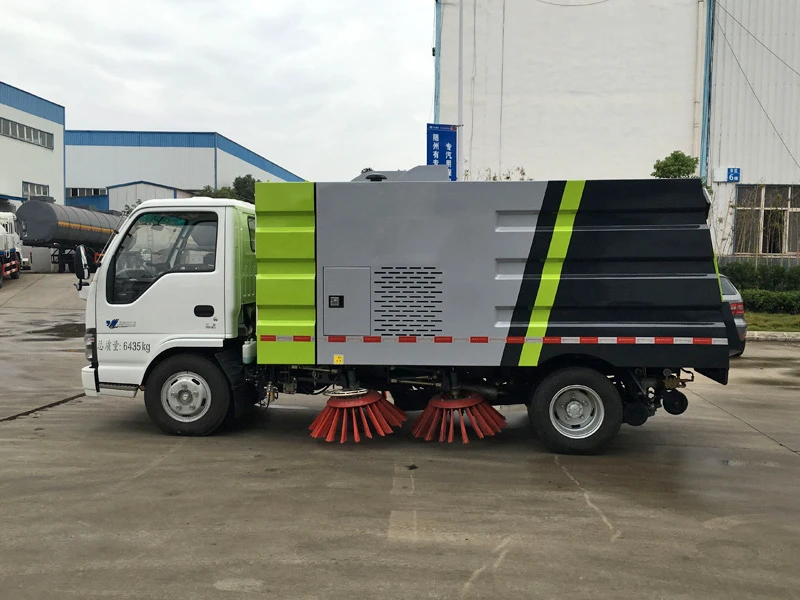

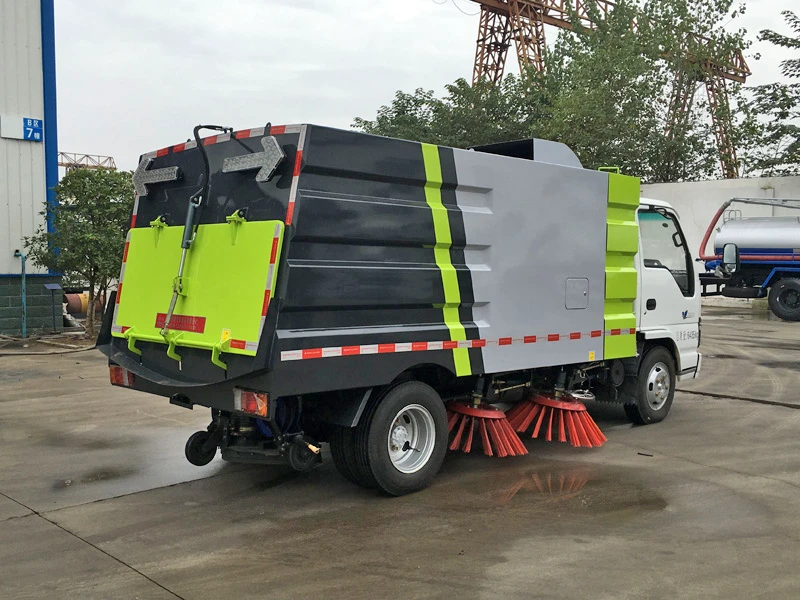

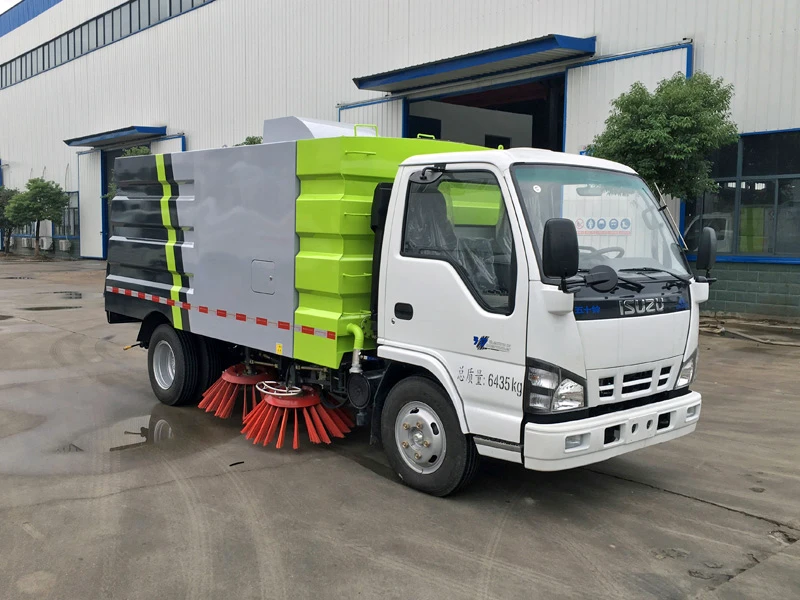

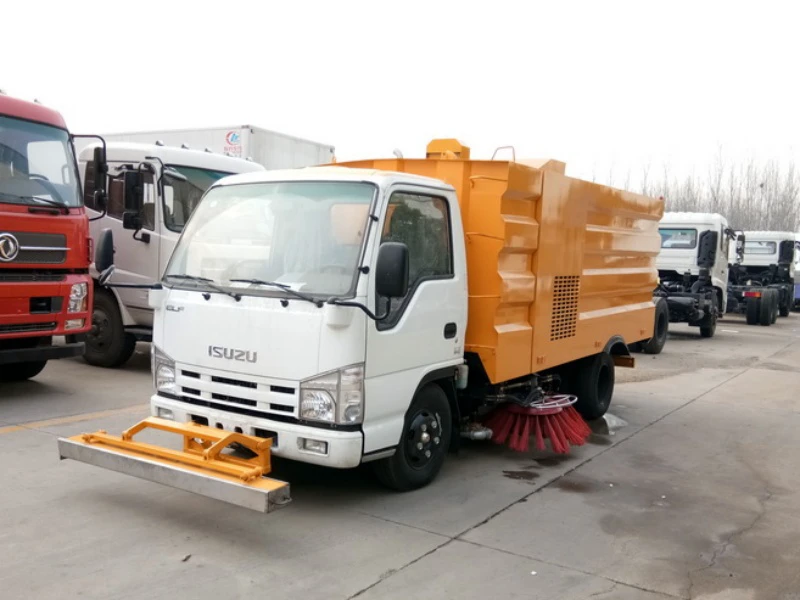

The Isuzu Small Road Sweeper is a high-performance cleaning vehicle designed for urban sanitation and industrial area maintenance. Built on the reliable Isuzu QL1070BUHACY chassis, it offers efficient sweeping and dust suppression capabilities in a compact yet powerful design.

II. Core Parameters

Total Mass: 7,300 kg
Rated Load Capacity: 2,270 / 2,020 kg
Max Speed: 95 km/h
Wheelbase: 3,360 mm
Main Engine: Isuzu 4KH1CN6LB, 3.0L, 88 kW (120 HP)
Auxiliary Engine: Jiangling 57 kW (78 HP)
Emission Standard: China VI (GB17691-2018)

III. Design & Structure

Dimensions: 5,850-6,190 (L) × 1,990 (W) × 2,450-2,590 (H) mm
Dust Tank: 4 m³, stainless steel construction
Water Tank: 1.5 m³, stainless steel
Approach/Departure Angle: 24°/15°
Design Philosophy: Optimized weight distribution, low center of gravity, and compact footprint for maneuverability in urban environments.

IV. Technical Advantages

Chassis: Isuzu single-row tilting cab with ergonomic layout and air conditioning.
Engine: Isuzu 4KH1CN6LB engine delivers reliable power with low fuel consumption and full China VI compliance.
Transmission: Isuzu MSB 5-speed manual gearbox ensures smooth power transfer.
Axles: Front axle capacity 2.5 tons, rear axle 4.8 tons, providing excellent load capacity and stability.
Brakes: Dual-circuit oil brakes with ABS for enhanced safety.
Tires: 7.00R16 14PR standard, suitable for varied road conditions.

V. Key Features & Manufacturing Strengths

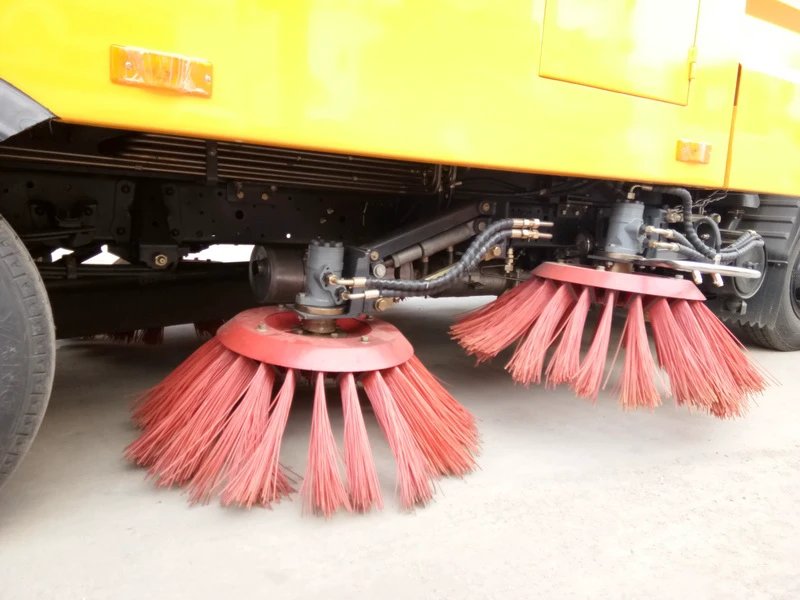

Efficient Sweeping System: Four central brushes combined with rear suction nozzle, sweeping width 2.8–3.0 m.
Enhanced Dust Control: High-pressure centrifugal pump spray system minimizes airborne dust.
Dust Tank Design: Bottom-mounted water tank allows tilting angle over 54°, ensuring complete waste discharge.
Premium Components: Shandong Ruinuo motors, Schneider switches, Xiamen Nanchao automatic clutch, and high-efficiency wear-resistant centrifugal fan.
Intelligent Safety Systems: Automatic obstacle avoidance for brushes, hydraulic pressure overload protection, and hydraulic oil cooling system.

Chengli Group Advantages:

Vertical integration from chassis adaptation to final assembly.
Advanced hydraulic oil filtration system to extend component life.
Winter-ready circuit design for reliable cold-weather startup.
Customization options including snow plows, sprinkler systems, and PLC control panels.
