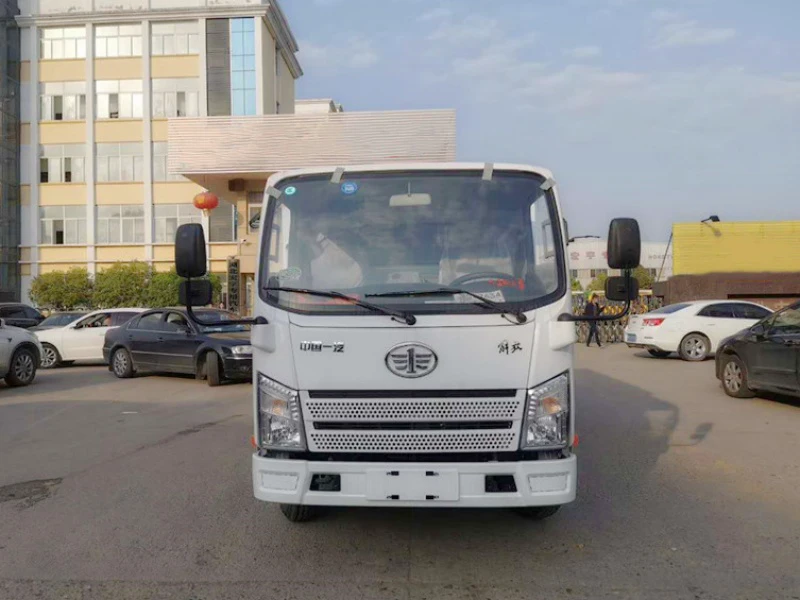

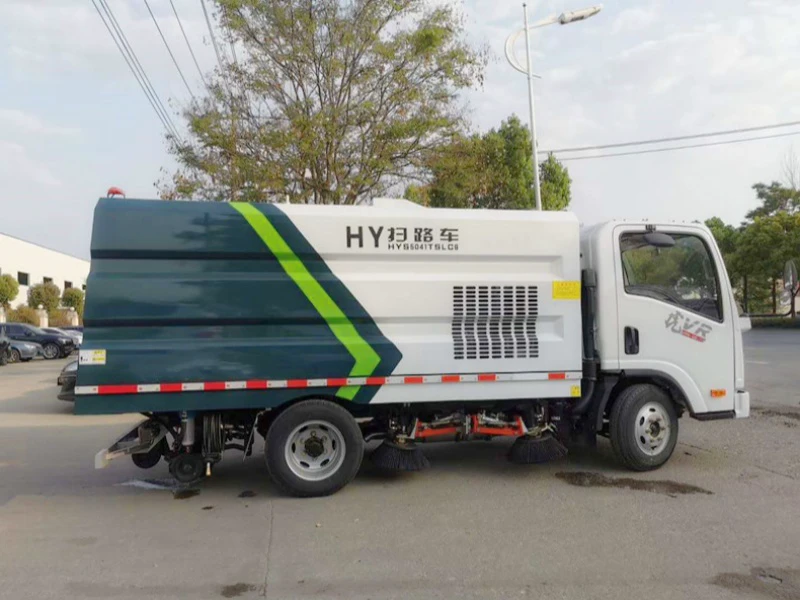

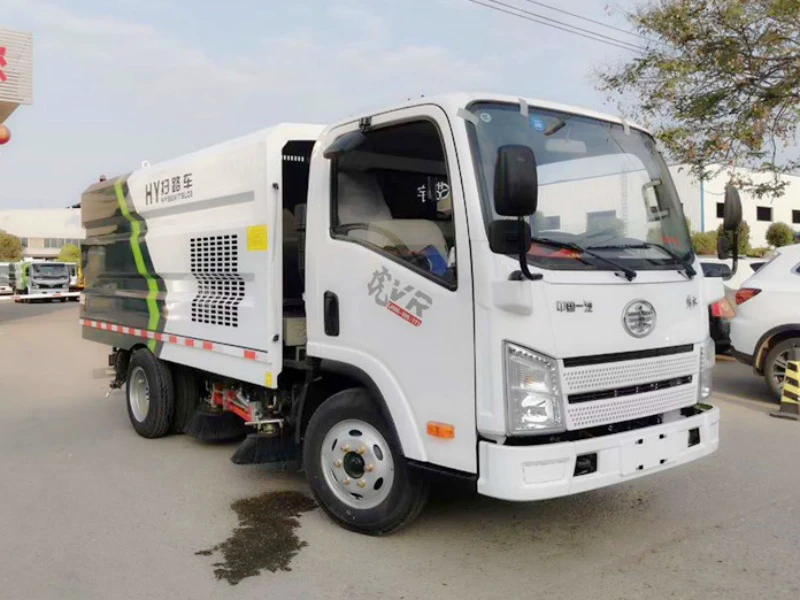

FAW 4x2 Sweeper Truck | Sweeper Truck with 4m³ Debris Hopper and 1.5m³ Water Tank | Professional Sweeper Manufacturer
I. Product Overview: Efficient Urban Road Cleaning Solution
This blue plate road sweeper is a professional road cleaning equipment modified based on the Liberation Tiger VN National VI chassis, specifically designed for urban streets, park roads, and other scenarios. The vehicle integrates sweeping, suction, and spray dust suppression functions, equipped with an auxiliary engine drive system and intelligent hydraulic control, providing high-efficiency cleaning operations and low fuel consumption performance. It complies with the latest domestic environmental standards and is the preferred equipment for municipal sanitation and property cleaning.
II. Core Parameters & Performance Indicators
Main Engine: Liberation Xichai CA4DB1 series 140HP National VI diesel engine (low-emission power system)
Auxiliary Engine: Jiangling JX4D30 series 57kW auxiliary engine (auxiliary power unit)
Transmission: Wanliyang 6TS40 six-speed manual transmission (high-efficiency transmission device)
Sweeping Width: Standard working width 2.5-3.2 meters (adjustable cleaning range)
Garbage Tank Capacity: 4 cubic meters stainless steel garbage storage container
Water Tank Capacity: 1.5 cubic meters clean water storage tank
Wheelbase Configuration: 3600mm chassis wheelbase design
Tire Specification: 7.00R16 steel radial tires
Operating Speed: 5-20km/h cleaning efficiency
III. Exterior Design & Structural Features
Dimensions & Tank Specifications
Overall Vehicle Size: Compact design suitable for narrow street operations
Cab: 1900mm wide body single-row cab (comfortable operating space)
Garbage Tank Structure: Double-layer stainless steel inner anti-corrosion container with built-in filter screen system
Water Tank Design: 1.5m³ anti-rust water tank with optimized space layout
Material Selection: High-strength steel frame with anti-rust treated exterior panels
Industrial Design Philosophy
Streamlined Exterior: Computer-simulated low-drag design
High Side Skirts: Curved transition protective plate design
Ergonomics: Control layout conforming to operating habits
Maintenance Accessibility: Side door design for easy daily maintenance
IV. Core Structural Technology & Advantages
Power System Configuration
Main Engine Advantage: Xichai 140HP engine provides reliable power output with excellent fuel economy
Auxiliary Engine System: Independently driven Jiangling engine ensures stable fan operation
Energy-saving Technology: Automatic clutch reduces fan start-stop impact, lowering energy consumption
Transmission & Running System
Transmission Performance: Wanliyang 6-speed transmission with smooth shifting and high transmission efficiency
Axle Configuration: 270 welded rear axle with 4.875 ratio, balancing climbing ability and travel speed
Suspension System: 3/7+9 leaf spring combination providing good load distribution
Frame Structure: 180×65×(5+5) original double-layer beam enhances overall rigidity
Special Equipment Systems
Sweeping Mechanism: Double sweeping disc arrangement with automatic avoidance protection function
Suction Nozzle System: Rear wide suction nozzle design improves garbage recovery rate
Hydraulic System: Integrated hydraulic control module reduces pipeline complexity
Electrical System: 24V dual battery configuration ensures stable equipment operation
V. Product Features & Chengli Group Manufacturing Advantages
Equipment Performance Advantages
High-efficiency Cleaning Capability: High-power centrifugal fan generates strong suction, improving sweeping efficiency by 30%
Intelligent Dust Suppression System: Dual dust control with sweeping disc spray and tank sprinkling
Operation Convenience: Centralized control panel in cab, multi-function steering wheel integration
Safety Configuration: ABS anti-lock braking system, air brake, power main switch multiple protections
Comfort Design: Air suspension seat, original factory air conditioning system, power windows
Key Component Brand Assurance
Hydraulic Components: HPRS solenoid valve group ensures control precision
Electrical Components: Siemens switch components provide reliable circuit protection
Sweeping Disc Motor: Sanyo orbit motor ensures long-term stable operation
Sealing Technology: German standard hydraulic sealing prevents leakage
Chengli Special Vehicle Manufacturing Advantages
Chengli Automobile Group, as a professional sanitation vehicle manufacturer, possesses multiple core technologies in the road sweeper production field:
Customization Capability: Adjustable garbage tank volume, water pump configuration, etc., according to customer needs
Quality Control System: Full-process quality inspection from chassis modification to special equipment assembly
R&D Innovation Capability: Continuous optimization of key technologies such as fan efficiency and hydraulic system layout
After-sales Service Network: National warranty service system provides timely technical support
Cost Control Advantage: Large-scale procurement reduces key component costs, enhancing product cost-effectiveness
Application Scenarios & Value
This Liberation chassis sweeper is suitable for:
Daily cleaning and maintenance of municipal roads
Road maintenance in industrial parks and logistics parks
Environmental cleaning in school campuses and commercial plazas
Area cleaning in parks, scenic spots, and parking lots
