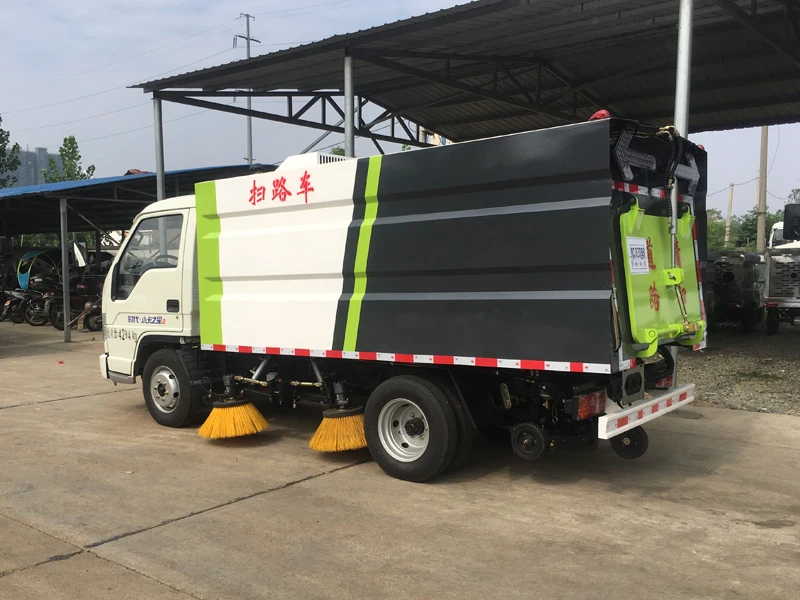

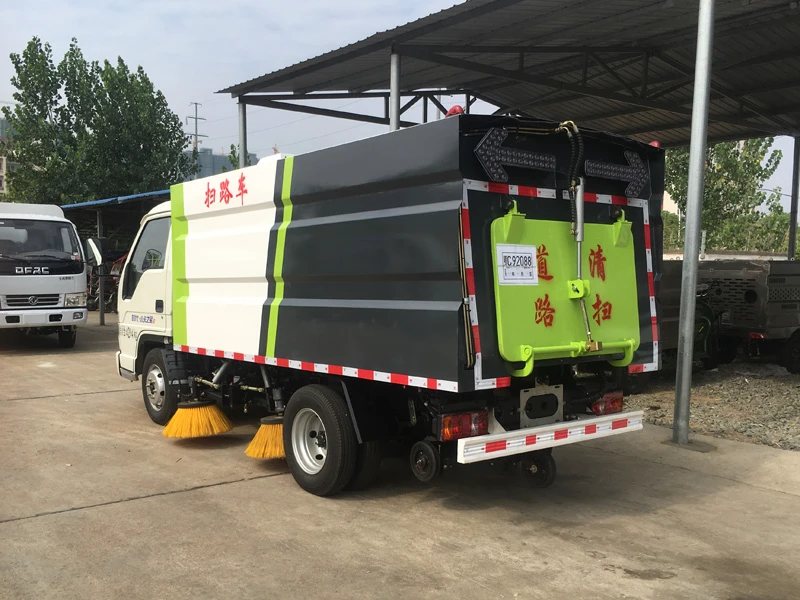

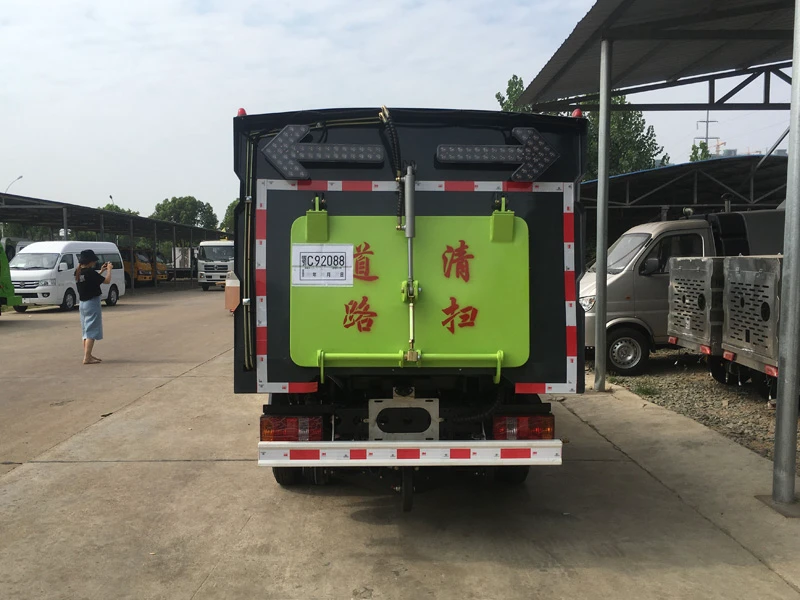

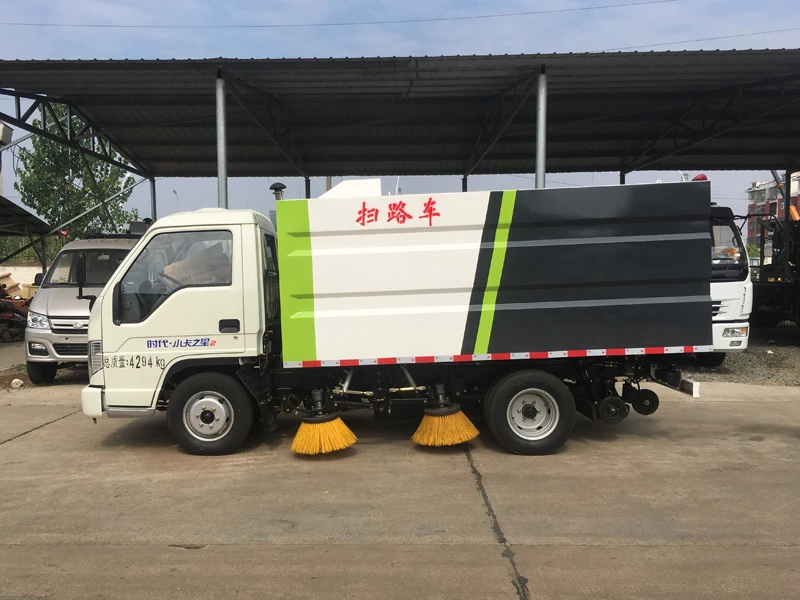

Foton Times Mini Sweeper Truck | Foton Forland Sweeper Truck (3m³ dust tank) | Professional Road Cleaning Solution
I. Product Overview
The Foton Times Mini Sweeper Truck is a compact yet efficient road cleaning vehicle designed for narrow streets, residential areas, and urban environments. Combining sweeping, suction, and dust suppression functions, it offers flexibility and reliability for municipal and commercial cleaning operations.
II. Core Parameters
Total Mass: 4,294 kg
Rated Load Capacity: 284 kg
Max Speed: 90 km/h
Wheelbase Options: 2,600 mm / 2,850 mm
Engine Options:
– Quanchai 4A2-68C50, 50 kW
– Yunnei D19TCIE1, 75 kW
– Quanchai 4A2-88C50, 65 kWEmission Standard: China V (GB17691-2005)
III. Design & Structure
Dimensions: 5,560 / 5,210 (L) × 1,760 (W) × 2,280 (H) mm
Dust Tank: 3 m³, stainless steel construction
Water Tank: 1.5 m³, stainless steel, corrosion-resistant
Approach/Departure Angle: 18°/18°
Design Philosophy: Compact body for high maneuverability, ergonomic layout for ease of operation, and robust materials for long-term durability.
IV. Technical Advantages
Chassis: Foton Xiaoka Star II, 1,600 mm wide cab, single-row forward-tilting design.
Engine: Multiple diesel options with strong fuel efficiency and low emissions.
Transmission: 5-speed manual gearbox, smooth shifting and reliable power delivery.
Axles: Front/rear wheel track optimized for stability (1,345 mm front, 1,240–1,280 mm rear).
Suspension: Leaf spring setup (7/5+3) for balanced load distribution and off-road adaptability.

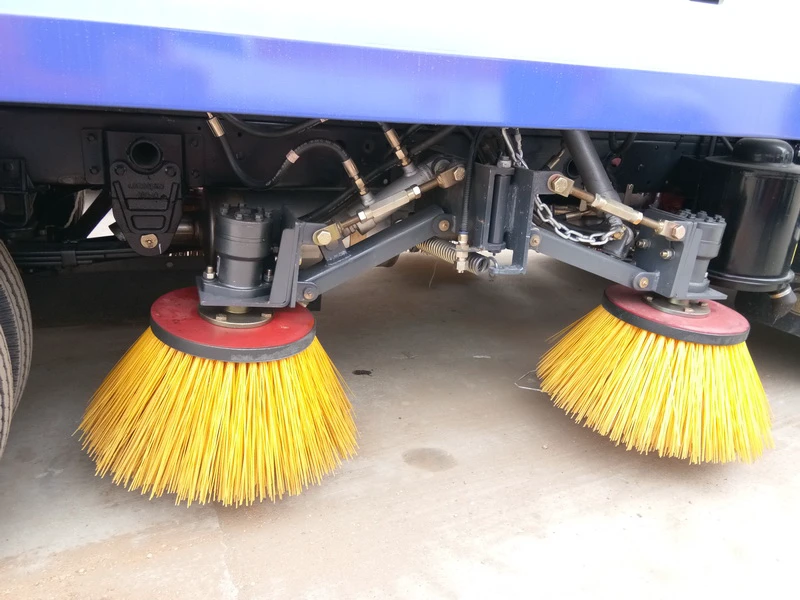

Sweeping System: Four-brush + rear suction nozzle design, with adjustable sweeping width up to 2.4 m.
V. Key Features & Manufacturing Strengths
Intelligent Sweeping: Automatic obstacle avoidance and reset function for brush arms.
Dust Control: Spray water system for effective dust suppression, minimizing secondary pollution.
Continuous Operation: Dedicated auxiliary engine (Yunnei 42 kW) drives fan and hydraulic systems independently.
Premium Components: Sanyo hydraulic motors, Schneider control switches, HPR solenoid valves, maintenance-free clutch and fan.
Customization Options: Available add-ons include front/rear spray, work monitoring systems, and high-pressure cleaning reels.
Chengli Group Advantages:
Integrated R&D and manufacturing of special-purpose vehicles.
Strict quality control from chassis modification to final assembly.
Nationwide service network with prompt technical support.
Cost-effective production through scaled procurement.
Applications:
Municipal street cleaning
Residential community and park maintenance
Highway and airport runway sweeping
Industrial park and logistics center sanitation
Note: All specifications are based on standard configurations and may be customized according to user requirements.
