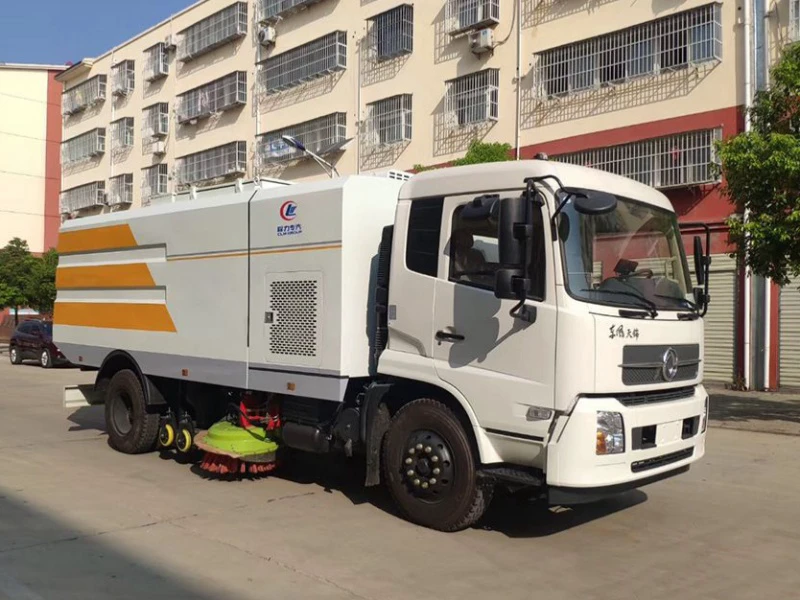

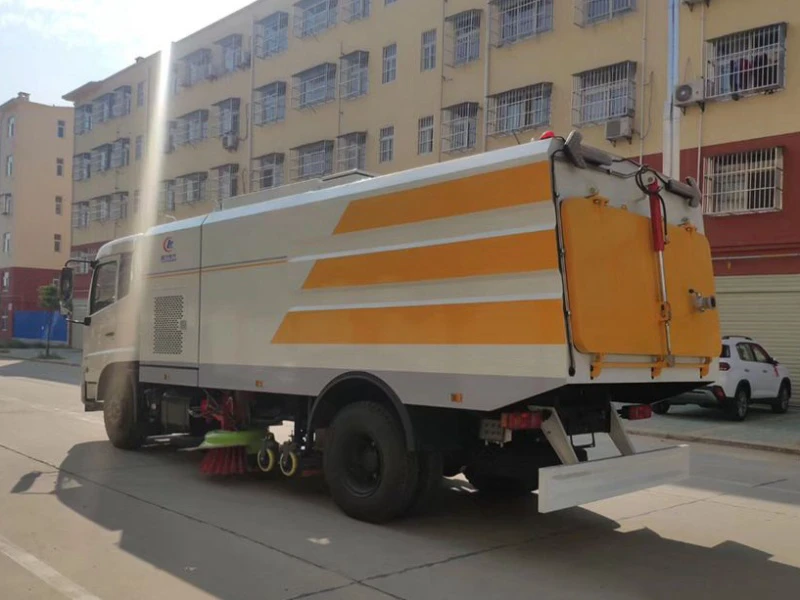

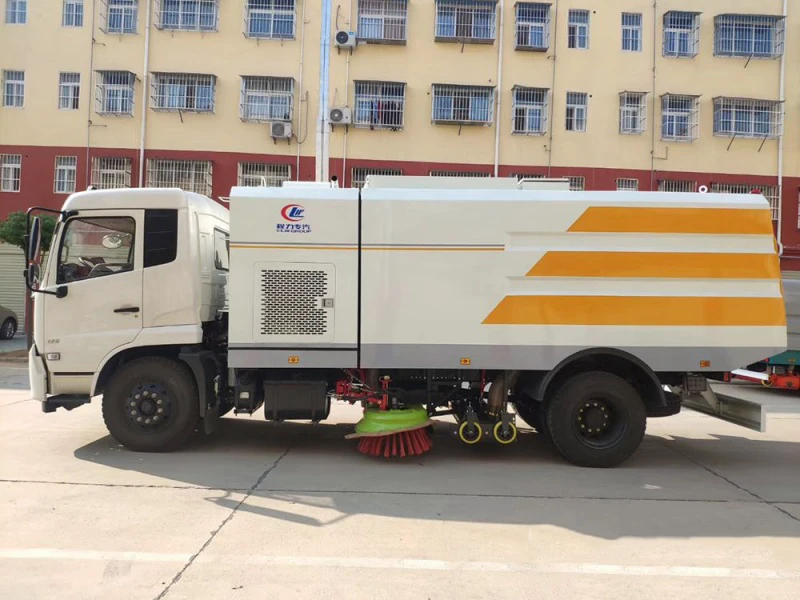

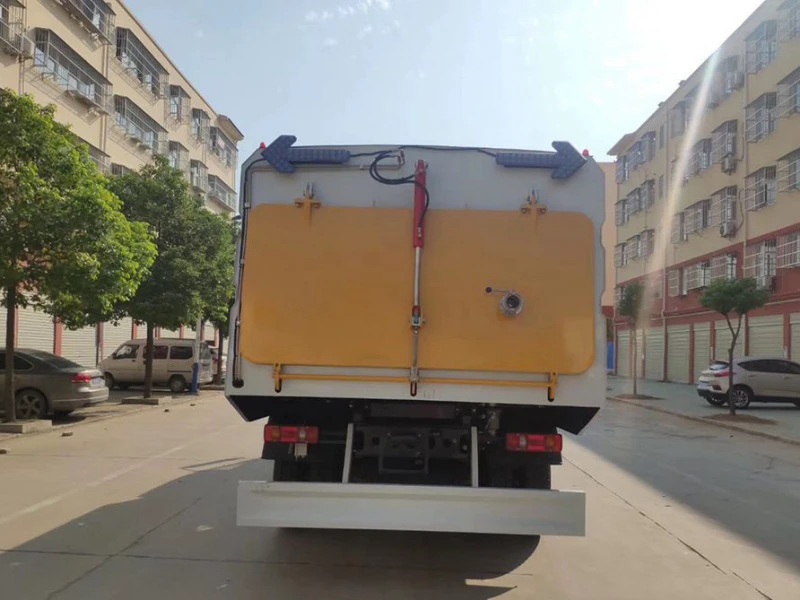

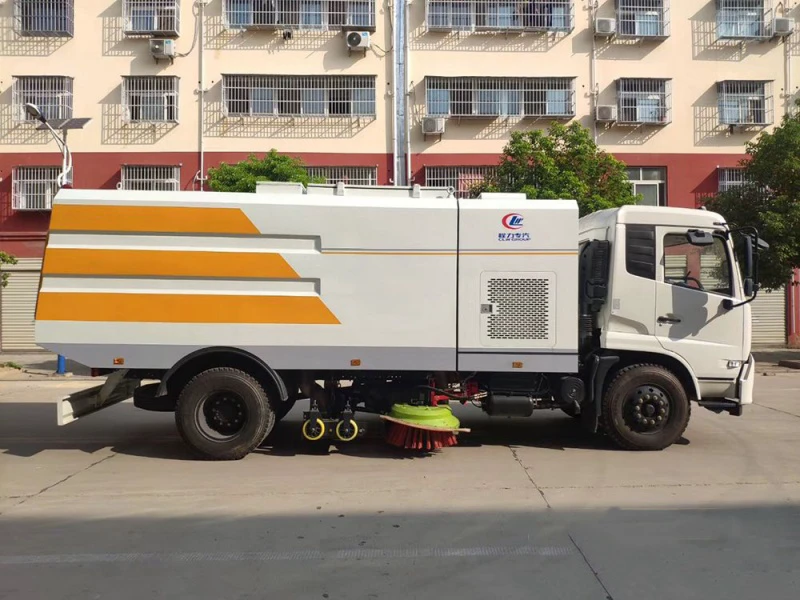

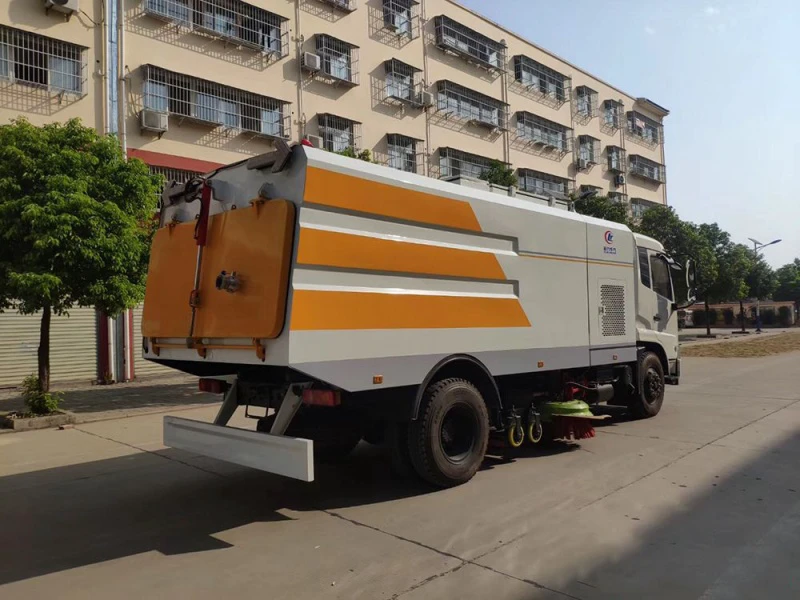

Dongfeng 4×2 Regenerative Air Sweeper|DFAC Tianjin Dry-Wet Dual-Use Road Sweeper | Chengli Manufacturing

I. Product Overview
The DFAC Tianjin Dry-Wet Dual-Use Road Sweeper is a versatile and high-capacity cleaning vehicle designed for heavy-duty road maintenance in various climates and environments. Built on the reliable DFAC Tianjin chassis, it integrates both sweeping and dry vacuuming functions, making it suitable for water-scarce or cold regions where traditional sweepers may be limited.

II. Core Parameters

Vehicle Model: CLW5162TSLD5
Total Mass: 15,800 kg
Rated Load Capacity: 4,050 kg
Max Speed: 98 km/h
Dust Tank Volume: 8 m³
Main Engine Options:
– ISD210 50 (210 HP)
– ISD190 50 (190 HP)
– ISD180 50 (180 HP)
– ISB180 50 (180 HP)
Auxiliary Engine: Cummins 140 HP
Emission Standard: China VI

III. Design & Structure

Dimensions: 7,400–8,600 mm (L) × 2,490 mm (W) × approx. 3,100 mm (H)
Dust Tank: 8 m³, stainless steel construction, with wide rear door (opening angle > 90°) for easy cleaning
Chassis Frame: Carbon steel protective structure, rear guard height 450 mm from ground
Design Philosophy: Multi-functional integration, adaptability to various terrains and weather conditions, operator-oriented layout for efficiency

IV. Technical Advantages

Chassis: DFAC Tianjin D530 cab with air conditioning, adjustable according to user needs
Engine: Multiple Dongfeng Cummins engine options providing high torque and fuel efficiency
Transmission: 6-speed manual gearbox ensuring smooth power transfer and durability
Axles: 4.5T front axle and 9T rear axle offering strong load capacity and stability
Tires: Options include 9.00R20, 10.00R20, and 295/80R22.5 steel radial tires
Braking System: Equipped with ABS from WABCO or Dongfeng Knorr for enhanced safety

V. Key Features & Manufacturing Strengths

Dual-Mode Operation: Switchable airflow design allows dry sweeping or wet dust suppression, eliminating water dependency
Efficient Sweeping System: Four central brushes + vacuum dust cover + wide central suction nozzle + four side dust suction pipes
Automated Functions: Brush auto-avoidance and reset, suction nozzle self-leveling, and automatic clutch for auxiliary engine
Premium Components: High-quality hydraulic valves, durable hydraulic motors, and precision cold-bent seamless hydraulic pipes
Low Maintenance Design: Engineering plastic spacers in brush arms eliminate greasing needs
Intelligent Control: Integrated motion controller with one-touch computerized operation
