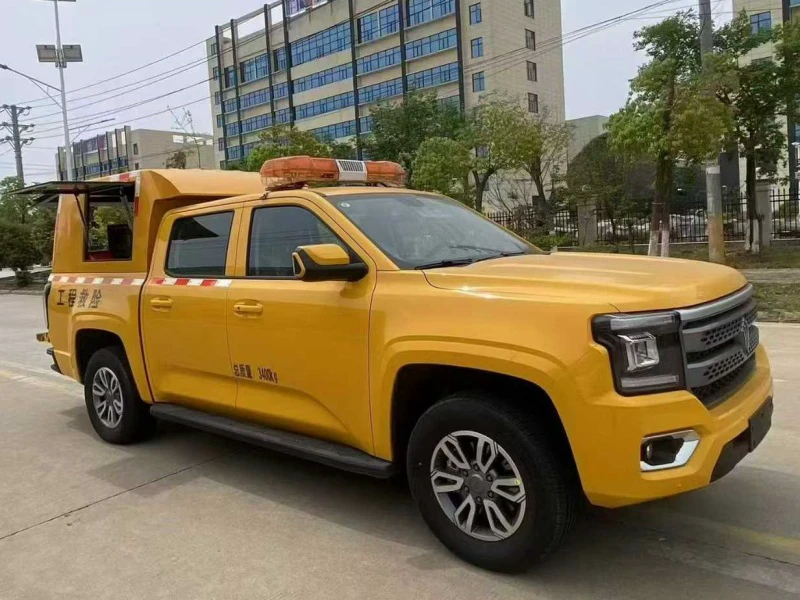

Jiangling DaDao Manual Transmission Pickup Rescue Truck | JMC Pickup Rescue Vehicle

I. Product Introduction

The Jiangling DaDao Manual Transmission Pickup Rescue Truck (Model: CSC5037XXHJ6) is a highly specialized emergency rescue vehicle engineered for rapid disaster response, with exceptional effectiveness against flooding and water-related emergencies. This 4WD diesel rescue truck combines the rugged reliability of the Jiangling DaDao pickup platform—a product of Jiangling Motors Corporation's (JMC) advanced technical architecture—with professional rescue equipment integration, creating a versatile mobile emergency response unit for municipal, industrial, and rural applications worldwide.

Built on the proven JX1037TS0G6 chassis, this manual transmission rescue vehicle delivers outstanding off-road mobility and operational flexibility. The vehicle features a 177 horsepower turbo-diesel engine and part-time four-wheel drive system, ensuring reliable access to challenging terrain during emergency operations. With its compact dimensions and powerful drivetrain, this flood rescue truck navigates narrow urban streets, rural paths, and flooded areas with equal capability.

As a specialized disaster relief vehicle manufactured for export markets, the Jiangling DaDao rescue truck integrates 30kW generator systems, high-capacity submersible pumps, and comprehensive control systems to address diverse emergency scenarios. This mobile pump truck serves as a complete solution for urban drainage, infrastructure maintenance, and natural disaster response, providing both power generation and water pumping capabilities in a single, highly maneuverable package.

II. Key Specifications

III. Product Dimensions, Construction Materials & Design Philosophy

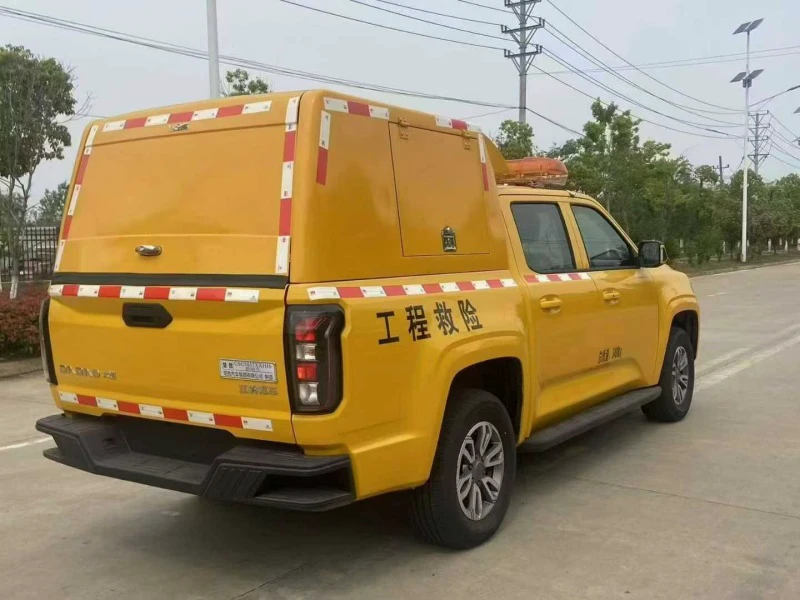

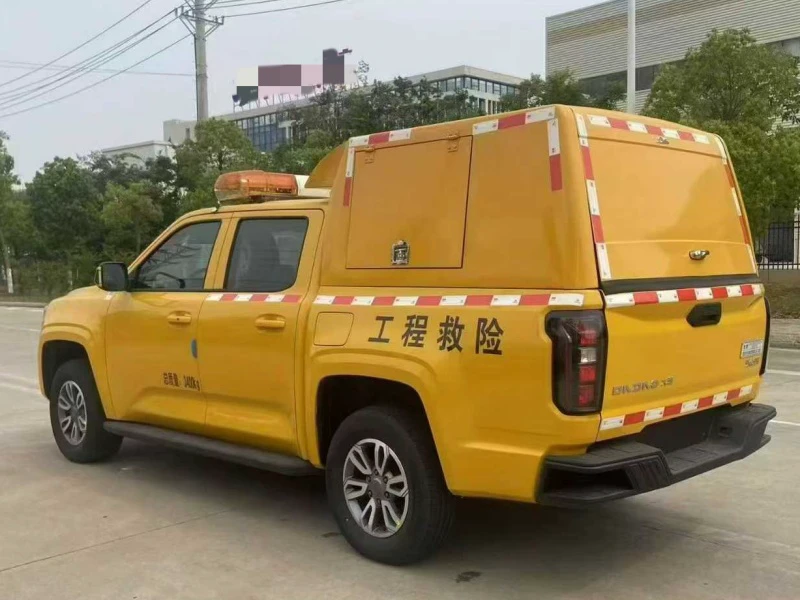

Exterior Dimensions

The Jiangling DaDao rescue truck features a compact yet functional footprint optimized for emergency response mobility. At 5.45 meters (17.9 feet) in length, 1.935 meters (6.4 feet) in width, and a height of either 2.18 or 2.12 meters (7.1/7.0 feet), this vehicle navigates constrained urban environments while maintaining substantial interior equipment capacity. The 3270 mm (128.7-inch) wheelbase provides excellent stability during high-speed response and rough terrain operation.

Compartment Construction

Design Philosophy

The Jiangling DaDao rescue truck design embodies three core principles:

1. Integrated Mobility and Function: The vehicle combines the maneuverability of a pickup with the specialized equipment of a rescue truck, enabling rapid deployment to flood zones, construction sites, and disaster areas where traditional heavy equipment cannot access. The design provides enhanced ruggedness for challenging terrain.

2. Modular Rescue Systems: The equipment configuration accepts various rescue modules, with standard configuration supporting 500 m³/h (132,086 gal/h) pumping capacity and 30kW power generation, addressing the most common emergency scenarios while allowing customization for specific operational requirements.

3. Operator-Centric Workflow: The double-cab design accommodates a full rescue team of up to 5 personnel, while equipment layout ensures rapid deployment of pumps, generators, and rescue tools with minimal setup time during critical emergency situations.

IV. Detailed Structure & Component Advantages

Chassis and Frame

The Jiangling DaDao JX1037TS0G6 chassis features a robust ladder frame construction engineered for both on-road comfort and off-road durability. Key specifications include:

• Frame Construction: High-strength steel with optimized cross-member configuration, capable of withstanding heavy loads and torsional stresses during off-road operation

• Wheelbase: 3270 mm providing excellent stability and maneuverability balance

• Suspension System: Front double wishbone with coil springs for comfort; rear leaf spring configuration with -/5 rating for load-carrying capacity

• Ground Clearance: 230 mm (9.1 inches) optimized for flood zone navigation and debris clearance

• Underside Protection: Reinforced chassis protection plates shield vital components from damage during off-road operation

Engine Performance

The JX4D23A6L turbo-diesel engine delivers proven reliability with advanced engineering:

• Power Output: 130 kW (177 HP) maximum power at 3800 rpm, providing robust acceleration for emergency response

• Peak Torque: 400 N·m (295 lb-ft) for manual transmission models; 450 N·m (332 lb-ft) for automatic variants, available from low 1600 rpm

• Displacement: 2.3L (2296 ml) 4-cylinder turbocharged architecture with intercooler

• Fuel Efficiency: Optimized combustion for reduced fuel consumption during extended pump operations

• Torque Characteristics: High low-end torque optimized for off-road climbing and loaded operation

• Emission Technology: Advanced after-treatment meeting Euro VI/China VI standards

• Cold Start Capability: Engineered for reliable starting in diverse climate conditions

Transmission and Drivetrain

• Transmission: 6-speed manual gearbox providing maximum driver control during technical off-road situations and precise power management for pump operations; synchronized gearing for smooth shifts under load

• Drive Configuration: Front-engine, part-time 4WD with low-range transfer case (4L) for extreme terrain and steep grade climbing

• 4WD Engagement: On-the-fly engagement capability between 2H and 4H up to moderate speeds

• Drivetrain Durability: Engineered for sustained operation under full-load conditions with heavy rescue equipment payload

• Differential: Heavy-duty hypoid gears in both axles with high torque capacity

Front and Rear Axles

Braking and Safety Systems

• ABS System: 4-channel control with electronic distribution

• Brake Configuration: Dual-circuit hydraulic with vacuum assist for reliable stopping

• Additional Safety: CBC (Cornering Brake Control) for enhanced stability during turning maneuvers on low-traction surfaces

• Parking Brake: Mechanical system with positive engagement on rear wheels

• Hill Start Assist: Standard feature for safe operation on inclines

Cab Design and Crew Features

The double-cab configuration accommodates 2+3 personnel with comprehensive safety and comfort features:

Electrical Architecture

• Voltage System: 12V/24V compatible for auxiliary rescue equipment

• Battery Capacity: Heavy-duty battery optimized for engine start and auxiliary power demands

• Alternator Output: Enhanced capacity (≥150A) for emergency lighting, pump controls, and equipment charging

• Wiring: Waterproof connectors throughout for flood zone operation

• Control Interface: Integrated rescue equipment controls accessible from cab

V. Rescue Equipment Package & Manufacturer Advantages

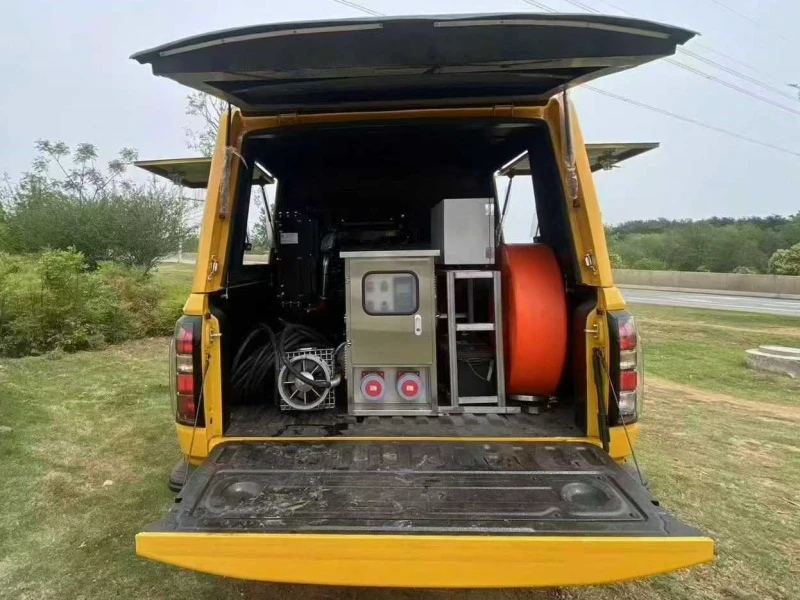

Standard Rescue Equipment Configuration

Power Generation System:

• Generator: 30kW diesel generator

• Frequency: 50 Hz / 60 Hz optional for export markets

• Voltage: 220V/380V, 400V nominal (customizable for target market)

• Fuel System: Integrated base tank providing 8+ hours continuous operation at rated load

• Sound Attenuation: Generator compartment lined with sound-deadening materials

• Control Panel: User-friendly interface with voltage/frequency monitoring, circuit breakers

High-Capacity Pumping System:

• Pump Type: Portable submersible pump, ultra-lightweight high-speed design

• Flow Rate: 500 m³/h (132,086 gallons per hour)

• Head Pressure: 10 meters (33 feet) maximum

• Motor Power: 22 kW

• Discharge Diameter: 200 mm (8 inches)

• Pump Weight: 32 kg (71 lbs) for easy deployment by 1-2 personnel

• Cable Length: 20 meters (66 feet) with waterproof quick-connect fittings

• Construction: Corrosion-resistant materials for extended service life

Pump Control System:

• Controller Type: Ultra-lightweight variable frequency drive (VFD) with variable flow control

• Features: Flow adjustment capability, overload and thermal protection, soft-start

• Display: Digital readout for operating parameters

• Portability: Mobile design with carrying handle for flexible positioning

Floating System:

• Float Material: High-strength polyurethane, one-piece molded construction

• Buoyancy Capacity: 60 kg

• Features: Integrated lifting points, soft tether attachment

• Function: Maintains pump at optimal operating depth during deep-water operation

Discharge System:

• Hose Type: 200mm diameter fire-resistant hose, polyester woven construction

• Length: 20 meters per section (66 feet), multiple sections available

• Connections: Camlock or similar quick-connect couplings for rapid deployment

• Durability: Abrasion-resistant, pressure-rated, collapsible for compact storage

Control Cabinet:

• System Type: Intelligent centralized control system for pump and generator

• Interface: Chinese/English language option

• Protection Features: Automatic obstacle protection, overload safety, short-circuit protection

• Component Quality: Premium electrical components for reliability in field conditions

Warning and Lighting Systems:

• Warning Lights: Long-row yellow emergency beacon (roof-mounted)

• Audible Warning: 100W siren with PA (public address) function

• Interior Lighting: LED compartment lighting for equipment access

• Work Lighting: Scene lighting for night operations

Safety Equipment:

• Fire Extinguisher: Portable dry powder type, easily accessible mounting

• Warning Cones: Reflective traffic cones for scene safety

• Reflective Markings: High-visibility reflective chevrons and markings

• Grounding System: Ground stake and cable for electrical safety during pump operations

Operational Advantages

Rapid Deployment Capability:
The integrated equipment design enables single-vehicle response to flooding emergencies. The portable pump can be deployed within minutes of arrival, while the generator provides immediate power for pumps, lighting, and tools. This rapid response flood truck eliminates the need for separate generator and pump vehicles.

All-Terrain Mobility:
The 4WD chassis with 177 HP diesel engine ensures access to flooded areas, construction sites, and rural locations where conventional 2WD vehicles cannot operate. The manual transmission provides maximum driver control in technical terrain.

Extended Operational Duration:
With 8+ hours of generator fuel capacity and durable pump systems, the vehicle supports sustained pumping operations without immediate resupply. The generator also powers tools and lighting for extended rescue scenarios.

Versatile Application Range:
Beyond flood response, this multi-purpose rescue vehicle supports:

• Urban drainage and storm water management

• Construction site dewatering

• Underground space water extraction (basements, tunnels)

• Emergency water supply operations

• Power generation for remote field operations

• Disaster response coordination

Chengli Group Manufacturing Advantages

Industry Leadership:

• 30+ years of specialized vehicle manufacturing experience

• Located in Suizhou, Hubei – China's "Special Vehicle Capital"

• ISO 9001:2015 certified production facility

• CCC, SGS, and BV audited manufacturer

• Dedicated rescue vehicle production line with quality control stations

Engineering Excellence:

• In-house engineering team for custom rescue vehicle design

• 3D modeling and structural analysis for equipment integration

• Integration capabilities with global pump and generator brands

• Compliance with international rescue vehicle standards

Export Expertise:

• 10+ years of international export experience

• Shipped to over 80 countries across Africa, Middle East, Southeast Asia, CIS, and Americas

• FCL, LCL, RORO, and bulk vessel shipping options

• Experienced in CKD and SKD knockdown kit assembly programs

• Documentation support for customs clearance and registration

Quality Assurance:

• Pre-delivery inspection (PDI) with comprehensive checklist

• 12-month warranty on chassis and conversion work

• Comprehensive user manuals and technical documentation

• Video tutorials available for maintenance procedures

• Spare parts support with global logistics

After-Sales Support:

• 24/7 technical support via phone, email, and WhatsApp

• Overseas technician dispatch available for large orders

• Training programs for driver, operator, and maintenance staff

• Remote diagnostics capability for electrical systems

• Parts catalog with exploded diagrams for easy ordering
