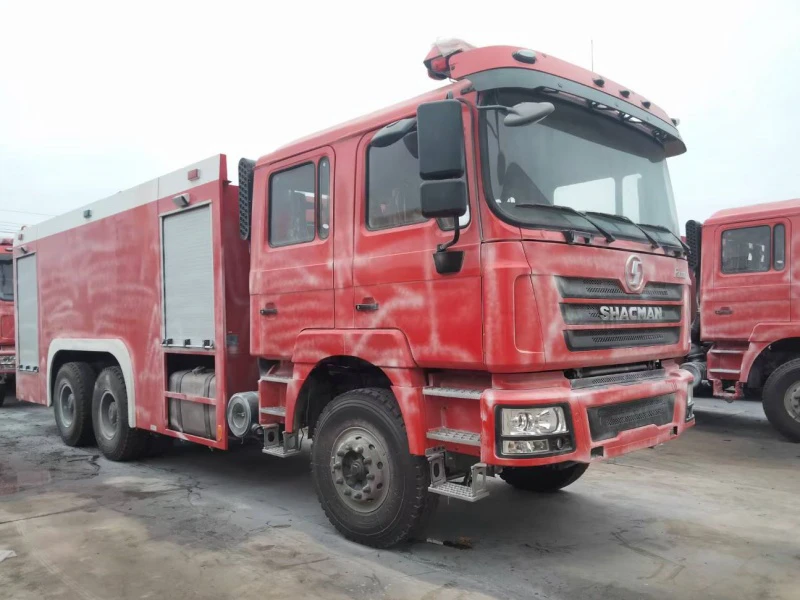

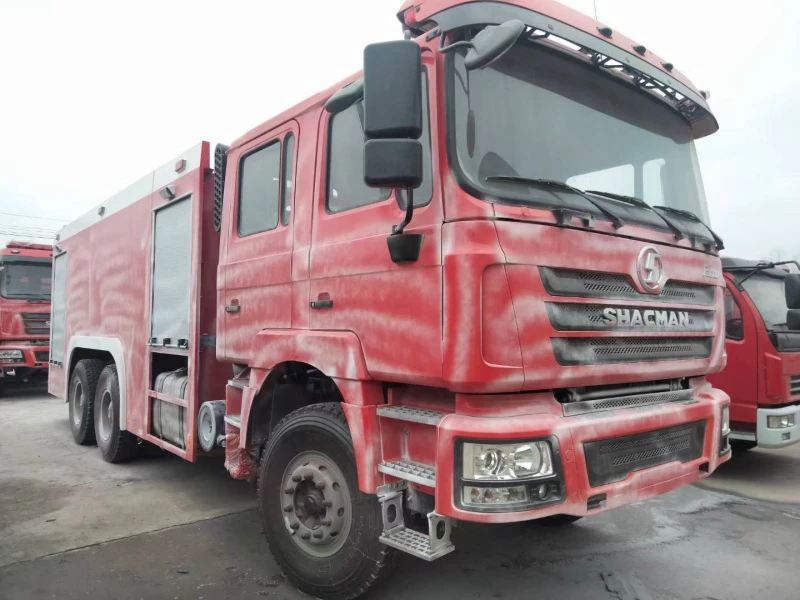

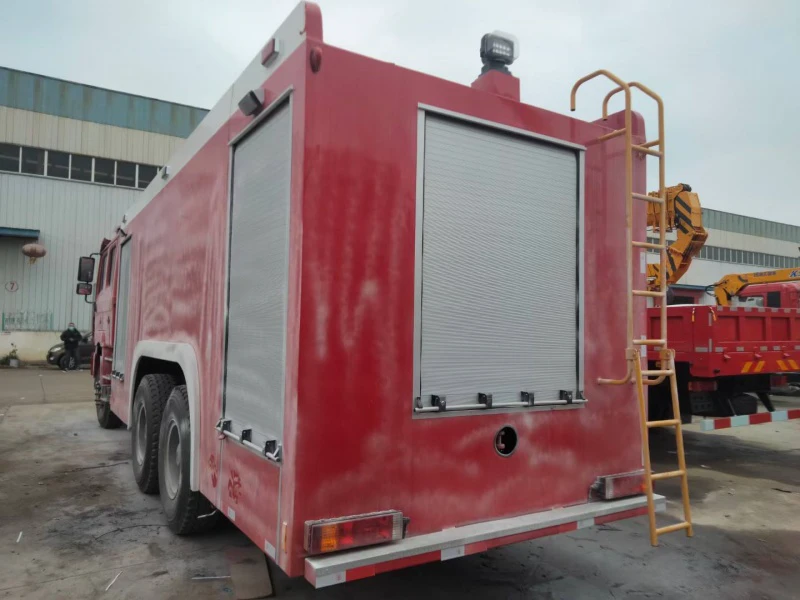

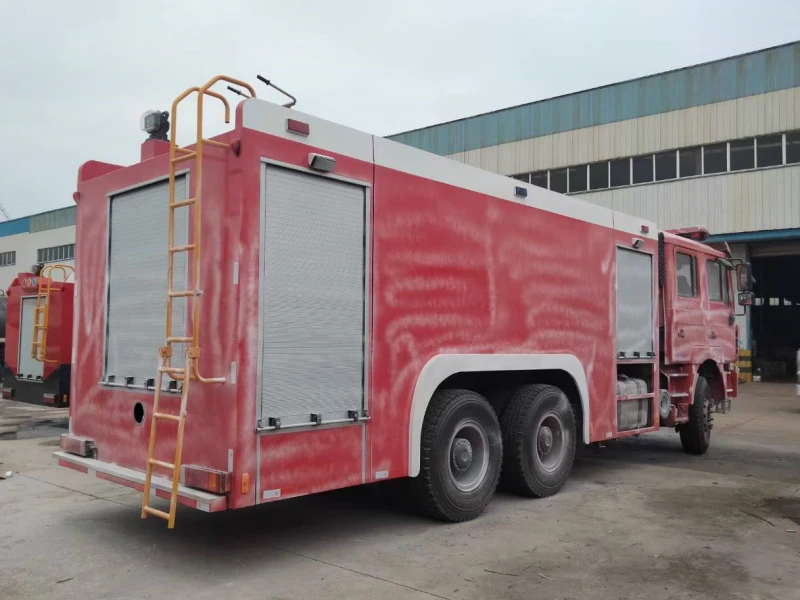

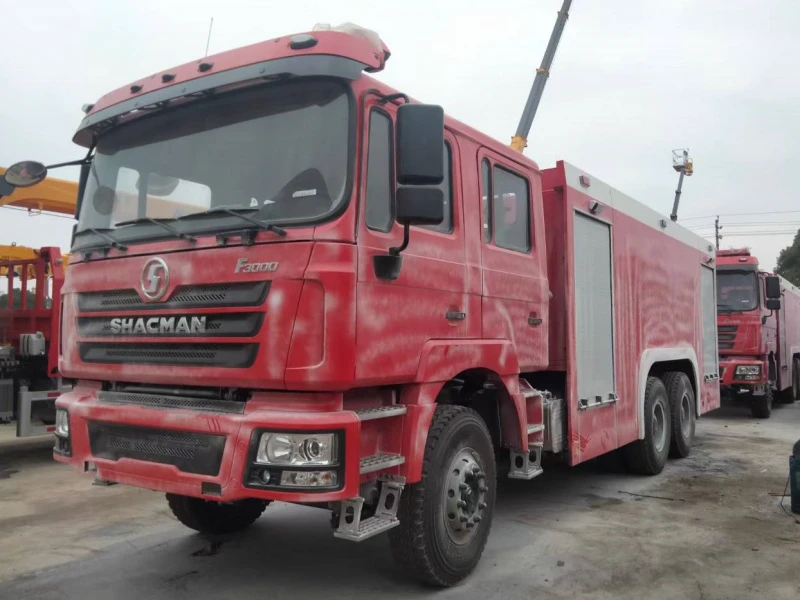

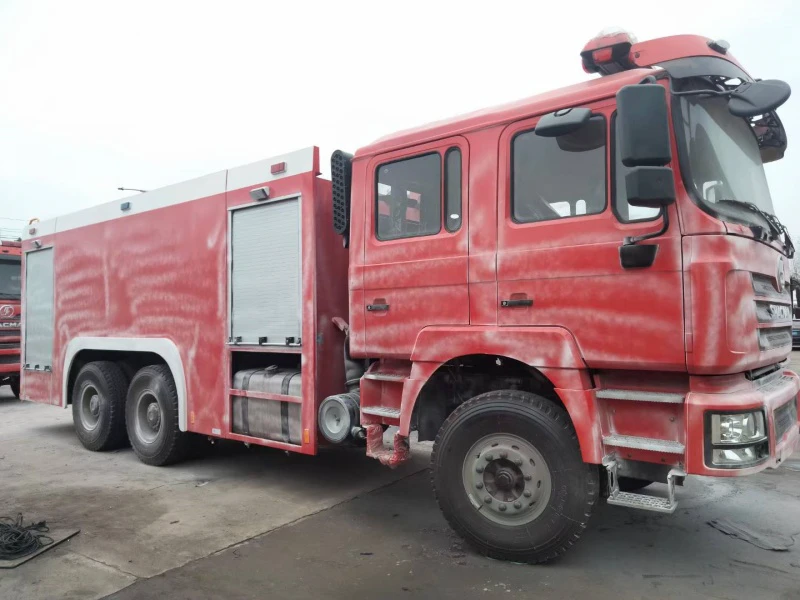

SHACMAN F3000 Fire Truck

Chengli Special Automobile Powers Global Firefighting Capabilities with Heavy-Duty SHACMAN F3000 Series

SUIZHOU, China – Chengli Special Automobile Co., Ltd., China's leading manufacturer of special-purpose vehicles, announces the overseas deployment of its SHACMAN F3000 fire truck series, combining the rugged reliability of the SHACMAN heavy-duty chassis with Chengli's advanced firefighting superstructure expertise. These industrial firefighting vehicles are engineered to meet the demanding requirements of international markets, including petrochemical complexes, airports, and urban fire departments worldwide.

Product Overview

The SHACMAN F3000 fire truck represents a powerful synergy between two industry leaders: SHACMAN's proven heavy-duty chassis platform and Chengli's specialized fire apparatus manufacturing. These heavy-duty fire engines are designed for large-scale fire suppression operations, particularly effective against Class B flammable liquid fires common in industrial settings.

Built on the robust F3000 series chassis – described as "hardy and spacious" in SHACMAN's product lineup – these fire trucks deliver exceptional performance in challenging environments. The vehicles feature high-capacity tank configurations ranging from 8 to 12 tons, enabling sustained firefighting operations without immediate water source access.

As part of Chengli's export-driven manufacturing strategy, these specialized fire apparatus are customized to meet diverse international operational requirements, from oil field emergencies to municipal fire protection.

Key Technical Specifications

Product Dimensions & Construction

Exterior Dimensions

The SHACMAN F3000 fire truck series features substantial proportions designed for maximum firefighting capability. The 10-ton combined agent model measures 10.32 meters (33.9 feet) in length, 2.49 meters (8.2 feet) in width, and 3.60 meters (11.8 feet) in height, providing ample space for tank systems and equipment storage.

Tank Construction and Materials

Design Philosophy

The SHACMAN F3000 fire truck design follows three core principles:

1. Industrial-Grade Durability: Every component is selected for reliability in extreme conditions, from the reinforced ladder frame chassis to the corrosion-resistant tank materials.

2. Multi-Agent Fire Suppression: The combined agent configuration enables simultaneous or separate deployment of water, foam, and dry powder, making it ideal for chemical fire fighting scenarios involving flammable liquids, gases, and electrical equipment.

3. Operational Versatility: Configurations ranging from 4×2 urban response vehicles to 6×4 heavy industrial units ensure appropriate solutions for diverse operational environments.

Detailed Structure & Component Advantages

Chassis and Frame

The SHACMAN F3000 heavy-duty chassis features a reinforced ladder frame construction designed to handle rugged terrains and adverse weather conditions. Key specifications include:

• Frame Construction: High-strength steel with cross-member reinforcement

• Wheelbase Options: 4575+1400 mm (6×4 models) / 4600 mm (4×2 models)

• Suspension: Heavy-duty leaf spring configuration optimized for fire apparatus payloads

• Frame Durability: Engineered for sustained operation with full tank loads over challenging terrain

Engine Performance

The Weichai WP10 series diesel engine delivers proven reliability in global markets:

• Power Output: 375 HP (276 kW) @ 2200 rpm for rapid response acceleration

• Displacement: 9.726L heavy-duty diesel architecture

• Torque Characteristics: High low-end torque for obstacle negotiation

• Fuel System: Direct injection with mechanical or electronic control options

• Cooling System: Heavy-duty cooling package for sustained pump operations

Transmission and Drivetrain

• Transmission: Manual or automatic options available for different operator preferences

• Clutch: Heavy-duty diaphragm spring type for reliable engagement

• Drive Axles: MAN technology axles with hub reduction options

• Differential: Hypoid gears with high torque capacity

Cab Design and Crew Compartment

The F3000 four-door crew cab accommodates 2+4 personnel with full PPE gear:

• Cab Construction: Galvanized steel with anti-corrosion treatment

• Seating: Forward-facing seats with seatbelt restraints for all crew members

• Storage: Integrated compartments for turnout gear and SCBA

• Visibility: Large windshield and side windows for 360° situational awareness

• HVAC: Heavy-duty heating and ventilation for crew comfort during extended operations

Fire Pump System

CB Series Fire Pump (Standard Configuration):

• Model: CB20.10/30.60 or CB10/60 centrifugal pump

• Low Pressure Flow: 60 L/s (3,600 L/min) @ 1.0 MPa

• Medium Pressure Flow: 30 L/s (1,800 L/min) @ 2.0 MPa

• Installation: Rear-mounted with PTO drive from chassis transmission

• Priming System: Automatic or manual vacuum priming

• Suction Capability: ≤7 meters vertical lift

HALE RSD Pump (Premium Option):

• Flow Rate: 100 L/s (6,000 L/min) @ 1.0 MPa

• Configuration: Single-stage, mid-ship mounted optional

• Features: Volute-style design for high efficiency

Roof Monitor System

PL Series Monitors:

• Model: PL48 dual-purpose water/foam monitor

• Flow Capacity: 48 L/s (2,880 L/min)

• Water Range: ≥60 meters

• Foam Range: ≥55 meters

• Rotation: 360° continuous with -15° to +75° elevation

PL80 High-Flow Monitor:

• Flow Capacity: 80 L/s (4,800 L/min)

• Water Range: ≥70 meters

• Application: Large-scale industrial fire suppression

Dry Powder System (Combined Agent Models)

• Powder Capacity: 2,000 kg

• Propellant: Nitrogen gas (6 × 70L cylinders)

• Dry Powder Monitor: PF30 with ≥35 m range, 30 kg/s

• Hose Line: Dry powder hose with 12 m range, 2.5 kg/s flow

Foam Proportioning System

• Type: Automatic or manual in-line

• Technology: Ring pump type for accurate proportioning

Product Features & Chengli Manufacturing Advantages

Firefighting Performance Features

Multi-Agent Capability:
The combined agent configuration (water + foam + dry powder) provides comprehensive firefighting capability for Class A (ordinary combustibles), Class B (flammable liquids), and Class C (flammable gases) fires. This versatility makes the vehicle suitable for petrochemical facilities, airports, and industrial complexes with diverse fire risks.

High-Capacity Tank Configuration:
With water capacities up to 10,000 liters and foam capacities up to 4,000 liters, these vehicles enable extended firefighting operations without immediate replenishment. The foam system generates high-quality firefighting foam for vapor suppression and flame extinction on liquid fuel fires.

Powerful Pump and Monitor Systems:
The combination of high-flow pumps (60-100 L/s) and long-range monitors (60-70+ meters) delivers substantial firefighting power for both structural and industrial fire scenarios. The roof monitors can be operated remotely for enhanced firefighter safety.

Operational Advantages

Rapid Response Capability:
The powerful Weichai engine and optimized drivetrain enable rapid acceleration to emergency scenes. Maximum speeds of 92-99 km/h ensure timely arrival while maintaining vehicle stability.

All-Terrain Mobility:
The heavy-duty chassis with 6×4 or 4×2 configurations, combined with robust suspension, provides reliable mobility across varied terrain types encountered in industrial and municipal settings.

Crew Safety and Comfort:
The four-door crew cab accommodates up to 6 firefighters with full PPE, providing safe transport and rapid crew deployment. Forward-facing seating and restraint systems ensure occupant safety during emergency response.

Extended Operational Duration:
Large fuel tanks and heavy-duty cooling systems enable sustained pumping operations during extended firefighting scenarios without overheating or refueling concerns.

Chengli Group Manufacturing Advantages

Industry Leadership:

• 30+ years of specialized vehicle manufacturing experience

• Located in Suizhou, Hubei – China's "Special Vehicle Capital"

• ISO 9001:2015 certified production facility

• CCC, SGS, and BV audited manufacturer

• Dedicated fire apparatus production line with quality control stations

Engineering Excellence:

• In-house engineering team for custom fire apparatus design

• 3D modeling and finite element analysis for structural optimization

• Integration capabilities with global fire pump and monitor brands

• Compliance with international fire apparatus standards

Export Expertise:

• 10+ years of international export experience

• Shipped to over 80 countries across Africa, Middle East, Southeast Asia, CIS, and Americas

• FCL, LCL, RORO, and bulk vessel shipping options

• Experienced in CKD and SKD knockdown kit assembly programs

• Documentation support for customs clearance and registration

Quality Assurance:

• Pre-delivery inspection (PDI) with comprehensive checklist

• 12-month warranty on chassis and conversion work

• Comprehensive user manuals and technical documentation

• Video tutorials available for maintenance procedures

• Spare parts support with global logistics

After-Sales Support:

• 24/7 technical support via phone, email, and WhatsApp

• Overseas technician dispatch available for large orders

• Training programs for driver, operator, and maintenance staff

• Remote diagnostics capability for vehicle systems

• Parts catalog with exploded diagrams for easy ordering
