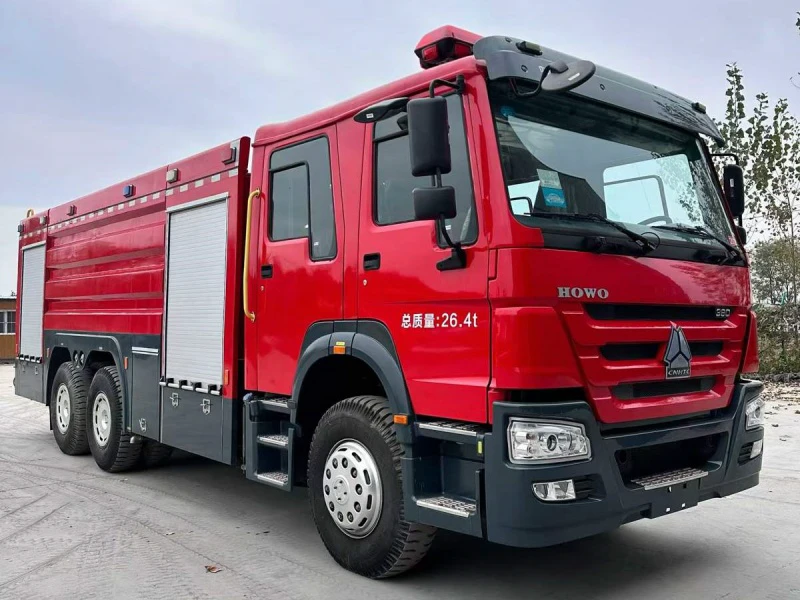

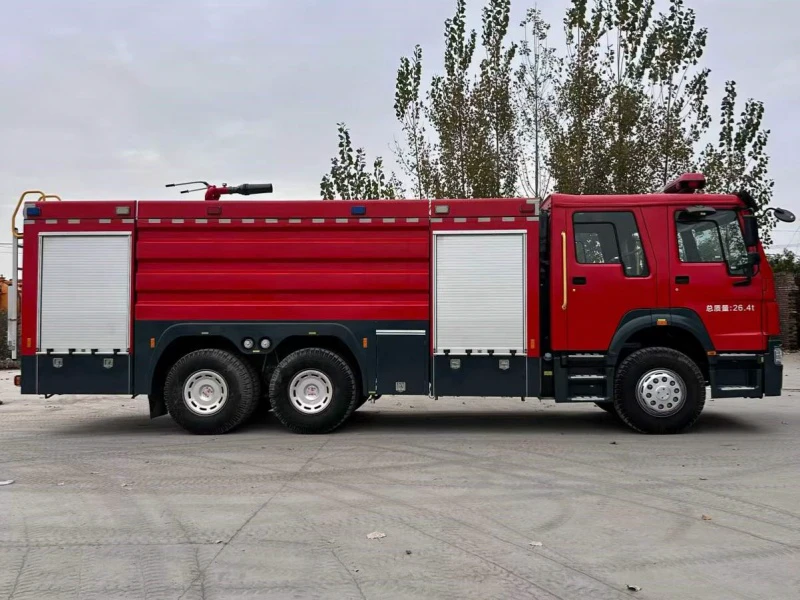

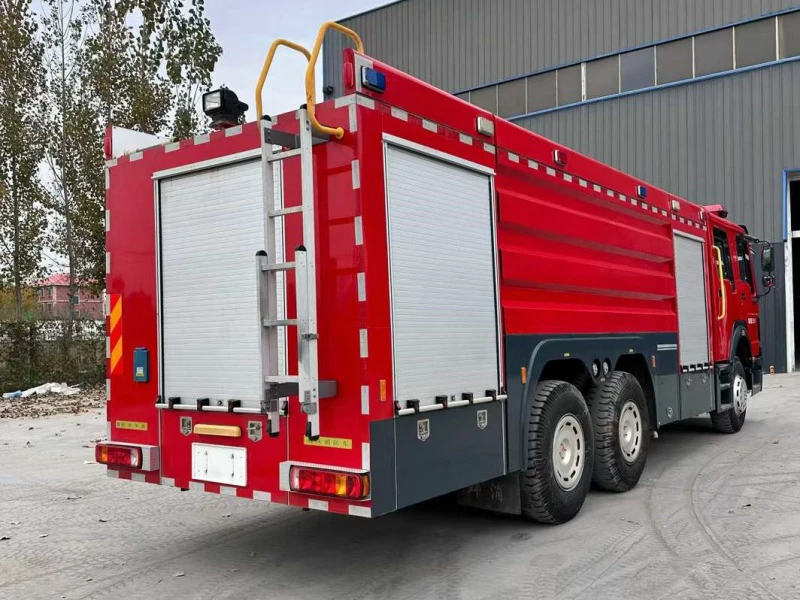

SINOTRUK HOWO Foam Fire Truck - Product Introduction
I. Product Overview
The SINOTRUK HOWO Foam Fire Truck, manufactured by Chengli Special Automobile Co., Ltd., is a professional dual-agent firefighting apparatus designed for large-scale industrial and urban fire emergencies. Built on the robust HOWO chassis with a double-row crew cab, this vehicle integrates a high-capacity water/foam tank system and an advanced pumping unit to deliver efficient fire suppression and rescue operations in complex scenarios.
II. Core Parameters
Chassis: SINOTRUK HOWO dual-row cab (seats 6)
Engine: SINOTRUK D10.38-50 diesel engine, 380 HP, turbocharged with intercooler
Transmission: Shaanxi Fast 10-speed manual gearbox (high/low range)
Tank Capacity: 12,000 liters total (10,000L water + 2,000L foam)
Braking System: Air brake with ABS
Tires: 1200/20 heavy-duty tires
Lighting/Comm: 24V warning light, strobe lights, PA system
III. Design & Dimensions
Tank Construction: Stainless steel tank with internal baffles, corrosion-resistant and durable
Equipment Layout: Large-volume multi-functional equipment compartments on both sides for organized storage of firefighting and rescue tools
Ergonomic Design: Centralized control panel, automatic charging/air-filling system, and easy-access tank refill ports (4× card-type water inlets)
Compact yet Functional: Optimized body dimensions ensure road mobility while maximizing payload and operational readiness
IV. Structural Advantages
Powertrain: The SINOTRUK D10.38-50 engine provides high torque and reliable power output, suitable for sustained pumping operations.
Transmission: The Fast 10-speed gearbox offers smooth shifting and versatile gearing for both road travel and stationary pumping.
Axles & Suspension: Heavy-duty axles and reinforced suspension ensure stability under full load and during water/foam discharge.
Pump System: Shanghai Songshen CB20-10/30-60RS mid/low-pressure fire pump delivers 60 L/s flow with a maximum working pressure of 2.0 MPa.
Foam System: Equipped with a West foam monitor capable of 70-meter range, supported by a dedicated 2,000L foam tank.
V. Key Features & Manufacturer Strengths
Product Features:
Dual-agent capability (water + foam) for Class A and B fires
High-capacity suction (150mm inlet, 7-meter self-priming depth)
Multiple discharge options: 2×65mm low-pressure + 4×80mm mid-pressure outlets
Versatile application: high-rise water supply, long-distance water transfer, flood drainage
Standard firefighting accessories: fire shovel, hydrant wrench, hose bridge, etc.
Chengli Group Advantages:
Integrated manufacturing from chassis adaptation to body assembly
Compliance with national firefighting vehicle standards (GB)
Customization options for compartment layout and equipment packages
Nationwide service network and technical support
Proven expertise in specialized vehicle production with quality certifications
VI. Target Applications
Municipal and industrial fire brigades
Chemical plants, logistics parks, shopping malls
Airport and port emergency services
Flood rescue and drainage operations
Campus and scenic area fire protection
This HOWO-based foam fire truck combines reliable SINOTRUK chassis performance with professional firefighting systems, offering a cost-effective and capable solution for modern fire departments and industrial safety teams.
