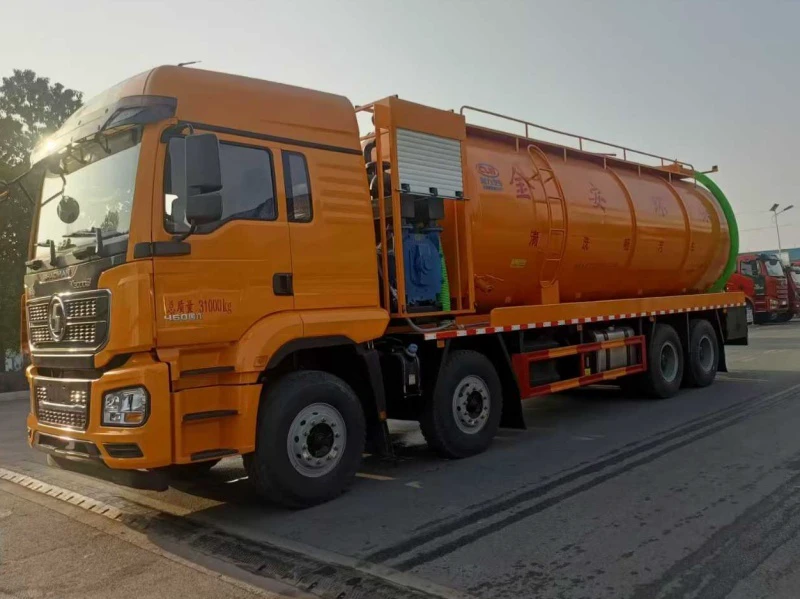

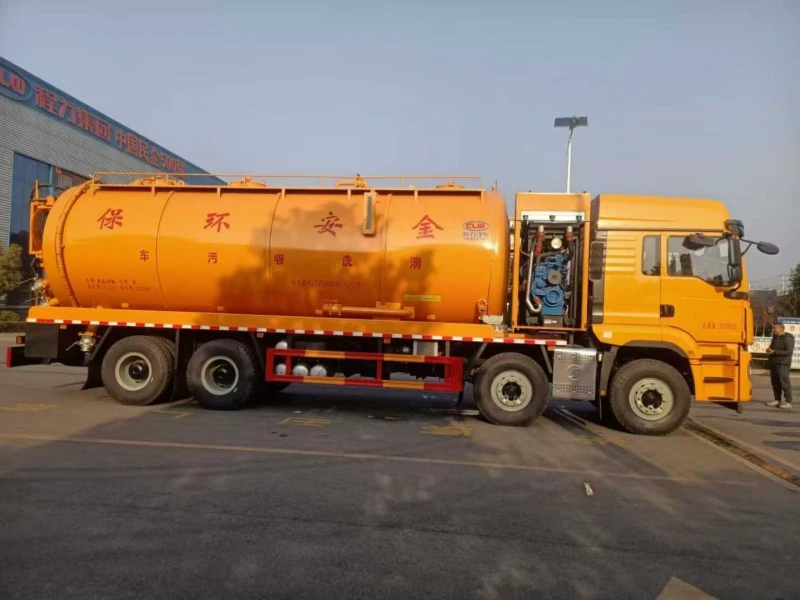

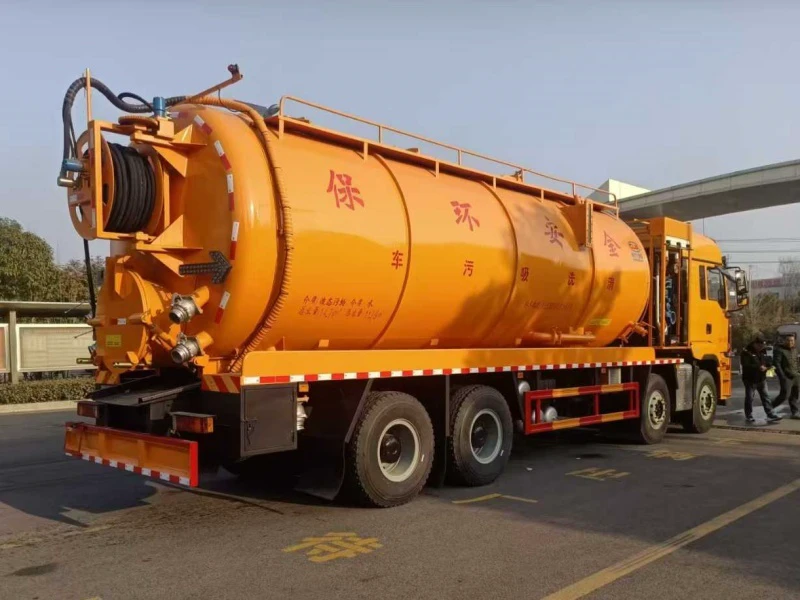

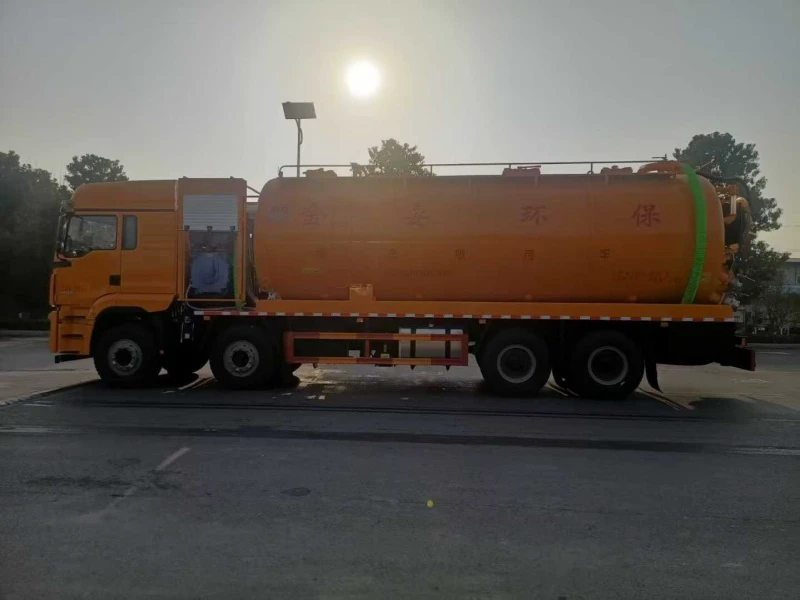

SHACMAN 8×4 33m³ Combination Sewer Cleaner | High-Pressure Jetting & Vacuum Recovery Truck

I. Product Overview

The SHACMAN 8×4 Combination Sewer Cleaner is a heavy-duty industrial cleaning vehicle designed for large-scale municipal pipeline maintenance and industrial pipe cleaning projects. Built on the robust SHACMAN 8×4 heavy-duty truck chassis, this integrated unit combines a professional-grade high-pressure water jetting system with a high-capacity vacuum recovery system. As a core component of modern urban sanitation equipment and industrial cleaning solutions, this 33-cubic-meter sewer cleaning truck is engineered for efficient drain cleaning, stormwater pipe maintenance, and industrial waste recovery operations.

II. Key Specifications

• Chassis Model: SHACMAN 8×4 Heavy-Duty Truck Chassis (Front 4 Rear 8 Axle Configuration)

• Engine: Weichai 460 HP Diesel Engine, compliant with China VI Emission Standards

• Total Tank Capacity: Approximately 33 Cubic Meters

  • Clean Water Tank: ~10 m³

  • Waste/Sludge Tank: ~23 m³

• Vacuum System: Weichai 420 HP Auxiliary Engine + 258 Model Water-Circulation Vacuum Pump

• High-Pressure System: Pinfu 350 L/min High-Pressure Pump

• Tires: 12.00R20 Heavy-Duty Steel-Belted Tires

III. Tank Structure & Design Philosophy

• Tank Design: Features a dual-compartment structure with interconnected clean and waste water tanks, equipped with a hydraulic self-dumping system for rapid discharge.

• Material & Construction: The tank is constructed from 8mm high-strength carbon steel with structural reinforcement at critical points, ensuring long-term durability under heavy-duty operations and vacuum suction conditions.

• Safety Features: Includes widened work platforms with safety railings, an 800mm hydraulic rear discharge door, and multiple 150mm/100mm discharge ball valves to ensure operator safety and operational efficiency.

IV. Chassis & Powertrain Advantages

• Powertrain: Powered by a Weichai 460 HP engine known for its high torque output and fuel efficiency, capable of supporting extended continuous operation.

• Drivetrain: Matched with a heavy-duty manual transmission and reinforced rear axle, suitable for complex worksite terrain.

• Suspension System: Utilizes hydraulic mounts and an air-suspension driver's seat to enhance driving stability and operator comfort.

• Cab Features: Standard equipment includes electric air conditioning, power windows, a metal bumper, and a manually tilting cab.

V. Product Features & Manufacturer Strengths

Core Product Features:

1. High-Capacity Operation: The 33 cubic meter tank capacity enables 6-8 hours of continuous cleaning operations, significantly improving efficiency in municipal engineering and industrial cleaning projects.

2. Advanced Cleaning System: Equipped with 100 meters of wear-resistant high-pressure hose (25mm inner diameter) on a hydraulically rotating reel, paired with a 10kg professional nozzle to effectively remove pipe grease, root blockages, and industrial scale.

3. Efficient Vacuum Recovery: Utilizes water-circulation vacuum pump technology for rapid sludge extraction and solid-liquid separation, supported by an 8-meter suction hose for various depth requirements.

4. Versatile Configuration: Includes side work platforms, hydraulic discharge systems, specialized ball valve assemblies, and safety warning lights, adaptable for urban drainage maintenance and factory pipe cleaning applications.

Chengli Group Advantages:

1. Special Vehicle Manufacturing Expert: Extensive experience in producing heavy-duty sanitation vehicles and industrial cleaning equipment, offering comprehensive services from chassis modification to system integration.

2. Customized Solutions: Provides tailored configurations for tank capacity, pump specifications, and specialized attachments to meet regional environmental standards and operational requirements.

3. Quality Assurance System: Strict adherence to ISO quality management standards and use of premium brand components (Weichai, Pinfu, etc.) ensures product reliability and durability.

4. Nationwide Service Network: Established comprehensive after-sales service including technical training, parts supply, and maintenance support to ensure full lifecycle operational readiness.

Contact us for technical specifications, configuration options, and procurement consulting services for this high-performance sewer cleaning and vacuum truck and other municipal sanitation equipment.
