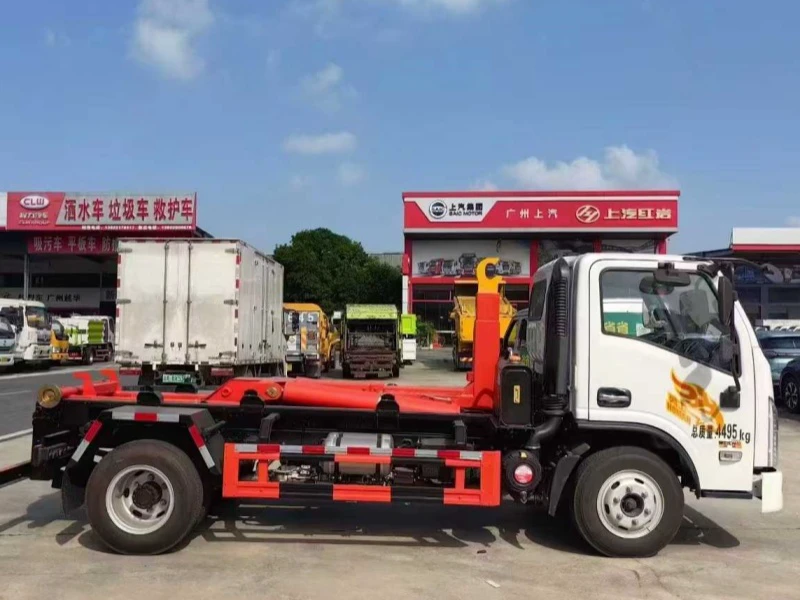

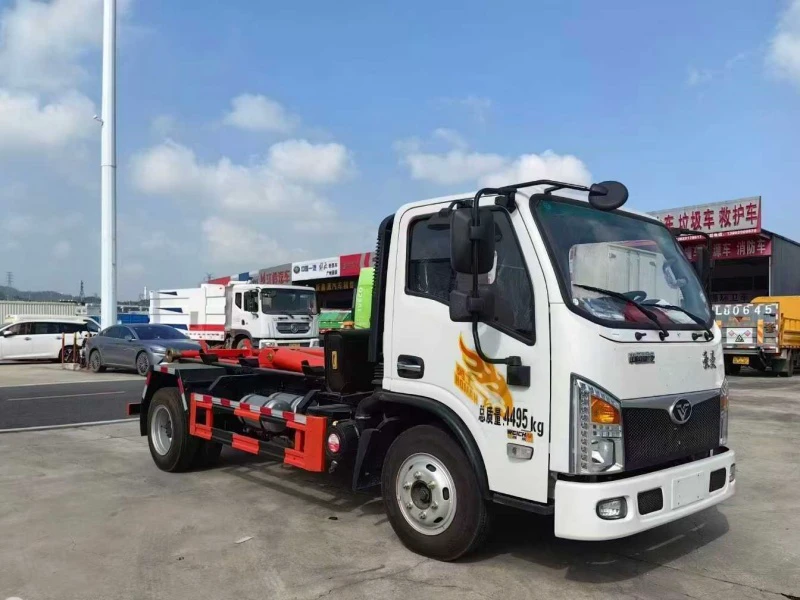

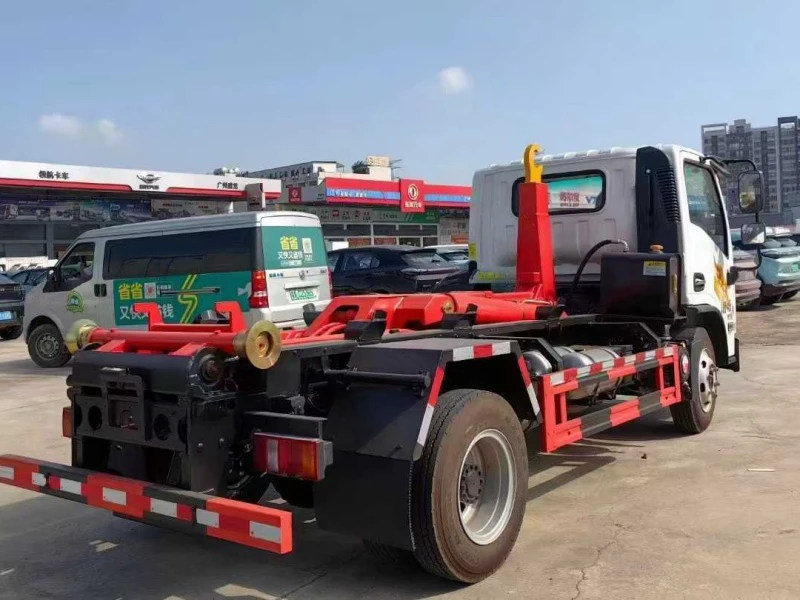

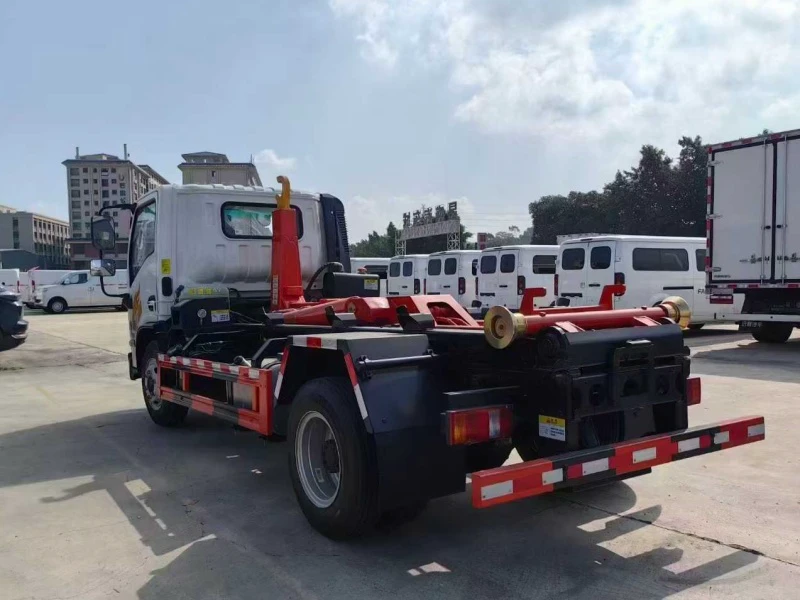

Product Introduction: Sinotruk Homan 18-Ton Hook Arm Garbage Truck

1. Product Overview

The Chengliwei CLW5182ZXXBHJ is a heavy-duty detachable container transport vehicle built on the robust Sinotruk Homan commercial truck platform. Designed for efficient waste logistics operations, this 18-ton capacity hook lift garbage truck enables rapid container exchange for municipal solid waste management, industrial waste transportation, and bulk material handling. Featuring advanced hydraulic hook arm technology and intermodal container compatibility, it provides versatile waste transfer solutions for urban sanitation services, recycling operations, and construction site waste removal.

2. Core Specifications

• Product Model: Chengliwei CLW5182ZXXBHJ Hook Lift Refuse Truck

• Environmental Compliance: China VI (Guoliu) Emission Standard certified diesel vehicle

• Gross Vehicle Weight Rating (GVWR): 18,000 kg

• Legal Payload Capacity: 10,505 kg to 10,805 kg

• Kerb Weight: 7,000 kg to 7,300 kg

• Maximum Road Speed: 89 km/h

• Container System: Standard detachable waste container compatibility

• Fuel System: Diesel-powered commercial transport vehicle

3. Dimensions, Body Construction & Engineering Design

• Overall Vehicle Dimensions (L×W×H): Multiple configurations: 6,530 mm / 6,830 mm / 7,100 mm / 7,300 mm length × 2,500 mm width × 3,100 mm height

• Chassis Frame Construction: Features heavy-duty 250mm triple-layer reinforced ladder frame providing exceptional structural integrity and maximum load-bearing capacity for heavy material transport

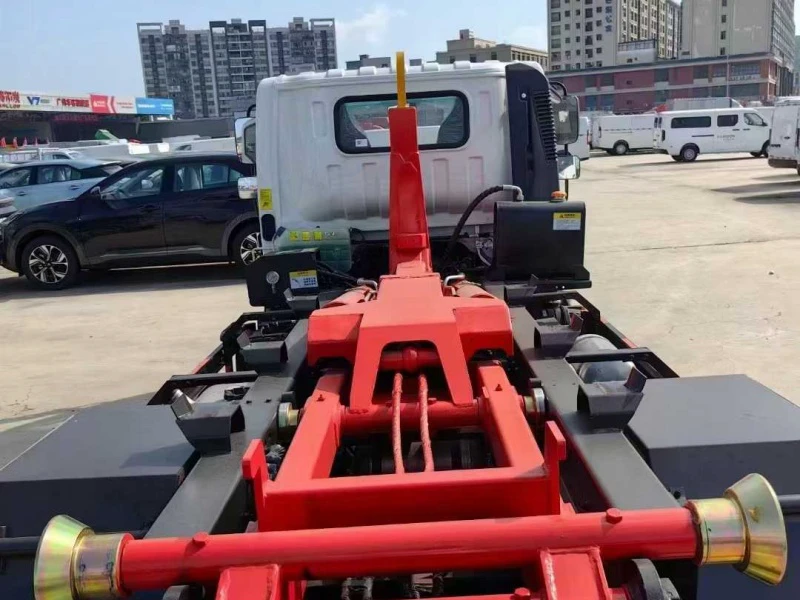

• Hook Arm System Engineering: Manufactured from premium T710 high-tensile alloy steel plates using precision robotic welding technology ensuring superior durability and long-term operational reliability in demanding conditions

• Design Philosophy: Optimized for rapid container interchange operations, minimized vehicle downtime, and enhanced operational flexibility. Strategic weight distribution engineering improves vehicle stability control and road safety performance

4. Chassis & Powertrain System Advantages

• Chassis Platform: Sinotruk ZZ1188G10FB0 / ZZ1188G17FB0 heavy-duty two-axle commercial truck chassis

• Engine Performance: Powered by Weichai 190 horsepower diesel engine delivering excellent torque characteristics, superior fuel efficiency, and reliable power delivery for long-distance transport operations

• Transmission System: Equipped with Fast Gear 8-speed manual transmission providing smooth gear shifting performance, enhanced durability, and optimized power transfer efficiency

• Axle & Suspension System: Robust 153 series heavy-duty rear axle configuration with multi-stage parabolic leaf spring suspension (11/9+8, 9/11+8, 8/10+8 variants) ensuring maximum load support capability and improved ride comfort on various road surfaces

• Tire & Wheel Configuration: 10.00R20 18PR steel-belted radial commercial tires (alternative 11R22.5 18PR option) providing superior road traction performance, enhanced load distribution, and long service life

• Operator Cabin Environment: Sinotruk Homan wide-body commercial cabin (2.1 meter width, single/extended configurations) featuring factory-installed electronic climate control system, premium metallic paint finish, complete interior trim package, luxury leather seating, hydraulic power steering system, full air brake system, central locking mechanism, power window controls, and remote keyless entry system

5. Key Features & Manufacturer Capabilities

• Hydraulic System Technology: Incorporates WanYe high-pressure hydraulic gear pumps and large-diameter pneumatic control multi-directional valve blocks with integrated safety valve protection systems for reliable hydraulic performance and operational safety assurance

• Safety Engineering Features: Includes bi-directional safety valves integrated within hydraulic cylinders, reinforced hydraulic rear support legs, and enhanced transverse container locking mechanisms ensuring maximum operational security and load stability

• Control & Operation Systems: Features dual-mode manual and remote control operation (wired control panel + wireless remote transmitter) providing flexible container handling capabilities and operator convenience

• Container Compatibility: Designed for standardized detachable waste container systems with quick-connect interfaces for rapid container exchange operations and multi-point collection efficiency

• Chengli Specialized Vehicle Manufacturing Advantages: As a leading Chinese specialized vehicle manufacturer and exporter, Chengli provides comprehensive container system customization, rigorous quality assurance testing, nationwide after-sales service network, and competitive commercial vehicle pricing. This model demonstrates their engineering expertise in developing high-efficiency, multi-functional waste transport solutions specifically designed for municipal sanitation departments, professional waste management companies, industrial facility operators, and construction project managers requiring versatile material handling equipment and optimized logistics operations in modern waste management and material transport applications.
