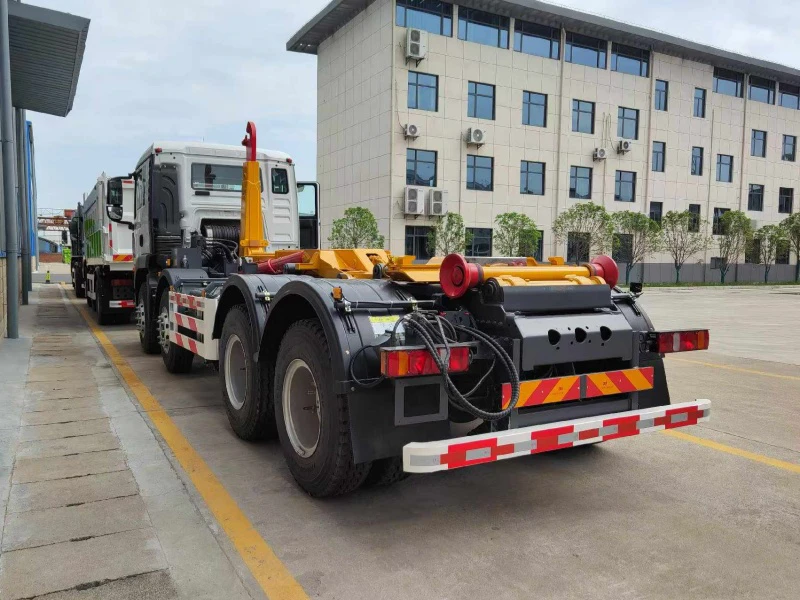

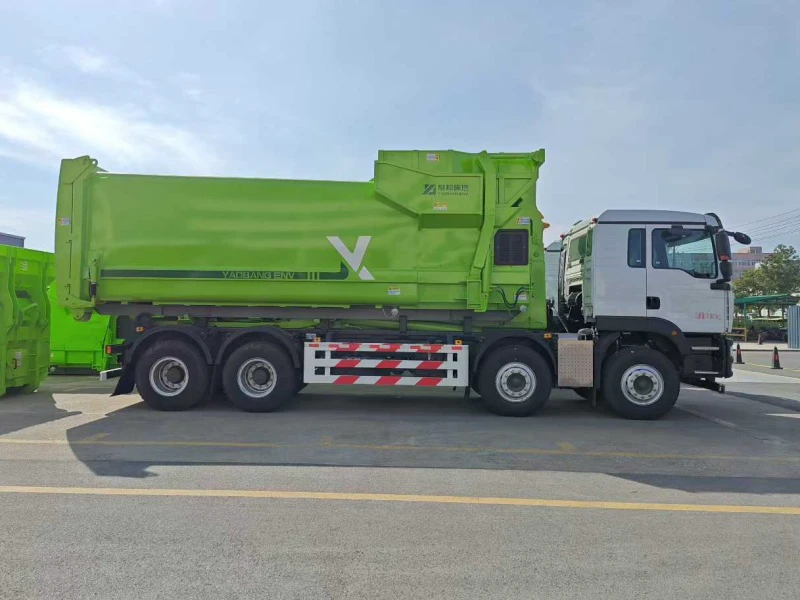

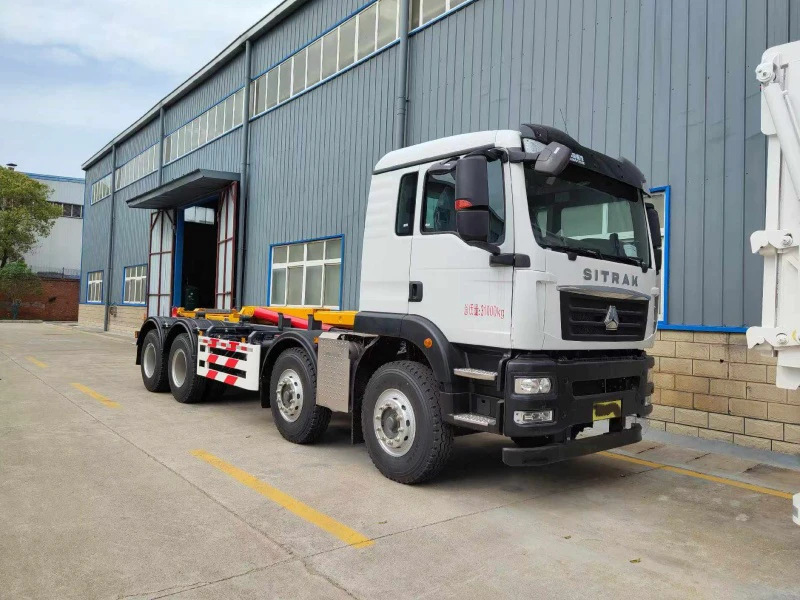

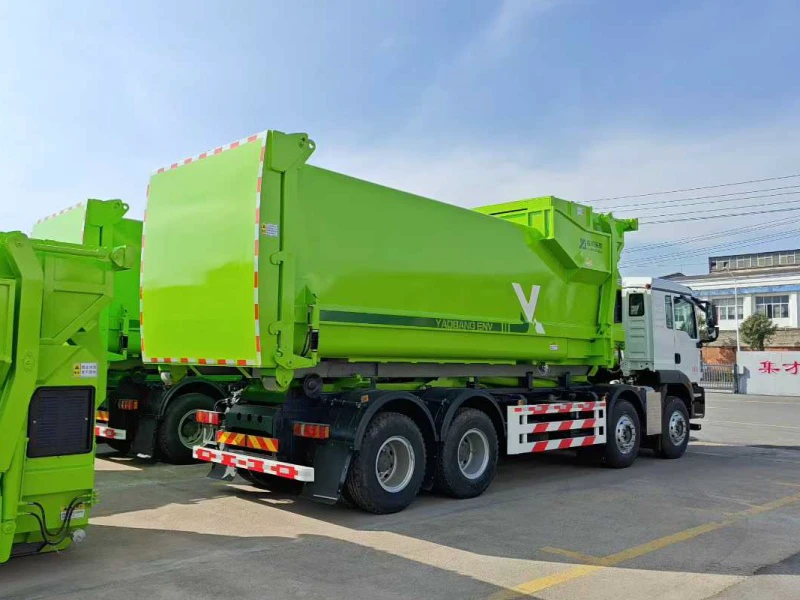

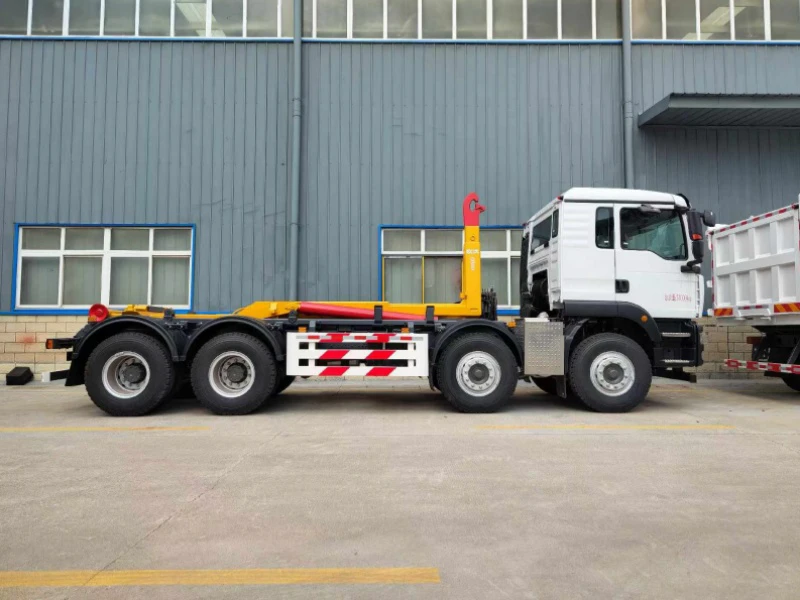

SITRAK 8x4 Hook Lift Refuse Truck | Sinotruk Shandeka Tandem Rear Axle Hook Arm Garbage Truck | 350HP Heavy-Duty Sanitation Vehicle | Chengli Group Large-Scale Waste Transfer Solution

I. Product Introduction
The Sinotruk Shandeka Tandem Rear Axle Hook Arm Garbage Truck is a robust heavy-duty sanitation vehicle built on the reliable Sinotruk Shandeka chassis platform. Designed for large-scale waste transfer operations, it is fully compliant with national standards and certification requirements. Ideal for interfacing with urban waste transfer stations and regional compacted waste sites, this heavy-duty garbage truck offers superior power and loading capacity, making it a core asset in municipal solid waste management, construction debris removal, and other demanding sanitation applications.

II. Key Specifications

Chassis Model: ZZ5256XXYN504GF1 (Sinotruk Shandeka specialized sanitation chassis)
Engine: Weichai 350 HP China VI engine
Cab: G5-M Series wide-body cab
Wheelbase: 4300+1350mm
Transmission: Howo 10-speed manual (12-speed optional)
Front Axle: 7.5-ton heavy-duty front axle
Rear Axle: 11-ton tandem rear axle (16-ton wheel reduction axle optional)
Frame: 280mm reinforced beam
Tires: 11.00R20 steel radial tires
Fuel Tank: 300L aluminum fuel tank

III. Design & Structure
This heavy-duty hook arm garbage truck features a professional design tailored for high-intensity sanitation work. Based on the proven Sinotruk Shandeka heavy truck platform, its wheelbase configuration ensures both highway stability and operational maneuverability. The vehicle is compatible with 18-20 cubic meter large-capacity compactor waste containers, constructed from high-strength structural steel and featuring fully sealed, leak-proof designs to meet environmental and efficiency standards. The design emphasizes optimized power matching and reinforced load-bearing structures to ensure reliability and durability under continuous heavy-duty operations.

IV. Technical & Performance Features

Powertrain: Equipped with a Weichai 350 HP China VI engine providing strong power output and ample torque, paired with a Howo 10-speed (or optional 12-speed) transmission for reliable and efficient power delivery in heavy-load and long-distance transport scenarios.
Chassis & Load Capacity: The 280mm reinforced frame, combined with a 7.5-ton front axle and 11-ton tandem rear axle (optional 16-ton wheel reduction axle), forms a solid and durable load-bearing platform. The 11.00R20 steel radial tires offer excellent load capacity and road adaptability.
Braking & Safety: Features a standard four-channel ABS system, Bosch steering, and air braking to ensure effective braking performance and operational safety under heavy loads. Automatic air conditioning enhances driver comfort.
Driver Comfort: Includes air-suspension seats, power windows, central locking, remote keyless entry, multifunctional adjustable steering wheel, and heated power mirrors to improve the driving experience during extended operations.
Superstructure: Compatible with 20-25 ton telescopic hook arm systems, supported by professional hydraulic and control systems for safe and efficient loading and unloading of large compactor waste containers.

V. Product Advantages & Manufacturer Strengths
Product Advantages:

Full Regulatory Compliance: Complete certification for legal operation and licensing.
Flexible Configuration: Options include 20-25 ton telescopic arms, 18-20 cubic meter waste containers, multiple transmission and rear axle configurations.
Powerful Performance: Weichai 350 HP engine ensures ample power reserve.
Superior Load Capacity: 280mm reinforced beam and 11-ton tandem rear axle provide reliable heavy-load performance.
Comfort & Intelligence: Air-suspension seats, automatic AC, multifunctional steering wheel, and other features enhance driving comfort.

Chengli Group Manufacturing Capabilities:
Chengli Group possesses extensive experience and technical expertise in heavy-duty sanitation vehicle manufacturing. With complete capabilities spanning chassis selection, structural reinforcement, and superstructure integration, the company maintains a professional technical team and standardized processes for Sinotruk chassis modifications, ensuring high-quality production standards. Chengli Group offers a comprehensive after-sales service network for heavy vehicles, including professional technical support, timely parts supply, and systematic operational guidance.
