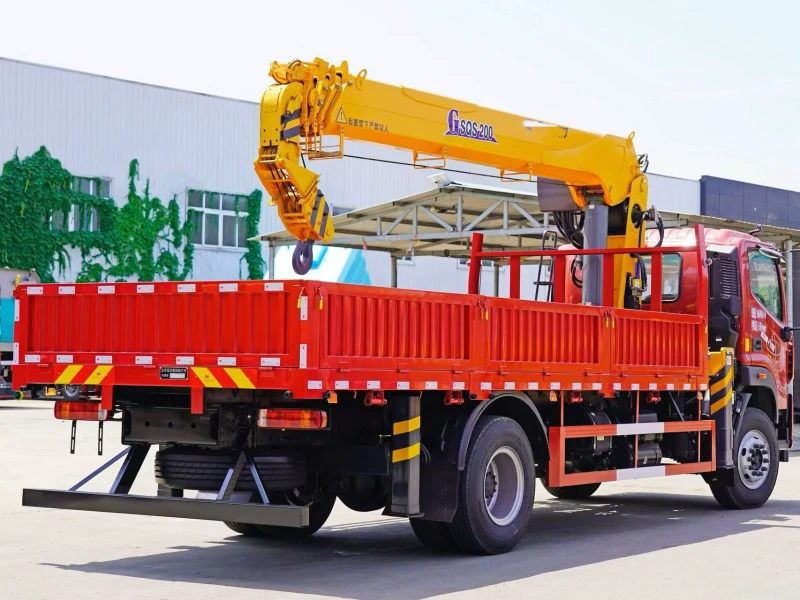

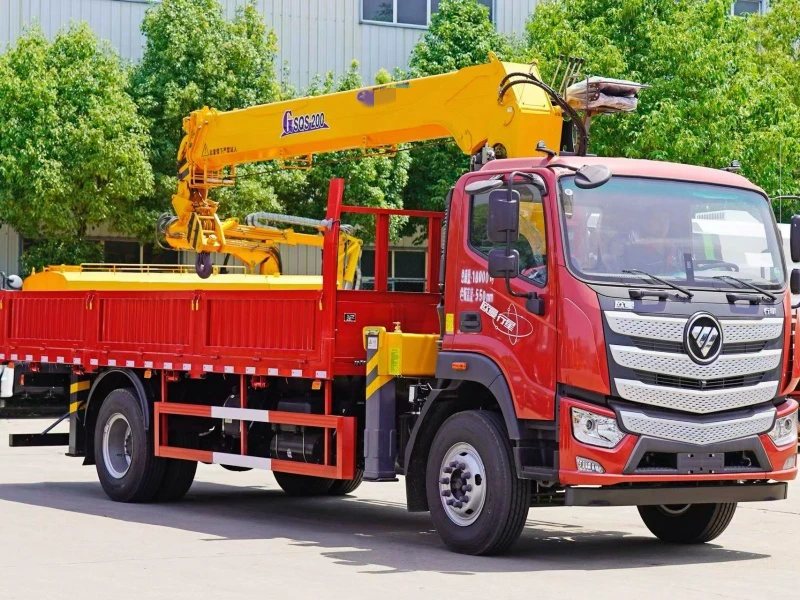

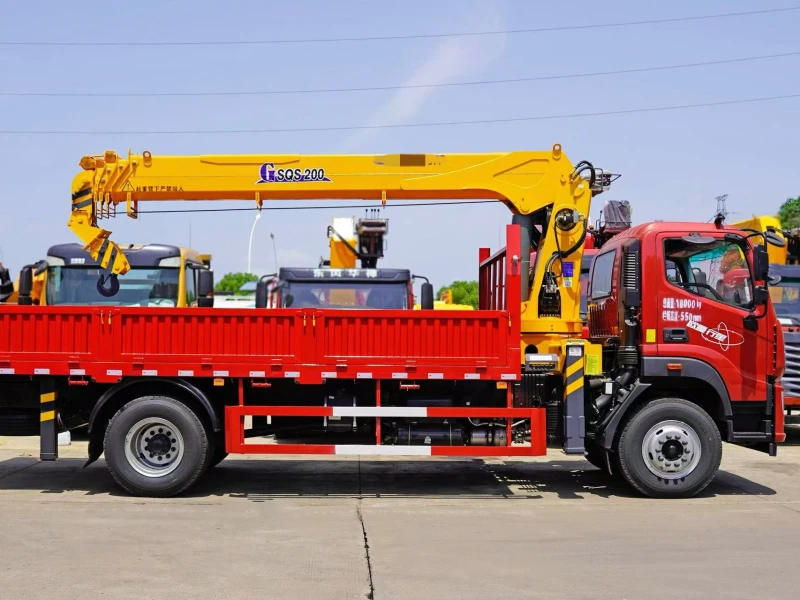

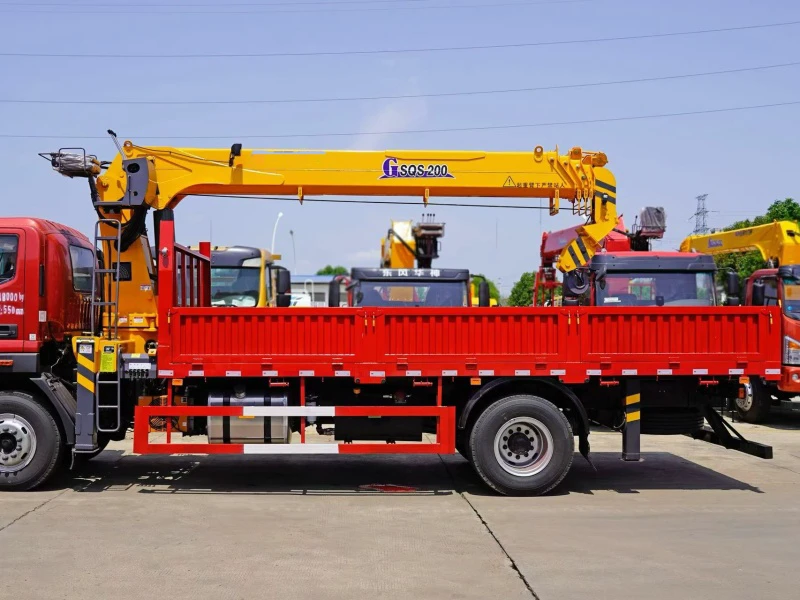

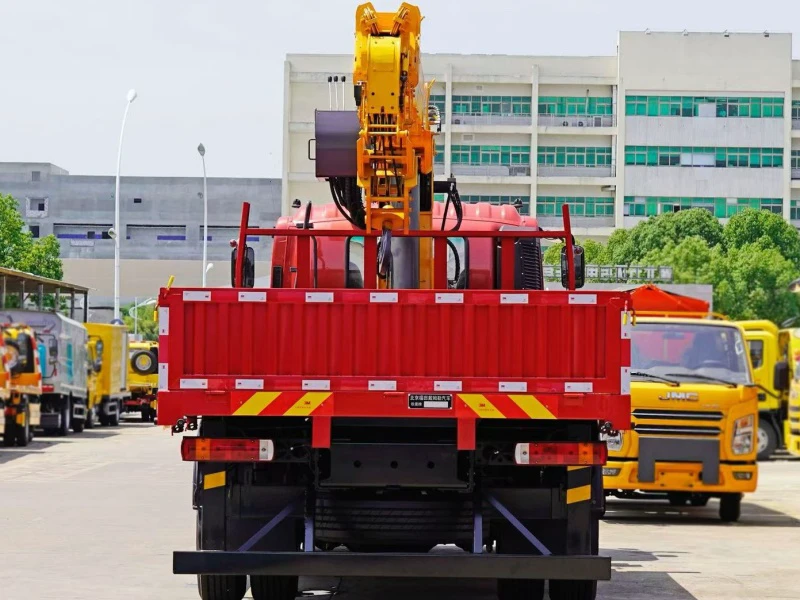

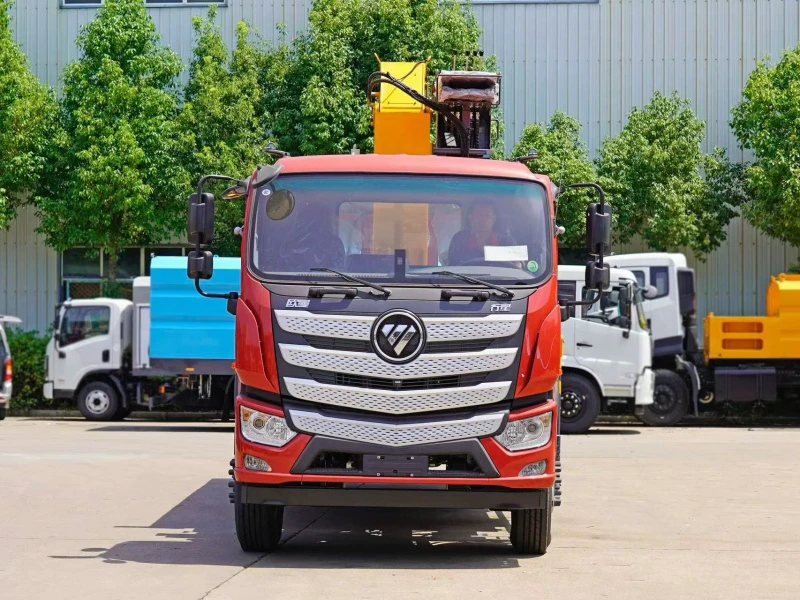

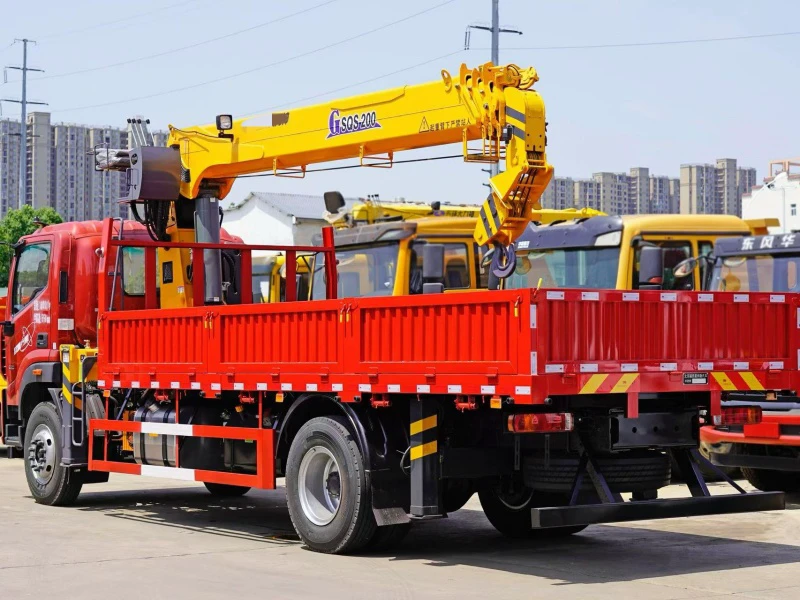

Foton 4×2 8-Ton Boom Crane Truck

Foton 4×2 8-Ton 5-Section Boom Crane Truck – Heavy-Duty Lifting & Transport Solution

I. Product Introduction

The Foton 4×2 8-Ton 5-Section Boom Crane Truck is a versatile and powerful lifting and transport vehicle designed for construction sites, equipment installation, material handling, and logistics operations. Built on the reliable Foton single-row cab chassis, this crane truck is powered by a China VI Yuchai 220 HP engine paired with a Fast 8-speed transmission. Featuring an 8-ton 5-section boom crane with a double-pump hydraulic system, this 8-ton crane truck delivers exceptional lifting height of 20.1 meters and a working radius of 18.1 meters. The 6.1-meter cargo box provides ample space for transporting building materials, steel structures, pipes, and other heavy cargo. As a trusted crane truck manufacturer, CLW Group combines rugged engineering with practical design to produce reliable heavy-duty lifting vehicles for global markets.

II. Core Parameters

III. Exterior Dimensions, Cargo Box Specifications & Design Philosophy

• Overall Dimensions: 9,000 mm × 2,550 mm × 3,850 mm – designed for excellent maneuverability in urban and suburban environments while maintaining stability during crane operations.

• Cargo Box Dimensions: 6,100 mm × 2,450 mm × 550 mm – a spacious platform for transporting building materials, steel structures, pipes, machinery, and other heavy cargo.

• Cargo Box Construction: Heavy-duty steel platform with reinforced floor and side walls to withstand heavy loads and rough handling.

• Design Philosophy: "Lift and carry in one vehicle" – This crane truck combines a high-capacity cargo box with a powerful 8-ton crane truck, eliminating the need for separate lifting and transport vehicles. The triple-layer frame provides exceptional stability during both crane operations and highway travel.

IV. Structural Advantages – Engine, Transmission, Frame & Crane System

Chassis & Powertrain

• Engine (Yuchai 220 HP China VI): Delivers strong low-end torque for heavy loads and crane PTO operation while meeting China VI emission standards. Proven reliability and fuel efficiency for demanding work cycles.

• Transmission (Fast 8-speed): The 8-speed manual gearbox offers a wide gear ratio range for smooth starts under full load and fuel-efficient highway cruising. Factory-equipped PTO and remote throttle provide seamless crane operation.

• Frame (Engineering-Grade Triple-Layer Frame): The triple-layer frame is specifically engineered for crane truck applications, offering exceptional torsional rigidity – critical for 8-ton crane truck operations and heavy hauling.

• Tires: 10.00R20 steel cord tires provide excellent load capacity, puncture resistance, and stability for demanding work environments.

• Cab Features: The Foton single-row cab is equipped with original air conditioning, tachograph, power windows, remote key, and air suspension seat – reducing driver fatigue during long workdays.

Crane System – 8-Ton 5-Section Boom

• Crane Capacity: 8-ton crane truck – suitable for lifting heavy equipment, prefabricated concrete elements, steel beams, and industrial machinery.

• 5-Section Boom: The 5-section boom design provides exceptional reach with smooth extension and retraction.

• Max Lifting Height: 20.1 meters – high enough for multi-story construction projects and overhead installations.

• Max Working Radius: 18.1 meters – reach over obstacles or across wide work areas.

• 360° Full Hydraulic Full Rotation: Continuous rotation allows precise positioning without repositioning the truck.

• Upper Position Operation: The operator controls the crane from the upper station for optimal visibility of the load and work area.

• Dual-Pump Flow Merging: Provides faster boom extension/retraction and smoother simultaneous movements, improving.

• High-Power Hydraulic Cooler: Prevents overheating during intensive crane operations, ensuring consistent performance and longer component life.

• Limit Alarm: Audible alert when approaching maximum working limits, enhancing safety.

• Automatic Hook Retraction: Convenient feature for storing the hook after work, protecting the hook and cable from damage.

• Single-Chamber Hydraulic Rear Outriggers: Provide a stable lifting platform, reducing chassis twist and improving safety.

V. Product Features & CLW Group Manufacturer Advantages

Product Features

• 8-Ton 5-Section Boom Crane: The 8-ton crane truck with a 5-section boom offers an exceptional combination of lifting capacity, reach (18.1 m radius), and height (20.1 m). Ideal for construction, infrastructure, and industrial projects.

• Engineering-Grade Triple-Layer Frame: The triple-layer frame provides unmatched torsional rigidity, ensuring the chassis remains stable even when the crane operates at full extension. This is a hallmark of quality heavy-duty lifting vehicle design.

• Double-Pump Hydraulic System: Dual-pump flow merging delivers faster operation and smoother simultaneous movements, improving productivity on job sites.

• Spacious 6.1-Meter Cargo Box: The 6,100 mm long cargo box can carry long materials such as steel pipes, beams, and rebar, or multiple pallets of construction supplies.

• China VI Compliance: The Yuchai 220 HP engine meets China VI emission standards, making this crane truck suitable for markets with strict environmental regulations.

• Operator Comfort: The Foton cab features original air conditioning, air suspension seat, power windows, and remote key – reducing fatigue during long workdays.

• Safety Features: Limit alarm, automatic hook retraction, and hydraulic outriggers ensure safe operation in all conditions.

• All-in-One Efficiency: Combines a heavy-duty cargo truck and a high-capacity crane in a single vehicle, saving fleet costs and reducing job site congestion.

CLW Group Manufacturer Advantages

CLW Group is a leading crane truck manufacturer in China's special-purpose vehicle industry, bringing decades of expertise to every crane truck and heavy-duty lifting vehicle. Key advantages include:

• Large-Scale Production: Modern facilities with high annual capacity ensure short delivery lead times and consistent quality.

• Competitive Crane Truck Price: Economies of scale allow CLW Group to offer factory-direct crane truck pricing without compromising on quality.

• Comprehensive Quality Control: From frame welding to crane calibration, every crane truck undergoes strict pre-delivery inspection.

• Technical R&D Strength: In-house engineering team continuously optimizes crane-chassis integration and frame design for maximum stability.

• Complete Compliance Certification: All vehicles are certified under national standards with full documentation for smooth registration.

• Global Service Network: Export-ready with after-sales support and spare parts availability worldwide.

• Customization Capability: Options for crane brand, cargo box length, outrigger configuration, and additional hydraulic functions.
