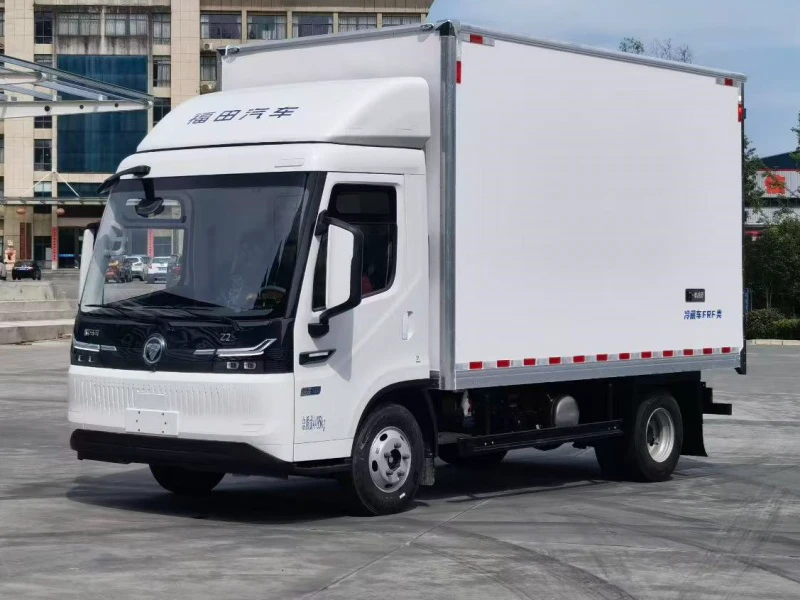

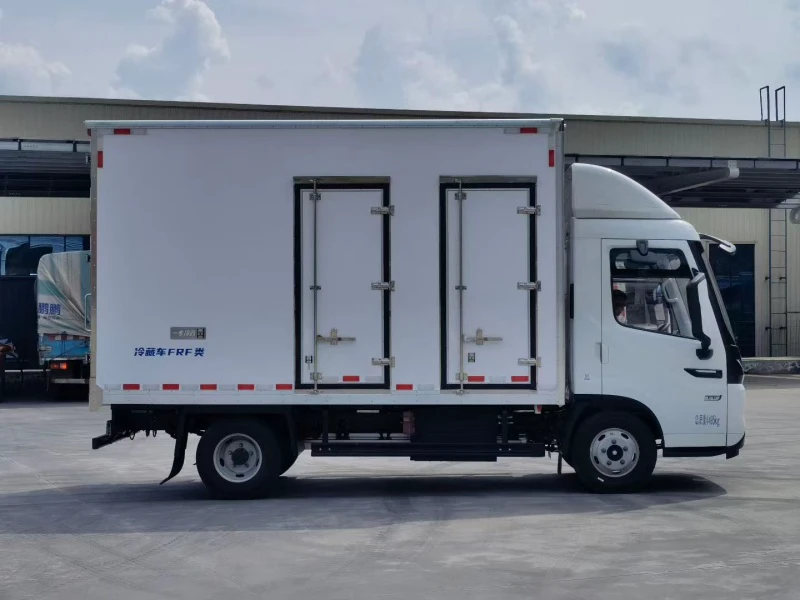

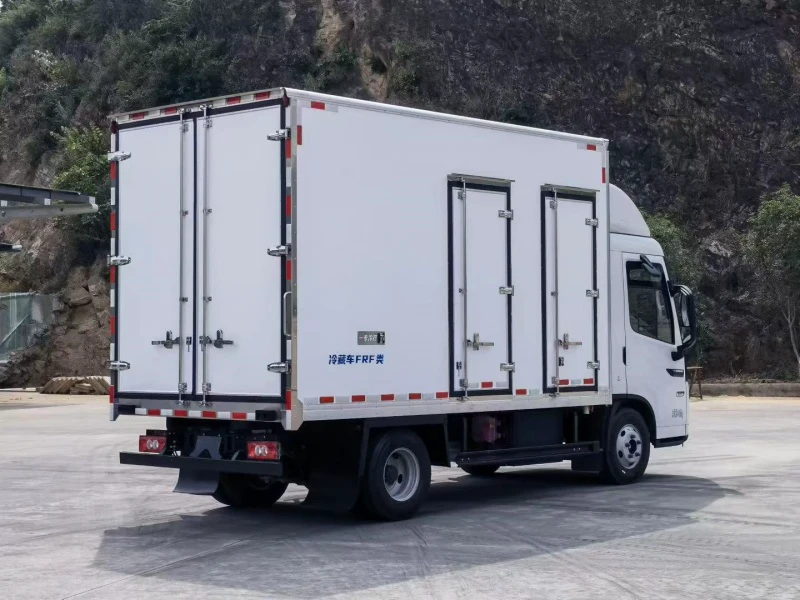

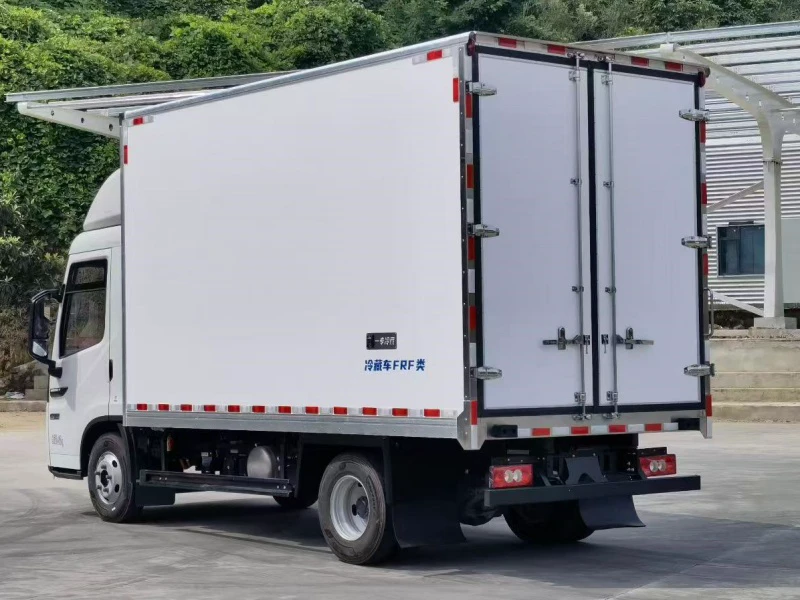

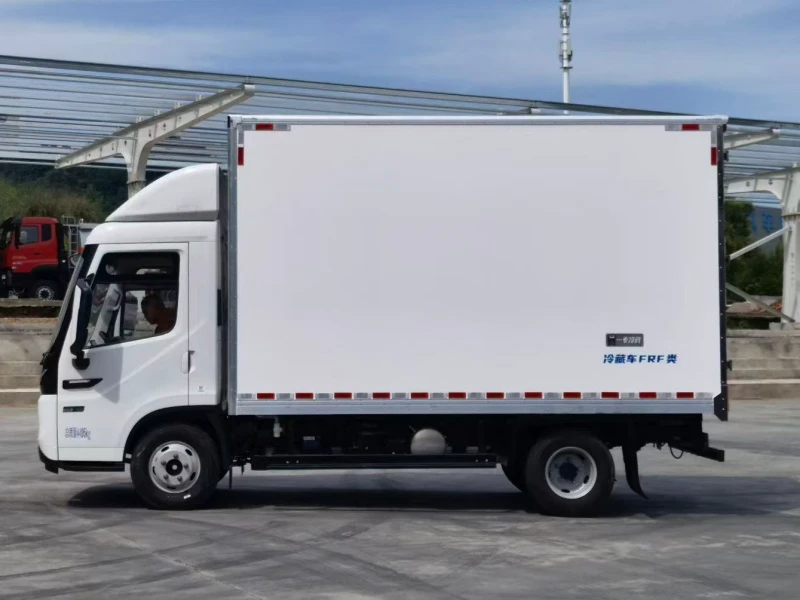

Foton 4.2m Electric Refrigerated Truck – Cold Chain Solution with CATL Battery & Polyurethane Insulated Box

I. Product Introduction

The Foton 4.2m Electric Refrigerated Truck is a pure electric cold chain vehicle designed for urban and suburban temperature-controlled logistics. Powered by a 120.27 kWh CATL lithium iron phosphate battery and built on Foton's dedicated new energy light truck platform, this Foton 4.2m refrigerated truck delivers exceptional performance for fresh food distribution, pharmaceutical cold chain, and frozen product transport. Featuring a polyurethane high-pressure foam injection insulated cargo box with superior thermal retention, durability, and energy efficiency, this 4.2m electric refrigerated truck is the ideal choice for logistics operators seeking to electrify their refrigerated fleets.

II. Key Specifications

III. Foton Qimingxing Platform – Dedicated New Energy Architecture

The Foton 4.2m Electric Refrigerated Truck is built on Foton's Qimingxing dedicated new energy platform, a pure electric light truck architecture developed with over RMB 1.7 billion in investment. Unlike "fuel-to-electric" conversions, this purpose-built platform addresses the key pain points of electric logistics vehicles: range, interior space, and intelligence.

Native Electric Advantages

• Optimized Space: Dedicated chassis layout maximizes cabin space and cargo volume

• Higher Efficiency: Drive system efficiency reaches 95.7%, with energy consumption reduced by 6.5 kWh per 100 km compared to competitors

• Longer Range: Delivers a CLTC range of up to 607 km (with 165 kWh battery option)

• Ultra-Fast Charging: Standard 2C fast charging enables 20%–80% charge in just 18 minutes

• Extended Warranty: 8-year / 800,000 km warranty on the three-electric system

IV. High-Performance Polyurethane Insulated Cargo Box

The Foton 4.2m refrigerated truck features a cargo box constructed with polyurethane high-pressure foam injection technology, offering superior insulation, durability, and energy efficiency.

Polyurethane Insulation Advantages

• Superior Thermal Retention: Polyurethane foam has an ultra-low thermal conductivity of 0.018–0.023 W/(m·K), making it the most effective insulation material for refrigerated applications

• High Closed-Cell Rate: Over 95% closed-cell structure prevents moisture absorption, ensuring consistent insulation performance over the vehicle's service life

• Seamless Joint Design: High-pressure foam injection fills all gaps between panels, eliminating thermal bridges and preventing cold air leakage

• Structural Strength: Polyurethane panels with glass fiber reinforced plastic (FRP) skins provide excellent impact resistance and durability for daily loading/unloading operations

Cargo Box Construction

• High-Pressure Foam Injection: Polyurethane foam is injected under high pressure into the cavity between inner and outer FRP panels, completely filling all gaps and ensuring seamless insulation layer connection

• Corrosion-Resistant Materials: FRP inner and outer skins are non-absorbent, easy to clean, and resistant to corrosion from frequent washing and disinfection

• Airtight Sealing: Labyrinth-type rubber door seals prevent temperature loss and maintain biosecurity for food products

V. Structural Advantages – Battery, Motor, Chassis & Refrigeration

Battery & Powertrain

• 120 kWh CATL LFP Battery: Industry-leading battery technology with high energy density, long cycle life, and excellent thermal stability. CATL is the world's largest EV battery manufacturer, ensuring quality and reliability.

• Zhide Electric Motor: High-efficiency permanent magnet synchronous motor delivering strong low-end torque for stop-and-go urban delivery routes

• 2C Fast Charging: 20%–80% SOC charge in approximately 18 minutes – perfect for quick charging during loading/unloading breaks

Chassis & Cab

• 6.0T Vehicle Class: Robust chassis design with 2,120 mm wide cab for driver comfort

• First-In-Class 470mm Step Height: Industry-leading low step height for easy entry/exit

• 1.8m Interior Height: Ample headroom for driver movement within the cab

• 270L Storage Space: 16 storage compartments for organized tool and document storage

VI. Smart & Safety Features

The Foton 4.2m Electric Refrigerated Truck is equipped with advanced intelligent and safety systems:

• Self-Developed Domain Controller (FEP 2.0 Architecture): Advanced electronic control system for optimized power management and diagnostics

• L2-Level Driver Assistance: Supports Level 2 assisted driving features for enhanced safety

• Voice Control: Wake-up-free voice control for over 100 functions

• Heavy-Duty "Shield Body" Design: Uses high-strength steel for enhanced torsional rigidity and crash protection

• Corrosion Resistance: Over 40% of components are galvanized steel with multi-layer paint; frame and fasteners use special anti-corrosion processes for 7–10 years of rust protection

• Climbing & Snow Modes: Standard hill-climbing gear and rain/snow driving modes for various road conditions

VII. Applications – Electric Cold Chain Transport

This electric cold chain transport vehicle is specifically designed for:

• Fresh Food Distribution: Temperature-controlled transport of fruits, vegetables, dairy, and meat products

• Pharmaceutical Cold Chain: Transport of vaccines, biologics, and temperature-sensitive medicines

• Frozen Product Logistics: Ice cream, frozen seafood, frozen prepared foods

• E-commerce Cold Chain: Last-mile delivery of temperature-sensitive online grocery orders

• Catering & Food Service: Supply chain for restaurants, hotels, and institutional kitchens

• Urban Logistics: City center delivery with zero-emission access to low-emission zones

VIII. Chengli Group Manufacturer Advantages

Chengli Group (CLW Special Purpose Vehicle Co., Ltd.) is a leading manufacturer of specialized vehicles in China, with a strong reputation in the refrigerated truck and electric sanitation vehicle segments.

• Industry Leader: Chengli Group holds designations from the China Ministry of Industry and Information Technology for specialized vehicle manufacturing and has extensive experience in cold chain equipment production.

• Foton Partnership: Chengli Group integrates its advanced polyurethane insulated cargo boxes with Foton's Qimingxing dedicated new energy platform, ensuring optimal performance and seamless integration.

• Global Presence: Since 2004, Chengli (CLW) vehicles have been exported worldwide, building a reputation for quality and reliable after-sales service.

• Integrated Manufacturing: As a core enterprise of Chengli Group, the company operates a complete production chain from chassis integration to body fabrication, ensuring quality control and cost efficiency.

• Quality Assurance: Strict quality control at every stage, from material selection to final assembly, including cargo box pressure testing and refrigeration system calibration.

• After-Sales Support: Comprehensive after-sales service, including spare parts availability and technical support.

This Foton 4.2m Electric Refrigerated Truck represents Chengli Group's commitment to delivering efficient, durable, and environmentally friendly cold chain solutions for modern urban logistics.
