JMC 4×2 Refrigerated Truck – 3.7-Meter Cargo Box for Urban Cold Chain Delivery

I. Product Introduction

The JMC 4×2 refrigerated truck is a compact and efficient cold chain vehicle designed for urban and suburban frozen and chilled cargo transport. Built on the reliable JMC Shunda single-row cab chassis, this vehicle is powered by a 122 HP ISUZU 493 engine, delivering dependable performance for last-mile logistics, fresh food distribution, pharmaceutical delivery, and dairy transport. Equipped with a 3.7-meter insulated cargo box, this 3.7-meter refrigerated truck offers excellent maneuverability for narrow city streets while maintaining temperature stability for temperature-sensitive goods.

II. Core Parameters

III. Exterior Dimensions, Box Specifications & Design Philosophy

• Overall Dimensions: 5,605 × 2,000 × 2,920 mm – compact footprint optimized for urban cold chain delivery routes, narrow streets, and underground parking garages.

• Cargo Box Dimensions: 3,680 × 1,840 × 1,850 mm – approximately 12.5 cubic meters of insulated storage capacity, ideal for last-mile refrigerated distribution.

• Box Construction: The cargo body is manufactured using vacuum adsorption and hydraulic press integrated production line technology – a state-of-the-art process ensuring uniform panel bonding without bubbles or delamination.

• Panel Material: Inner and outer walls are constructed from high-quality fiberglass (non-light-absorbing, high insulation, hard, oxidation-resistant). The middle insulation layer is XPS extruded polystyrene or PUR polyurethane foam.

• Insulation Thickness: 80 mm (8 cm) – meets national Class A insulation standards.

• Floor Material: Aluminum checkered plate – durable, slip-resistant, and easy to clean.

• Sealing: Labyrinth-type rubber door seals ensure airtight integrity.

• Hardware: Aluminum alloy edge trim, stainless steel corners, stainless steel door locks, hinges, and door frames – all corrosion-resistant for long service life.

• Lighting: Energy-efficient LED interior lights provide illumination without generating excess heat.

• Design Philosophy: "Compact efficiency + ISUZU reliability" – This light-duty refrigerated truck combines a proven ISUZU powertrain with a high-quality insulated cargo box, making it ideal for urban cold chain operators requiring maneuverability and temperature stability.

IV. Structural Advantages – Engine, Chassis, Transmission & Cargo Box

JMC Powertrain & Chassis

• Engine (ISUZU 493 – 122 HP): Delivers 122 HP with strong low-end torque for stop-and-go urban delivery routes. The 2.8L displacement provides ample power for fully loaded refrigerated transport while maintaining excellent fuel efficiency (10.5 L/100 km). This ISUZU 493 engine is globally trusted for durability and low maintenance costs.

• Engine Fuel Preheater: Standard engine fuel preheater ensures reliable cold starts in winter conditions – critical for year-round refrigerated logistics.

• Transmission (Germany Getrag 5-Speed Manual): Factory-matched Germany Getrag transmission provides smooth, precise shifting with gear ratios optimized for urban delivery applications.

• Wheelbase (2,800 mm): Provides a tight turning radius for navigating narrow city streets, residential alleys, and loading docks.

• Brake System (Air Brake): Reliable air brake system for fully loaded refrigerated transport, with ABS ensuring stability under emergency braking.

• Tires (6.50 Steel Cord): Durable, puncture-resistant tires suitable for daily urban delivery routes.

• Suspension & Steering: Power steering reduces driver fatigue during frequent maneuvering. Chassis components are sourced from international first-tier suppliers for stable, reliable operation.

Cab Comfort & Driver Features

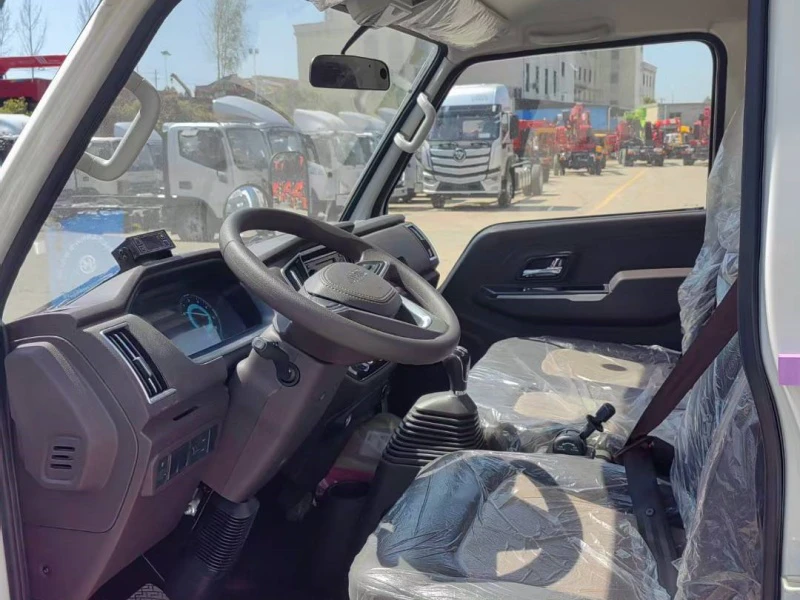

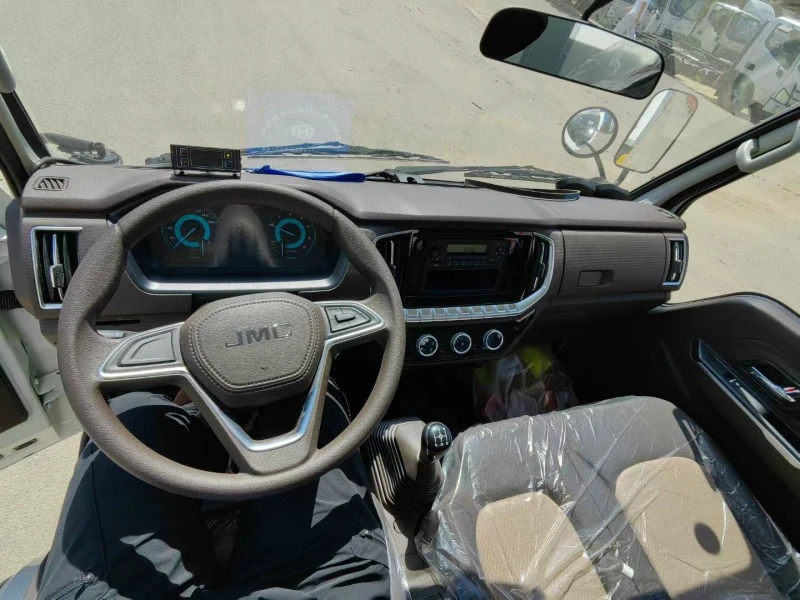

• JMC Shunda Cab (1,700 mm wide): Spacious single-row cab with excellent visibility for urban navigation.

• Comfort & Convenience: Power windows, power steering, adjustable multi-function steering wheel, and original air conditioning with dual compressor brackets – pre-wired and pre-mounted for easy refrigeration unit installation.

• Safety: ABS and air brake system ensure safe operation under all load conditions.

Cargo Box & Refrigeration Preparation

• Box Dimensions (3,680 × 1,840 × 1,850 mm): Approximately 12.5 m³ capacity – ideal for frozen food transport, pharmaceutical cold chain, seafood logistics, dairy delivery, and fresh produce distribution.

• Insulation: 80mm XPS/PUR foam core with fiberglass skins provides superior thermal insulation, maintaining stable interior temperatures for chilled and frozen cargo.

• Refrigeration Ready: The vehicle comes standard with an original AC system featuring dual compressor brackets, specifically designed to accommodate a refrigeration unit. Optional domestic or imported refrigeration units available, with minimum temperature down to -18°C.

V. Product Features & Manufacturer Advantages

Product Features

• ISUZU 493 Engine Reliability: Proven 122 HP engine with 2.8L displacement – globally trusted for durability, low maintenance costs, and excellent fuel efficiency (10.5 L/100 km).

• Germany Getrag Transmission: Factory-matched 5-speed manual transmission provides smooth, precise shifting for urban delivery routes.

• Compact 3.7-Meter Cargo Box: Approximately 12.5 m³ capacity – ideal for last-mile refrigerated distribution in urban environments.

• 80mm High-Density Insulation: XPS/PUR foam core with fiberglass skins meets national Class A insulation standards, maintaining stable temperatures for chilled and frozen food transport.

• Vacuum-Bonded Construction: Advanced manufacturing technology ensures bubble-free, high-strength panel bonding – preventing delamination and ensuring long-term durability.

• Engine Fuel Preheater: Standard equipment for reliable cold starts in winter – essential for year-round pharmaceutical cold chain and food logistics.

• Refrigeration-Ready AC System: Original air conditioning with dual compressor brackets, pre-installed for easy refrigeration unit mounting.

• Corrosion-Resistant Hardware: Aluminum alloy trim and stainless steel door components resist rust from frequent washing and disinfection.

• Driver Comfort Package: Power windows, power steering, multi-function steering wheel, and ABS reduce driver fatigue on multi-stop routes.

• Versatile Applications: Suitable for frozen food transport, pharmaceutical cold chain, seafood logistics, dairy delivery, fresh produce transport, and catering supply.

Manufacturer Advantages

JMC (Jiangling Motors Corporation) combines ISUZU engineering expertise with local manufacturing excellence, establishing itself as a professional JMC refrigerated truck manufacturer. Key advantages include:

• ISUZU Licensed Technology: Factory-integrated powertrain based on authentic ISUZU engineering, ensuring seamless compatibility and optimal performance for every light-duty refrigerated truck.

• International Supplier Network: Chassis components sourced from global first-tier suppliers for stable, reliable operation.

• Proven Light-Duty Platform: The JMC Shunda chassis is a widely trusted platform for urban refrigerated box truck conversions.

• Refrigeration-Ready Design: Factory AC system with dual compressor brackets specifically engineered for refrigeration unit installation.

• Fuel Efficiency Leader: 10.5 L/100 km fuel consumption reduces operating costs for daily urban cold chain delivery routes.

• Compact Urban Maneuverability: 2,800 mm wheelbase and 5,605 mm overall length allow easy navigation of narrow streets, alleys, and loading docks.

• Global Service Network: Supported by JMC's extensive after-sales network for parts and service availability.
